LIRe 源代码分析 2：基本接口（DocumentBuilder）
本文分析LIRe的基本接口。LIRe的基本接口完成的工作不外乎两项：生成索引和检索。生成索引就是根据图片提取特征向量，然后存储特征向量到索引的过程。检索就是根据输入图片的特征向量到索引中查找相似图片的过程。

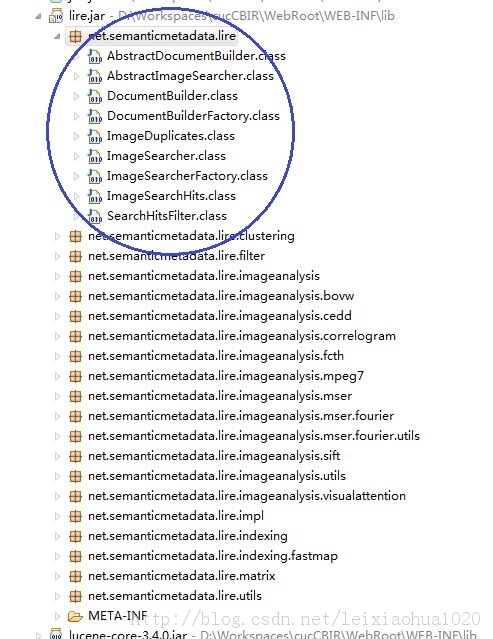

LIRe的基本接口位于net.semanticmetadata.lire的包中，如下图所示：
将这些接口分为2类：
DocumentBuilder：用于生成索引
ImageSearcher：用于检索
下面来看看与DocumentBuilder相关的类的定义：
（LIRe在代码注释方面做得很好，每个函数的作用都写得很清楚）
DocumentBuilder：接口，定义了基本的方法。
AbstractDocumentBuilder：纯虚类，实现了DocumentBuilder接口。
DocumentBuilderFactory：用于创建DocumentBuilder。

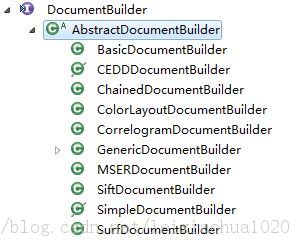

DocumentBuilder相关的类的继承关系如下图所示。可见，各种算法类都继承了AbstractDocumentBuilder，而AbstractDocumentBuilder实现了DocumentBuilder。
详细的源代码如下所示：
DocumentBuilder
/* * This file is part of the LIRe project: http://www.semanticmetadata.net/lire * LIRe is free software; you can redistribute it and/or modify * it under the terms of the GNU General Public License as published by * the Free Software Foundation; either version 2 of the License, or * (at your option) any later version. * * LIRe is distributed in the hope that it will be useful, * but WITHOUT ANY WARRANTY; without even the implied warranty of * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the * GNU General Public License for more details. * * You should have received a copy of the GNU General Public License * along with LIRe; if not, write to the Free Software * Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA * * We kindly ask you to refer the following paper in any publication mentioning Lire: * * Lux Mathias, Savvas A. Chatzichristofis. Lire: Lucene Image Retrieval 鈥? * An Extensible Java CBIR Library. In proceedings of the 16th ACM International * Conference on Multimedia, pp. 1085-1088, Vancouver, Canada, 2008 * * http://doi.acm.org/10.1145/1459359.1459577 * * Copyright statement: * ~~~~~~~~~~~~~~~~~~~~ * (c) 2002-2011 by Mathias Lux (mathias@juggle.at) * http://www.semanticmetadata.net/lire */package net.semanticmetadata.lire;import net.semanticmetadata.lire.imageanalysis.*;import net.semanticmetadata.lire.impl.ChainedDocumentBuilder;import net.semanticmetadata.lire.impl.CorrelogramDocumentBuilder;import net.semanticmetadata.lire.impl.GenericDocumentBuilder;import net.semanticmetadata.lire.impl.GenericFastDocumentBuilder;/** * Use DocumentBuilderFactory to create a DocumentBuilder, which * will create Lucene Documents from images. <br/> * This file is part of the Caliph and Emir project: http://www.SemanticMetadata.net * <br>Date: 31.01.2006 * <br>Time: 23:00:32 * * @author Mathias Lux, mathias@juggle.at */public class DocumentBuilderFactory { /** * Creates a simple version of a DocumentBuilder. In this case the * {@link net.semanticmetadata.lire.imageanalysis.CEDD} is used as a feature * * @return a simple and efficient DocumentBuilder. * @see net.semanticmetadata.lire.imageanalysis.CEDD */ public static DocumentBuilder getDefaultDocumentBuilder() { return new GenericFastDocumentBuilder(CEDD.class, DocumentBuilder.FIELD_NAME_CEDD); } /** * Creates a simple version of a DocumentBuilder using the MPEG/-7 visual features features * all available descriptors are used. * * @return a fully featured DocumentBuilder. * @see net.semanticmetadata.lire.imageanalysis.ColorLayout * @see net.semanticmetadata.lire.imageanalysis.EdgeHistogram * @see net.semanticmetadata.lire.imageanalysis.ScalableColor * @deprecated Use ChainedDocumentBuilder instead */ public static DocumentBuilder getExtensiveDocumentBuilder() { ChainedDocumentBuilder cb = new ChainedDocumentBuilder(); cb.addBuilder(DocumentBuilderFactory.getColorLayoutBuilder()); cb.addBuilder(DocumentBuilderFactory.getEdgeHistogramBuilder()); cb.addBuilder(DocumentBuilderFactory.getScalableColorBuilder()); return cb; } /** * Creates a fast (byte[] based) version of the MPEG-7 ColorLayout document builder. * * @return the document builder. */ public static DocumentBuilder getColorLayoutBuilder() { return new GenericFastDocumentBuilder(ColorLayout.class, DocumentBuilder.FIELD_NAME_COLORLAYOUT); } /** * Creates a fast (byte[] based) version of the MPEG-7 EdgeHistogram document builder. * * @return the document builder. */ public static DocumentBuilder getEdgeHistogramBuilder() { return new GenericFastDocumentBuilder(EdgeHistogram.class, DocumentBuilder.FIELD_NAME_EDGEHISTOGRAM); } /** * Creates a fast (byte[] based) version of the MPEG-7 ColorLayout document builder. * * @return the document builder. */ public static DocumentBuilder getScalableColorBuilder() { return new GenericFastDocumentBuilder(ScalableColor.class, DocumentBuilder.FIELD_NAME_SCALABLECOLOR); } /** * Creates a simple version of a DocumentBuilder using ScalableColor. * * @return a fully featured DocumentBuilder. * @see net.semanticmetadata.lire.imageanalysis.ScalableColor * @deprecated Use ColorHistogram and the respective factory methods to get it instead */ public static DocumentBuilder getColorOnlyDocumentBuilder() { return DocumentBuilderFactory.getScalableColorBuilder(); } /** * Creates a simple version of a DocumentBuilder using the ColorLayout feature. Don't use this method any more but * use the respective feature bound method instead. * * @return a simple and fast DocumentBuilder. * @see net.semanticmetadata.lire.imageanalysis.ColorLayout * @deprecated use MPEG-7 feature ColorLayout or CEDD, which are both really fast. */ public static DocumentBuilder getFastDocumentBuilder() { return DocumentBuilderFactory.getColorLayoutBuilder(); } /** * Creates a DocumentBuilder for the AutoColorCorrelation feature. Note that the extraction of this feature * is especially slow! So use it only on small images! Images that do not fit in a 200x200 pixel box are * resized by the document builder to ensure shorter processing time. See * {@link net.semanticmetadata.lire.imageanalysis.AutoColorCorrelogram} for more information on the image feature. * Be sure to use the same options for the ImageSearcher as you used for the DocumentBuilder. * * @return the created AutoCorrelation feature DocumentBuilder. */ public static DocumentBuilder getAutoColorCorrelogramDocumentBuilder() { return new GenericDocumentBuilder(AutoColorCorrelogram.class, DocumentBuilder.FIELD_NAME_AUTOCOLORCORRELOGRAM, GenericDocumentBuilder.Mode.Fast); } /** * Creates a DocumentBuilder for the AutoColorCorrelation feature. Note that the extraction of this feature * is especially slow, but this is a more fast, but less accurate settings version! * Images that do not fit in a defined bounding box they are * resized by the document builder to ensure shorter processing time. See * {@link net.semanticmetadata.lire.imageanalysis.AutoColorCorrelogram} for more information on the image feature. * Be sure to use the same options for the ImageSearcher as you used for the DocumentBuilder. * * @return the created AutoCorrelation feature DocumentBuilder. * @deprecated Use #getAutoColorCorrelogramDocumentBuilder instead. */ public static DocumentBuilder getFastAutoColorCorrelationDocumentBuilder() { return new CorrelogramDocumentBuilder(AutoColorCorrelogram.Mode.SuperFast); } /** * Creates a DocumentBuilder for the CEDD feature. See * {@link net.semanticmetadata.lire.imageanalysis.CEDD} for more information on the image feature. * Be sure to use the same options for the ImageSearcher as you used for the DocumentBuilder. * * @return the created CEDD feature DocumentBuilder. */ public static DocumentBuilder getCEDDDocumentBuilder() {// return new CEDDDocumentBuilder(); return new GenericFastDocumentBuilder(CEDD.class, DocumentBuilder.FIELD_NAME_CEDD); } /** * Creates a DocumentBuilder for the FCTH feature. See * {@link net.semanticmetadata.lire.imageanalysis.FCTH} for more information on the image feature. * Be sure to use the same options for the ImageSearcher as you used for the DocumentBuilder. * * @return the created FCTH feature DocumentBuilder. */ public static DocumentBuilder getFCTHDocumentBuilder() { return new GenericDocumentBuilder(FCTH.class, DocumentBuilder.FIELD_NAME_FCTH, GenericDocumentBuilder.Mode.Fast); } /** * Creates a DocumentBuilder for the JCD feature. See * {@link net.semanticmetadata.lire.imageanalysis.JCD} for more information on the image feature. * Be sure to use the same options for the ImageSearcher as you used for the DocumentBuilder. * * @return the created DocumentBuilder */ public static DocumentBuilder getJCDDocumentBuilder() { return new GenericFastDocumentBuilder(JCD.class, DocumentBuilder.FIELD_NAME_JCD); } /** * Creates a DocumentBuilder for the JpegCoefficientHistogram feature. See * {@link net.semanticmetadata.lire.imageanalysis.JpegCoefficientHistogram} for more * information on the image feature. * Be sure to use the same options for the ImageSearcher as you used for the DocumentBuilder. * * @return the created DocumentBuilder */ public static DocumentBuilder getJpegCoefficientHistogramDocumentBuilder() { return new GenericDocumentBuilder(JpegCoefficientHistogram.class, DocumentBuilder.FIELD_NAME_JPEGCOEFFS, GenericDocumentBuilder.Mode.Fast); } /** * Creates a DocumentBuilder for simple RGB color histograms. See * {@link net.semanticmetadata.lire.imageanalysis.SimpleColorHistogram} for more * information on the image feature. * Be sure to use the same options for the ImageSearcher as you used for the DocumentBuilder. * * @return the created feature DocumentBuilder. */ public static DocumentBuilder getColorHistogramDocumentBuilder() { return new GenericDocumentBuilder(SimpleColorHistogram.class, DocumentBuilder.FIELD_NAME_COLORHISTOGRAM, GenericDocumentBuilder.Mode.Fast); } /** * Creates a DocumentBuilder for three Tamura features. See * {@link net.semanticmetadata.lire.imageanalysis.Tamura} for more * information on the image feature. * Be sure to use the same options for the ImageSearcher as you used for the DocumentBuilder. * * @return the created Tamura feature DocumentBuilder. */ public static DocumentBuilder getTamuraDocumentBuilder() { return new GenericFastDocumentBuilder(Tamura.class, DocumentBuilder.FIELD_NAME_TAMURA); } /** * Creates a DocumentBuilder for the Gabor feature. See * {@link net.semanticmetadata.lire.imageanalysis.Gabor} for more * information on the image feature. * Be sure to use the same options for the ImageSearcher as you used for the DocumentBuilder. * * @return the created Tamura feature DocumentBuilder. */ public static DocumentBuilder getGaborDocumentBuilder() { return new GenericFastDocumentBuilder(Gabor.class, DocumentBuilder.FIELD_NAME_GABOR); } /** * Creates and returns a DocumentBuilder, which contains all available features. For * AutoColorCorrelogram the getAutoColorCorrelogramDocumentBuilder() is used. Therefore * it is compatible with the respective Searcher. * * @return a combination of all available features. */ public static DocumentBuilder getFullDocumentBuilder() { ChainedDocumentBuilder cdb = new ChainedDocumentBuilder(); cdb.addBuilder(DocumentBuilderFactory.getExtensiveDocumentBuilder()); cdb.addBuilder(DocumentBuilderFactory.getAutoColorCorrelogramDocumentBuilder()); cdb.addBuilder(DocumentBuilderFactory.getCEDDDocumentBuilder()); cdb.addBuilder(DocumentBuilderFactory.getFCTHDocumentBuilder()); cdb.addBuilder(DocumentBuilderFactory.getColorHistogramDocumentBuilder()); cdb.addBuilder(DocumentBuilderFactory.getTamuraDocumentBuilder()); cdb.addBuilder(DocumentBuilderFactory.getGaborDocumentBuilder()); return cdb; }}DocumentBuilderFactory是用于创建DocumentBuilder的。里面有各种get****DocumentBuilder()。其中以下2种是几个DocumentBuilder的合集：
getExtensiveDocumentBuilder()：使用MPEG-7中的ColorLayout，EdgeHistogram，ScalableColor
getFullDocumentBuilder()：使用所有的DocumentBuilder
