SSH项目中加入spring security（3）- 将URL资源放入数据库配置

SSH项目中加入spring security（三）-- 将URL资源放入数据库配置

这篇博客，我是自己边学习边写，算是学习笔记。我知道深度不够，但是用于初学者学习入门应该还是不错的，各位看官轻拍。

进入正题。。。

先给出上两篇的链接吧

SSH项目中加入spring security（一）?

SSH项目中加入spring security（二）--加入自定义数据表

我们一般做权限管理会用五个表来管理，分别有用户表、权限表、角色表、用户角色表和角色权限表，所以上一篇里面那种结构不能用到实际情况下面。

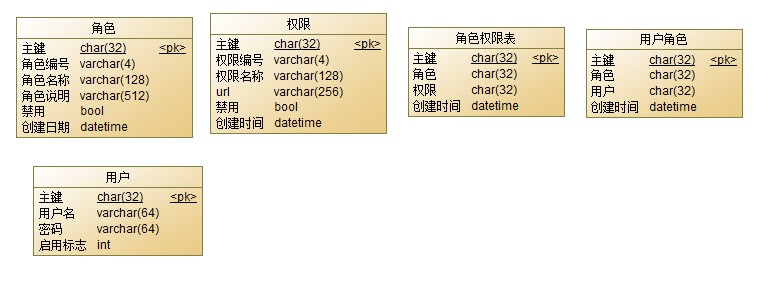

表结构

?创建表的sql，放入示例数据：

CREATE TABLE `user_role` (  `id` char(32) NOT NULL,  `role_id` char(32) DEFAULT NULL,  `user_id` char(32) DEFAULT NULL,  `create_date` datetime DEFAULT NULL,  PRIMARY KEY (`id`)) ENGINE=InnoDB DEFAULT CHARSET=utf8;insert  into `user_role`(`id`,`role_id`,`user_id`,`create_date`) values ('402846814019e1b0014019e27eed0000','402846814019e1b0014019e27eed0000','402846814019e1b0014019e27eed0000','2013-07-29 00:00:00'),('402846814019e1b0014019e27eed0001','402846814019e1b0014019e27eed0001','402846814019e1b0014019e27eed0000','2013-07-29 00:00:00'),('402846814019e1b0014019e27eed0002','402846814019e1b0014019e27eed0001','402846814019e1b0014019e27eed0001','2013-07-29 00:00:00');CREATE TABLE `privilege` (  `id` char(32) NOT NULL,  `pri_no` varchar(4) DEFAULT NULL,  `pri_name` varchar(128) DEFAULT NULL,  `pri_url` varchar(256) DEFAULT NULL,  `disable` tinyint(1) DEFAULT '0',  `create_date` datetime DEFAULT NULL,  PRIMARY KEY (`id`)) ENGINE=InnoDB DEFAULT CHARSET=utf8;insert  into `privilege`(`id`,`pri_no`,`pri_name`,`pri_url`,`disable`,`create_date`) values ('402846814019e1b0014019e27eed0000','1001','','/admin.jsp',0,NULL),('402846814019e1b0014019e27eed0001','1002','','/**',0,NULL);CREATE TABLE `role` (  `id` char(32) NOT NULL,  `role_no` varchar(4) DEFAULT NULL,  `role_name` varchar(128) DEFAULT NULL,  `role_des` varchar(512) DEFAULT NULL,  `disable` tinyint(1) DEFAULT '0',  `creat_date` datetime DEFAULT NULL,  PRIMARY KEY (`id`)) ENGINE=InnoDB DEFAULT CHARSET=utf8;insert  into `role`(`id`,`role_no`,`role_name`,`role_des`,`disable`,`creat_date`) values ('402846814019e1b0014019e27eed0000','1','ROLE_ADMIN','管理员角色',0,NULL),('402846814019e1b0014019e27eed0001','2','ROLE_USER','用户角色',0,NULL);CREATE TABLE `role_pri` (  `id` char(32) NOT NULL,  `role_id` char(32) DEFAULT NULL,  `pri_id` char(32) DEFAULT NULL,  `create_date` datetime DEFAULT NULL,  PRIMARY KEY (`id`)) ENGINE=InnoDB DEFAULT CHARSET=utf8;insert  into `role_pri`(`id`,`role_id`,`pri_id`,`create_date`) values ('402846814019e1b0014019e27eed0000','402846814019e1b0014019e27eed0000','402846814019e1b0014019e27eed0001',NULL),('402846814019e1b0014019e27eed0001','402846814019e1b0014019e27eed0001','402846814019e1b0014019e27eed0001',NULL),('402846814019e1b0014019e27eed0002','402846814019e1b0014019e27eed0000','402846814019e1b0014019e27eed0000',NULL);CREATE TABLE `user` (  `id` char(32) NOT NULL,  `username` varchar(64) DEFAULT NULL,  `pwd` varchar(64) DEFAULT NULL,  `enabled` int(11) NOT NULL DEFAULT '1',  PRIMARY KEY (`id`)) ENGINE=InnoDB DEFAULT CHARSET=utf8;insert  into `user`(`id`,`username`,`pwd`,`enabled`) values ('402846814019e1b0014019e27eed0000','admin','admin',1),('402846814019e1b0014019e27eed0001','sozhike','111111',1);

?上一篇中URL资源的配置方式：

<intercept-url pattern="/admin.jsp" access="ROLE_ADMIN" /><intercept-url pattern="/**" access="ROLE_USER" />

?所以我们得到这个结构的sql是：

select pr.pri_url,ro.role_namefrom privilege as prjoin role_pri as rpon pr.id = rp.pri_idjoin role as roon ro.id = rp.role_id

?

接下来，我们需要对spring security进行扩展

将下面的类加入到项目当中

package com.sozhike.common.utils;import java.sql.ResultSet;import java.sql.SQLException;import java.util.Collection;import java.util.LinkedHashMap;import java.util.List;import java.util.Map;import javax.sql.DataSource;import org.springframework.beans.factory.FactoryBean;import org.springframework.jdbc.core.support.JdbcDaoSupport;import org.springframework.jdbc.object.MappingSqlQuery;import org.springframework.security.access.ConfigAttribute;import org.springframework.security.access.ConfigAttributeEditor;import org.springframework.security.web.access.intercept.DefaultFilterInvocationSecurityMetadataSource;import org.springframework.security.web.access.intercept.FilterInvocationSecurityMetadataSource;import org.springframework.security.web.util.AntPathRequestMatcher;import org.springframework.security.web.util.RequestMatcher;public class JdbcFilterInvocationDefinitionSourceFactoryBean    extends JdbcDaoSupport implements FactoryBean {    private String resourceQuery;    public boolean isSingleton() {        return true;    }    public Class getObjectType() {        return FilterInvocationSecurityMetadataSource.class;    }    /**     * 使用urlMatcher和requestMap创建DefaultFilterInvocationDefinitionSource。     */    public Object getObject() {        return new DefaultFilterInvocationSecurityMetadataSource(this            .buildRequestMap());    }    /**     * 这样我们可以执行它的execute()方法获得所有资源信息。     * @return     */    protected Map<String, String> findResources() {        ResourceMapping resourceMapping = new ResourceMapping(getDataSource(),                resourceQuery);        Map<String, String> resourceMap = new LinkedHashMap<String, String>();        for (Resource resource : (List<Resource>) resourceMapping.execute()) {            String url = resource.getUrl();            String role = resource.getRole();            if (resourceMap.containsKey(url)) {                String value = resourceMap.get(url);                resourceMap.put(url, value + "," + role);            } else {                resourceMap.put(url, role);            }        }        return resourceMap;    }    /**     * 使用获得的资源信息组装requestMap。     * @return     */    protected LinkedHashMap<RequestMatcher, Collection<ConfigAttribute>> buildRequestMap() {        LinkedHashMap<RequestMatcher, Collection<ConfigAttribute>> requestMap =            null;        requestMap = new LinkedHashMap<RequestMatcher, Collection<ConfigAttribute>>();        ConfigAttributeEditor editor = new ConfigAttributeEditor();        Map<String, String> resourceMap = this.findResources();        for (Map.Entry<String, String> entry : resourceMap.entrySet()) {            String key = entry.getKey();            editor.setAsText(entry.getValue());            requestMap.put(new AntPathRequestMatcher(key),                (Collection<ConfigAttribute>) editor.getValue());        }        return requestMap;    }    public void setResourceQuery(String resourceQuery) {        this.resourceQuery = resourceQuery;    }    private class Resource {        private String url;        private String role;        public Resource(String url, String role) {            this.url = url;            this.role = role;        }        public String getUrl() {            return url;        }        public String getRole() {            return role;        }    }    /**     * 定义一个MappingSqlQuery实现数据库操作     * @author Administrator     *     */    private class ResourceMapping extends MappingSqlQuery {        protected ResourceMapping(DataSource dataSource,            String resourceQuery) {            super(dataSource, resourceQuery);            compile();        }        protected Object mapRow(ResultSet rs, int rownum)            throws SQLException {            String url = rs.getString(1);            String role = rs.getString(2);            Resource resource = new Resource(url, role);            return resource;        }    }}

?替换原有功能的切入点，在spring配置(确保您之前的SSH框架是通的哟)的bean中加入我们刚写的类：

<!-- 配置spring security -->    <bean id="filterSecurityInterceptor" autowire="byType">        <property name="securityMetadataSource" ref="filterInvocationSecurityMetadataSource" />        <property name="authenticationManager" ref="org.springframework.security.authenticationManager"/>    </bean>    <bean id="filterInvocationSecurityMetadataSource"        ref="dataSource"/>        <property name="resourceQuery" value="select pr.pri_url,ro.role_namefrom szk_sys_privilege as prjoin szk_sys_rolepri as rpon pr.id = rp.pri_idjoin szk_sys_role as roon ro.id = rp.role_id        "/>    </bean>

?修改applicationContext-security.xml中<http>的配置

     <http auto-config="true">    <custom-filter ref="filterSecurityInterceptor" before="FILTER_SECURITY_INTERCEPTOR" /></http>

到现在，我们?applicationContext-security.xml的内容如下：

<?xml version="1.0" encoding="UTF-8"?><beans:beans xmlns="http://www.springframework.org/schema/security"    xmlns:beans="http://www.springframework.org/schema/beans"    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"    xsi:schemaLocation="http://www.springframework.org/schema/beans     http://www.springframework.org/schema/beans/spring-beans-3.0.xsd                        http://www.springframework.org/schema/security                         http://www.springframework.org/schema/security/spring-security-3.1.xsd">      <http auto-config="true">    <custom-filter ref="filterSecurityInterceptor" before="FILTER_SECURITY_INTERCEPTOR" /></http>   <authentication-manager>    <authentication-provider>      <jdbc-user-service data-source-ref="dataSource"            users-by-username-query="select u.username,u.pwd,u.enabledfrom user as uwhere u.username = ?"            authorities-by-username-query="select u.username,r.role_namefrom user as ujoin szk_sys_permission as pon u.id = p.user_idjoin szk_sys_role as ron r.id = p.role_idwhere u.username = ?"/>    </authentication-provider>  </authentication-manager></beans:beans>

?

上面这些步骤做完的话，重启你的项目，再试试admin/admin跟sozhike/111111登录，是不是已经成功了呢？

?

?

?

原创文章，转载请标明出处(http://sunliyings17.iteye.com/admin/blogs/1915466)，谢谢

?

?
