hadoop 集群筹建部署

2013-08-01

hadoop 集群搭建部署本次hadoop集群部署，利用vmware安装linux系统，并在linux上进行hadoop集群部署测试。需

hadoop 集群搭建部署

本次hadoop集群部署，利用vmware安装linux系统，并在linux上进行hadoop集群部署测试。

需要用到的软件：

1、VMware? Workstation?9.0.0 build-812388

2、CentOS-6.4-x86_64-LiveDVD

3、jdk-7u25-linux-x64.rpm

4、hadoop-1.1.2.tar.gz

部署节点：

一主一从

master节点：hadoopmaster：192.168.99.201

slave ?节点：hadoopslaver：192.168.99.202

安装步骤：

一、在vmware上新建两个虚拟机，分别为：HadoopMaster 和 HadoopSlaver，在其上面都安装上CentOS-6.4-x86_64系统。

二、修改主机名：

1、登入HadoopMaster?虚拟机，进入命令行窗口，切换到root用户；

2、用vi编辑器打开/etc/sysconfig/network文件，里面有一行 HOSTNAME=localhost.localdomain (如果是默认的话），修改 localhost.localdomain 为你的主机名，修改为如下：

[root@hadoopmaster ~]# cat /etc/sysconfig/networkNETWORKING=yesNETWORKING_IPV6=noHOSTNAME=hadoopmaster[root@hadoopmaster ~]#

?3、用vi编辑器修改/etc/hosts文件，修改为：

[root@hadoopmaster ~]# cat /etc/hosts127.0.0.1localhost.localdomain   localhost::1localhost6.localdomain6 localhost6192.168.99.201 hadoopmaster192.168.99.202 hadoopslaver[root@hadoopmaster ~]#

?4、将上面两个文件修改完后，并不能立刻生效。

? ?重启后查看主机名 uname -n 。

[root@hadoopmaster ~]# uname -nhadoopmaster[root@hadoopmaster ~]#

?5、相应的，进入HadoopSlaver虚拟机，vi?/etc/sysconfig/network，修改为：

[root@hadoopmaster ~]# cat /etc/sysconfig/networkNETWORKING=yesNETWORKING_IPV6=noHOSTNAME=hadoopslaver[root@hadoopmaster ~]#

? ? 同时将/etc/hosts文件改为和第3点一样，重启即可。

?三、网络配置

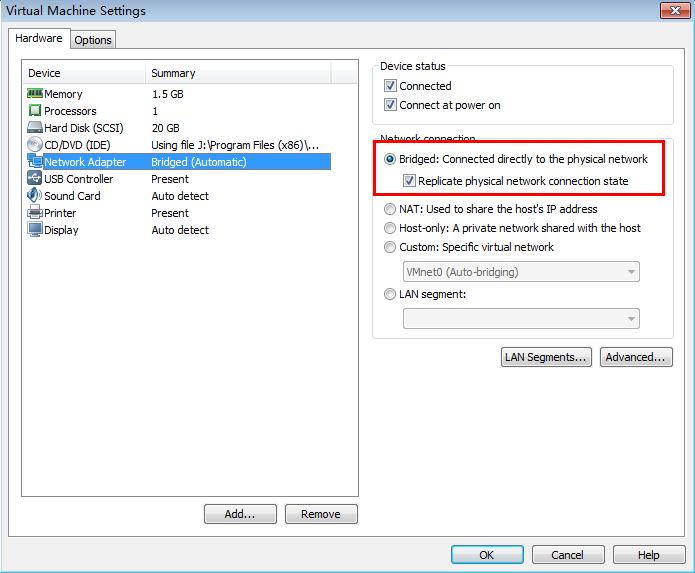

1、由于需要当服务器使用，采用桥接的方式，桥接设置如下：

? ??虚拟机设置—>Network Adapter,选择桥接方式，截图如下：

?? hadoop 集群筹建部署

?

2、进入系统，配置静态ip：

# vi /etc/sysconfig/network-scripts/ifcfg-eth0 TYPE=EthernetBOOTPROTO=staticIPADDR=192.168.99.201PREFIX=24GATEWAY=192.168.99.10DNS1=218.85.157.99DEFROUTE=yesIPV4_FAILURE_FATAL=yesIPV6INIT=noNAME=eth0UUID=8feb03de-5349-4273-9cd7-af47ad76e510ONBOOT=yesHWADDR=00:0C:29:CA:96:4ALAST_CONNECT=1373354523

?3、Restart network service

# service network restart 或 # /etc/init.d/network restart

重启network过程中可能会出现如下错误：Error: Connection activation failed: Device not managed by NetworkManager原因是：系统中有两个服务在管理网络，所以需要停掉一个，步骤如下：1）Remove Network Manager from startup Services.# chkconfig NetworkManager off2）Add Default Net Manager# chkconfig network on3）Stop NetworkManager first# service NetworkManager stop4）and then start Default Manager# service network restart

4、相应的，将hadoopslaver的ip配置成192.168.99.202。

5、在hadoopmaster上ping hadoopslaver,命令如下：

?#ping hadoopslaver

如果能ping通，说明ip配置成功。

6、如果ping不通，则需要关闭虚拟机防火墙：

? ? 关闭命令：service iptables stop

? ? 永久关闭防火墙：chkconfig iptables off

? 两个命令同时运行，运行完成后查看防火墙关闭状态：

[root@hadoopmaster ~]# service iptables statusiptables: Firewall is not running.[root@hadoopmaster ~]#

四、Hadoop集群环境安装、配置(1)安装jdk：# cd /root/#cd .ssh/ (如果没有.ssh目录则创建一个：mkdir .ssh)1)生成密钥：[root@hadoopmaster .ssh]# ssh-keygen -t rsaGenerating public/private rsa key pair.Enter file in which to save the key (/root/.ssh/id_rsa): Enter passphrase (empty for no passphrase): Enter same passphrase again: Your identification has been saved in /root/.ssh/id_rsa.Your public key has been saved in /root/.ssh/id_rsa.pub.The key fingerprint is:ec:d5:cd:e8:91:e2:c3:f9:6f:33:9e:63:3a:3e:ac:42 root@hadoopmasterThe key's randomart image is:+--[ RSA 2048]----+| || || || . . = || S o = o || .E+ + . || .. =.. || . o+ *. || ..o+O++ |+-----------------+[root@hadoopmaster .ssh]# lltotal 12-rw-------. 1 root root 1675 Jul 10 16:16 id_rsa-rw-r--r--. 1 root root 399 Jul 10 16:16 id_rsa.pub2)将id_rsa.pub 拷贝到.ssh目录下，并重新命名为authorized_keys,便可以使用密钥方式登录。[root@hadoopmaster .ssh]# cp id_rsa.pub authorized_keys3)修改密钥权限：[root@hadoopmaster .ssh]# chmod go-rwx authorized_keys [root@hadoopmaster .ssh]# lltotal 16-rw-------. 1 root root 399 Jul 10 16:20 authorized_keys-rw-------. 1 root root 1675 Jul 10 16:16 id_rsa-rw-r--r--. 1 root root 399 Jul 10 16:16 id_rsa.pub4)测试：[root@hadoopmaster .ssh]# ssh myhadoopmThe authenticity of host 'myhadoopm (192.168.80.144)' can't be established.RSA key fingerprint is 2a:c0:f5:ea:6b:e6:11:8a:47:8a:de:8d:2e:d2:97:36.Are you sure you want to continue connecting (yes/no)? yesWarning: Permanently added 'myhadoopm,192.168.80.144' (RSA) to the list of known hosts.这样即可无密码进行登录。5)远程拷贝密钥到slaver节点服务器：[root@hadoopmaster .ssh]# scp authorized_keys root@myhadoops:/root/.sshThe authenticity of host 'myhadoops (192.168.80.244)' can't be established.RSA key fingerprint is d9:63:3d:6b:16:99:f5:3c:67:fd:ed:86:96:3d:27:f7.Are you sure you want to continue connecting (yes/no)? yesWarning: Permanently added 'myhadoops,192.168.80.244' (RSA) to the list of known hosts.root@myhadoops's password: authorized_keys 100% 399 0.4KB/s 00:00 6)测试master无密码登录slaver上：[root@hadoopmaster .ssh]# ssh hadoopslaver[root@hadoopslaver ~]# exitlogoutConnection to hadoopslaver closed.[root@hadoopmaster .ssh]#

?系统和组建的依赖关系：

3、修改core-site.xml：

<?xml version="1.0"?><?xml-stylesheet type="text/xsl" href="configuration.xsl"?><configuration><property> <name>fs.default.name</name> <value>hdfs://hadoopmaster:9000</value></property><property> <name>hadoop.tmp.dir</name> <value>/tmp/hadoop-root</value></property></configuration>

<?xml version="1.0"?><?xml-stylesheet type="text/xsl" href="configuration.xsl"?><configuration><property><name>dfs.name.dir</name><value>/opt/data/hadoop/hdfs/name,/opt/data1/hadoop/hdfs/name</value><description></description></property><property><name>dfs.data.dir</name><value>/opt/data/hadoop/hdfs/data,/opt/data1/hadoop/hdfs/data</value><description></description></property><property><name>dfs.http.address</name><value>hadoopmaster:50070</value></property><property><name>dfs.secondary.http.address</name><value>hadoopmaster:50090</value></property><property><name>dfs.replication</name><value>2</value></property><property><name>dfs.datanode.du.reserved</name><value>1073741824</value></property></configuration>

<?xml version="1.0"?><?xml-stylesheet type="text/xsl" href="configuration.xsl"?><configuration><property><name>mapred.job.tracker</name><value>hadoopmaster:9001</value></property><property><name>mapred.local.dir</name><value>/opt/data/hadoop/mapred/mrlocal</value><final>true</final></property><property><name>mapred.system.dir</name><value>/opt/data/hadoop/mapred/mrsystem</value><final>true</final></property><property><name>mapred.tasktracker.map.tasks.maximum</name><value>2</value><final>true</final></property><property><name>mapred.tasktracker.reduce.tasks.maximum</name><value>1</value><final>true</final></property><property><name>io.sort.mb</name><value>32</value><final>true</final></property><property><name>mapred.child.java.opts</name><value>-Xmx64M</value></property><property><name>mapred.compress.map.output</name><value>true</value></property></configuration>

[root@hadoopmaster bin]# ./hadoop namenode -format13/07/11 14:35:44 INFO namenode.NameNode: STARTUP_MSG: /************************************************************STARTUP_MSG: Starting NameNodeSTARTUP_MSG: host = hadoopmaster/127.0.0.1STARTUP_MSG: args = [-format]STARTUP_MSG: version = 1.1.2STARTUP_MSG: build = https://svn.apache.org/repos/asf/hadoop/common/branches/branch-1.1 -r 1440782; compiled by 'hortonfo' on Thu Jan 31 02:03:24 UTC 2013************************************************************/13/07/11 14:35:44 INFO util.GSet: VM type = 64-bit13/07/11 14:35:44 INFO util.GSet: 2% max memory = 19.33375 MB13/07/11 14:35:44 INFO util.GSet: capacity = 2^21 = 2097152 entries13/07/11 14:35:44 INFO util.GSet: recommended=2097152, actual=209715213/07/11 14:35:45 INFO namenode.FSNamesystem: fsOwner=root13/07/11 14:35:45 INFO namenode.FSNamesystem: supergroup=supergroup13/07/11 14:35:45 INFO namenode.FSNamesystem: isPermissionEnabled=true13/07/11 14:35:45 INFO namenode.FSNamesystem: dfs.block.invalidate.limit=10013/07/11 14:35:45 INFO namenode.FSNamesystem: isAccessTokenEnabled=false accessKeyUpdateInterval=0 min(s), accessTokenLifetime=0 min(s)13/07/11 14:35:45 INFO namenode.NameNode: Caching file names occuring more than 10 times 13/07/11 14:35:46 INFO common.Storage: Image file of size 110 saved in 0 seconds.13/07/11 14:35:46 INFO namenode.FSEditLog: closing edit log: position=4, editlog=/opt/data/hadoop/hdfs/name/current/edits13/07/11 14:35:46 INFO namenode.FSEditLog: close success: truncate to 4, editlog=/opt/data/hadoop/hdfs/name/current/edits13/07/11 14:35:47 INFO common.Storage: Storage directory /opt/data/hadoop/hdfs/name has been successfully formatted.13/07/11 14:35:47 INFO common.Storage: Image file of size 110 saved in 0 seconds.13/07/11 14:35:47 INFO namenode.FSEditLog: closing edit log: position=4, editlog=/opt/data1/hadoop/hdfs/name/current/edits13/07/11 14:35:47 INFO namenode.FSEditLog: close success: truncate to 4, editlog=/opt/data1/hadoop/hdfs/name/current/edits13/07/11 14:35:47 INFO common.Storage: Storage directory /opt/data1/hadoop/hdfs/name has been successfully formatted.13/07/11 14:35:47 INFO namenode.NameNode: SHUTDOWN_MSG: /************************************************************SHUTDOWN_MSG: Shutting down NameNode at hadoopmaster/127.0.0.1************************************************************/[root@hadoopmaster bin]#

[root@hadoopmaster bin]# ./start-all.sh starting namenode, logging to /opt/modules/hadoop/hadoop-1.1.2/libexec/../logs/hadoop-root-namenode-hadoopmaster.outhadoopmaster: starting datanode, logging to /opt/modules/hadoop/hadoop-1.1.2/libexec/../logs/hadoop-root-datanode-hadoopmaster.outhadoopslaver: starting datanode, logging to /opt/modules/hadoop/hadoop-1.1.2/libexec/../logs/hadoop-root-datanode-hadoopslaver.outhadoopmaster: starting secondarynamenode, logging to /opt/modules/hadoop/hadoop-1.1.2/libexec/../logs/hadoop-root-secondarynamenode-hadoopmaster.outstarting jobtracker, logging to /opt/modules/hadoop/hadoop-1.1.2/libexec/../logs/hadoop-root-jobtracker-hadoopmaster.outhadoopslaver: starting tasktracker, logging to /opt/modules/hadoop/hadoop-1.1.2/libexec/../logs/hadoop-root-tasktracker-hadoopslaver.outhadoopmaster: starting tasktracker, logging to /opt/modules/hadoop/hadoop-1.1.2/libexec/../logs/hadoop-root-tasktracker-hadoopmaster.out[root@hadoopmaster bin]# jps3303 DataNode3200 NameNode3629 TaskTracker3512 JobTracker3835 Jps3413 SecondaryNameNode[root@hadoopmaster bin]#

[root@hadoopslaver ~]# jps3371 Jps3146 DataNode3211 TaskTracker[root@hadoopslaver ~]#

[root@hadoopmaster bin]# ./hadoop jar /opt/modules/hadoop/hadoop-1.1.2/hadoop-examples-1.1.2.jar pi 20 50Number of Maps = 20Samples per Map = 50java.io.IOException: Tmp directory hdfs://myhadoopm:9000/user/root/PiEstimator_TMP_3_141592654 already exists. Please remove it first.at org.apache.hadoop.examples.PiEstimator.estimate(PiEstimator.java:270)at org.apache.hadoop.examples.PiEstimator.run(PiEstimator.java:342)at org.apache.hadoop.util.ToolRunner.run(ToolRunner.java:65)at org.apache.hadoop.examples.PiEstimator.main(PiEstimator.java:351)at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:57)at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)at java.lang.reflect.Method.invoke(Method.java:606)at org.apache.hadoop.util.ProgramDriver$ProgramDescription.invoke(ProgramDriver.java:68)at org.apache.hadoop.util.ProgramDriver.driver(ProgramDriver.java:139)at org.apache.hadoop.examples.ExampleDriver.main(ExampleDriver.java:64)at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:57)at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)at java.lang.reflect.Method.invoke(Method.java:606)at org.apache.hadoop.util.RunJar.main(RunJar.java:156)

[root@hadoopmaster bin]# ./hadoop fs -rmr hdfs://myhadoopm:9000/user/root/PiEstimator_TMP_3_141592654Deleted hdfs://myhadoopm:9000/user/root/PiEstimator_TMP_3_141592654[root@hadoopmaster bin]#
