Java和.Net版通用工具类实现--生成自定义Web Html/Excel测试用例和测试报告
一、背景概述
工作中接触到不同的项目测试需求，其中一个是对WEB功能进行测试，采用了Selenium+Junit+Maven+SVN，另一个是对Web Service Json接口进行测试，自己使用C#写了一个自动化测试工具。我希望两者都能生成一样标准格式的测试用例和测试报告，既能展示在Web站点又能得到Excel，于是分别用Java和C#实现了这个工具类--生成自定义Web Html/Excel（CSV）测试用例和测试报告。

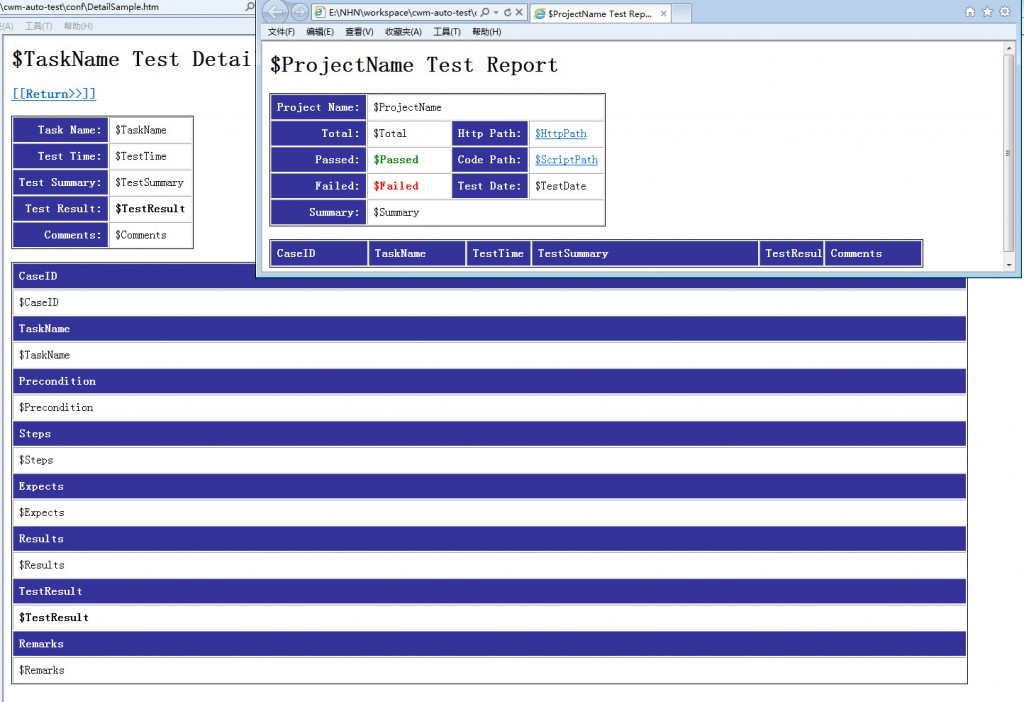

二、 Html模板设计
需要替换或追加的内容用变量标示，Html格式自定义，工具类中直接对文本内容进行替换或追加。
两个模板文件ListSample.htm和DetailSample.htm内容分别为：
<html><head><title>$ProjectName Test Report</title></head><body><h1>$ProjectName Test Report</h1><table border="1" cellspacing="1" cellpadding="8" style="border: #000000; border-style: solid; border-width: 1px"><tr><td align="right" style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;" colspan="1">Project Name: </td><td colspan="3">$ProjectName</td></tr><tr><td align="right" style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;">Total: </td><td width="100px">$Total</td><td align="right" style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;">Http Path: </td><td><a href="$HttpPath">$HttpPath</a></td></tr><tr><td align="right" style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;">Passed: </td><td style="color:green;font-weight:bold;">$Passed</td><td align="right" style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;">Code Path: </td><td><a href="$ScriptPath">$ScriptPath</a></td></tr><tr><td align="right" style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;">Failed: </td><td style="color:red;font-weight:bold;">$Failed</td><td align="right" style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;">Test Date: </td><td>$TestDate</td></tr><tr><td align="right" style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;" colspan="1">Summary: </td><td colspan="3">$Summary</td></tr></table><br /><table width="90%" border="1" cellspacing="1" cellpadding="8" style="table-layout:fixed;border: #000000; border-style: solid; border-width: 1px "><tr style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;"><td width="15%">CaseID</td><td width="15%"> TaskName </td><td width="10%"> TestTime </td><td> TestSummary</td><td width="10%"> TestResult</td><td width="15%"> Comments</td></tr><!--<tr><td>$CaseID</td><td>$TaskName</td><td>$TestTime</td><td>$TestSummary</td><td style="font-weight:bold;"><a href="$href"><font color="$color">$TestResult</font></a></td><td>$Comments</td></tr>-->
其中：
<tr><td>$CaseID</td><td>$TaskName</td><td>$TestTime</td><td>$TestSummary</td><td style="font-weight:bold;"><a href="$href"><font color="$color">$TestResult</font></a></td><td>$Comments</td></tr>
为需要替换追加的内容。
<html><head><title>$TaskName Test Details</title></head><body><h1>$TaskName Test Details</h1><h3><a href="$href">[[Return>>]]</a></h3><table border="1" cellspacing="1" cellpadding="8" style="border: #000000; border-style: solid; border-width: 1px "><tr><td align="right" style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;">Task Name: </td><td>$TaskName</td></tr><tr><td align="right" style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;">Test Time: </td><td>$TestTime</td></tr><tr><td align="right" style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;">Test Summary: </td><td>$TestSummary </td></tr><tr><td align="right" style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;">Test Result: </td><td style="color:$color;font-weight:bold;">$TestResult</td></tr><tr><td align="right" style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;">Comments: </td><td>$Comments</td></tr></table><br /><table width="90%" border="1" cellspacing="1" cellpadding="8" style="table-layout:fixed;border: #000000; border-style: solid; border-width: 1px "><tr style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;"><td>CaseID</td></tr><tr><td>$CaseID</td></tr><tr style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;"><td>TaskName </td></tr><tr><td>$TaskName</td></tr><tr style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;"><td> Precondition </td></tr><tr><td>$Precondition</td></tr><tr style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;"><td> Steps</td></tr><tr><td>$Steps</td></tr><tr style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;"><td> Expects</td></tr><tr><td>$Expects</td></tr><tr style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;"><td> Results</td></tr><tr><td>$Results</td></tr><tr style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;"><td> TestResult</td></tr><tr><td style="color:$color;font-weight:bold;">$TestResult</td></tr><tr style="BACKGROUND-COLOR:#333399;COLOR:white;font-weight:bold;"><td> Remarks</td></tr><tr><td>$Remarks</td></tr></table></body></html>
三、Java实现
SnapShot类（网页截图）：
package com.nhn.platform.qa.cwmtest.Utils;import java.awt.Dimension;import java.awt.Rectangle;import java.awt.Robot;import java.awt.Toolkit;import java.awt.image.BufferedImage;import java.io.File;import java.io.IOException;import javax.imageio.ImageIO;import org.apache.commons.io.FileUtils;import org.openqa.selenium.TakesScreenshot;import org.openqa.selenium.WebDriver;import org.openqa.selenium.OutputType;public class SnapShot {static boolean __Debug = false;static String imageFormat = "png"; // image formatstatic int serialNum = 0;static Dimension d = Toolkit.getDefaultToolkit().getScreenSize();static void Initilize() {serialNum = 0;}/**************************** * snapShot the whole screen * ****************************/public static void screenShoot(String dirPath,String picName,String htmlPath) {try {serialNum++;// copy a screen shoot capture to a BufferedImage object screens// hootBufferedImage screenShoot = (new Robot()).createScreenCapture(new Rectangle(0, 0, (int) d.getWidth(), (int) d.getHeight()));String picPathName = dirPath + "\\images\\" + picName;File dir=new File(dirPath + "\\images");if(!dir.exists()){dir.mkdirs();}File f = new File(picPathName);if (__Debug) {System.out.print("Save File " + picName);}// Write to fileImageIO.write(screenShoot, imageFormat, f);if (__Debug) {System.out.print("..Finished!\n");}appendSnapShotToLogFile("images/"+picName,htmlPath);} catch (Exception ex) {System.out.println(ex);}}public static void appendSnapShotToLogFile(String imageName,String htmlPath) {String content = "";content += "<table width=\"90%\"><tr><td>\n";//content += "<img src=\"" + imageName + "\" width=\"" + EtcIO.logPicWidth + "\" height=\"" + EtcIO.logPicHeight + "\" onclick=\"showPic(this);\" />\n";content += "<img src=\"" + imageName + "\" />\n";content += "</td></tr></table>\n";EtcIO.AppendContent(htmlPath, content);}public static void appendSnapShot(WebDriver driver,String dirPath,String picName,String htmlPath) {File screenShotFile = ((TakesScreenshot)driver).getScreenshotAs(OutputType.FILE);try {FileUtils.copyFile(screenShotFile,new File(dirPath + "\\images\\" + picName));} catch (IOException e) {// TODO Auto-generated catch blocke.printStackTrace();}String content = "\n<br /><a href=\"images/"+picName+"\" target=\"_blank\"><img src=\"images/"+picName+"\" width=\"" + EtcIO.logPicWidth + "\" height=\"" + EtcIO.logPicHeight + "\" onclick=\"showPic(this);\" /></a>";EtcIO.AppendContent(htmlPath, content);}}
HtmlDoc类：
package com.nhn.platform.qa.cwmtest.Utils;import java.io.File;import java.io.IOException;import java.text.SimpleDateFormat;import java.util.Date;import org.openqa.selenium.WebDriver;public class HtmlDoc {protected String DirPath = "";protected String IndexList = "<tr><td>$CaseID</td><td>$TaskName</td><td>$TestTime</td><td>$TestSummary</td><td style=\"font-weight:bold;\"><a href=\"$href\"><font color=\"$color\">$TestResult</font></a></td><td>$Comments</td></tr>";protected String IndexModel = "";protected String DetailModel = "";protected String IndexFile = "";protected String DetailFile = "";protected String CsvFile = "";protected String ProjectName = "CMS";protected String HttpPath = "http://127.0.0.1/";protected String ScriptPath = "http://127.0.0.1/";protected String TestDate = "2013-01-16";protected String Summary = "";protected int Total = 0;protected int Passed = 0;protected int Failed = 0;protected String CaseID = "";protected String TaskName = "";protected String TestSummary = "";protected String TestResult = "";protected String href = "";protected String color = "";protected String Comments = "none";protected String Precondition = "";protected String Steps = "";protected String Expects = "";protected String Results = "";protected String Remarks = "none";public String HomePath;private String testTime;public String getTestTime() {Date now = new Date();SimpleDateFormat dateFormat = new SimpleDateFormat("HH.mm.ss");this.testTime = dateFormat.format(now);return this.testTime;}public HtmlDoc() {this.ProjectName = EtcIO.readValue("HtmlDoc.ProjectName");this.HomePath = EtcIO.readValue("HtmlDoc.HomePath");this.IndexModel = EtcIO.readValue("HtmlDoc.IndexModel");this.DetailModel = EtcIO.readValue("HtmlDoc.DetailModel");this.ScriptPath = EtcIO.readValue("HtmlDoc.ScriptPath");Date now = new Date();SimpleDateFormat dateFormat = new SimpleDateFormat("yyyy-MM-dd");this.TestDate = dateFormat.format(now);this.DirPath = EtcIO.readValue("HtmlDoc.DirPath") + "\\"+ this.TestDate;this.HttpPath = EtcIO.readValue("HtmlDoc.HttpPath") + "/"+ this.TestDate;this.IndexFile = this.DirPath + "\\" + "index.html";this.CsvFile = this.DirPath + "\\" + "test_result.txt";try {String temp = EtcIO.readValue("HtmlDoc.IndexList");if (temp != null && temp.equals("")) {this.IndexList = temp;}} catch (Exception e) {}File dirPath = new File(this.DirPath);if (dirPath.exists()) {String distFolder = this.DirPath + ".bak." + this.getTestTime();try {FileToolkit.moveFile(this.DirPath, distFolder);} catch (IOException e1) {// TODO Auto-generated catch blocke1.printStackTrace();}try {dirPath.delete();Thread.sleep(1000);} catch (InterruptedException e) {// TODO Auto-generated catch blocke.printStackTrace();}}dirPath.mkdirs();String[] search = new String[] { "$ProjectName", "$HttpPath","$ScriptPath", "$TestDate" };String[] replace = new String[] { this.ProjectName, this.HttpPath,this.ScriptPath, this.TestDate };EtcIO.ReplaceContent(this.IndexModel, this.IndexFile, search, replace);}public void InsertHtml(String TaskName, String TestSummary,String TestResult, String Comments, String Precondition,String Steps, String Expects, String Results, String Remarks) {this.Total++;this.CaseID = this.ProjectName + "-TEST-";if (this.Total < 10) {this.CaseID += "000" + this.Total;} else if (this.Total < 100) {this.CaseID += "00" + this.Total;} else if (this.Total < 1000) {this.CaseID += "0" + this.Total;} else {this.CaseID += this.Total;}this.TestResult = TestResult;this.TestSummary = TestSummary;this.Comments = Comments;if (this.TestResult.trim().toLowerCase().equals("pass")) {this.Passed++;this.color = "GREEN";} else {this.Failed++;this.color = "RED";}this.TaskName = TaskName;this.href = this.HttpPath + "/" + TaskName + "-" + this.CaseID+ ".html";this.DetailFile = this.DirPath + "\\" + TaskName + "-" + this.CaseID+ ".html";this.Precondition = Precondition;this.Steps = Steps;this.Expects = Expects;this.Results = Results;this.Remarks = Remarks;String temprow = this.IndexList.replace("$CaseID", this.CaseID).replace("$TaskName", this.TaskName).replace("$TestTime", this.getTestTime()).replace("$TestSummary", this.TestSummary).replace("$href", this.href).replace("$color", this.color).replace("$TestResult", this.TestResult).replace("$Comments", this.Comments);EtcIO.AppendContent(this.IndexFile, temprow);String[] search = new String[] { "$CaseID", "$TaskName", "$TestTime","$TestSummary", "$color", "$TestResult", "$Comments","$Precondition", "$Steps", "$Expects", "$Results", "$Remarks","$href" };String[] replace = new String[] { this.CaseID, this.TaskName,this.getTestTime(), this.TestSummary, this.color,this.TestResult, this.Comments, this.Precondition, this.Steps,this.Expects, this.Results, this.Remarks, this.HttpPath };EtcIO.ReplaceContent(this.DetailModel, this.DetailFile, search, replace);EtcIO.AppendContent(this.CsvFile, this.CaseID + "`" + this.TaskName+ "`" + this.TestSummary + "`" + this.Precondition + "`"+ this.Steps + "`" + this.Expects + "`" + this.getTestTime()+ "`" + this.Results + "`" + this.TestResult + "`"+ this.Remarks + "\r\n");}public void CompleteCount() {String[] search = new String[] { "$Total", "$Passed", "$Failed" };String[] replace = new String[] { "" + this.Total, "" + this.Passed,"" + this.Failed };EtcIO.ReplaceContent(this.IndexFile, this.IndexFile, search, replace);this.Summary = "PassRate: "+ String.format("%.2f",((double) this.Passed / this.Total) * 100)+ "% \t CompleteRate: 100%";EtcIO.ReplaceContent(this.IndexFile, this.IndexFile,new String[] { "$Summary" }, new String[] { this.Summary });}public void ScreenCapture() {if (!this.DetailFile.equals("")) {SnapShot.screenShoot(this.DirPath, this.CaseID + ".png",this.DetailFile);}}public void ScreenCapture(WebDriver driver) {if (!this.DetailFile.equals("")) {SnapShot.appendSnapShot(driver, this.DirPath, this.CaseID + ".png",this.DetailFile);}}public void ScreenCapture(String imagePath) {if (!this.DetailFile.equals("")) {SnapShot.appendSnapShotToLogFile(imagePath, this.DetailFile);}}}
InsertHtml(String TaskName, String TestSummary,String TestResult, String Comments, String Precondition,String Steps, String Expects, String Results, String Remarks)
该方法即ListSample.htm插入一条Summary并生成一个DetailSample.htm测试详细文件。
CompleteCount()方法为测试完成后对ListSample.htm替换统计和计算测试通过率。
ScreenCapture()方法为测试过程中截图，截屏或者网页截图，并插入DetailSample.htm测试详细文件中。
同时，会生成一个CSV类似格式的文本文件，自定义分隔符·，可以方便使用Excel打开。
四、 .NET实现
HtmlDoc类：
using System;using System.Collections.Generic;using System.Linq;using System.Text;using System.IO;using System.Threading;namespace WugSshLib{ public class HtmlDoc { public string DirPath = ""; public string IndexList = "<tr><td>$CaseID</td><td>$TaskName</td><td>$TestTime</td><td>$TestSummary</td><td style=\"font-weight:bold;\"><a href=\"$href\"><font color=\"$color\">$TestResult</font></a></td><td>$Comments</td></tr>"; public string IndexModel = ""; public string DetailModel = ""; public string IndexFile = ""; public string DetailFile = ""; public string CsvFile = ""; public string ProjectName = "CMS"; public string HttpPath = "http://127.0.0.1/"; public string ScriptPath = "http://127.0.0.1/"; public string TestDate = "2013-01-16"; public string Summary = ""; public int Total = 0; public int Passed = 0; public int Failed = 0; public string CaseID = ""; public string TaskName = ""; public string TestSummary = ""; public string TestResult = ""; public string href = ""; public string color = ""; public string Comments = "none"; public string Precondition = ""; public string Steps = ""; public string Expects = ""; public string Results = ""; public string Remarks = "none"; public string TestTime { get { return DateTime.Now.ToLongTimeString(); } } public HtmlDoc(string project,string webdir) { this.ProjectName = project; if (Directory.Exists(webdir)) { this.DirPath = Path.Combine(webdir,project); } else { this.DirPath = Path.Combine(System.Windows.Forms.Application.StartupPath, "nginx/html/" + project ); } if (!Directory.Exists(this.DirPath)) { Directory.CreateDirectory(this.DirPath); } IniFiles inifile = new IniFiles(Path.Combine(System.Windows.Forms.Application.StartupPath, "HtmlDoc.ini")); //IndexList = Path.Combine(this.DirPath, inifile.ReadString("HTMLDOC", "IndexList", IndexList)); IndexModel = Path.Combine(System.Windows.Forms.Application.StartupPath, inifile.ReadString("HTMLDOC", "IndexModel", "ListSample.htm")); DetailModel = Path.Combine(System.Windows.Forms.Application.StartupPath, inifile.ReadString("HTMLDOC", "DetailModel", "DetailSample.htm")); this.ScriptPath = inifile.ReadString("HTMLDOC", "ScriptPath", "http://127.0.0.1/"); this.TestDate = DateTime.Now.ToString("yyyy-MM-dd"); this.HttpPath = inifile.ReadString("HTMLDOC", "HttpPath", "http://127.0.0.1/") + project + "/" + this.TestDate; this.IndexFile = Path.Combine(this.DirPath, this.TestDate, "index.html"); this.CsvFile = Path.Combine(this.DirPath, this.TestDate, "test_result.txt"); if (Directory.Exists(Path.Combine(this.DirPath, this.TestDate))) { Directory.Move(Path.Combine(this.DirPath, this.TestDate), Path.Combine(this.DirPath, this.TestDate) + ".bak" + DateTime.Now.ToString("-HHmmss")); Thread.Sleep(2000); } Directory.CreateDirectory(Path.Combine(this.DirPath, this.TestDate)); string tempmodel = File.ReadAllText(this.IndexModel).Replace("$ProjectName", this.ProjectName).Replace("$HttpPath", this.HttpPath).Replace("$ScriptPath", this.ScriptPath).Replace("$TestDate", this.TestDate); File.AppendAllText(this.IndexFile, tempmodel); } public void InsertHtml(string TaskName, string TestSummary, string TestResult, string Comments, string Precondition, string Steps, string Expects, string Results, string Remarks) { this.Total++; this.CaseID = this.ProjectName + "-TEST-"; if (this.Total < 10) { this.CaseID += "000" + this.Total; } else if (this.Total < 100) { this.CaseID += "00" + this.Total; } else if (this.Total < 1000) { this.CaseID += "0" + this.Total; } else { this.CaseID += this.Total; } this.TestResult = TestResult; this.TestSummary = TestSummary; this.Comments = Comments; if (this.TestResult.Trim().ToLower().Equals("pass")) { this.Passed++; this.color = "GREEN"; } else { this.Failed++; this.color = "RED"; } this.TaskName = TaskName; this.href = this.HttpPath + "/" + TaskName + "-"+this.CaseID+".html"; this.DetailFile = Path.Combine(this.DirPath, this.TestDate, TaskName + "-" + this.CaseID + ".html"); this.Precondition = Precondition; this.Steps = Steps; this.Expects = Expects; this.Results = Results; this.Remarks = Remarks; string temprow = this.IndexList.Replace("$CaseID", this.CaseID).Replace("$TaskName", this.TaskName).Replace("$TestTime", this.TestTime).Replace("$TestSummary", this.TestSummary).Replace("$href", this.href).Replace("$color", this.color).Replace("$TestResult", this.TestResult).Replace("$Comments", this.Comments); File.AppendAllText(this.IndexFile, temprow); string tempdetail = File.ReadAllText(this.DetailModel).Replace("$CaseID", this.CaseID).Replace("$TaskName", this.TaskName).Replace("$TestTime", this.TestTime).Replace("$TestSummary", this.TestSummary).Replace("$color", this.color).Replace("$TestResult", this.TestResult).Replace("$Comments", this.Comments).Replace("$Precondition", this.Precondition).Replace("$Steps", this.Steps).Replace("$Expects", this.Expects).Replace("$Results", this.Results).Replace("$Remarks", this.Remarks).Replace("$href", this.HttpPath); File.AppendAllText(this.DetailFile, tempdetail); File.AppendAllText(this.CsvFile, this.CaseID + "`" + this.TaskName + "`" + this.TestSummary + "`" + this.Precondition + "`" + this.Steps + "`" + this.Expects + "`" + this.TestTime + "`" + this.Results + "`" + this.TestResult + "`" + this.Remarks + "\r\n"); } public void CompleteCount() { string tempindex = File.ReadAllText(this.IndexFile); tempindex = tempindex.Replace("$Total", "" + this.Total).Replace("$Passed", "" + this.Passed).Replace("$Failed", "" + this.Failed); this.Summary = "PassRate: "+Math.Round(((double)this.Passed / this.Total)*100,2) + "% \t CompleteRate: 100%"; tempindex = tempindex.Replace("$Summary", this.Summary); //string file = this.IndexFile.Replace("index.htm", "index.html"); File.WriteAllText(this.IndexFile, tempindex); //File.Delete(this.IndexFile); } }}
同样，InsertHtml(string TaskName, string TestSummary, string TestResult, string Comments, string Precondition, string Steps, string Expects, string Results, string Remarks)函数即ListSample.htm插入一条Summary并生成一个DetailSample.htm测试详细文件。
CompleteCount()函数为测试完成后对ListSample.htm替换统计和计算测试通过率。该处没有使用截图，需要的可以引用WinAPI对屏幕或窗口进行截图。
同时，会生成一个CSV类似格式的文本文件，自定义分隔符·，可以方便使用Excel打开。

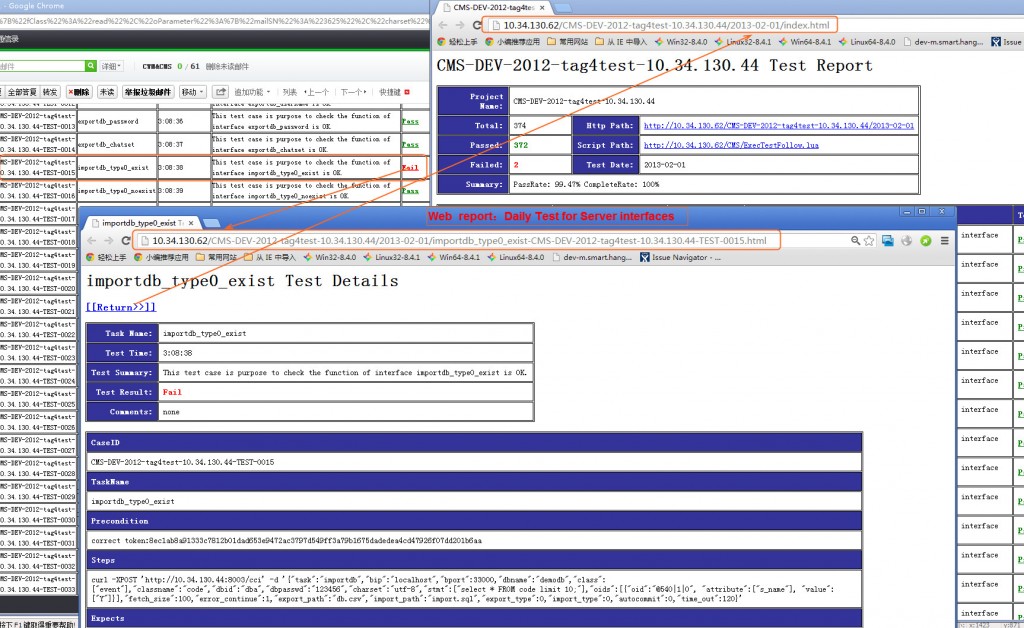

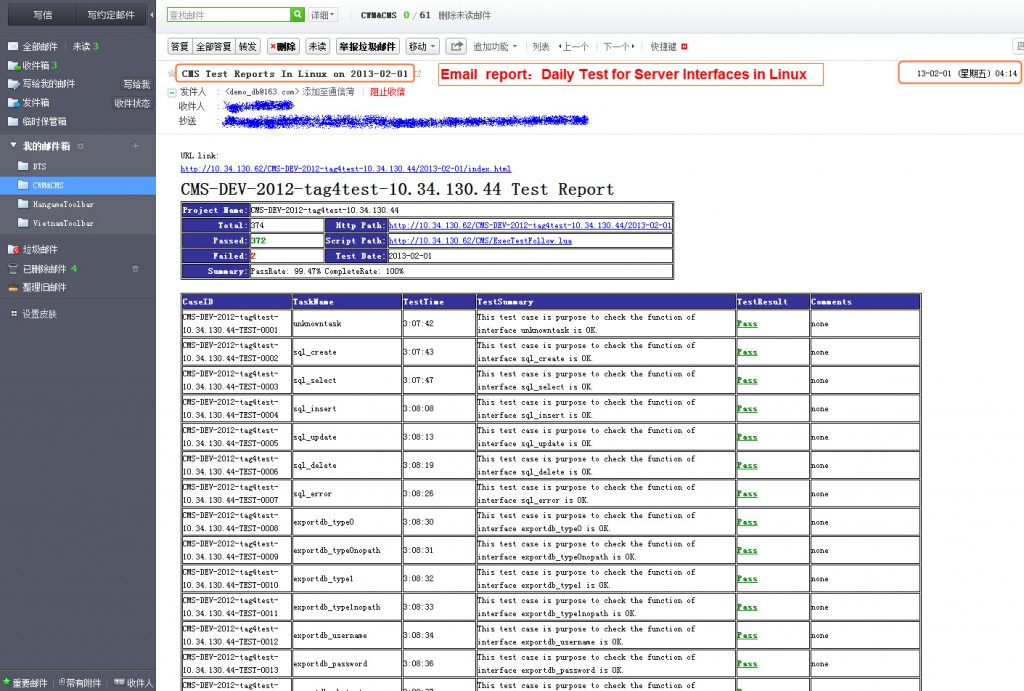

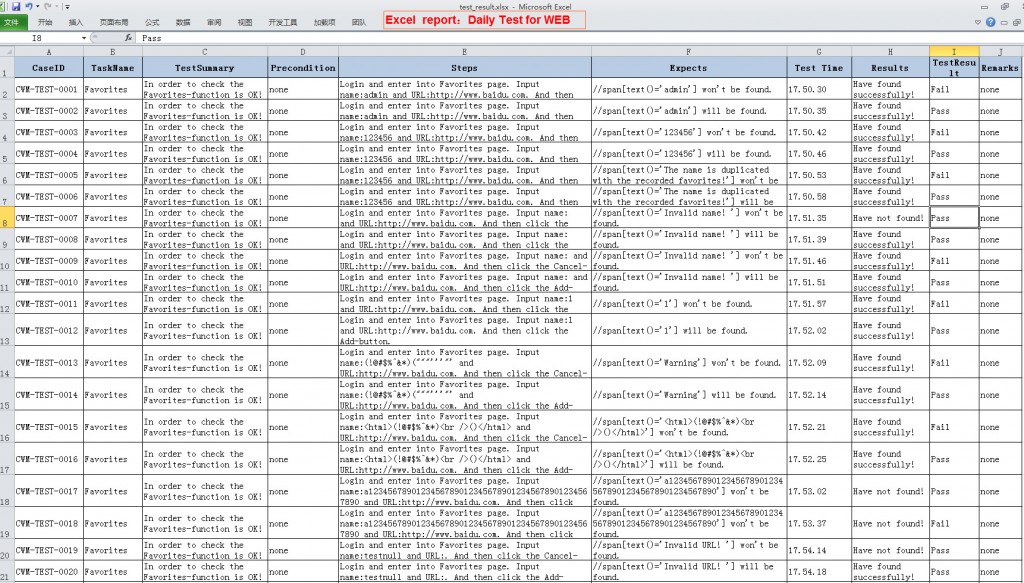

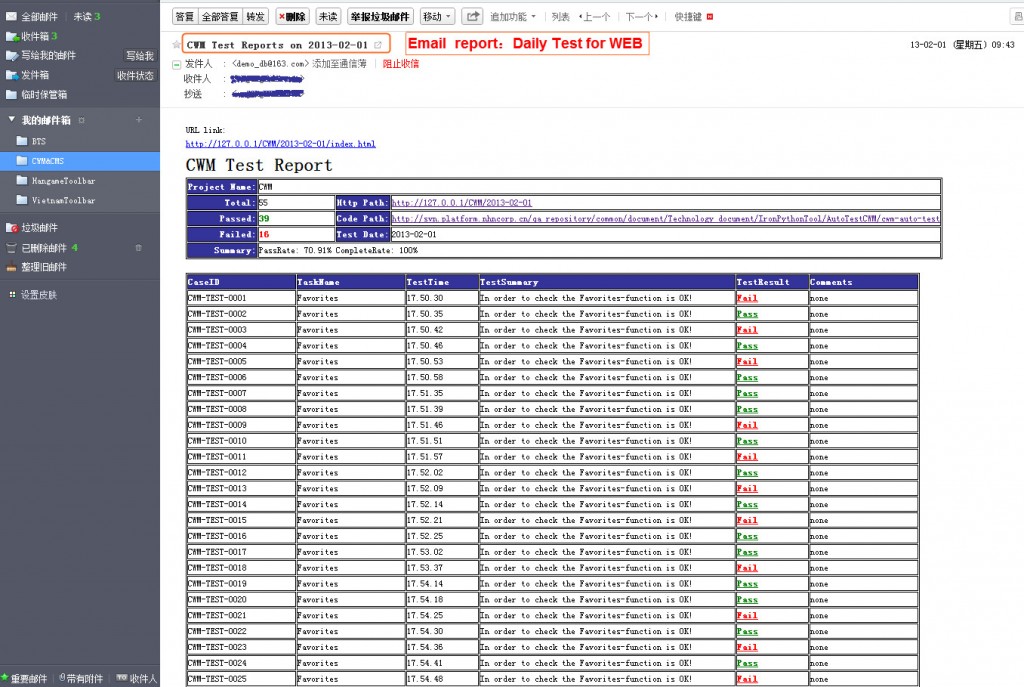

五、 效果展示
