如何在Spring 3 MVC整合Apache CXF开发Webservice服务
如何在Spring 3 MVC框架下结合CXF开发Webservice服务
?
1：在Web.xml中配置WebService URL过滤器。
?
<servlet> <servlet-name>CXFServlet</servlet-name> <servlet-class>org.apache.cxf.transport.servlet.CXFServlet</servlet-class> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>CXFServlet</servlet-name> <url-pattern>/ws/*</url-pattern> </servlet-mapping>
2：定义WebService接口
?
import javax.jws.WebParam;import javax.jws.WebService;@WebService(serviceName="idsWebService", targetNamespace="http://idsws.ids.founder.com/")public interface IIDSWebService { /** * 获取科室 * @return */public WDepartmentArr getDepartments(); /** * 取消预约挂号 * @param patientId IDS患者标识 * @param idsRegId IDS预约标识 * @return */public String cancelRegister(@WebParam(name = "patient_id") String patientId, @WebParam(name = "ids_reg_id") String idsRegId); /** * 创建患者 * @param patient * @return IDS患者标识 */public String createPatient(WPatient patient);}?
import javax.xml.bind.annotation.XmlAccessorType;import javax.xml.bind.annotation.XmlElement;import javax.xml.bind.annotation.XmlRootElement;import javax.xml.bind.annotation.XmlType;@XmlRootElement(name = "WPatient")@XmlAccessorType(XmlAccessType.FIELD)@XmlType(name = "WPatient", propOrder = { "patientId","name", "sex", "birthday", "certNo","certType", "homeStreet", "homeTel","cellPhone", "relationName", "relationTel","healthCardNo", "fromCommunity"})public class WPatient {/** * 证件类型字典： 01：身份证 03：护照 99：其他证件 * * 性别字典： 1:男 2女 9：未说明的性别 */@XmlElement(name = "patient_id")private String patientId; // IDS患者标识 在给西城区提供的接口中 所有的patientId在IDS中都当做patient表中的patient_id@XmlElement(required = true)private String name; // 姓名@XmlElement(required = true)private String sex;// 性别代码@XmlElement(required = true)private String birthday;@XmlElement(name = "cert_no", required = true)private String certNo; // 证件号@XmlElement(name = "cert_type", required = true)private String certType; // 证件类别@XmlElement(name = "home_street")private String homeStreet;// 患者的家庭住址(可选)@XmlElement(name = "home_tel")private String homeTel;// 患者的家庭住址(可选)@XmlElement(name = "cell_phone")private String cellPhone;// 患者手机号@XmlElement(name = "relation_name")private String relationName;// 患者的家属姓名(可选)@XmlElement(name = "relation_tel")private String relationTel;// 患者的家属电话(可选)@XmlElement(name = "health_card_no")private String healthCardNo;// 医保号(可选)@XmlElement(name = "from_community", required=true)private String fromCommunity;// 来源机构编码(IDS提供)/*@XmlElement(name = "his_id")private String hisId; // his患者标识*/public String getName() {return name;}public void setName(String name) {this.name = name;} ... ....}?
import java.util.List;import javax.xml.bind.annotation.XmlAccessType;import javax.xml.bind.annotation.XmlAccessorType;import javax.xml.bind.annotation.XmlElement;import javax.xml.bind.annotation.XmlType;@XmlAccessorType(XmlAccessType.FIELD)@XmlType(name = "WDepartmentArr", propOrder = { "wDepartment" })public class WDepartmentArr {@XmlElement(name = "wDepartment")private List<WDepartment> wDepartment;public List<WDepartment> getwDepartment() {if (null == wDepartment) {wDepartment = new ArrayList<WDepartment>();}return wDepartment;}public void setwDepartment(List<WDepartment> wDepartment) {this.wDepartment = wDepartment;}}?
import javax.xml.bind.annotation.XmlAccessType;import javax.xml.bind.annotation.XmlAccessorType;import javax.xml.bind.annotation.XmlElement;import javax.xml.bind.annotation.XmlRootElement;import javax.xml.bind.annotation.XmlType;import com.founder.ids.entity.Clinic;@XmlRootElement(name="WDepartment") @XmlAccessorType(XmlAccessType.FIELD) @XmlType(propOrder={"detpSn", "name", "abbCode", "abbName"}) public class WDepartment {@XmlElement(name = "detp_sn", required = true) private String detpSn; @XmlElement(required = true) private String name; @XmlElement(name = "abb_code", required = true) private String abbCode; @XmlElement(name = "abb_name", required = true) private String abbName; public WDepartment(Clinic clinic){ this.detpSn = clinic.getCode(); this.name = clinic.getName(); this.abbCode = clinic.getAbbCode(); this.abbName = clinic.getAbbName(); } public WDepartment() { }public String getDetpSn() {return detpSn;} ......}?3. 完成接口实现
?
?@Service("idsWebServiceImpl")@WebService(targetNamespace="http://idsws.ids.founder.com/" )public class IDSWebservice implements IIDSWebService {private static Logger logger = Logger.getLogger(IDSWebservice.class); ......}?4. 在spring配置文件applicationContext-web.xml配置发布Webservice
?
<jaxws:endpoint id="idsWebService" implementor="#idsWebServiceImpl" address="/index" publish="true" > </jaxws:endpoint>

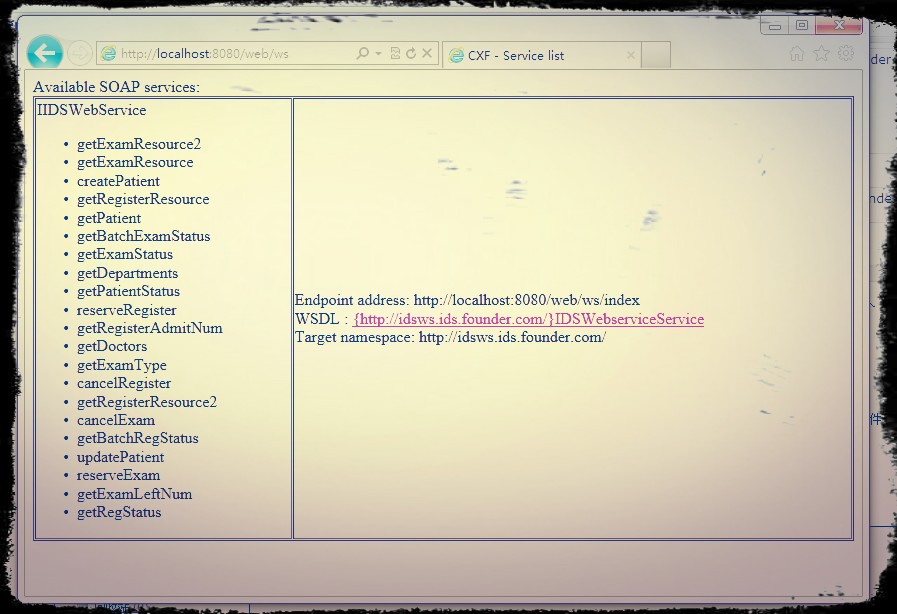

?5. 在tomcat部署应用访问地址如下：
?
?
?

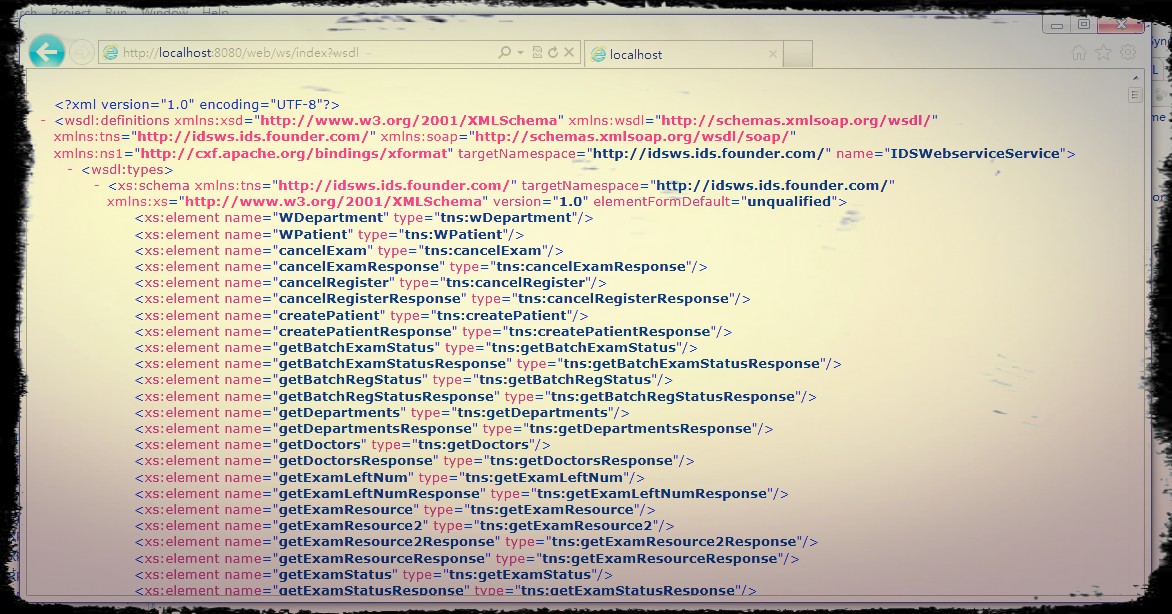

* 使用ＣＸＦ命令将定义好的ＷｅｂＳｅｒｖｉｃｅ接口ｃｌａｓｓ生成ＷＳＤＬ文件，具体代码如下：
?
/** * @description 使用CXF工具将Java类生成WSDL * @author zhu_qhua */public class Java2WSDL {private Class<?> className;public String[] args1,args2,args3;/** * 构造函数 * @param args 要生成WSDL的Java类 */public Java2WSDL(Class<?> className) {this.className = className; //根据Hello.class生成Hello.wsdl,生成的wsdl文件放在resource目录下args1=new String[]{"-wsdl","-d","./resource",this.className.getName()};//根据Hello.class生成Hello.wsdl，生成的文件放在根目录下的.example下args2=new String[]{"-wsdl","-cp", "./example",this.className.getName()};// 根据Hello.class生成wsdl文件，文件命名为myHello.wsdl，放在根目录下args3=new String[]{"-o","myHello.wsdl","-wsdl",this.className.getName()};}/** * 构造函数 * @param className 要生成WSDL的Java类 * @param wsdlFileName 要生成WSDL的文件名称（不包含扩展名） */public Java2WSDL(Class<?> className,String wsdlFileName) {this.className = className; //根据Hello.class生成Hello.wsdl,生成的wsdl文件放在resource目录下args1=new String[]{"-wsdl","-d","./resource",this.className.getName()};//根据Hello.class生成Hello.wsdl，生成的文件放在根目录下的.example下args2=new String[]{"-wsdl","-cp", "./example",this.className.getName()};// 根据Hello.class生成wsdl文件，文件命名为myHello.wsdl，放在根目录下args3=new String[]{"-o",wsdlFileName+".wsdl","-wsdl",this.className.getName()};}/*public void java2WSDL(String[] args){JavaToWS javaToWS = new JavaToWS(args);try {javaToWS.run();} catch (Exception e) {e.printStackTrace();}}public static void main(String[] args) {Java2WSDL java2WSDL = new Java2WSDL(IDSWebservice.class);java2WSDL.java2WSDL(java2WSDL.args1);}*/}??
?
