struts2.3+spring3.1.2+hibernate4.1.6 配置说明
lib包struts2.3+spring3.1.2+hibernate4.1.6 配置说明
auther :keny
date:2012/9/13
1.????? 包下载
http://s3.amazonaws.com/dist.springframework.org/release/SPR/spring-framework-3.1.2.RELEASE.zip
http://labs.mop.com/apache-mirror//struts/binaries/struts-2.3.4.1-all.zip
http://labs.mop.com/apache-mirror//struts/binaries/struts-2.3.4.1-all.zip

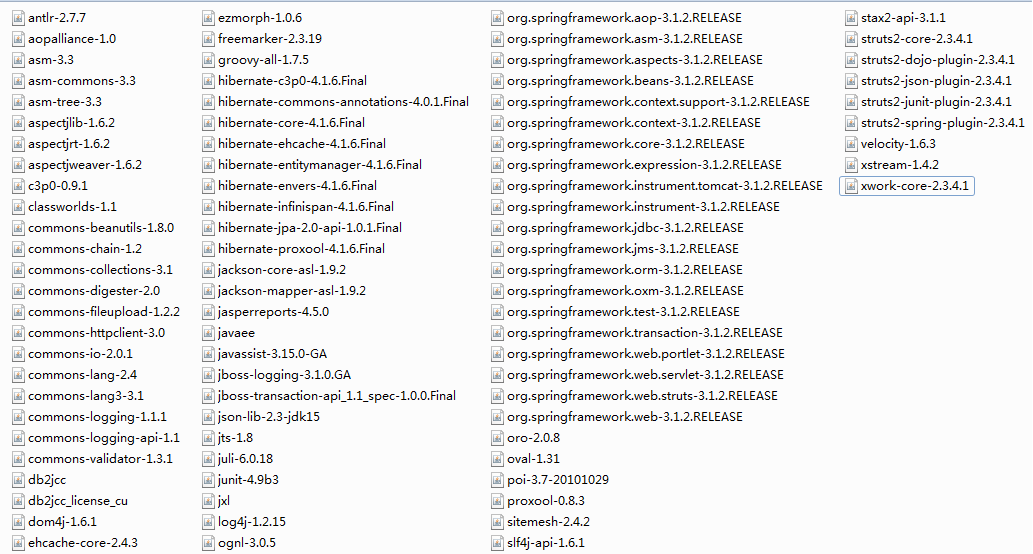

2.????? 基本方法是合并lib包，里面有些是同样的包名，保留按照高版本的lib包
??????
?
3.????? 整个工程采用的db2的数据库，已经有报表的功能。所以lib相对比较多。
?想必还有一些包可以删除，但时间比较赶，没有在进行删除包动作。
?
4.????? hibernate4.1.6没有HibernateTemplate，以及HibernateCallback，以及常用的HibernateDaoSupport的类，需要做相应替换工作。
我采用的是所有的HibernateTemplate的用sessionFactory.getCurrentSession()替换掉，每个Dao都建立一个
???????? private SessionFactory sessionFactory;
???????? public SessionFactory getSessionFactory() {
?????????????????? ??????? return sessionFactory;
?????????????????? ??? }
???????? ?? public void setSessionFactory(SessionFactory sessionFactory) {
?????????????????? ??????? this.sessionFactory = sessionFactory;
?????????????????? ??? }
这样在配置文件中声明下就把这个注入过来。
?
还有hibernate3有个execute的方法，这个在4中也取消了，我将这个方法全部改造到Query中。好在HQl功能强大，改造倒不是难事。
?
5.????? Web.xml基本还是采用原先的spring3.0+hibernate3+strutus2的配置模式，只是在web.xml中按照hibernate4的包相应修改了一下。
如下：
<!-配置struts-->
? <filter>
??? <filter-name>struts2</filter-name>
<filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
? </filter>
?
<!—配置spring的用到hibernate4-->
<filter>
??? <filter-name>OpenSessionInViewFilter</filter-name>
??? <filter-class>org.springframework.orm.hibernate4.support.OpenSessionInViewFilter</filter-class>
????????? <!-启动是就初始化一个sessionFactory -->
????????? <init-param>
???????????? <param-name>sessionFactoryBeanName</param-name>
???????????? <param-value>sessionFactory</param-value>
???????? </init-param>
????
??? <init-param>
????? <param-name>singleSession</param-name>
????? <param-value>true</param-value>
??? </init-param>
??? <init-param>
???????????? <param-name>flushMode</param-name>
???????????? <param-value>ALWAYS</param-value>
??? </init-param>
?
? </filter>
? <filter-mapping>
??? <filter-name>OpenSessionInViewFilter</filter-name>
??? <url-pattern>/*</url-pattern>
? </filter-mapping>
? <filter-mapping>
??? <filter-name>struts2</filter-name>
??? <url-pattern>*.action</url-pattern>
??? <url-pattern>*.jsp</url-pattern>
??? <url-pattern>*.js</url-pattern>
? </filter-mapping>
<listener>
???????? <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
???? </listener>
???? <listener>
???????? <listener-class>org.springframework.web.context.request.RequestContextListener</listener-class>
???? </listener>
???? <listener>
???????? <listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>
???? </listener>
???? <listener>
???????? <listener-class>org.apache.struts2.dispatcher.ng.listener.StrutsListener</listener-class>
???? </listener>
6.????? 在applicationContext.xml中。需要配置
说明sesionFactory的bean的引入到哪里。
<bean id="sessionFactory" style="margin: 0cm 0cm 0pt;">以及
???????? <!-- The following spring provided bean is used to do transaction manager -->
???????? <bean id="TransactionManager" style="margin: 0cm 0cm 0pt;">?????????????????? <property name="sessionFactory">
??????????????????????????? <ref bean="sessionFactory" />
?????????????????? </property>
???????? </bean>
?
7.2012.9.13又发现了一个问题。重新启动的时候找这个包java.lang.ClassNotFoundException: org.apache.struts2.views.gxp.inject.InjectedObjectContainer，这个包是struts的gxp。相应的拷贝进去，结构重新启动，一直报这个包找不到，后解压该包，里面根本就没有inject目录啊。也不知道是哪个版本要这个，干脆采用减肥版本。发现原先的125个jar包，真的有点多，做了一个瘦身lib ，删除-》编译-》删除，现在为87个lib文件
?
8.新的xwork-core-2.3.4.1 以及去掉org.apache.commons.lang.work.StringUtils这个方法，调用原先的xwork版本的这个方法可以修改到commons-lang的中的org.apache.commons.lang.StringUtils方法中。
?
相关日志文件：
?
13:46:09,639? INFO? com.mchange.v2.c3p0.impl.AbstractPoolBackedDataSource:462 - Initializing c3p0 pool... com.mchange.v2.c3p0.ComboPooledDataSource [ acquireIncrement -> 3, acquireRetryAttempts -> 30, acquireRetryDelay -> 1000, autoCommitOnClose -> false, automaticTestTable -> null, breakAfterAcquireFailure -> false, checkoutTimeout -> 0, connectionCustomizerClassName -> null, connectionTesterClassName -> com.mchange.v2.c3p0.impl.DefaultConnectionTester, dataSourceName -> 1bqrg9m8p1grhfc71tns05k|1f111ba, debugUnreturnedConnectionStackTraces -> false, description -> null, driverClass -> com.ibm.db2.jcc.DB2Driver, factoryClassLocation -> null, forceIgnoreUnresolvedTransactions -> false, identityToken -> 1bqrg9m8p1grhfc71tns05k|1f111ba, idleConnectionTestPeriod -> 30, initialPoolSize -> 5, jdbcUrl -> jdbc:db2://127.0.0.1:50000/GFYH, lastAcquisitionFailureDefaultUser -> null, maxAdministrativeTaskTime -> 0, maxConnectionAge -> 0, maxIdleTime -> 30, maxIdleTimeExcessConnections -> 0, maxPoolSize -> 30, maxStatements -> 500, maxStatementsPerConnection -> 0, minPoolSize -> 10, numHelperThreads -> 3, numThreadsAwaitingCheckoutDefaultUser -> 0, preferredTestQuery -> null, properties -> {user=******, password=******}, propertyCycle -> 0, testConnectionOnCheckin -> false, testConnectionOnCheckout -> false, unreturnedConnectionTimeout -> 0, usesTraditionalReflectiveProxies -> false ]
13:46:12,652? INFO? com.opensymphony.xwork2.config.providers.XmlConfigurationProvider:42 - Parsing configuration file [struts-default.xml]
13:46:12,811? INFO? com.opensymphony.xwork2.config.providers.XmlConfigurationProvider:42 - Parsing configuration file [struts-plugin.xml]
13:46:12,857? INFO? com.opensymphony.xwork2.config.providers.XmlConfigurationProvider:42 - Parsing configuration file [struts.xml]
13:46:12,863? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (spring) for (com.opensymphony.xwork2.ObjectFactory)
13:46:12,863? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.FileManager)
13:46:12,864? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.conversion.impl.XWorkConverter)
13:46:12,864? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.TextProvider)
13:46:12,864? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.ActionProxyFactory)
13:46:12,866? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.conversion.ObjectTypeDeterminer)
13:46:12,867? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (org.apache.struts2.dispatcher.mapper.ActionMapper)
13:46:12,869? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (jakarta) for (org.apache.struts2.dispatcher.multipart.MultiPartRequest)
13:46:12,869? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (org.apache.struts2.views.freemarker.FreemarkerManager)
13:46:12,877? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (org.apache.struts2.components.UrlRenderer)
13:46:12,877? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.validator.ActionValidatorManager)
13:46:12,877? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.util.ValueStackFactory)
13:46:12,878? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.util.reflection.ReflectionProvider)
13:46:12,881? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.util.reflection.ReflectionContextFactory)
13:46:12,882? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.util.PatternMatcher)
13:46:12,882? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (org.apache.struts2.dispatcher.StaticContentLoader)
13:46:12,883? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.UnknownHandlerManager)
13:46:12,887? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (org.apache.struts2.views.util.UrlHelper)
13:46:12,924? INFO? org.apache.struts2.spring.StrutsSpringObjectFactory:42 - Initializing Struts-Spring integration...
13:46:12,925? INFO? com.opensymphony.xwork2.spring.SpringObjectFactory:42 - Setting autowire strategy to autodetect
13:46:12,926? INFO? org.apache.struts2.spring.StrutsSpringObjectFactory:42 - ... initialized Struts-Spring integration successfully
13:46:14,024? INFO? com.opensymphony.xwork2.config.providers.XmlConfigurationProvider:42 - Parsing configuration file [struts-default.xml]
13:46:14,041? INFO? com.opensymphony.xwork2.config.providers.XmlConfigurationProvider:42 - Parsing configuration file [struts-plugin.xml]
13:46:14,047? INFO? com.opensymphony.xwork2.config.providers.XmlConfigurationProvider:42 - Parsing configuration file [struts.xml]
13:46:14,049? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (spring) for (com.opensymphony.xwork2.ObjectFactory)
13:46:14,049? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.FileManager)
13:46:14,050? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.conversion.impl.XWorkConverter)
13:46:14,050? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.TextProvider)
13:46:14,051? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.ActionProxyFactory)
13:46:14,051? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.conversion.ObjectTypeDeterminer)
13:46:14,052? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (org.apache.struts2.dispatcher.mapper.ActionMapper)
13:46:14,052? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (jakarta) for (org.apache.struts2.dispatcher.multipart.MultiPartRequest)
13:46:14,053? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (org.apache.struts2.views.freemarker.FreemarkerManager)
13:46:14,059? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (org.apache.struts2.components.UrlRenderer)
13:46:14,060? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.validator.ActionValidatorManager)
13:46:14,060? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.util.ValueStackFactory)
13:46:14,060? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.util.reflection.ReflectionProvider)
13:46:14,060? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.util.reflection.ReflectionContextFactory)
13:46:14,060? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.util.PatternMatcher)
13:46:14,061? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (org.apache.struts2.dispatcher.StaticContentLoader)
13:46:14,061? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (com.opensymphony.xwork2.UnknownHandlerManager)
13:46:14,061? INFO? org.apache.struts2.config.BeanSelectionProvider:42 - Choosing bean (struts) for (org.apache.struts2.views.util.UrlHelper)
13:46:14,063? INFO? org.apache.struts2.spring.StrutsSpringObjectFactory:42 - Initializing Struts-Spring integration...
13:46:14,063? INFO? com.opensymphony.xwork2.spring.SpringObjectFactory:42 - Setting autowire strategy to autodetect
13:46:14,064? INFO? org.apache.struts2.spring.StrutsSpringObjectFactory:42 - ... initialized Struts-Spring integration successfully
?
启动的时候，日志文件比原先的多。希望有好的表现
?
参考文档，网上下载《Struts2、Hibernate3、Spring的简单配置与使用.pdf》
这里就做下记录保存。
?
?
?
