试工flume-ng 1.1

2012-11-04
试用flume-ng 1.1Flume NG 1.x 是Flume 0.9.x的重构版本,基本面目全非了,Master和zookeeper没有了,collect

试用flume-ng 1.1

Flume NG 1.x 是Flume 0.9.x的重构版本,基本面目全非了,Master和zookeeper没有了,collector没有了,Web console没有了,只有

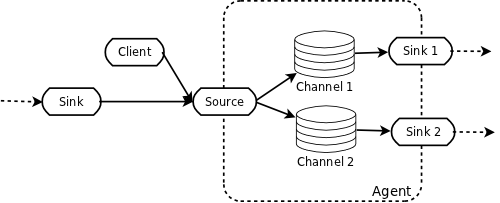

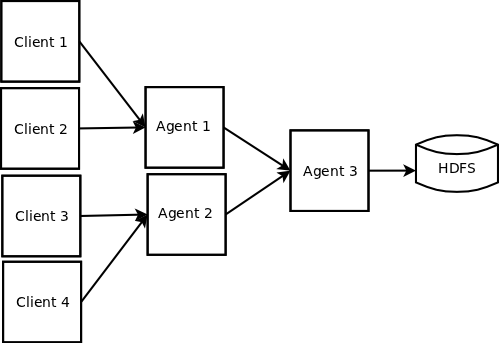

source (avro:很简单使用;exec:使用shell命令)sink (我用的hdfs)channl这3个组件,俨然从一个分布式系统变成了传输工具。新的架构如下:

试工flume-ng 1.1
?


试工flume-ng 1.1
?
下面是一个例子(参数经过优化),使用avro作为source,hdfs作为sink,memory作为channel
# Define a memory channel called ch1 on agent1
agent1.channels.ch1.type = memory
agent1.channels.ch1.capacity = 100000
agent1.channels.ch1.transactionCapacity = 100000
agent1.channels.ch1.keep-alive = 30

# Define an Avro source called avro-source1 on agent1 and tell it
# to bind to 0.0.0.0:41414. Connect it to channel ch1.
agent1.sources.avro-source1.channels = ch1
agent1.sources.avro-source1.type = avro
agent1.sources.avro-source1.bind = 0.0.0.0
agent1.sources.avro-source1.port = 41414
agent1.sources.avro-source1.threads = 5

# Define a logger sink that simply logs all events it receives
# and connect it to the other end of the same channel.
agent1.sinks.log-sink1.channel = ch1
agent1.sinks.log-sink1.type = hdfs
agent1.sinks.log-sink1.hdfs.path = hdfs://CNC-XX-R-541:9000/flume/
agent1.sinks.log-sink1.hdfs.writeFormat = Text
agent1.sinks.log-sink1.hdfs.fileType = DataStream
agent1.sinks.log-sink1.hdfs.rollInterval = 0
agent1.sinks.log-sink1.hdfs.rollSize = 60554432
agent1.sinks.log-sink1.hdfs.rollCount = 0
agent1.sinks.log-sink1.hdfs.batchSize = 1000
agent1.sinks.log-sink1.hdfs.txnEventMax = 1000
agent1.sinks.log-sink1.hdfs.callTimeout = 60000
agent1.sinks.log-sink1.hdfs.appendTimeout = 60000

# Finally, now that we've defined all of our components, tell
# agent1 which ones we want to activate.
agent1.channels = ch1
agent1.sources = avro-source1
agent1.sinks = log-sink1?启动avro agent,参数“ageng1”在上述配置文件定义。
flume-ng agent --conf ./conf/ -f conf/flume.conf -n agent1?client端上传文件
flume-ng avro-client --conf conf -H localhost -p 41414 -F /data/xx.txt?
心得:感觉就是一个传输工具,使用配置很简单,但是参数还得调,要不报错。上传文件可以自动按照大小、行或者处理时间分割为多个文件。测试了单机上传700MB文件,上传速度和hadoop fs -put速度相同,记录没有丢失。
纠结:输出文件只能在flume.conf定义吗?如何将文件按照规则汇总到HDFS(比如按照客户合并输出)?基于事务的传输保证每个事务内Event(日志行)有保证传到HDFS,但是如果传输整个文件中途中断,还是会有部分数据上传遗留到HDFS。
结论:FlumeNG1.1,尚不能满足复杂业务要求,尽管支持自定义source和sink等组件,系统使用过程中觉得软件不够坚固,非常简单的示例,都报错,让人心里没底,还好源码够简单,这样看来只适合做简单传输。

错误记录:org.apache.flume.ChannelException: Space for commit to queue couldn't be acquired Sinks are likely not keeping up with sources, or the buffer size is too tight解决:设置agent1.channels.<channel_name>.keep-alive = 30
资料:FlumeNG 架构https://blogs.apache.org/flume/entry/flume_ng_architectureFlume User Guidehttps://people.apache.org/~mpercy/flume/flume-1.2.0-incubating-SNAPSHOT/docs/FlumeUserGuide.html#data-ingestion
--heipark
1 楼 long904 2012-08-27   感觉这个上传速度很慢,与put根本不是一个等级的。是否哪里配置错误了呢,请教! 2 楼 heipark 2012-08-27   long904 写道感觉这个上传速度很慢,与put根本不是一个等级的。是否哪里配置错误了呢,请教!

兄弟flume-avro-agent使用的是netty编写的,网速速度应该是有保证的。

你说的put速度指什么? 3 楼 long904 2012-08-28   heipark 写道long904 写道感觉这个上传速度很慢,与put根本不是一个等级的。是否哪里配置错误了呢,请教!

兄弟flume-avro-agent使用的是netty编写的,网速速度应该是有保证的。

你说的put速度指什么?
hadoop fs -put 4 楼 shenbai 2012-10-11   avro rpc client 直接调用apendBatch函数,发数据给source,也没有返回机制(同步),怎么控制client发送速度,发的太快,flume处理不过来就会死掉,文件一大就oom,不知道怎么解决呢?
