看图说话:把icesoft加入到jsf+spring+hibernate当中

????? 本文目的,轻松实现ajax组件式编程,并引用轻量级框架完成WEB应用.

????? 开发环境:myeclipse 6.01GA jave ee5? tomcat6.0

???? 组件版本:jsf1.2(呵呵) spring2.0 hibernate3.2 icesoft1.62

第一部分:集成环境测试

?????? 1下载icesoft for myeclipse plugin
????????? 地址: http://www.icefaces.org//main/downloads/os-downloads.iface??

????????? 分别把features和plugins放在myeclipse相应的目录下:???????????

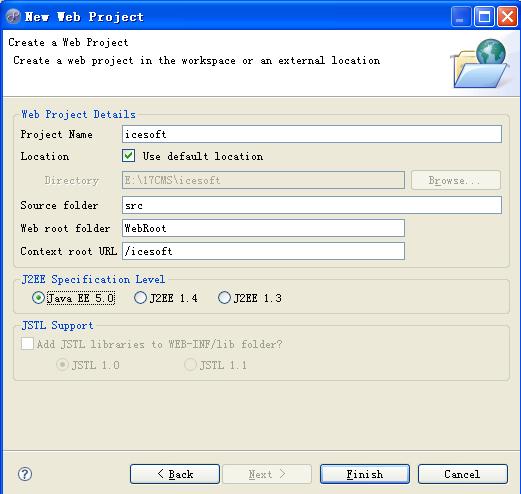

?????? 2)创建web project

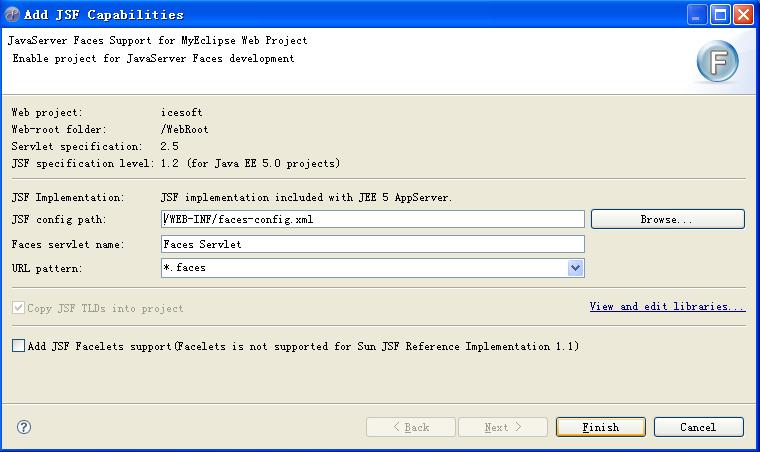

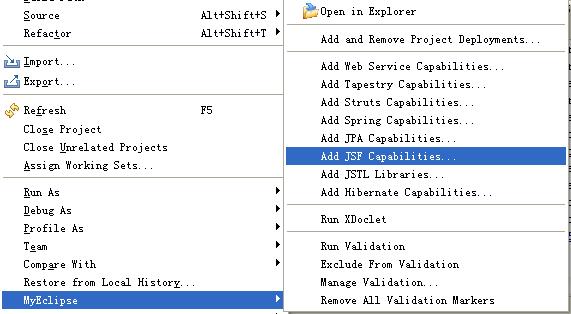

?????? 3)增加JSF框架

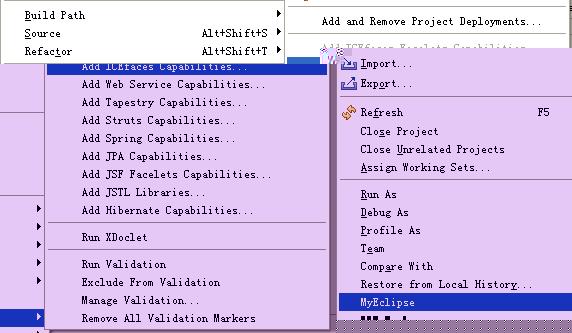

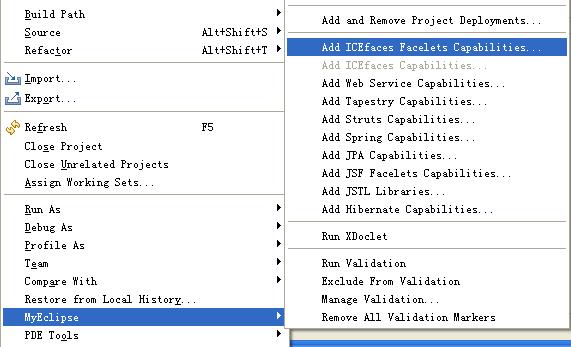

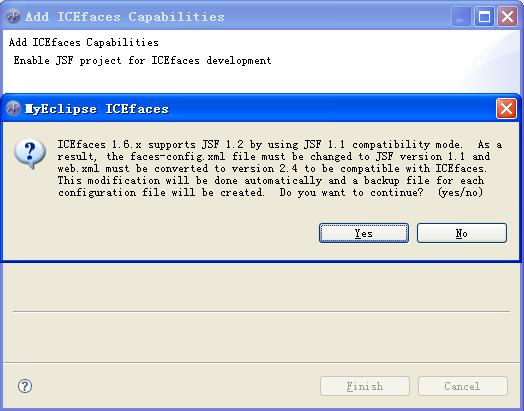

????? 4)加入icesoft组件

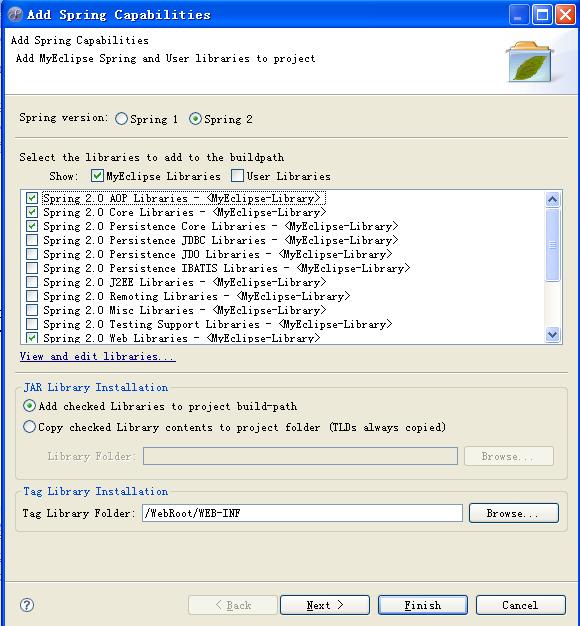

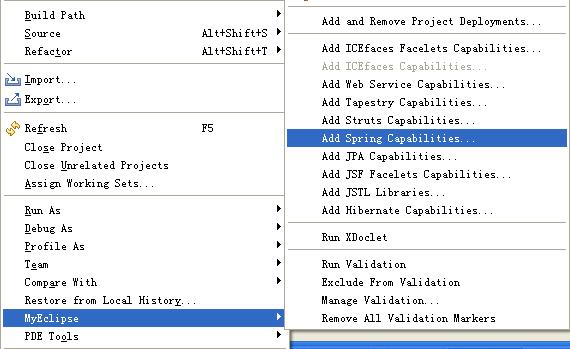

???? 5)加入SPRING框架

?

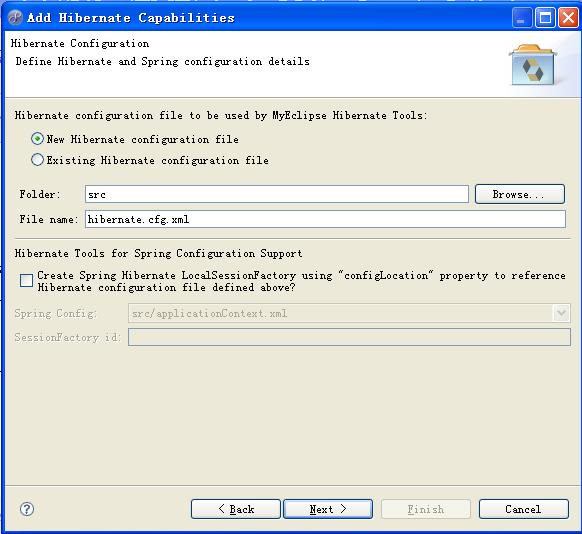

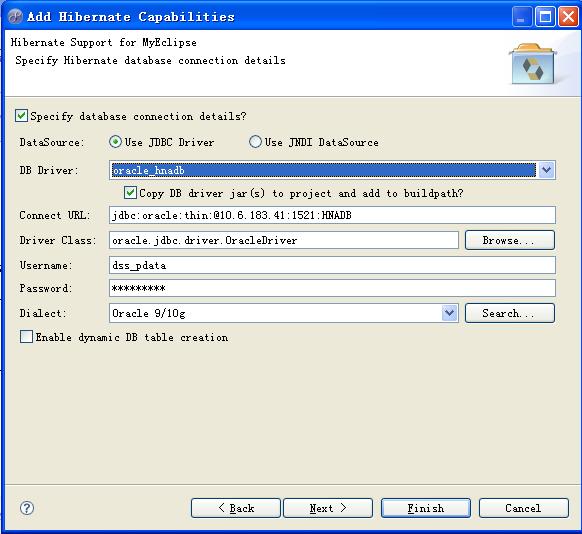

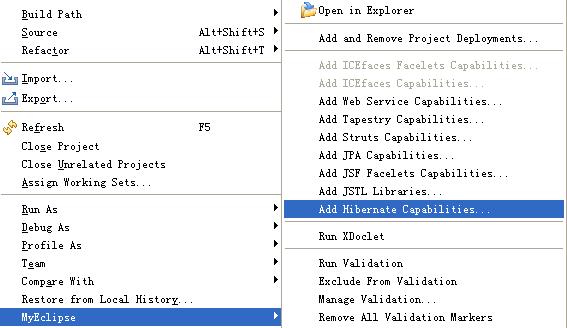

???? 6)加入hibernate框架

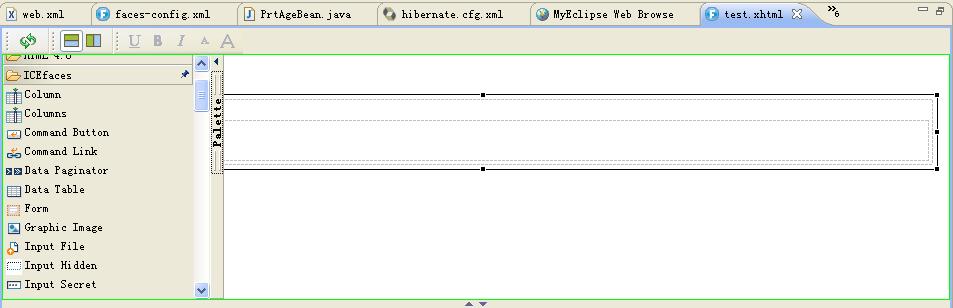

???? 7)创建一个xhtml页面

???? 8)测试,http://localhost:8090/icesoft/test.iface 可以通过.

第二部分:集成jsf+spring+hibernate

???? 程序基本组织形式:

所有代码见附件.

其中没有包括的代码列表如下:

faces-config.xml

<?xml version="1.0" encoding="UTF-8"?><!DOCTYPE faces-config PUBLIC "-//Sun Microsystems, Inc.//DTD JavaServer Faces Config 1.1//EN" "http://java.sun.com/dtd/web-facesconfig_1_1.dtd"><faces-config><application><variable-resolver>org.springframework.web.jsf.DelegatingVariableResolver</variable-resolver><view-handler>com.icesoft.faces.facelets.D2DFaceletViewHandler</view-handler></application><managed-bean><managed-bean-name>prtAgeBean</managed-bean-name><managed-bean-class>com.antbee.hnds.action.PrtAgeBean</managed-bean-class><managed-bean-scope>request</managed-bean-scope><managed-property><property-name>proAgencyDAO</property-name><value>#{proAgencyDAO}</value></managed-property></managed-bean></faces-config>

?web.xml

<?xml version="1.0" encoding="UTF-8"?><web-app xmlns="http://java.sun.com/xml/ns/j2ee"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="2.4"xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd"id="hnds4"><servlet><servlet-name>context</servlet-name><servlet-class>org.springframework.web.context.ContextLoaderServlet</servlet-class><load-on-startup>1</load-on-startup></servlet><context-param><param-name>contextConfigLocation</param-name><param-value>classpath:applicationContext.xml</param-value></context-param><context-param><param-name>javax.faces.CONFIG_FILES</param-name><param-value>/WEB-INF/faces-config.xml</param-value></context-param><context-param><param-name>javax.faces.STATE_SAVING_METHOD</param-name><param-value>server</param-value></context-param><context-param><param-name>com.icesoft.faces.uploadDirectory</param-name><param-value>upload</param-value></context-param><context-param><param-name>com.icesoft.faces.uploadMaxFileSize</param-name><param-value>4048576</param-value></context-param><context-param><param-name>javax.faces.DEFAULT_SUFFIX</param-name><param-value>.xhtml</param-value></context-param><listener><listener-class>com.icesoft.faces.util.event.servlet.ContextEventRepeater</listener-class></listener><servlet><servlet-name>Faces Servlet</servlet-name><servlet-class>javax.faces.webapp.FacesServlet</servlet-class><load-on-startup>0</load-on-startup></servlet><servlet><servlet-name>Persistent Faces Servlet</servlet-name><servlet-class>com.icesoft.faces.webapp.xmlhttp.PersistentFacesServlet</servlet-class><load-on-startup>0</load-on-startup></servlet><servlet><servlet-name>Blocking Servlet</servlet-name><servlet-class>com.icesoft.faces.webapp.xmlhttp.BlockingServlet</servlet-class><load-on-startup>0</load-on-startup></servlet><servlet><servlet-name>uploadServlet</servlet-name><servlet-class>com.icesoft.faces.component.inputfile.FileUploadServlet</servlet-class><load-on-startup>0</load-on-startup></servlet><servlet-mapping><servlet-name>Persistent Faces Servlet</servlet-name><url-pattern>*.faces</url-pattern></servlet-mapping><servlet-mapping><servlet-name>Persistent Faces Servlet</servlet-name><url-pattern>/xmlhttp/*</url-pattern></servlet-mapping><servlet-mapping><servlet-name>Persistent Faces Servlet</servlet-name><url-pattern>*.iface</url-pattern></servlet-mapping><servlet-mapping><servlet-name>Blocking Servlet</servlet-name><url-pattern>/block/*</url-pattern></servlet-mapping><servlet-mapping><servlet-name>uploadServlet</servlet-name><url-pattern>/uploadHtml</url-pattern></servlet-mapping><welcome-file-list><welcome-file>index.jsp</welcome-file></welcome-file-list><!--Tomcat 5 Workaround: Listener used to initialize JSF on startup--><!--Remove comment tags to enable listener.<listener><listener-class>com.sun.faces.config.ConfigureListener</listener-class></listener>--><!--Tomcat 5 Workaround: Listener implementation to handle web application lifecycle event--><!--Remove comment tags to enable listener.<listener><listener-class>com.sun.faces.application.WebappLifecycleListener</listener-class></listener>--></web-app>

?test2.html

<?xml version="1.0" encoding="UTF-8"?><!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"><html xmlns="http://www.w3.org/1999/xhtml"xmlns:ui="http://java.sun.com/jsf/facelets"xmlns:h="http://java.sun.com/jsf/html"xmlns:f="http://java.sun.com/jsf/core"xmlns:ice="http://www.icesoft.com/icefaces/component"><head><title>My Facelets Page</title><ice:outputStyle rel='stylesheet' type='text/css' href='xmlhttp/css/xp/xp.css' /><meta http-equiv="content-type" content="text/html; charset=UTF-8" /></head><body><f:view><ice:form partialSubmit="true"><ice:dataTable border="1" var="u" value="#{prtAgeBean.agency}"id="data" rows="10"><f:facet name="header"><ice:outputText value="机票代理人基本信息列表"></ice:outputText></f:facet><ice:column id="column1"><ice:rowSelector></ice:rowSelector><f:facet name="header"><ice:outputText value="代理号"></ice:outputText></f:facet><ice:outputText value="#{u.id.offcIataCd}"></ice:outputText></ice:column><ice:column id="column2"><f:facet name="header"><ice:outputText value="Office号"></ice:outputText></f:facet><ice:outputText value="#{u.id.offcCd}"></ice:outputText></ice:column><ice:column id="column3"><f:facet name="header"><ice:outputText value="中文名称"></ice:outputText></f:facet><ice:outputText value="#{u.id.offcChnNm}"></ice:outputText></ice:column><ice:column id="column4"><f:facet name="header"><ice:outputText value="英文名称"></ice:outputText></f:facet><ice:outputText value="#{u.id.offcEngNm}"></ice:outputText></ice:column><ice:column id="column5"><f:facet name="header"><ice:outputText value="分布系统"></ice:outputText></f:facet><ice:outputText value="#{u.id.ttlSysCd}"></ice:outputText></ice:column><f:facet name="footer"><ice:outputText value="共有#{prtAgeBean.agency.rowCount}条记录!"></ice:outputText></f:facet></ice:dataTable><ice:panelGrid border="1" columns="1" stylecolumnClasses="standardTable_ColumnCentered" style="width: 552px; "><ice:dataPaginator for="data" fastStep="10" pageCountVar="pageCount"pageIndexVar="pageIndex" paginator="true" paginatorMaxPages="9"><f:facet name="first"><ice:graphicImage style="border:none;"url="xmlhttp/css/xp/css-images/arrow-first.gif"></ice:graphicImage></f:facet><f:facet name="last"><ice:graphicImage style="border:none;"url="xmlhttp/css/xp/css-images/arrow-last.gif"></ice:graphicImage></f:facet><f:facet name="previous"><ice:graphicImage style="border:none;"url="xmlhttp/css/xp/css-images/arrow-previous.gif"></ice:graphicImage></f:facet><f:facet name="next"><ice:graphicImage style="border:none;"url="xmlhttp/css/xp/css-images/arrow-next.gif"></ice:graphicImage></f:facet><f:facet name="fastforward"><ice:graphicImage style="border:none;"url="xmlhttp/css/xp/css-images/arrow-ff.gif"></ice:graphicImage></f:facet><f:facet name="fastrewind"><ice:graphicImage style="border:none;"url="xmlhttp/css/xp/css-images/arrow-fr.gif"></ice:graphicImage></f:facet></ice:dataPaginator></ice:panelGrid></ice:form></f:view></body></html>

?

?

?

?

?
