二、 设置一个User Library

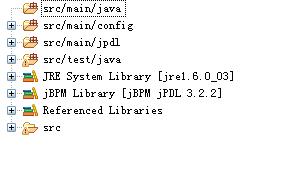

很多人不习惯Process Project的那种代码结构，而我也不习惯。Process Project 的结构如图所示。



于是想给它设置一个自己的库，可以随时在各种WEB应用中调用。设置User Library的步骤如下：
1、 eclipse中，点击Window?Preferences
2、 Java?User Library
3、 点击New，设置User Library name 为jBPM Library。点击OK。
4、 点击Add JARs，首先来到jBPM解压缩后的路径（例如：D:\jbpm-jpdl-3.2.3），有两个JAR，其中jbpm-jpdl.jar是一定要加的。
5、 还有其他的JARs要加，重复步骤4，进入lib包（例如：D:\jbpm-jpdl-3.2.3\lib），选中所有的JARs。

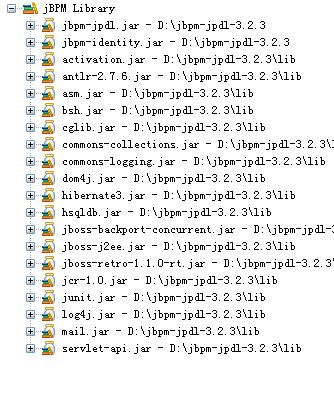

6、 这样，我们的jBPM Library就设置好了。如图所示：




三、 一个结合Struts 1.x的应用
首先，假定一个流程。这个流程是常用的报销流程，只考虑了最简单的流程。



角色有三种：普通员工（employee）、经理（manager）、BOSS（boss）。这里因为只是做个示例，没有考虑过多的权限方面的设置。这里设计了三个用户，分别对应了三种角色，并且员工有上级（经理）无下属、经理有上级（BOSS）有下属（员工）、BOSS无上级有下属（经理）。具体参看数据库设计。
好了，数据设计好了，开始搭建系统吧。步骤如下：
1、 File?New?Web Project
2、 给新添加的web项目添加Struts 1.x类库。
3、 添加新的User Library，将刚才设置好的jBPM Library添加进来。
4、 在项目下新增一个Source Folder，命名为jbpm。

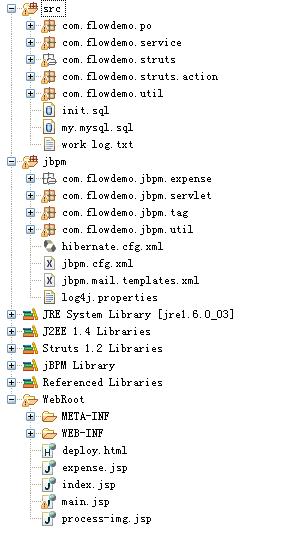

搭建好的结构如下图所示：

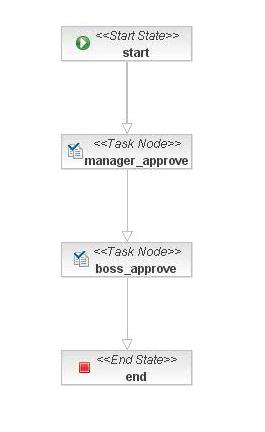

项目的流程定义文件和jBPM插件生成的图片在com.flowdemo.jbpm.expense包下。hibernate.cfg.xml配置文件需要做一些修改，原本配置的数据库连接是hsqldb。现在把它改成为连接MySQL。具体的配置信息查看代码清单。
Com.flowdemo.service包中包含有两个业务逻辑类，一个是关于对象持久化的：PersistenceService.java 一个是工作流的：FlowService.java 。
以下是PersistenceService.java源代码，主要是对持久化对象的一些操作。

package com.flowdemo.service;import java.util.ArrayList;import java.util.List;import org.hibernate.Query;import org.hibernate.Session;import com.flowdemo.po.Expenses;import com.flowdemo.po.Users;import com.flowdemo.util.HibernateSessionFactory;public class PersistenceService {/** * 保存一个报销单对象 * @param expense */public static void save(Expenses expense){Session hibernateSession = HibernateSessionFactory.getSession();try{//hibernateSession.getTransaction().begin();hibernateSession.beginTransaction();hibernateSession.saveOrUpdate(expense);hibernateSession.getTransaction().commit();}catch(Exception e){e.printStackTrace();hibernateSession.getTransaction().rollback();}finally{HibernateSessionFactory.closeSession();}}/** * 更新一个报销单对象 * @param expense */public static void update(Expenses expense){Session hibernateSession = HibernateSessionFactory.getSession();try{//hibernateSession.getTransaction().begin();hibernateSession.beginTransaction();//hibernateSession.saveOrUpdate(expense);hibernateSession.update(expense);hibernateSession.getTransaction().commit();}catch(Exception e){e.printStackTrace();hibernateSession.getTransaction().rollback();}finally{HibernateSessionFactory.closeSession();}}/** * 删除一个报销单对象 * @param expense */public static void delete(Expenses expense){Session hibernateSession = HibernateSessionFactory.getSession();try{//hibernateSession.getTransaction().begin();hibernateSession.beginTransaction();hibernateSession.delete(expense);hibernateSession.getTransaction().commit();}catch(Exception e){e.printStackTrace();hibernateSession.getTransaction().rollback();}finally{HibernateSessionFactory.closeSession();}}/** * 返回一个报销单列表 * @return */public static List<Expenses> getExpenses(){Session hibernateSession = HibernateSessionFactory.getSession();List<Expenses> expenses = new ArrayList<Expenses>();try{//hibernateSession.getTransaction().begin();hibernateSession.beginTransaction();//hibernateSession.delete(expense);Query query = hibernateSession.createQuery("from Expenses");expenses = query.list();hibernateSession.getTransaction().commit();}catch(Exception e){e.printStackTrace();hibernateSession.getTransaction().rollback();}finally{HibernateSessionFactory.closeSession();}return expenses;}/** * 根据用户ID返回一个对象 * @param userId * @return */public static Users getUserById(String userId){Session hibernateSession = HibernateSessionFactory.getSession();Users user = new Users();try{hibernateSession.beginTransaction();user = (Users)hibernateSession.get(Users.class, userId);hibernateSession.getTransaction().commit();}catch(Exception e){e.printStackTrace();hibernateSession.getTransaction().rollback();}finally{HibernateSessionFactory.closeSession();}return user;}/** * 检查用户是否存在 * @param user * @return */public static boolean checkUser(Users user){Users user2 = null;try{user2 = getUserById(user.getUserId());System.out.println("用户的值==="+user2.getUserName());}catch(Exception e){e.printStackTrace();}finally{//HibernateSessionFactory.closeSession();}if(user2.getUserPass() == user.getUserPass() || user2.getUserPass().equals(user.getUserPass())){return true;}else{return false;}}/** * 测试主方法 * @param args */public static void main(String[]args){Session hibernateSession = HibernateSessionFactory.getSession();System.out.println("测试Session是否启动1"+hibernateSession.toString());hibernateSession.close();System.out.println("测试Session是否启动2"+hibernateSession.toString());hibernateSession = HibernateSessionFactory.getSession();System.out.println("测试Session是否启动1"+hibernateSession.toString());HibernateSessionFactory.closeSession();System.out.println("测试Session是否启动2"+hibernateSession.toString());Users user = new Users();user.setUserId("001");user.setUserPass("employee");boolean flag = checkUser(user);System.out.println("是否是正确的？"+flag);}}
以下是FlowService.java源代码：

package com.flowdemo.service;import java.util.ArrayList;import java.util.List;import org.jbpm.JbpmConfiguration;import org.jbpm.JbpmContext;import org.jbpm.db.GraphSession;import org.jbpm.graph.def.ProcessDefinition;import org.jbpm.graph.exe.ProcessInstance;import org.jbpm.taskmgmt.exe.TaskInstance;import com.flowdemo.jbpm.util.PoTaskWrapper;import com.flowdemo.po.Expenses;import com.flowdemo.po.Users;import com.flowdemo.util.HibernateSessionFactory;public class FlowService {static JbpmConfiguration jbpmConfiguration = JbpmConfiguration.getInstance();/** * 初始化流程 */public static void initJbpm(){JbpmContext jbpmContext = jbpmConfiguration.getCurrentJbpmContext();if(jbpmContext == null || jbpmContext.equals("")){jbpmContext = jbpmConfiguration.createJbpmContext();}//如果流程定义没有，则重新部署try{ProcessDefinition processDefinition = ProcessDefinition.parseXmlResource("com/flowdemo/jbpm/expense/processdefinition.xml");;//测试是否存在System.out.println("流程定义是否加载？==="+processDefinition.toString());jbpmContext.deployProcessDefinition(processDefinition);GraphSession graphSession = jbpmContext.getGraphSession();processDefinition = graphSession.findLatestProcessDefinition("expense");}finally{jbpmContext.close();}}/** * 绑定报销单到流程中 */public static void bindingExpenseToProcess(){JbpmContext jbpmContext = jbpmConfiguration.getCurrentJbpmContext();if(jbpmContext == null || jbpmContext.equals("")){jbpmContext = jbpmConfiguration.createJbpmContext();}try{jbpmContext.setSessionFactory(HibernateSessionFactory.getSessionFactory());ProcessDefinition processDefinition = jbpmContext.getGraphSession().findLatestProcessDefinition("expense");ProcessInstance processInstance = new ProcessInstance(processDefinition);jbpmContext.save(processInstance); long processInstanceId = processInstance.getId();//用什么来get or load这个Expenses对象呢？Expenses expense = (Expenses)jbpmContext.getSession().createQuery("from Expenses where processInstanceId = "+null).list().get(0);//Expenses expense = (Expenses)jbpmContext.getSession().get(Expenses.class, 3);expense.setProcessInstanceId(new Long(processInstanceId).toString());jbpmContext.getSession().update(expense);processInstance.getContextInstance().setVariable("expense_id", expense.getExpenseId());processInstance.signal();}finally{jbpmContext.close();}}/** * 根据用户来返回自己需要处理的任务 * @param user * @return */public static List getTasks(Users user){JbpmContext jbpmContext = jbpmConfiguration.getCurrentJbpmContext();if(jbpmContext == null || jbpmContext.equals("")){jbpmContext = jbpmConfiguration.createJbpmContext();}System.out.println("提供任务的人的名字"+user.getUserName());List tasks = new ArrayList();//List expenses = new ArrayList();List poAndTasks = new ArrayList();try{tasks = jbpmContext.getTaskMgmtSession().findTaskInstances(user.getUserName());System.out.println("需要处理的任务的多少"+tasks);TaskInstance taskInstance = null;Expenses expense = null;for(int i=0;i<tasks.size();i++){taskInstance = (TaskInstance)tasks.get(i);Integer expenseId =(Integer)taskInstance.getProcessInstance().getContextInstance().getVariable("expense_id");System.out.println("expenseId的值是多少呢？"+expenseId);PoTaskWrapper poTask = new PoTaskWrapper();jbpmContext.setSessionFactory(HibernateSessionFactory.getSessionFactory());expense = (Expenses)jbpmContext.getSession().load(Expenses.class, expenseId);System.out.println("对应的报销单的编号、金额和理由"+expense.getExpenseId()+" "+expense.getMoney()+" "+expense.getReason());//expenses.add(expense);poTask.setExpense(expense);System.out.println("poTask获得的expense-->"+poTask.getExpense().getMoney());poTask.setTaskInstanceId(taskInstance.getId());poTask.setTokenId(taskInstance.getToken().getId());poAndTasks.add(poTask);}}catch(Exception e){e.printStackTrace();}finally{jbpmContext.close();}//return expenses;System.out.println("队列的长度 -->"+poAndTasks.size());return poAndTasks;}/** * @param processInstanceId * @return */public static boolean managerApprove(String processInstanceId){JbpmContext jbpmContext = jbpmConfiguration.getCurrentJbpmContext();if(jbpmContext == null || jbpmContext.equals("")){jbpmContext = jbpmConfiguration.createJbpmContext();}try{ProcessInstance processInstance = jbpmContext.getProcessInstance(new Long(processInstanceId).longValue());//ProcessDefinition processDefinition = jbpmContext.getGraphSession().findLatestProcessDefinition("expense");//ProcessInstance processInstance = new ProcessInstance(processDefinition);TaskInstance taskInstance = processInstance.getTaskMgmtInstance().createTaskInstance();taskInstance.end();processInstance.signal();}catch(Exception e){e.printStackTrace();}finally{jbpmContext.close();}return false;}/** * 审核 * @param taskInstanceId */public static void approve(long taskInstanceId){JbpmContext jbpmContext = jbpmConfiguration.getCurrentJbpmContext();if(jbpmContext == null || jbpmContext.equals("")){jbpmContext = jbpmConfiguration.createJbpmContext();}try{TaskInstance taskInstance = jbpmContext.getTaskInstance(taskInstanceId);//taskInstance.end("manager_approve");taskInstance.end();//processInstance.signal();}catch(Exception e){e.printStackTrace();}finally{jbpmContext.close();}}}
还有一点需要注意的是，在测试运行之前需要把jbpm的数据库表创建好，当然也可以通过JbpmContext jbpmContext = cfg.createJbpmContext();来创建，但是这是在每次运行时都会创建，所以还是直接通过导入jbpm的sql文件来创建的好。
好了，一个基于struts的jbpm应用差不多就完成了，我比较懒，所以也不太想在介绍代码上费功夫了，各位看官自己看咯，呵呵。

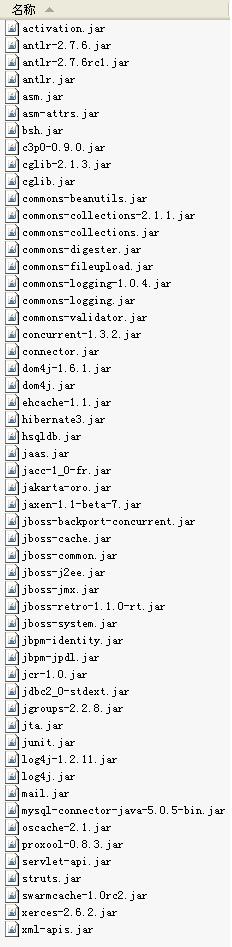

还想做一些集成spring的应用，但是由于公司也没用上这种技术，所以兴趣又降了一大半，⊙﹏⊙b汗。以后有机会再自己写写吧。以下附上源代码。有需要的请下载吧。按照习惯，我去掉了jar包，所有的需要的jar清单，请看图片：
