Create a Student Entity

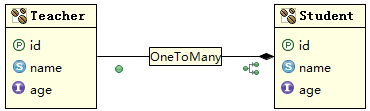

Create a one to many relation

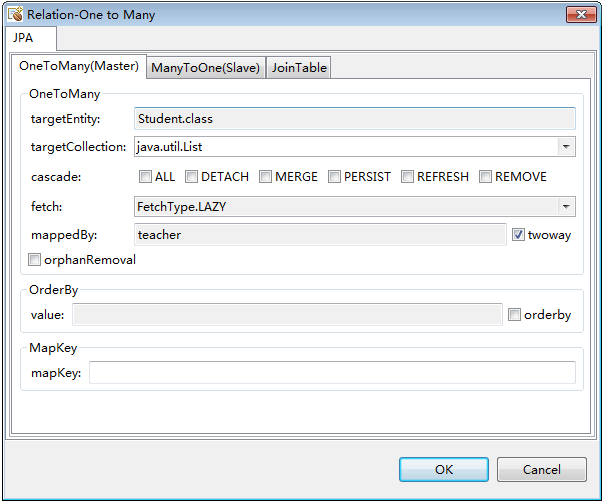

Two-Way relation

If you wish to have a two-way relationship between the Entity.

* Check twoway checkbox

Generate SQL Script

Click toolbar

MySQL

create table Student (id bigint not null auto_increment, age integer, name varchar(255), teacher_id bigint, primary key (id));

create table Teacher (id bigint not null auto_increment, age integer, name varchar(255), primary key (id));

alter table Student add index FKF3371A1BDD2DCEF7 (teacher_id), add constraint FKF3371A1BDD2DCEF7 foreign key (teacher_id) references Teacher (id);

?

Oracle

create table Student (id number(19,0) not null, age number(10,0), name varchar2(255 char), teacher_id number(19,0), primary key (id));

create table Teacher (id number(19,0) not null, age number(10,0), name varchar2(255 char), primary key (id));

alter table Student add constraint FKF3371A1BDD2DCEF7 foreign key (teacher_id) references Teacher;

create sequence hibernate_sequence;

?

SQLServer

create table Student (id numeric(19,0) identity not null, age int null, name varchar(255) null, teacher_id numeric(19,0) null, primary key (id));

create table Teacher (id numeric(19,0) identity not null, age int null, name varchar(255) null, primary key (id));

alter table Student add constraint FKF3371A1BDD2DCEF7 foreign key (teacher_id) references Teacher;

Create many-to-one Entity

Create a User Entity

Create a Organ Entity

Create a many to one relation

Generate SQL Script

Click toolbar

MySQL

create table Organ (id bigint not null auto_increment, name varchar(255), primary key (id));

create table User (id bigint not null auto_increment, age integer, name varchar(255), organ_id bigint, primary key (id));

alter table User add index FK285FEB7C5567D7 (organ_id), add constraint FK285FEB7C5567D7 foreign key (organ_id) references Organ (id);

?

Oracle

create table Organ (id number(19,0) not null, name varchar2(255 char), primary key (id));

create table User (id number(19,0) not null, age number(10,0), name varchar2(255 char), organ_id number(19,0), primary key (id));

alter table User add constraint FK285FEB7C5567D7 foreign key (organ_id) references Organ;

create sequence hibernate_sequence;

?

SQLServer

create table Organ (id numeric(19,0) identity not null, name varchar(255) null, primary key (id));

create table User (id numeric(19,0) identity not null, age int null, name varchar(255) null, organ_id numeric(19,0) null, primary key (id));

alter table User add constraint FK285FEB7C5567D7 foreign key (organ_id) references Organ;

Create many-to-many Entity

Create a Customer Entity

Create a Order Entity

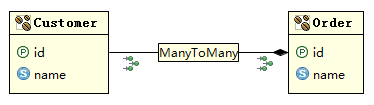

Create a many to many Relation

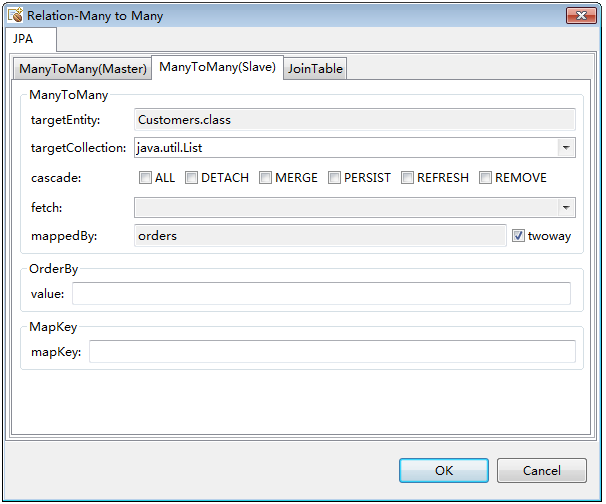

Two-Way relation

If you wish to have a two-way relationship between the Entity.

* ManyToMany(Slave) Check twoway checkbox

Generate SQL Script

Click toolbar

MySQL

create table Customer (id bigint not null auto_increment, name varchar(255), primary key (id));

create table Customer_Order (customers_id bigint not null, orders_id bigint not null);

create table Order (id bigint not null auto_increment, name varchar(255), primary key (id));

alter table Customer_Order add index FK495F67AD236C2846 (customers_id), add constraint FK495F67AD236C2846 foreign key (customers_id) references Customer (id);

alter table Customer_Order add index FK495F67AD1695EBC0 (orders_id), add constraint FK495F67AD1695EBC0 foreign key (orders_id) references Order (id);

?

Oracle

create table Customer (id number(19,0) not null, name varchar2(255 char), primary key (id));

create table Customer_Order (customers_id number(19,0) not null, orders_id number(19,0) not null);

create table Order (id number(19,0) not null, name varchar2(255 char), primary key (id));

alter table Customer_Order add constraint FK495F67AD236C2846 foreign key (customers_id) references Customer;

alter table Customer_Order add constraint FK495F67AD1695EBC0 foreign key (orders_id) references Order;

create sequence hibernate_sequence;

?

SQLServer

create table Customer (id numeric(19,0) identity not null, name varchar(255) null, primary key (id));

create table Customer_Order (customers_id numeric(19,0) not null, orders_id numeric(19,0) not null);

create table Order (id numeric(19,0) identity not null, name varchar(255) null, primary key (id));

alter table Customer_Order add constraint FK495F67AD236C2846 foreign key (customers_id) references Customer;

alter table Customer_Order add constraint FK495F67AD1695EBC0 foreign key (orders_id) references Order;

?

Create one-to-one Entity

Create a Person Entity

Create a Room Entity

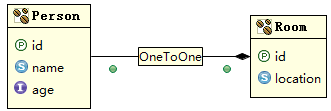

Create a one to one Relation

Generate SQL Script

Click toolbar

MySQL

create table Person (id bigint not null auto_increment, age integer, name varchar(255), room_id bigint, primary key (id));

create table Room (id bigint not null auto_increment, location varchar(255), primary key (id));

alter table Person add index FK8E488775CF9A987D (room_id), add constraint FK8E488775CF9A987D foreign key (room_id) references Room (id);

?

Oracle

create table Person (id number(19,0) not null, age number(10,0), name varchar2(255 char), room_id number(19,0), primary key (id));

create table Room (id number(19,0) not null, location varchar2(255 char), primary key (id));

alter table Person add constraint FK8E488775CF9A987D foreign key (room_id) references Room;

create sequence hibernate_sequence;

?

SQLServer

create table Person (id numeric(19,0) identity not null, age int null, name varchar(255) null, room_id numeric(19,0) null, primary key (id));

create table Room (id numeric(19,0) identity not null, location varchar(255) null, primary key (id));

alter table Person add constraint FK8E488775CF9A987D foreign key (room_id) references Room;

?
