Flash/Flex学习笔记(36)：碰撞检测
碰撞检测基本上可能分为二类：对象与对象的碰撞检测、对象与点的碰撞检测
为了方便测试，先写一个box类(生成一个小矩形)
package {
import flash.display.Sprite;
public class Box extends Sprite {
?private var w:Number;
?private var h:Number;
?private var color:uint;
?public var vx:Number=0;
?public var vy:Number=0;
?public function Box(width:Number=50, height:Number=50, color:uint=0xff0000) {
?w=width;
h=height;
?this.color=color;
?init();
?}
?public function init():void {
?graphics.beginFill(color);
graphics.drawRect(-w / 2, -h / 2, w, h);
?graphics.endFill();
}
?}
?}
最基本的对象碰撞检测：hitTestObject
package {
?import flash.display.Sprite;
?import flash.events.Event;
?public class Boxes extends Sprite {
private var box:Box;
private var boxes:Array;
?private var gravity:Number=0.1;
?public function Boxes() {
init();
?}
?private function init():void {
?boxes = new Array();
?createBox();
?addEventListener(Event.ENTER_FRAME, onEnterFrame);
?}
private function onEnterFrame(event:Event):void {
?box.vy+=gravity;
?box.y+=box.vy;
?//如果物体下落到了舞台(最下)边界，则再造一个出来往下掉
?if (box.y+box.height/2>stage.stageHeight) {
?box.y=stage.stageHeight-box.height/2;
?createBox();
?} else{
?for (var i:uint = 0; i < boxes.length; i++) {
?//每个正在下掉的物体与其它物体做(矩形)碰撞检测
?if (box!=boxes[i]&&box.hitTestObject(boxes[i])) {
?box.y=boxes[i].y-boxes[i].height/2-box.height/2;
?//堆到顶了，则停止
if (box.y<=box.height/2){
?removeEventListener(Event.ENTER_FRAME,onEnterFrame);
?} else{
?createBox();
}
?}
?}
?}
?}
?
private function createBox():void {
?box=new Box(Math.random()*40+10,Math.random()*40+10,Math.random()*0xffffff);
?box.x=Math.random()*stage.stageWidth;
addChild(box);
boxes.push(box);
?}
}
?}
如果把Box换成前面例子中的Ball，就是下面这个样子：
很明显：矩形换成球后，碰撞检测变得不精确了，有一些球似乎并没有真正撞到其它球也停下来了，这是为什么腻?

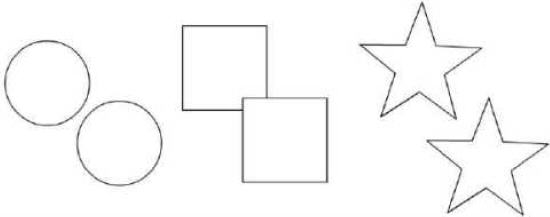

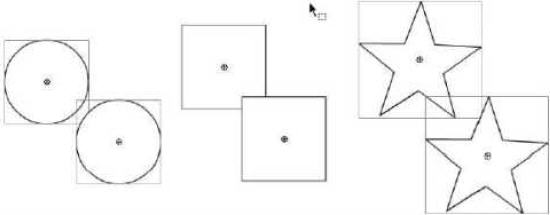

答案就在于：Flash对象碰撞检测默认采用“对象的矩形边界”做为检测依据。上面二张图演示了这一细节：第一张图虽然肉眼看上去只有二个矩形相交了，但是在Flash看来，其实每对图形都碰到了(第二张图)，所以大家应该也能明白为啥换成球后，有些球会浮在空中了。
对象与点的碰撞检测：hitTestPoint
package {
?import flash.display.Sprite;
?import flash.events.Event;
?import flash.text.TextField;
?public class PointHitTest extends Sprite {
?private var ball:Ball;
?private var box:Box;
?private var txt:TextField = new TextField();
public function PointHitTest() {
?init();
?}
?private function init():void {
ball=new Ball;
?addChild(ball);
?ball.x=stage.stageWidth/2;
?ball.y=stage.stageHeight/2;
?box = new Box(90,90);
?addChild(box);
?box.x = 100;
?box.y = ball.y;
?addEventListener(Event.ENTER_FRAME,EnterFrameHandler);
?addChild(txt);
?txt.selectable = false;
?}
?private function EnterFrameHandler(event:Event):void {
?if (ball.hitTestPoint(mouseX,mouseY) || box.hitTestPoint(mouseX,mouseY)) {
?txt.text = "碰到了!";
?} else{
?txt.text = "";
}
?txt.x = mouseX + 15;
?txt.y = mouseY;
?}
?}
?}
用鼠标在二个物体上划过，会看到鼠标所在点与矩形及小球的碰撞检测结果，同样这里也存在一个问题：对于小球而言，默认也是采用矩形边界检测的，所以鼠标移到小球的边角时，虽然还没碰到球，也提示"碰到了"，还好Flash提供了一个可选参数，以改进检测的精确度，只要把hitTestPoint第三个可选参数设置为true即可
if (ball.hitTestPoint(mouseX,mouseY) || box.hitTestPoint(mouseX,mouseY,true)) {
基于距离的检测：即检测二个物体的中心点距离是否低于最小距离
var ball_1:Ball=new Ball(70,0xff0000);
var ball_2:Ball=new Ball(70,0x0000ff);
?ball_1.x=stage.stageWidth/2;
?ball_1.y=stage.stageHeight/2;
?ball_2.x=stage.stageWidth/2;
?ball_2.y=stage.stageHeight/2;
?ball_1.vx = Math.random()*20 - 20;
ball_1.vy = Math.random()*20 - 20;
?ball_2.vx = Math.random()*20 - 20;
?ball_2.vy = Math.random()*20 - 20;
?addChild(ball_1);
addChild(ball_2);
addEventListener(Event.ENTER_FRAME,EnterFrameHandler);
?function EnterFrameHandler(e:Event):void {
?ball_1.x+=ball_1.vx;
?ball_1.y+=ball_1.vy;
ball_2.x+=ball_2.vx;
?ball_2.y+=ball_2.vy;
CheckBoundary(ball_1);
?CheckBoundary(ball_2);
?var dx:Number=ball_1.x-ball_2.x;
var dy:Number=ball_1.y-ball_2.y;
?var dist:Number=Math.sqrt(dx*dx+dy*dy);
?if (dist<(ball_1.radius + ball_2.radius)) {
?var angle:Number=Math.atan2(dy,dx);
?ball_1.vx=dist*Math.cos(angle)*0.1;
?ball_1.vy=dist*Math.sin(angle)*0.1;
?ball_2.vx=dist*Math.cos(angle)*-0.1;
?ball_2.vy=dist*Math.sin(angle)*-0.1;
?}
?}
?function CheckBoundary(b:Ball) {
?if (b.x>stage.stageWidth-b.width/2||b.x<=b.width/2) {
b.x-=b.vx;
b.vx*=-1;
?}
?if (b.y>stage.stageHeight-b.height/2||b.y<=b.height/2) {
?b.y-=b.vy;
?b.vy*=-1;
?}
?}
很明显，这种方法对于圆形物体是十分精确的，但对于非规则形状，只能近似检测.
如果结合上二篇提到的弹性运动，可以做出更复杂的动画：
?package {
?import flash.display.Sprite;
import flash.events.Event;
public class Bubbles extends Sprite {
private var balls:Array;
private var numBalls:Number=10;
?private var centerBall:Ball;
?private var bounce:Number=-1;
private var spring:Number=0.2;
?public function Bubbles() {
init();
?}
?private function init():void {
?balls=new Array ;
?centerBall=new Ball(100,0xcccccc);
?addChild(centerBall);
?centerBall.x=stage.stageWidth/2;
centerBall.y=stage.stageHeight/2;
?for (var i:uint=0; i<numBalls; i++) {
var ball:Ball=new Ball(Math.random()*40+5,Math.random()*0xffffff);
ball.x=Math.random()*stage.stageWidth;
?ball.y=Math.random()*stage.stageHeight;
ball.vx=(Math.random()*2-1)*10;
?ball.vy=(Math.random()*2-1)*10;
?addChild(ball);
?balls.push(ball);
?}
?addEventListener(Event.ENTER_FRAME,onEnterFrame);
?}
?private function onEnterFrame(event:Event):void {
?for (var i:uint=0; i<numBalls; i++) {
var ball:Ball=balls[i];
?move(ball);
?var dx:Number=ball.x-centerBall.x;
?var dy:Number=ball.y-centerBall.y;
?var dist:Number=Math.sqrt(dx*dx+dy*dy);
?var minDist:Number=ball.radius+centerBall.radius;
?if (dist<minDist) {
?var angle:Number=Math.atan2(dy,dx);
?var tx:Number=centerBall.x+Math.cos(angle)*minDist;//弹性运动的目标点x坐标
?var ty:Number=centerBall.y+Math.sin(angle)*minDist;//弹性运动的目标点y坐标
?ball.vx+=(tx-ball.x)*spring;
?ball.vy+=(ty-ball.y)*spring;
?}
?}
?}
?private function move(ball:Ball):void {
?ball.x+=ball.vx;
?ball.y+=ball.vy;
?if (ball.x+ball.radius>stage.stageWidth) {
?ball.x=stage.stageWidth-ball.radius;
?ball.vx*=bounce;
} else if (ball.x-ball.radius<0) {
?ball.x=ball.radius;
?ball.vx*=bounce;
}
if (ball.y+ball.radius>stage.stageHeight) {
?ball.y=stage.stageHeight-ball.radius;
?ball.vy*=bounce;
?} else if (ball.y-ball.radius<0) {
?ball.y=ball.radius;
?ball.vy*=bounce;
}
?}
}
?}
原理图：
多物体基于距离的碰撞检测：
package {
import flash.display.Sprite;
?import flash.events.Event;
?public class Bubbles2 extends Sprite {
?private var balls:Array;
?private var numBalls:Number=20;
?private var bounce:Number=-0.9;
?private var spring:Number=0.2;
?private var gravity:Number=1;
?public function Bubbles2() {
?init();
?}
private function init():void {
?balls = new Array();
?for (var i:uint = 0; i < numBalls; i++) {
?var ball:Ball=new Ball(Math.random()*30+20,Math.random()*0xffffff);
?ball.x=Math.random()*stage.stageWidth;
?ball.y=Math.random()*stage.stageHeight;
?ball.vx=Math.random()*6-3;
?ball.vy=Math.random()*6-3;
?addChild(ball);
balls.push(ball);
?}
addEventListener(Event.ENTER_FRAME, onEnterFrame);
}
private function onEnterFrame(event:Event):void {
?for (var i:uint = 0; i < numBalls - 1; i++) {
?var ball0:Ball=balls[i];
?for (var j:uint = i + 1; j < numBalls; j++) {
?var ball1:Ball=balls[j];????????????????????
var dx:Number=ball1.x-ball0.x;
?var dy:Number=ball1.y-ball0.y;
var dist:Number=Math.sqrt(dx*dx+dy*dy);
?var minDist:Number=ball0.radius+ball1.radius;
?if (dist<minDist) {
?/*
?var angle:Number=Math.atan2(dy,dx);
?var tx:Number=ball0.x+Math.cos(angle)*minDist;
?var ty:Number=ball0.y+Math.sin(angle)*minDist;
?*/
?var tx:Number=ball0.x + (dx/dist)*minDist;
var ty:Number=ball0.y + (dy/dist)*minDist;
var ax:Number = (tx - ball1.x) * spring;
?var ay:Number = (ty - ball1.y) * spring;
?ball0.vx-=ax;
ball0.vy-=ay;
?ball1.vx+=ax;
?ball1.vy+=ay;
}
?}
?}
?for (i = 0; i < numBalls; i++) {
?var ball:Ball=balls[i];
?move(ball);
?}
?}
?private function move(ball:Ball):void {
?ball.vy+=gravity;
?ball.x+=ball.vx;
ball.y+=ball.vy;
?if (ball.x+ball.radius>stage.stageWidth) {
?ball.x=stage.stageWidth-ball.radius;
?ball.vx*=bounce;
?} else if (ball.x - ball.radius < 0) {
?ball.x=ball.radius;
?ball.vx*=bounce;
?}
?if (ball.y+ball.radius>stage.stageHeight) {
?ball.y=stage.stageHeight-ball.radius;
ball.vy*=bounce;
?} else if (ball.y - ball.radius < 0) {
?ball.y=ball.radius;
?ball.vy*=bounce;
}
?}
?}
}
?
