接口型形式

接口型模式
1.Adapter(适配器)模式

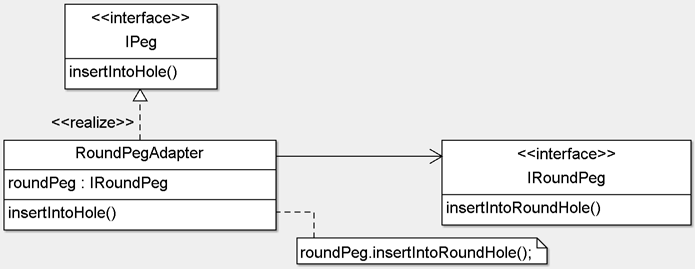

对象适 配器(Object Adapter)

public interface IPeg {void insertIntoHole();}public class SquarePeg implements IPeg {@Overridepublic void insertIntoHole() {System.out.println("I'm inserting into square hole...");// other logic...}}public interface IRoundPeg {void insertIntoRoundHole();}public class RoundPeg implements IRoundPeg {@Overridepublic void insertIntoRoundHole() {System.out.println("I'm inserting into round hole...");// other logic...}}public class RoundPegAdapter implements IPeg {private IRoundPeg roundPeg;public RoundPegAdapter(IRoundPeg roundPeg) {this.roundPeg = roundPeg;}@Overridepublic void insertIntoHole() {roundPeg.insertIntoRoundHole();}}

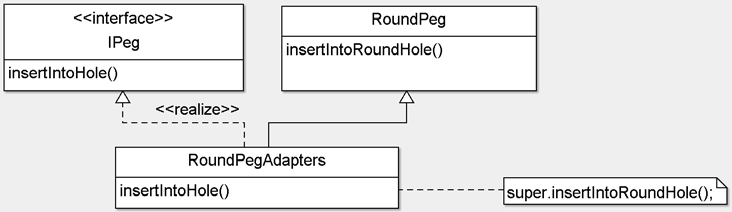

类适配器

public class RoundPegAdapter2 extends RoundPeg implements IPeg {@Overridepublic void insertIntoHole() {super.insertIntoRoundHole();}}

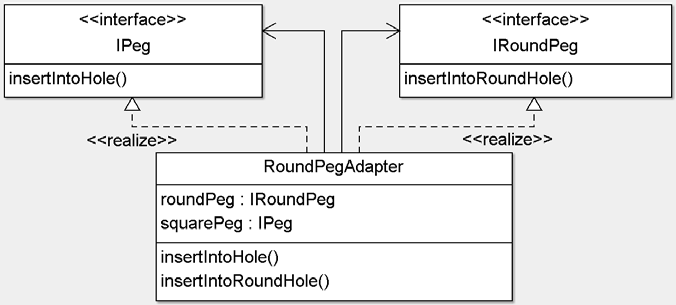

双向适配器

public class TwoWayPegAdapter implements IRoundPeg, IPeg {private IPeg squarePeg;private IRoundPeg roundPeg;public TwoWayPegAdapter(IPeg squarePeg) {this.squarePeg = squarePeg;}public TwoWayPegAdapter(IRoundPeg roundPeg) {this.roundPeg = roundPeg;}@Overridepublic void insertIntoRoundHole() {squarePeg.insertIntoHole();}@Overridepublic void insertIntoHole() {roundPeg.insertIntoRoundHole();}}

测试

public class TestDrive {public static void main(String[] args) {TestDrive test = new TestDrive();IPeg squarePeg = new SquarePeg();IRoundPeg roundPeg = new RoundPeg();RoundPegAdapter adpater = new RoundPegAdapter(roundPeg);System.out.println("Testing square peg...");test.testPeg(squarePeg);System.out.println("\nTesting square adapter peg...");test.testPeg(adpater);TwoWayPegAdapter roundPeg2 = new TwoWayPegAdapter(roundPeg);TwoWayPegAdapter squarePeg2 = new TwoWayPegAdapter(squarePeg);System.out.println("\nTesting a 2-way square adapter peg...");test.testPeg(roundPeg2);System.out.println("\nTesting 2-way round adapter peg...");test.testRoundPeg(squarePeg2);}private void testPeg(IPeg peg) {peg.insertIntoHole();}private void testRoundPeg(IRoundPeg peg) {peg.insertIntoRoundHole();}}

2.Facade(外观)模式

目的：提供一个接口，使子系统更加容易使用。

通常，我们应该把子系统中的类重构为一个个目的明确的类。这样做可以使代码更加容易维护，但是这样也会让子系统用户不知从何处开始。为了便于子系统用户的使用，我们可以在子系统中顺带提供一些示例类或者外观类。示例类通常是指能够独立运行但不可复用的应用程序，仅用来示范子系统的用法。外观类通常是一个可配置、可复用的类，它为方便用户使用子系统提供了一个更高层次的接口。

总结：外观封装了子系统之间复杂的交互和依赖关系,为客户对象提供了单一简单的界面,降低了系统的复杂性。在讲解外观模式同时,介绍了 最少知识原则,我们知道,类之间耦合度越低,越易扩展和实现重用。

public class HotelReceptionist {    public void subscribe() {        System.out.println("Subscribe a table...");    }}public class Cook {    public void cookDish() {        System.out.println("Cooking dishes...");    }}public class Waitress {    public void serveDishes() {        System.out.println("Serving dishes...");    }    public void waitForAnOrder() {        System.out.println("Waiting for the order...");    }}public class Cashier {    public void check() {        System.out.println("Check the bill...");    }}public class Assistant {    private HotelReceptionist hotelReceptionist;    private Cook cook;    private Waitress waitress;    private Cashier cashier;    public Assistant(HotelReceptionist hotelReceptionist, Cook cook, Waitress waitress, Cashier cashier) {        this.hotelReceptionist = hotelReceptionist;        this.cook = cook;        this.waitress = waitress;        this.cashier = cashier;    }    public void prepareDinner() {        hotelReceptionist.subscribe();        waitress.waitForAnOrder();        cook.cookDish();    }    public void endDinner() {        waitress.serveDishes();        cashier.check();    }}public class Boss {    private Assistant assistant;    public Boss(Assistant assistant) {        this.assistant = assistant;    }    public void treat() {        assistant.prepareDinner();        address();        assistant.endDinner();    }    private void address() {        System.out.println("Boss is bitching : "Tomorrow is going to be better, we will make blah blah..."");    }}public class FacadeTestDrive {    public static void main(String[] args) {       Cashier cashier = new Cashier();       Cook cook = new Cook();       HotelReceptionist hotelReceptionist = new HotelReceptionist();       Waitress waitress = new Waitress();       Assistant assistant = new Assistant(hotelReceptionist, cook, waitress, cashier);       Boss boss = new Boss(assistant);       boss.treat();   }}

3.Composite(组合)模式

目的：让用户能够用统一的接口处理单个对象以及对象组合。


常见的组合

   Composite模式包含两个相关的重要概念。其中一个概念是群组可以包含个体对象，也可以包含其他的群组。与此相关的另一个概念是群组和个体对象可以共享同一个接口。将这些概念应用于对象建模，就可以创建一个抽象类或Java接口来定义群组对象和个体对象的公有特性。

     组合对象模式中的方法通常采用递归定义。由于递归的存在，在编写代码的时候需要谨防死循环。不过，只要通过采取措施保证组合对象模型为树状结构，就可一避免这类问题。另外，组合对象模型中也可以出现环，但是我们必须修改算法来监控可能出现的无穷尽递归。

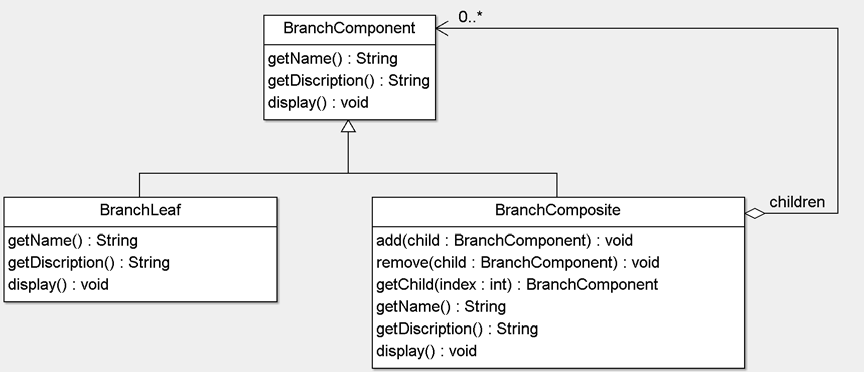

安全的组合模式

public abstract class BranchComponent {    public String getName() {        throw new UnsupportedOperationException();    }    public String getDiscription() {        throw new UnsupportedOperationException();    }    public void display() {        throw new UnsupportedOperationException();    }}import java.util.ArrayList;import java.util.List;public class BranchComposite extends BranchComponent {    private String name;    private String discription;    private List<BranchComponent> childrenBranch;    public BranchComposite(String name, String discription) {        this.name = name;        this.discription = discription;        childrenBranch = new ArrayList<BranchComponent>();    }    public void display() {        System.out.printf("%s: %s\n", name, discription);        for (BranchComponent child : childrenBranch) {            child.display();        }    }    public String getName() {        return name;    }    public String getDiscription() {        return discription;    }    public void add(BranchComponent child) {        childrenBranch.add(child);    }    public void remove(BranchComponent child) {        childrenBranch.remove(child);    }    public BranchComponent getChild(int index) {        return childrenBranch.get(index);    }}public class BranchLeaf extends BranchComponent {    private String name;    private String discription;    public BranchLeaf(String name, String discription) {        this.name = name;        this.discription = discription;    }    public void display() {        System.out.printf("\t%s: %s\n", name, discription);    }    public String getName() {        return name;    }    public String getDiscription() {        return discription;    }}public class TestDrive {    public static void main(String[] args) {        BranchComposite china = new BranchComposite("CN", "China Branch");        BranchComposite shanghai = new BranchComposite("Sh", "Shanghai Branch");        BranchLeaf huangpu = new BranchLeaf("Hp", "Huangpu Branch");        BranchLeaf yangpu = new BranchLeaf("Yp", "Yangpu Branch");        BranchLeaf pudong = new BranchLeaf("Pd", "Pudong Branch");        BranchComposite beijing = new BranchComposite("Bj", "Beijing Branch");        BranchLeaf dongcheng = new BranchLeaf("Dc", "Dongcheng Branch");        BranchLeaf xicheng = new BranchLeaf("Xc", "Xicheng Branch");        BranchLeaf haidian = new BranchLeaf("Hd", "Haidian Branch");        shanghai.add(huangpu);        shanghai.add(yangpu);        shanghai.add(pudong);        beijing.add(dongcheng);        beijing.add(xicheng);        beijing.add(haidian);        china.add(shanghai);        china.add(beijing);        System.out.println("Displaying the head bank information");        display(china);        System.out.println("\nDisplaying Shanghai bank branch information");        display(shanghai);        System.out.println("\nDisplaying Pudong bank branch information in Shanghai");        display(pudong);    }    private static void display(BranchComponent branch) {        branch.display();    }}

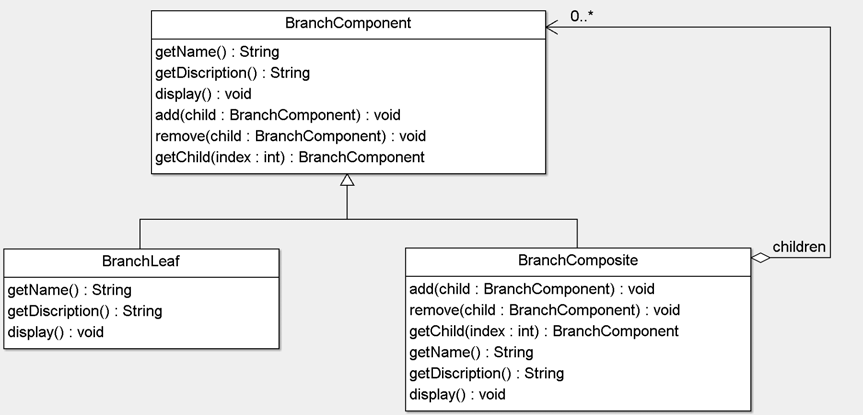

透明的组合模式

public abstract class BranchComponent {    public String getName() {        throw new UnsupportedOperationException();    }    public String getDiscription() {        throw new UnsupportedOperationException();    }    public void display() {        throw new UnsupportedOperationException();    }    public void add(BranchComponent child) {        throw new UnsupportedOperationException();    }    public void remove(BranchComponent child) {        throw new UnsupportedOperationException();    }    public BranchComponent getChild(int index) {        throw new UnsupportedOperationException();    }}import java.util.ArrayList;import java.util.List;public class BranchComposite extends BranchComponent {    private String name;    private String discription;    private List<BranchComponent> childrenBranch;    public BranchComposite(String name, String discription) {        this.name = name;        this.discription = discription;        childrenBranch = new ArrayList<BranchComponent>();    }    public void display() {        System.out.printf("%s: %s\n", name, discription);        for (BranchComponent child : childrenBranch) {            child.display();        }    }    public String getName() {        return name;    }    public String getDiscription() {        return discription;    }    public void add(BranchComponent child) {        childrenBranch.add(child);    }    public void remove(BranchComponent child) {        childrenBranch.remove(child);    }    public BranchComponent getChild(int index) {        return childrenBranch.get(index);    }}public class BranchLeaf extends BranchComponent {    private String name;    private String discription;    public BranchLeaf(String name, String discription) {        this.name = name;        this.discription = discription;    }    public void display() {        System.out.printf("\t%s: %s\n", name, discription);    }    public String getName() {        return name;    }    public String getDiscription() {        return discription;    }}public class TestDrive {    public static void main(String[] args) {        BranchComposite china = new BranchComposite("CN", "China Branch");        BranchComposite shanghai = new BranchComposite("Sh", "Shanghai Branch");        BranchLeaf huangpu = new BranchLeaf("Hp", "Huangpu Branch");        BranchLeaf yangpu = new BranchLeaf("Yp", "Yangpu Branch");        BranchLeaf pudong = new BranchLeaf("Pd", "Pudong Branch");        BranchComposite beijing = new BranchComposite("Bj", "Beijing Branch");        BranchLeaf dongcheng = new BranchLeaf("Dc", "Dongcheng Branch");        BranchLeaf xicheng = new BranchLeaf("Xc", "Xicheng Branch");        BranchLeaf haidian = new BranchLeaf("Hd", "Haidian Branch");        shanghai.add(huangpu);        shanghai.add(yangpu);        shanghai.add(pudong);        beijing.add(dongcheng);        beijing.add(xicheng);        beijing.add(haidian);        china.add(shanghai);        china.add(beijing);        System.out.println("Displaying the head bank information");        display(china);        System.out.println("\nDisplaying Shanghai bank branch information");        display(shanghai);        System.out.println("\nDisplaying Pudong bank branch information in Shanghai");        display(pudong);    }    private static void display(BranchComponent branch) {        branch.display();    }}

4.Bridge(桥接)模式

意图：将抽象与抽象方法的实现相分离，这样他们就可以独立变化。

    抽象就是指依赖于一系列抽象方法的类。最简单的抽象实例是抽象的类层次结构，其中超类中的具体类依赖于其他抽象类。如果希望用另一种机器的排列方式来构造最初的类层次结构，就必须把那些抽象的方法移到另一种类层次结构中。在这种情况下，我们可以使用Bridge模式，将抽象与其抽象方法的实现相分离。
    Bridge模式是常见的例子就是驱动程序，比如数据库驱动程序。数据库驱动程序提供了Bridge模式结构中固有的权衡的良好实例。一个驱动程序可能会请求某个实现程序不支持的方法。另一方面，驱动程序可能会忽略应用到某个特定数据库的有用方法。这将迫使我们重新编写针对实现而不是抽象的代码。我们是否应该更重视抽象而不是具体并非一直都很明朗，但是有意地做这些决定是非常重要的.
