jsp上使用jasper做报表

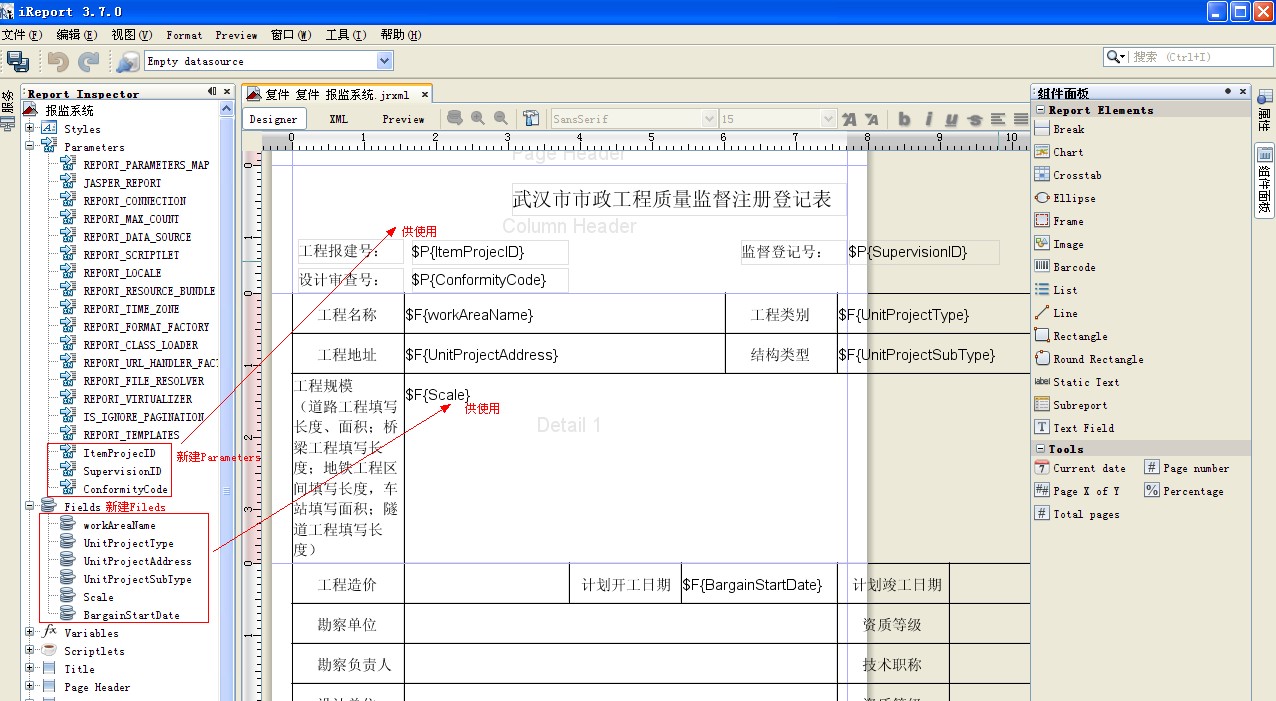

1、先用ireport工具新建jrxml文件，再制作报表样式！
?
?

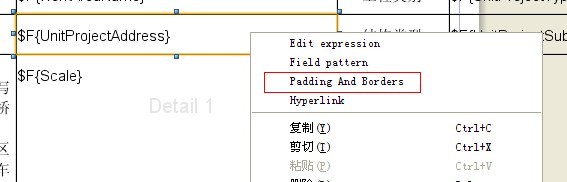

2、可以通过在控件的右键上设置边框，这是为了产生表格效果
?
?

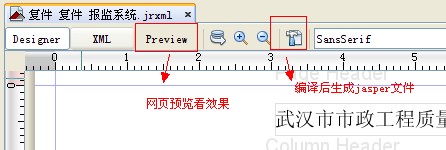

好了 初步工作已经有了，我们经过编译后得到了一个jasper文件，那么我们怎么用在J2EE的项目中呢？
?
3、将下列信息配置在web.xml
<servlet><servlet-name>ImageServlet</servlet-name><servlet-class>net.sf.jasperreports.j2ee.servlets.ImageServlet</servlet-class></servlet><servlet-mapping><servlet-name>ImageServlet</servlet-name><url-pattern>/servlets/image</url-pattern></servlet-mapping>
?
?4、导入运行jasper所要用到的5个jar包，jar包在下面的附件里。可以下载获得
?
5、配置完成后如何使用呢？? 先学习如何在java类中使用 ，生成excel 、html、pdf等格式
package com.test;import java.io.File;import java.util.ArrayList;import java.util.HashMap;import java.util.List;import java.util.Map;import net.sf.jasperreports.engine.JRException;import net.sf.jasperreports.engine.JRExporterParameter;import net.sf.jasperreports.engine.JasperFillManager;import net.sf.jasperreports.engine.JasperPrint;import net.sf.jasperreports.engine.JasperReport;import net.sf.jasperreports.engine.data.JRBeanCollectionDataSource;import net.sf.jasperreports.engine.export.JRHtmlExporter;import net.sf.jasperreports.engine.export.JRPdfExporter;import net.sf.jasperreports.engine.export.JRXlsExporter;import net.sf.jasperreports.engine.export.JRXlsExporterParameter;import net.sf.jasperreports.engine.util.JRLoader;@SuppressWarnings("unchecked")public class Test3 {private static final String TASK_PDF = "pdf";private static final String TASK_XML = "xml";private static final String TASK_XML_EMBED = "xmlEmbed";private static final String TASK_HTML = "html";private static final String TASK_RTF = "rtf";private static final String TASK_XLS = "xls";private static final String TASK_JXL = "jxl";private static final String TASK_CSV = "csv";private static final String TASK_ODT = "odt";private static final String file = "D:\\workspase\\reportTest\\WebRoot\\report\\report3.jasper";private static final String exportFilePath = "f:\\report3";private static List getDataList() {List list = new ArrayList();for (int i = 0; i < 5; i++) {Map dataList = new HashMap();dataList.put("serialNo", "995400116528" + i);dataList.put("reqDate", "2009111" + i);dataList.put("businessType", "认购");dataList.put("productCode", "111409015" + i);dataList.put("productName", "2009年汇理财稳利系列F7计划");dataList.put("currencyType", "USD钞");dataList.put("reqMoney", "5300.00");dataList.put("transStatus", "正常");list.add(dataList);}return list;}private static Map getParameterMap() {Map parameterMap = new HashMap();parameterMap.put("CUSTOMER_NAME", "赵六");parameterMap.put("CUSTOMER_ACCOUNT", "98430100829415");parameterMap.put("TRANS_BANK", "9502");parameterMap.put("TRANS_DATE", "20091118");parameterMap.put("TRANS_OPERATOR", "11001157");return parameterMap;}public static void export(String fileType) {// 填充报表数据File reportFile = new File(file);JasperReport jasperReport = null;JasperPrint jasperPrint = null;try {jasperReport = (JasperReport) JRLoader.loadObject(reportFile.getPath());jasperPrint = JasperFillManager.fillReport(jasperReport,getParameterMap(), new JRBeanCollectionDataSource(getDataList()));// 导出报表文件if (TASK_XLS.equals(fileType)) {JRXlsExporter exporter = new JRXlsExporter();exporter.setParameter(JRXlsExporterParameter.IS_ONE_PAGE_PER_SHEET,Boolean.TRUE);exporter.setParameter(JRExporterParameter.JASPER_PRINT,jasperPrint);exporter.setParameter(JRExporterParameter.OUTPUT_FILE_NAME,exportFilePath + "." + TASK_XLS);exporter.exportReport();} else if (TASK_HTML.equals(fileType)) {JRHtmlExporter export = new JRHtmlExporter();export.setParameter(JRExporterParameter.JASPER_PRINT,jasperPrint);export.setParameter(JRExporterParameter.OUTPUT_FILE_NAME,exportFilePath + "." + TASK_HTML);export.exportReport();}else if(TASK_PDF.equals(fileType)){JRPdfExporter export = new JRPdfExporter();export.setParameter(JRExporterParameter.JASPER_PRINT,jasperPrint);export.setParameter(JRExporterParameter.OUTPUT_FILE_NAME,exportFilePath + "." + TASK_PDF);export.exportReport();}} catch (JRException e) {e.printStackTrace();}}public static void main(String[] args) {export("xls");}}?
?
如何在jsp中使用呢？ 如下：
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%><%@page import="java.sql.Connection"%><%@page import="java.sql.DriverManager"%><%@ page import="net.sf.jasperreports.engine.*" %><%@ page import="net.sf.jasperreports.engine.util.*" %><%@ page import="net.sf.jasperreports.engine.export.*" %><%@ page import="net.sf.jasperreports.j2ee.servlets.*" %><%@ page import="java.util.*" %><%@ page import="java.io.*" %><%@page import="net.sf.jasperreports.engine.data.JRBeanCollectionDataSource"%><%String path = request.getContextPath();String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";%><!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"><html> <head> <base href="<%=basePath%>"> <title>My JSP 'index.jsp' starting page</title><meta http-equiv="pragma" content="no-cache"><meta http-equiv="cache-control" content="no-cache"><meta http-equiv="expires" content="0"> <meta http-equiv="keywords" content="keyword1,keyword2,keyword3"><meta http-equiv="description" content="This is my page"><!--<link rel="stylesheet" type="text/css" href="styles.css">--> </head> <body> <%Map parameterMap = new HashMap();parameterMap.put("ItemProjecID", "10010");parameterMap.put("SupervisionID", "1000000001");parameterMap.put("ConformityCode", "201109102218"); //提供jasper所需要的parameters List list = new ArrayList();Map dataList = new HashMap();dataList.put("workAreaName", "995400116528");dataList.put("UnitProjectType", "2009111");dataList.put("UnitProjectAddress", "test");dataList.put("UnitProjectSubType", "111409015");dataList.put("Scale", "2009年汇理财稳利系列F7计划");dataList.put("BargainStartDate", "USD钞");//提供jasper所需要的Filedslist.add(dataList);try {File reportFile = new File(application.getRealPath("/report/bj.jasper"));JasperReport jasperReport = (JasperReport)JRLoader.loadObject(reportFile.getPath());JasperPrint jasperPrint = JasperFillManager.fillReport(jasperReport,parameterMap, new JRBeanCollectionDataSource(list));JRHtmlExporter exporter = new JRHtmlExporter();session.setAttribute(ImageServlet.DEFAULT_JASPER_PRINT_SESSION_ATTRIBUTE, jasperPrint);exporter.setParameter(JRExporterParameter.JASPER_PRINT, jasperPrint);exporter.setParameter(JRHtmlExporterParameter.IMAGES_URI, "./servlets/image?image=");exporter.setParameter(JRExporterParameter.OUTPUT_WRITER, out);exporter.exportReport();} catch (Exception e) {e.printStackTrace();} %> </body></html>?搞定！
?
?附件中是一个小例子，大家可以参考！
