matlab实现gabor filter (10) 效果很好
gabor 滤波器 函数：
function [GaborReal, GaborImg] = MakeGaborKernal(GaborH, GaborW, U, V, Kmax,f,sigma )% function [GaborReal, GaborImg] = MakeGaborKernal[GaborH, GaborW, U, V]% 用以生成 Gabor 核% GaborReal: 核实部 GaborImg: 虚部% GaborH,GaborW: Gabor窗口 高宽.% U,V: 方向 大小% ||Ku,v||^2% G(Z) = ---------------- exp(-||Ku,v||^2 * Z^2)/(2*sigma*sigma)(exp(i*Ku,v*Z)-exp(-sigma*sigma/2))% sigma*sigmaHarfH = fix(GaborH/2);HarfW = fix(GaborW/2);Qu = pi*U/8;sqsigma = sigma*sigma;% Kv = 2.5*pi*(2^(-(V+2)/2));Kv = Kmax/(f^V); postmean = exp(-sqsigma/2);for j = -HarfH : HarfH for i = -HarfW : HarfW tmp1 = exp(-(Kv*Kv*(j*j+i*i)/(2*sqsigma))); tmp2 = cos(Kv*cos(Qu)*i+Kv*sin(Qu)*j) - postmean; % tmp3 = sin(Kv*cos(Qu)*i+Kv*sin(Qu)*j) - exp(-sqsigma/2); tmp3 = sin(Kv*cos(Qu)*i+Kv*sin(Qu)*j); GaborReal(j+HarfH+1, i+HarfW+1) = Kv*Kv*tmp1*tmp2/sqsigma; GaborImg(j+HarfH+1, i+HarfW+1) = Kv*Kv*tmp1*tmp3/sqsigma; endend
调用代码：
% GaborReal, [GaborH,GaborW,40] 40个Gabor模板实部% GaborImg, [GaborH,GaborW,40] 40个Gabor模板虚部% 缺省输入前2个参数,后面参数 Kmax=2.5*pi/2, f=sqrt(2), sigma=1.5*pi;% GaborH, GaborW, Gabor模板大小% U,方向因子{0,1,2,3,4,5,6,7}% V,大小因子{0,1,2,3,4}% Kmax,f,sigma 其他参数GaborH=31;GaborW=31;Kmax=2.5*pi/2;f=sqrt(2);sigma=1.5*pi; GaborReal = zeros( GaborH, GaborW, 40 );GaborImg = zeros( GaborH, GaborW, 40 );vnum=5;unum=8;% 获得滤波器组for v = 0 : (vnum-1) for u = 0 : (unum-1) [ GaborReal(:,:,v*8+u+1), GaborImg(:,:,v*8+u+1) ] = MakeGaborKernal( GaborH, GaborW, u, v, Kmax,f,sigma ); endendG=cell(5,8);for i = 1:5 for j = 1:8 G{i,j}=zeros(GaborH,GaborW); endendfor i = 1:5 for j = 1:8 G{i,j}=GaborReal(:,:,(i-1)*8+j); endend%plotfigure;for i = 1:5 for j = 1:8 subplot(5,8,(i-1)*8+j); %imshow(real(G{s,j})/2-0.5,[]); imshow(real(G{i,j}),[]); endend

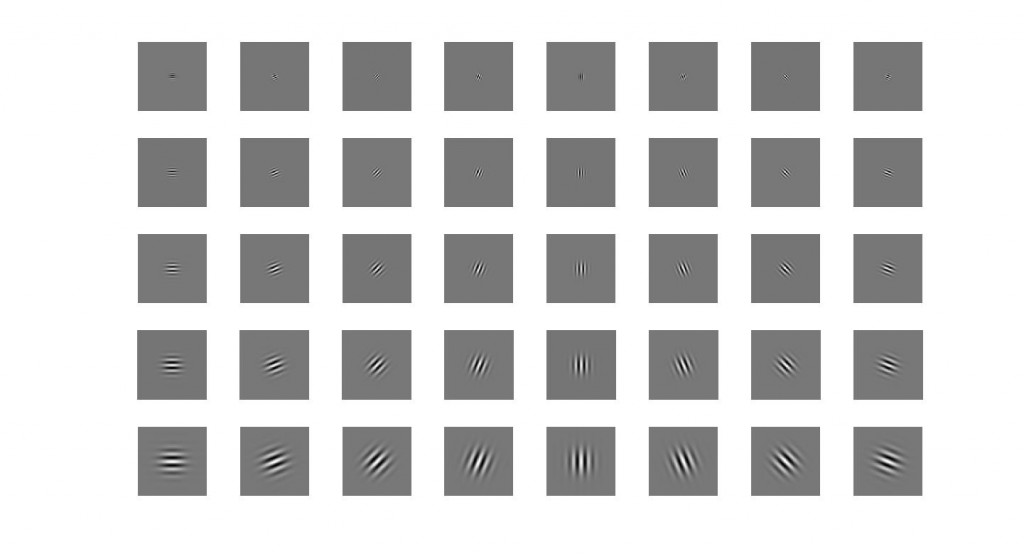

生成的滤波器组图像：
