DWR Server Push(服务器推技术) 实现即时聊天功能(WEB)
当你有QQ消息时,QQ的小图标会晃动,我们甚至还可以设定QQ有消息时,自动弹出来!
这些在C/S模式下很容易实现!如果要在B/S模式如何来实现呢?
我们的肯定会想到在客服端调用ajax在后台不断的查询服务器.看是否有关于自己的消息.如果有则查询返回.这种做法肯定会大量的占用系统的资源!不可取!
现在DWR的反转AJAX功能.允许我们从服务器端来控制客服端.而不需要客户端来请求.服务器可以自动把消息发给指定的客户端!

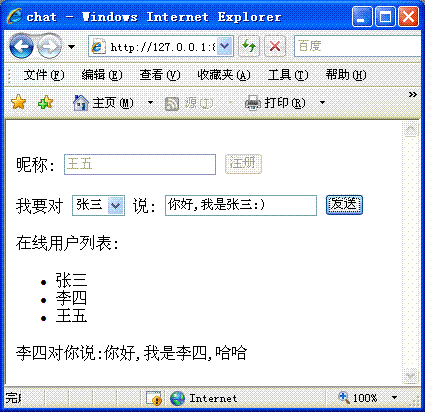

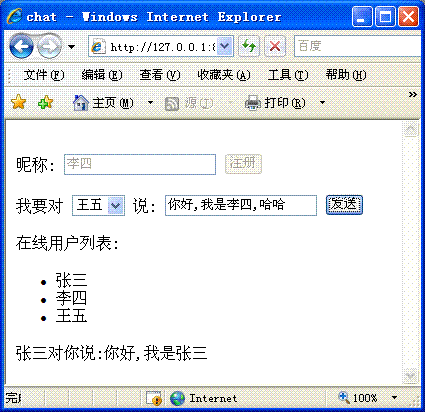

我不能把公司的代码贴出来,所以我自己写了一个DEMO,已经实现了对指定用户发送消息的功能,并且即时显示在指定的用户界面上面.当然你可以修改这些,让它弹出来显示,或者像QQ一样在你页面的某个角落让消息的图标闪动:)
下面我做一个简单的说明:
用户的JAVABEAN User.java?
package com.lhq;/** * 用户类 * * @author 廖瀚卿 * */public class User {private String userid;private String username;public String getUserid() {return userid;}public void setUserid(String userid) {this.userid = userid;}public String getUsername() {return username;}public void setUsername(String username) {this.username = username;}public User(String userid, String username) {super();this.userid = userid;this.username = username;}}
聊天处理类 ChatManager.java
package com.lhq;import java.util.ArrayList;import java.util.Collection;import java.util.HashSet;import java.util.List;import javax.servlet.ServletContext;import javax.servlet.http.HttpServletRequest;import org.directwebremoting.ScriptSession;import org.directwebremoting.ServerContext;import org.directwebremoting.ServerContextFactory;import org.directwebremoting.WebContextFactory;import org.directwebremoting.proxy.dwr.Util;/** * 处理聊天相关 * * @author 廖瀚卿 * */public class ChatManager {/** 保存当前在线用户列表 */public static List<User> users = new ArrayList<User>();/** * 更新在线用户列表 * @param username 待添加到列表的用户名 * @param flag 是添加用户到列表,还是只获得当前列表 * @param request * @return 用户userid */public String updateUsersList(String username, boolean flag, HttpServletRequest request) {User user = null;if (flag) {// 这里取会话(HttpSession)的id为用户id user = new User(request.getSession().getId(), username);//保存用户到列表users.add(user);//将用户id和页面脚本session绑定this.setScriptSessionFlag(user.getUserid());}//获得DWR上下文ServletContext sc = request.getSession().getServletContext();ServerContext sctx = ServerContextFactory.get(sc);//获得当前浏览 index.jsp 页面的所有脚本sessionCollection sessions = sctx.getScriptSessionsByPage("/chat/index.jsp");Util util = new Util(sessions);//处理这些页面中的一些元素util.removeAllOptions("users");util.addOptions("users", users, "username");util.removeAllOptions("receiver");util.addOptions("receiver", users,"userid","username");if(!flag){return null;}return user.getUserid();}/** * 将用户id和页面脚本session绑定 * @param userid */public void setScriptSessionFlag(String userid) {WebContextFactory.get().getScriptSession().setAttribute("userid", userid);}/** * 根据用户id获得指定用户的页面脚本session * @param userid * @param request * @return */@SuppressWarnings("unchecked")public ScriptSession getScriptSession(String userid, HttpServletRequest request) {ScriptSession scriptSessions = null;Collection<ScriptSession> sessions = new HashSet<ScriptSession>();sessions.addAll(ServerContextFactory.get(request.getSession().getServletContext()).getScriptSessionsByPage("/chat/index.jsp"));for (ScriptSession session : sessions) {String xuserid = (String) session.getAttribute("userid");if (xuserid != null && xuserid.equals(userid)) {scriptSessions = session;}}return scriptSessions;}/** * 发送消息 * @param sender 发送者 * @param receiverid 接收者id * @param msg 消息内容 * @param request */public void send(String sender,String receiverid,String msg,HttpServletRequest request){ScriptSession session = this.getScriptSession(receiverid, request);Util util = new Util(session);util.setStyle("showMessage", "display", "");util.setValue("sender", sender);util.setValue("msg", msg);}}
聊天主页面 index.jsp?
<%@ page language="java" pageEncoding="GBK"%><html><head><title>chat</title><meta http-equiv="pragma" content="no-cache"><meta http-equiv="cache-control" content="no-cache"><meta http-equiv="expires" content="0"><script type='text/javascript' src='/chat/dwr/interface/ChatManager.js'></script><script type='text/javascript' src='/chat/dwr/engine.js'></script><script type='text/javascript' src='/chat/dwr/util.js'></script><script type="text/javascript" src="/chat/chat.js"></script></head><body><input type="hidden" name="userid" /><br>昵称:<input type="text" name="username" /><input type="button" value="注册" onclick="register(this);" /><br /><br />我要对<select name="receiver" id="receiver" disabled=true" ></select>说:<input type="text" name="message" id="message" disabled="true" /><input type="button" value="发送" id="send" name="send" disabled="true"onclick="send();" /><br /><br />在线用户列表:<ul id="users"></ul><div id="showMessage" style="display: none"><span id="sender"></span>对你说:<span id="msg"></span></div></body></html>
JAVASCRIPT 文件 chat.js?
/** * 注册帐号 */function register(button) {if ($('username').value == "" || $('username').value.length <= 0) {alert("请输入昵称");return;}/* 下面是对一些按钮的禁用和激活操作 */$('username').disabled = true;button.disabled = true;$('message').disabled = false;$('send').disabled = false;$('receiver').disabled = false;/* 把我输入的用户名注册到服务器,并获得用户id(这里用session id 代替) */ChatManager.updateUsersList($('username').value, true, function(data) {if (data != null && data.length > 0) {$('userid').value = data; // 注册成功,把userid放到当前页面}});}/** * 页面初始化 */function init() {dwr.engine.setActiveReverseAjax(true); // 激活反转 重要ChatManager.updateUsersList(null, false); // 当你打开界面的时候,先获得在线用户列表.}/** * 发送消息 */function send() {var sender = dwr.util.getValue('username'); // 获得发送者名字var receiver = dwr.util.getValue('receiver'); // 获得接受者idvar msg = dwr.util.getValue('message'); // 获得消息内容ChatManager.send(sender, receiver, msg); // 发送消息}window.onload = init;//页面加载完毕后执行初始化方法init
配置文件 web.xml?
<?xml version="1.0" encoding="UTF-8"?><web-app version="2.4" xmlns="http://java.sun.com/xml/ns/j2ee"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd"><welcome-file-list><welcome-file>index.jsp</welcome-file></welcome-file-list><servlet><servlet-name>dwr-invoker</servlet-name><servlet-class>org.directwebremoting.servlet.DwrServlet</servlet-class><init-param><description>调试DWR,发布系统时应将其设为false</description><param-name>debug</param-name><param-value>true</param-value></init-param><init-param><description>使用服务器推技术(反转AJAX)</description><param-name>activeReverseAjaxEnabled</param-name><param-value>true</param-value></init-param><init-param><param-name>initApplicationScopeCreatorsAtStartup</param-name><param-value>true</param-value></init-param><init-param><param-name>maxWaitAfterWrite</param-name><param-value>100</param-value></init-param><load-on-startup>4</load-on-startup></servlet><servlet-mapping><servlet-name>dwr-invoker</servlet-name><url-pattern>/dwr/*</url-pattern></servlet-mapping></web-app>
DWR配置文件 dwr.xml?
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE dwr PUBLIC "-//GetAhead Limited//DTD Direct Web Remoting 2.0//EN" "http://getahead.org/dwr/dwr20.dtd"> <dwr> <allow> <convert converter="bean" match="com.lhq.User"/> <create creator="new" javascript="ChatManager"> <param name="class" value="com.lhq.ChatManager"/> </create> </allow> </dwr>
???
?
?
