本文主要讲一讲Hibernate+EhCache配置二级缓存的基本使用方法，主要分以下两个方面介绍：
?
(有关EhCache的基础介绍可参见：http://sjsky.iteye.com/blog/1288257)
Cache的多种配置方法Hibernate+EhCache集成demo[一]、Cache的多种配置方法
?????? Javabean cache的配置有三种，下面将一一介绍,具体如下：：
??????? (1).bean中注解配置的方式：@Cache(usage = CacheConcurrencyStrategy.READ_WRITE)
??????? (2).hibernate.cfg.xml中标签配置方式：<class-cache usage="" />
??????? (3).映射文件*.hb.xml中标签配置方式：<cache usage=" />
?
????? 1. classpath:ehcahce.xml配置文件如下：
?
<?xml version="1.0" encoding="UTF-8"?><ehcache xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="ehcache.xsd" updateCheck="true" monitoring="autodetect" dynamicConfig="true"> <diskStore path="java.io.tmpdir"/> <transactionManagerLookup propertySeparator=";"/> <cacheManagerEventListenerFactory properties=""/> <defaultCache maxElementsInMemory="100" eternal="false" timeToIdleSeconds="120" timeToLiveSeconds="120" overflowToDisk="true" diskSpoolBufferSizeMB="30" maxElementsOnDisk="100" diskPersistent="false" diskExpiryThreadIntervalSeconds="120" memoryStoreEvictionPolicy="LRU" statistics="false" /> <cache name="org.hibernate.cache.StandardQueryCache" maxElementsInMemory="5" eternal="false" timeToLiveSeconds="120" overflowToDisk="true" /> <cache name="org.hibernate.cache.UpdateTimestampsCache" maxElementsInMemory="5000" eternal="true" overflowToDisk="true" /> <cache name="sampleCache1" maxElementsInMemory="10000" maxElementsOnDisk="1000" eternal="false" overflowToDisk="true" diskSpoolBufferSizeMB="20" timeToIdleSeconds="300" timeToLiveSeconds="600" memoryStoreEvictionPolicy="LFU" transactionalMode="off" /> <cache name="sampleCache2" maxElementsInMemory="1000" eternal="true" overflowToDisk="false" memoryStoreEvictionPolicy="FIFO" /></ehcache>
??? 2.hibernate配置文件：hibernate.cfg.xml
<!DOCTYPE hibernate-configuration PUBLIC "-//Hibernate/Hibernate Configuration DTD//EN" "http://hibernate.sourceforge.net/hibernate-configuration-3.0.dtd"><hibernate-configuration><session-factory><property name="connection.driver_class">oracle.jdbc.driver.OracleDriver</property><property name="connection.url">jdbc:oracle:thin:@localhost:1521:ora11g</property><property name="connection.username">mytest</property><property name="connection.password">111111</property><property name="dialect">org.hibernate.dialect.Oracle9Dialect</property><property name="connection.useUnicode">true</property><property name="connection.characterEncoding">UTF-8</property><property name="connection.SetBigStringTryClob">true</property><property name="connection.pool_size">10</property><property name="hibernate.jdbc.batch_size">10</property><property name="show_sql">true</property><property name="format_sql">false</property><property name="current_session_context_class">thread</property><property name="hbm2ddl.auto">update</property><!-- Hibernate 3.3 and higher --><!--<property name="hibernate.cache.region.factory_class">net.sf.ehcache.hibernate.EhCacheRegionFactory</property><property name="hibernate.cache.region.factory_class">net.sf.ehcache.hibernate.SingletonEhCacheRegionFactory</property>--><!-- hibernate3.0-3.2 cache config--><!-- <property name="hibernate.cache.region.factory_class">net.sf.ehcache.hibernate.EhCacheProvider</property> --><property name="hibernate.cache.provider_class">net.sf.ehcache.hibernate.SingletonEhCacheProvider</property><!-- Enable Second-Level Cache and Query Cache Settings --><property name="hibernate.cache.use_second_level_cache">true</property><property name="hibernate.cache.use_query_cache">true</property><!-- 注解配置 --><mapping /><mapping /><mapping /><!-- 映射文件 --><mappingresource="michael/cache/ehcache/hibernate/tb_EhBlogTopic3.hb.xml" /><!-- class-cache config --><class-cache /></session-factory></hibernate-configuration>
?? 3.相关javabean代码片段如下：
????? (1).hibernate.cfg.xml中<calss-cache>标签配置的：EhBlogTopic.java:
/** * @blog http://sjsky.iteye.com * @author Michael */@Entity@Table(name = "MY_TB_EH_BLOG_TOPIC")public class EhBlogTopic implements Serializable { /** * serialVersionUID */ private static final long serialVersionUID = -570936907944909799L; private Integer id; private String userId; private String topic; private String site; //其他省略}??? (2). bean中注解的方式配置cache的：EhBlogTopic2.java
/** * @blog http://sjsky.iteye.com * @author Michael */@Entity@Table(name = "MY_TB_EH_BLOG_TOPIC2")@Cache(usage = CacheConcurrencyStrategy.READ_WRITE)public class EhBlogTopic2 implements Serializable { //属性和EhBlogTopic一样 //其他省略}????(3). 映射文件*.hb.xml中添加cache标签的： EhBlogTopic3.java
/** * @blog http://sjsky.iteye.com * @author Michael */public class EhBlogTopic3 implements Serializable { //属性和EhBlogTopic一样 //其他省略}? ?? tb_EhBlogTopic3.hb.xml
<?xml version="1.0"?><!DOCTYPE hibernate-mapping PUBLIC"-//Hibernate/Hibernate Mapping DTD 2.0//EN""http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd"><hibernate-mapping package="michael.cache.ehcache.hibernate"><class name="EhBlogTopic3" table="MY_TB_EH_BLOG_TOPIC3"><cache usage="read-write" /><id name="id" type="int" unsaved-value="null"><generator /></id><property name="userId" column="USER_ID" type="string"not-null="false" length="20" /><property name="topic" column="TOPIC" type="string"not-null="false" length="100" /><property name="site" column="SITE" type="string"not-null="false" length="100" /></class></hibernate-mapping>
? ? ? (4).没有配置cache的bean:EhUserInfo.java
/** * @blog http://sjsky.iteye.com * @author Michael */@Entity@Table(name = "MY_TB_EH_USER_INFO")public class EhUserInfo implements Serializable { /** * serialVersionUID */ private static final long serialVersionUID = 930384253681679239L; private Integer id; private String userId; private String userName; private String otherInfo; /** * @return the id */ @Id @GeneratedValue @Column(name = "ID") public Integer getId() { return id; } //其他省略。。。}??? 4.测试运行代码如下：
?
package michael.cache.ehcache.hibernate;import java.util.List;import michael.hibernate.bigstring.oracle.BigStrBlob;import net.sf.ehcache.Cache;import net.sf.ehcache.CacheManager;import org.hibernate.Query;import org.hibernate.Session;import org.hibernate.SessionFactory;import org.hibernate.Transaction;import org.hibernate.cfg.AnnotationConfiguration;import org.hibernate.cfg.Configuration;/** * * @blog http://sjsky.iteye.com * @author Michael */public class TestEhcacheHibernate { /** * @param args */ @SuppressWarnings("unchecked") public static void main(String[] args) { testMulitConfigMethod(); } /** * 测试多种配置缓存的方法 */ public static void testMulitConfigMethod() { SessionFactory sessionFactory = null; try { System.out.println("ehcache - hibernate Test ..."); Configuration config = new AnnotationConfiguration() .configure("michael/cache/ehcache/hibernate/hibernate.cfg.xml"); System.out.println("hibernate config successful :" + config); sessionFactory = config.buildSessionFactory(); Transaction ta = null; try { Session session = sessionFactory.getCurrentSession(); ta = session.beginTransaction(); } catch (Exception e) { e.printStackTrace(); ta.rollback(); } String[] cacheNames = CacheManager.getInstance().getCacheNames(); System.out.println("缓存的key cacheNames length := " + cacheNames.length + " 具体详细列表如下："); for (String name : cacheNames) { System.out.println("name := " + name); } } catch (Exception e) { e.printStackTrace(); } System.out.println("ehcache - hibernate Test end."); }}?运行结果如下：
?

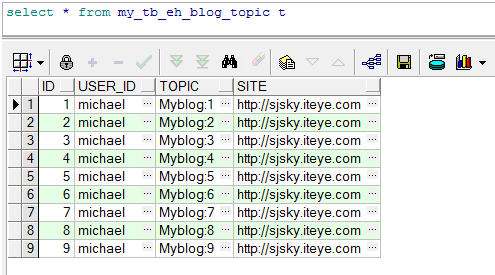

? EhBlogTopic：
?? 2.演示代码：
package michael.cache.ehcache.hibernate;import java.util.List;import michael.hibernate.bigstring.oracle.BigStrBlob;import net.sf.ehcache.Cache;import net.sf.ehcache.CacheManager;import org.hibernate.Query;import org.hibernate.Session;import org.hibernate.SessionFactory;import org.hibernate.Transaction;import org.hibernate.cfg.AnnotationConfiguration;import org.hibernate.cfg.Configuration;/** * * @blog http://sjsky.iteye.com * @author Michael */public class TestEhcacheHibernate { /** * @param args */ @SuppressWarnings("unchecked") public static void main(String[] args) { SessionFactory sessionFactory = null; try { System.out.println("ehcache - hibernate Test ..."); Configuration config = new AnnotationConfiguration() .configure("michael/cache/ehcache/hibernate/hibernate.cfg.xml"); sessionFactory = config.buildSessionFactory(); System.out.println("buildSessionFactory==============="); System.out.println("===================================="); System.out.println("session open ...."); System.out.println("同一个session(一级缓存默认的)中，没有配置cache的Bean"); Transaction ta = null; try { Session session = sessionFactory.getCurrentSession(); String hsql = "select t from EhUserInfo t "; ta = session.beginTransaction(); Query query = session.createQuery(hsql); System.out.println("查询全部query.list().size:" + query.list().size()); System.out.println("再根据ID=1查询某记录时不会再去查数据库,故不会打印hsql"); EhUserInfo vo1 = (EhUserInfo) session.get(EhUserInfo.class, 1); System.out.println("根据ID=1找到的记录:" + vo1); ta.commit(); } catch (Exception e) { e.printStackTrace(); ta.rollback(); } System.out.println("session closed."); System.out.println("session open ...."); try { Session session = sessionFactory.getCurrentSession(); ta = session.beginTransaction(); System.out.println("第一次根据ID=1查询某记录时,会打印hsql"); EhUserInfo vo1 = (EhUserInfo) session.get(EhUserInfo.class, 1); System.out.println("根据ID=1找到的记录:" + vo1); ta.commit(); } catch (Exception e) { e.printStackTrace(); ta.rollback(); } System.out.println("session closed."); System.out.println("===================================="); System.out.println("当前同一个sessionFactory，没有配置cache的Bean,"); System.out.println("session open ...."); try { Session session = sessionFactory.getCurrentSession(); ta = session.beginTransaction(); System.out.println("第一次根据ID=1查询记录时会再去查数据库,故打印hsql如下："); EhUserInfo vo1 = (EhUserInfo) session.get(EhUserInfo.class, 1); System.out.println("根据ID=1找到的记录:" + vo1); ta.commit(); } catch (Exception e) { e.printStackTrace(); ta.rollback(); } System.out.println("session closed."); System.out.println("===================================="); String[] cacheNames = CacheManager.getInstance().getCacheNames(); System.out.println("缓存的key cacheNames length := " + cacheNames.length); for (String name : cacheNames) { System.out.println("name := " + name); } System.out.println("===================================="); System.out.println("同一个session(一级缓存默认的)中，配置cache的Bean"); System.out.println("session open ...."); try { Session session = sessionFactory.getCurrentSession(); String hsql = "select t from EhBlogTopic t "; ta = session.beginTransaction(); Query query = session.createQuery(hsql); query.setCacheable(true); System.out.println("查询全部query.list().size:" + query.list().size()); Cache myCache1 = CacheManager.getInstance().getCache( "michael.cache.ehcache.hibernate.EhBlogTopic"); System.out.println("查询到EhBlogTopic cache size:" + myCache1.getKeys().size()); myCache1 = CacheManager.getInstance().getCache( "michael.cache.ehcache.hibernate.EhBlogTopic"); System.out.println("EhBlogTopic cache size:" + myCache1.getKeys().size() + ",详细记录如下："); for (Object str : myCache1.getKeys()) { System.out.println(str); } System.out .println("在同一个session，再根据ID=1查询记录时不会再去查数据库,故不会打印hsql"); EhBlogTopic vo1 = (EhBlogTopic) session.get(EhBlogTopic.class, 1); System.out.println("根据ID=1找到的记录:" + vo1); EhBlogTopic vo2 = new EhBlogTopic(); vo2.setId(10); vo2.setUserId("michael"); vo2.setTopic("Myblog:11"); vo2.setSite("http://sjsky.iteye.com"); session.save(vo2); ta.commit(); System.out.println("新增加一条记录ID=10"); } catch (Exception e) { e.printStackTrace(); ta.rollback(); } System.out.println("session closed."); System.out.println("===================================="); Cache myCache1 = CacheManager.getInstance().getCache( "michael.cache.ehcache.hibernate.EhBlogTopic"); System.out.println("EhBlogTopic cache size:" + myCache1.getKeys().size() + ",详细记录如下："); for (Object str : myCache1.getKeys()) { System.out.println(str); } System.out.println("===================================="); System.out.println("在当前同一个sessionFactory，配置cache的bean"); System.out.println("session open ...."); try { Session session = sessionFactory.getCurrentSession(); ta = session.beginTransaction(); System.out .println("不管是否第一次查询ID=1的记录，如果cache中存在的，则不会再查数据库,故不打印hsql"); EhBlogTopic vo1 = (EhBlogTopic) session.get(EhBlogTopic.class, 1); System.out.println("根据ID=1找到的记录:" + vo1); System.out.println("查询之前session保存的数据ID=10，也不会再查数据库,故不打印hsql"); EhBlogTopic vo2 = (EhBlogTopic) session.get(EhBlogTopic.class, 10); System.out.println("根据之前save的ID=10找到的记录:" + vo2); ta.commit(); } catch (Exception e) { e.printStackTrace(); ta.rollback(); } System.out.println("session closed."); } catch (Exception e) { e.printStackTrace(); } finally { if (null != sessionFactory) { sessionFactory.close(); } } System.out.println("sessionFactory closed."); }}??运行结果如下：
?
ehcache - hibernate Test ...?
?? 我们从上面的详细运行日志中就可以看出cache的效果。
?
?
