JMF 利用RTPManager进行视频音频流传输聊天
?转：http://blog.csdn.net/maydie1989/article/details/6820482
http://download.csdn.net/detail/maydie1989/3636156

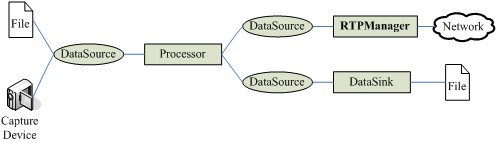

JMF(Java Media Framework)想必大家都不陌生? 它为音频和视频等媒体内容的捕获、回放、传输和编码转换等提供了一个统一的架构 视频传输大概思路如下
其中有几个常用到的类??- >?? ● 数据源（DataSource） ● 媒体定位器（MediaLocator） ● 播放器（Player）?
??????????????????????????????????????????????? ?● 处理器（Processor）? ● 管理器（Manager） ● RTP管理器（RTPManager）
一般发送端的情况是首先获得视频音频设备实例(CaptureDeviceInfo)?? ->?然后得到 DataSource -> Processor -> 得到processor的输出DataSource,通过RTPManager以stream的形式发出
而接收端则是通过RTPManager得到ReceiveStream -> 还原后通过Player进行播放
发送端RTPTransmiter
public class RTPTransmiter{ private Processor processor; private Integer lock = new Integer(0); private DataSource dataOutput; private boolean failed = false; private RTPManager[] rtpMgrs; private String ipAddress; private int portBase; private int destPortBase; //接收端 基础端口 public RTPTransmiter(String ipAddress,int portBase,int destPortBase) throws Exception {this.ipAddress = ipAddress;this.portBase = portBase;this.destPortBase = destPortBase;createProcessor() ;createTransmitter() ;processor.start(); } private void createProcessor() throws Exception {Vector<?> devices = CaptureDeviceManager.getDeviceList(null);CaptureDeviceInfo diVideo = null;CaptureDeviceInfo diAudio = null; if (devices.size() > 2) { diVideo = (CaptureDeviceInfo) devices.elementAt(2);//2是视频捕捉器 diAudio = (CaptureDeviceInfo) devices.elementAt(0); DataSource[] dataSources = new DataSource[2]; dataSources[1] = Manager.createDataSource(diVideo.getLocator()); dataSources[0] = Manager.createDataSource(diAudio.getLocator()); processor = Manager.createProcessor(Manager.createMergingDataSource(dataSources));//合并video和audio的 datasource } if(!waitForState(processor, Processor.Configured)) //configure processor throw new Exception("cant configured processor"); ContentDescriptor cd = new ContentDescriptor(ContentDescriptor.RAW_RTP); processor.setContentDescriptor(cd); if(!waitForState(processor, Controller.Realized)) //realize processor throw new Exception("cant realized processor"); setJPEGQuality(processor, 0.5f);//设置图像质量 百分比 dataOutput = processor.getDataOutput(); } private void createTransmitter() {PushBufferDataSource pbds = (PushBufferDataSource)dataOutput;PushBufferStream pbss[] = pbds.getStreams();System.out.println("pbss.length is: "+pbss.length);rtpMgrs = new RTPManager[pbss.length];//每一个通道由一个RTPManager负责SessionAddress localAddr, destAddr;InetAddress ipAddr;SendStream sendStream;int port;for (int i = 0; i < pbss.length; i++) { try {rtpMgrs[i] = RTPManager.newInstance(); port = portBase + 2*i;int clientPort = destPortBase +2*i; ipAddr = InetAddress.getByName(ipAddress);localAddr = new SessionAddress( InetAddress.getLocalHost(),port); //本机测 所以IP都是InetAddress.getLocalHost()destAddr = new SessionAddress( InetAddress.getLocalHost(), clientPort);rtpMgrs[i].initialize( localAddr);rtpMgrs[i].addTarget( destAddr);System.err.println( "Created RTP session: " + ipAddress + " " + port); sendStream = rtpMgrs[i].createSendStream(dataOutput, i);sendStream.start(); //开始传输 } catch (Exception e) {e.printStackTrace(); } } } void setJPEGQuality(Player p, float val) {Control cs[] = p.getControls();QualityControl qc = null;VideoFormat jpegFmt = new VideoFormat(VideoFormat.JPEG); for (int i = 0; i < cs.length; i++) { if (cs[i] instanceof QualityControl && cs[i] instanceof Owned) {Object owner = ((Owned)cs[i]).getOwner(); if (owner instanceof Codec) { Format fmts[] = ((Codec)owner).getSupportedOutputFormats(null); for (int j = 0; j < fmts.length; j++) {if (fmts[j].matches(jpegFmt)) { qc = (QualityControl)cs[i]; qc.setQuality(val); System.err.println("- Setting quality to " + val + " on " + qc); break;} }}if (qc != null) break; }} } private synchronized boolean waitForState(Processor p, int state) {p.addControllerListener(new StateListener());failed = false; if (state == Processor.Configured) { p.configure();} else if (state == Processor.Realized) { p.realize();} while (p.getState() < state && !failed) { synchronized (lock) {try { lock.wait();} catch (InterruptedException ie) { return false;} }}if (failed) return false;else return true; } class StateListener implements ControllerListener { public void controllerUpdate(ControllerEvent ce) { if (ce instanceof ControllerClosedEvent) failed = true; if (ce instanceof ControllerEvent) { synchronized (lock) { lock.notifyAll(); } } } }}RTPReciver 核心部分 需要为每个rtpManager添加 ReceiveStreamListener和SessionListener ,在ReceiveStreamListener的NewReceiveStreamEvent事件中添加ControllerListener
mgrs[i] = (RTPManager) RTPManager.newInstance();//添加 SessionListenermgrs[i].addSessionListener(this);//添加 ReceiveStreamListenermgrs[i].addReceiveStreamListener(this);//得到服务器端IP地址ipAddr = InetAddress.getByName("sender ip");localAddr= new SessionAddress( InetAddress.getLocalHost(), sendPort);destAddr = new SessionAddress( ipAddr, sendPort);mgrs[i].initialize( localAddr);BufferControl bc = (BufferControl)mgrs[i].getControl("javax.media.control.BufferControl");if (bc != null) bc.setBufferLength(350);mgrs[i].addTarget(destAddr);关于ReceiveStreamListener
@Overridepublic void update(ReceiveStreamEvent evt){ //从大到小进行定位，RTPManager->Participant->ReceiveStreamRTPManager mgr = (RTPManager)evt.getSource(); Participant participant = evt.getParticipant();ReceiveStream stream = evt.getReceiveStream(); if (evt instanceof RemotePayloadChangeEvent){.....};//远程发送者改变负载 else if(evt instanceof NewReceiveStreamEvent){.....需要添加ControllerListener};//接收到新的stream else if (evt instanceof ByeEvent){.....};//结束}关于SessionListener
@Overridepublic void update(SessionEvent evt){ //有新的用户加入if (evt instanceof NewParticipantEvent) { Participant p = ((NewParticipantEvent)evt).getParticipant(); }}关于ControllerListener
@Overridepublic void controllerUpdate(ControllerEvent ce){if (ce instanceof RealizeCompleteEvent){......};//player完成了realizeif (ce instanceof ControllerErrorEvent){......};//出现异常}jmf的rtp应该是用udp做的...貌似
ps:话说 百度的题好难啊 不如腾讯的友好 哈哈哈
