android_七 editView

android_7 editView

main.xml：

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="fill_parent"    android:layout_height="fill_parent"    android:orientation="vertical" >    <TextView        android:layout_width="fill_parent"        android:layout_height="wrap_content"        android:text="@string/hello" />    <EditText         android:id="@+id/username1"        android:layout_width="fill_parent"        android:layout_height="wrap_content"        android:drawableLeft="@drawable/logo"        android:hint="@string/hite_username"        />    <EditText         android:id="@+id/username2"        android:layout_width="fill_parent"        android:layout_height="wrap_content"        android:drawableLeft="@drawable/logo"        android:hint="@string/hite_username"        android:background="@drawable/shape"        />     <EditText         android:id="@+id/username3"        android:layout_width="fill_parent"        android:layout_height="wrap_content"        android:drawableLeft="@drawable/logo"        android:hint="@string/hite_username"        android:background="@drawable/shape2"        /></LinearLayout>

?

shape.xml：

<?xml version="1.0" encoding="UTF-8" ?><shape xmlns:android="http://schemas.android.com/apk/res/android"    android:shape="rectangle"    >    <!-- 填充的颜色 -->    <solid android:color="#FFFFFf"/>    <!-- 设置矩形的四个角为弧形 -->    <corners android:radius="7dip"/></shape>

?shape2.xml

<?xml version="1.0" encoding="UTF-8" ?><shape xmlns:android="http://schemas.android.com/apk/res/android"    android:shape="rectangle"    >    <!-- 填充的颜色 -->    <solid android:color="#FFFFFf"/>    <!-- 设置矩形的四个角为弧形 -->        <corners android:topLeftRadius="7dip" />    <corners android:topRightRadius="7dip" /></shape>

/* AUTO-GENERATED FILE.  DO NOT MODIFY. * * This class was automatically generated by the * aapt tool from the resource data it found.  It * should not be modified by hand. */package com.mhm.editview.activity;public final class R {    public static final class attr {    }    public static final class drawable {        public static final int ic_launcher=0x7f020000;        public static final int logo=0x7f020001;        public static final int shape=0x7f020002;        public static final int shape2=0x7f020003;    }    public static final class id {        public static final int username1=0x7f050000;        public static final int username2=0x7f050001;        public static final int username3=0x7f050002;    }    public static final class layout {        public static final int main=0x7f030000;    }    public static final class string {        public static final int app_name=0x7f040001;        public static final int hello=0x7f040000;        public static final int hite_username=0x7f040002;    }}

?

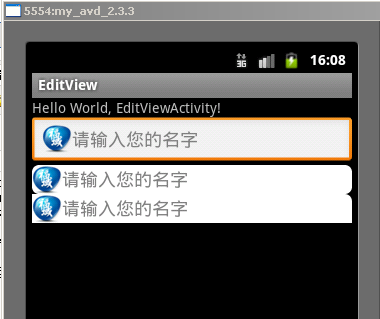

从这里看出，左上角的弧线没有了，说明被最后一个冲突了。

?

?

?
