Android 图片裁剪功能实现详解（类似QQ自定义头像裁剪）
最近有看到有朋友在讨论QQ头像的裁剪上传是怎么实现的，吼吼，小马也没做过，好奇之下学习下，发现以前项目中有类型的功能，结合官方文档里面的解释，就更好玩了，周末，急急忙忙写的，记录在博客里，希望能与大家交流学习，也恳请高手能解答小马在代码注释中提出的疑问，不管有没有人回答，小马先谢谢了，一样的，先看下效果图（效果图小马不解释了，直接流水写下去，小马是直接在模拟器里写的，能在真机上使用，因为很简单），再看代码是怎么实现的：

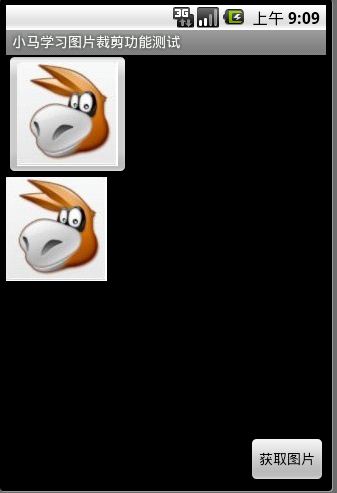

一：主布局界面

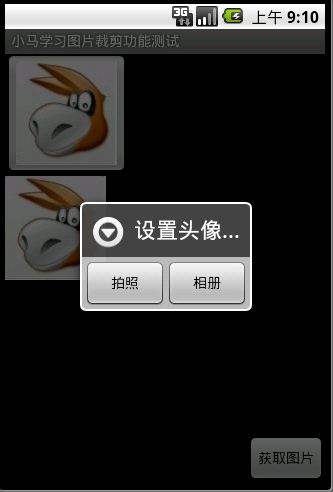

二：点击控件触发事件后效果图
三：拍照完之后效果图

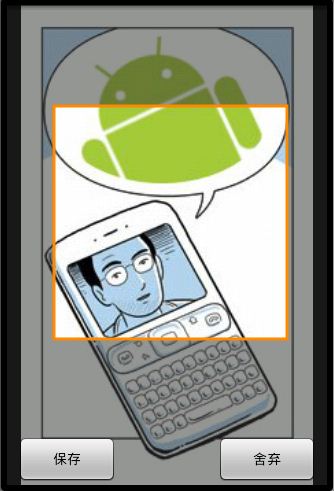

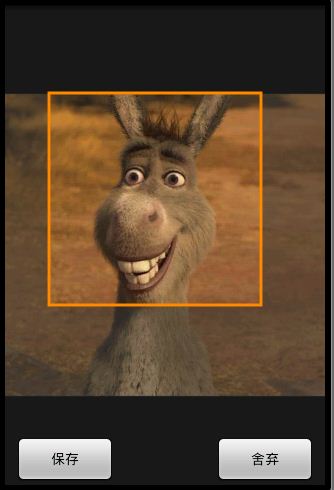

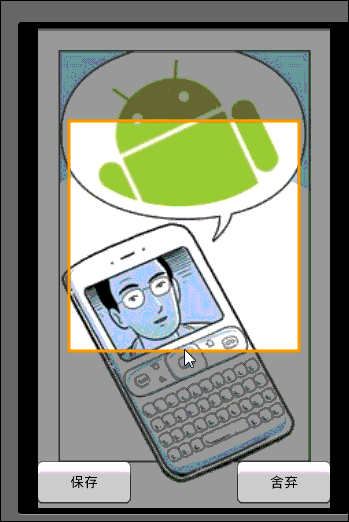

四：裁剪界面效果图
五：点击相册后返回的图片效果图
六：裁剪完从相册PICK的保存后的效果图
下面直接来看下主控制类代码，如下：
package com.xiaoma.piccut.demo; /** * 下面这些注释是下载这个类的时候本来就有的，本来要删除的，但看了下竟然是license，吼吼， * 好东西，留在注释里，以备不时之用，大家有需要加license的可以到下面的网址找哦 */ //EPL, Eclipse Public License, V1.0 or later, http://www.eclipse.org/legal //LGPL, GNU Lesser General Public License, V2.1 or later, http://www.gnu.org/licenses/lgpl.html //GPL, GNU General Public License, V2 or later, http://www.gnu.org/licenses/gpl.html //AL, Apache License, V2.0 or later, http://www.apache.org/licenses //BSD, BSD License, http://www.opensource.org/licenses/bsd-license.php /** * A Base64 encoder/decoder. * * <p> * This class is used to encode and decode data in Base64 format as described in RFC 1521. * * <p> * Project home page: <a href="http://www.source-code.biz/base64coder/java/">www.source-code.biz/base64coder/java</a><br> * Author: Christian d'Heureuse, Inventec Informatik AG, Zurich, Switzerland<br> * Multi-licensed: EPL / LGPL / GPL / AL / BSD. */ /** * 这个类在上面注释的网址中有，大家可以自行下载下，也可以直接用这个， * 公开的Base64Coder类（不用深究它是怎么实现的， * 还是那句话，有轮子直接用轮子），好用的要死人了... * 小马也很无耻的引用了这个网址下的东东，吼吼... * @Title: Base64Coder.java * @Package com.xiaoma.piccut.demo * @Description: TODO * @author XiaoMa */ public class Base64Coder { //The line separator string of the operating system. private static final String systemLineSeparator = System.getProperty("line.separator"); //Mapping table from 6-bit nibbles to Base64 characters. private static char[] map1 = new char[64]; static { int i=0; for (char c='A'; c<='Z'; c++) map1[i++] = c; for (char c='a'; c<='z'; c++) map1[i++] = c; for (char c='0'; c<='9'; c++) map1[i++] = c; map1[i++] = '+'; map1[i++] = '/'; } //Mapping table from Base64 characters to 6-bit nibbles. private static byte[] map2 = new byte[128]; static { for (int i=0; i<map2.length; i++) map2[i] = -1; for (int i=0; i<64; i++) map2[map1[i]] = (byte)i; } /** * Encodes a string into Base64 format. * No blanks or line breaks are inserted. * @param s A String to be encoded. * @return A String containing the Base64 encoded data. */ public static String encodeString (String s) { return new String(encode(s.getBytes())); } /** * Encodes a byte array into Base 64 format and breaks the output into lines of 76 characters. * This method is compatible with <code>sun.misc.BASE64Encoder.encodeBuffer(byte[])</code>. * @param in An array containing the data bytes to be encoded. * @return A String containing the Base64 encoded data, broken into lines. */ public static String encodeLines (byte[] in) { return encodeLines(in, 0, in.length, 76, systemLineSeparator); } /** * Encodes a byte array into Base 64 format and breaks the output into lines. * @param in An array containing the data bytes to be encoded. * @param iOff Offset of the first byte in <code>in</code> to be processed. * @param iLen Number of bytes to be processed in <code>in</code>, starting at <code>iOff</code>. * @param lineLen Line length for the output data. Should be a multiple of 4. * @param lineSeparator The line separator to be used to separate the output lines. * @return A String containing the Base64 encoded data, broken into lines. */ public static String encodeLines (byte[] in, int iOff, int iLen, int lineLen, String lineSeparator) { int blockLen = (lineLen*3) / 4; if (blockLen <= 0) throw new IllegalArgumentException(); int lines = (iLen+blockLen-1) / blockLen; int bufLen = ((iLen+2)/3)*4 + lines*lineSeparator.length(); StringBuilder buf = new StringBuilder(bufLen); int ip = 0; while (ip < iLen) { int l = Math.min(iLen-ip, blockLen); buf.append (encode(in, iOff+ip, l)); buf.append (lineSeparator); ip += l; } return buf.toString(); } /** * Encodes a byte array into Base64 format. * No blanks or line breaks are inserted in the output. * @param in An array containing the data bytes to be encoded. * @return A character array containing the Base64 encoded data. */ public static char[] encode (byte[] in) { return encode(in, 0, in.length); } /** * Encodes a byte array into Base64 format. * No blanks or line breaks are inserted in the output. * @param in An array containing the data bytes to be encoded. * @param iLen Number of bytes to process in <code>in</code>. * @return A character array containing the Base64 encoded data. */ public static char[] encode (byte[] in, int iLen) { return encode(in, 0, iLen); } /** * Encodes a byte array into Base64 format. * No blanks or line breaks are inserted in the output. * @param in An array containing the data bytes to be encoded. * @param iOff Offset of the first byte in <code>in</code> to be processed. * @param iLen Number of bytes to process in <code>in</code>, starting at <code>iOff</code>. * @return A character array containing the Base64 encoded data. */ public static char[] encode (byte[] in, int iOff, int iLen) { int oDataLen = (iLen*4+2)/3; // output length without padding int oLen = ((iLen+2)/3)*4; // output length including padding char[] out = new char[oLen]; int ip = iOff; int iEnd = iOff + iLen; int op = 0; while (ip < iEnd) { int i0 = in[ip++] & 0xff; int i1 = ip < iEnd ? in[ip++] & 0xff : 0; int i2 = ip < iEnd ? in[ip++] & 0xff : 0; int o0 = i0 >>> 2; int o1 = ((i0 & 3) << 4) | (i1 >>> 4); int o2 = ((i1 & 0xf) << 2) | (i2 >>> 6); int o3 = i2 & 0x3F; out[op++] = map1[o0]; out[op++] = map1[o1]; out[op] = op < oDataLen ? map1[o2] : '='; op++; out[op] = op < oDataLen ? map1[o3] : '='; op++; } return out; } /** * Decodes a string from Base64 format. * No blanks or line breaks are allowed within the Base64 encoded input data. * @param s A Base64 String to be decoded. * @return A String containing the decoded data. * @throws IllegalArgumentException If the input is not valid Base64 encoded data. */ public static String decodeString (String s) { return new String(decode(s)); } /** * Decodes a byte array from Base64 format and ignores line separators, tabs and blanks. * CR, LF, Tab and Space characters are ignored in the input data. * This method is compatible with <code>sun.misc.BASE64Decoder.decodeBuffer(String)</code>. * @param s A Base64 String to be decoded. * @return An array containing the decoded data bytes. * @throws IllegalArgumentException If the input is not valid Base64 encoded data. */ public static byte[] decodeLines (String s) { char[] buf = new char[s.length()+3]; int p = 0; for (int ip = 0; ip < s.length(); ip++) { char c = s.charAt(ip); if (c != ' ' && c != '\r' && c != '\n' && c != '\t') buf[p++] = c; } while ((p % 4) != 0) buf[p++] = '0'; return decode(buf, 0, p); } /** * Decodes a byte array from Base64 format. * No blanks or line breaks are allowed within the Base64 encoded input data. * @param s A Base64 String to be decoded. * @return An array containing the decoded data bytes. * @throws IllegalArgumentException If the input is not valid Base64 encoded data. */ public static byte[] decode (String s) { return decode(s.toCharArray()); } /** * Decodes a byte array from Base64 format. * No blanks or line breaks are allowed within the Base64 encoded input data. * @param in A character array containing the Base64 encoded data. * @return An array containing the decoded data bytes. * @throws IllegalArgumentException If the input is not valid Base64 encoded data. */ public static byte[] decode (char[] in) { return decode(in, 0, in.length); } /** * Decodes a byte array from Base64 format. * No blanks or line breaks are allowed within the Base64 encoded input data. * @param in A character array containing the Base64 encoded data. * @param iOff Offset of the first character in <code>in</code> to be processed. * @param iLen Number of characters to process in <code>in</code>, starting at <code>iOff</code>. * @return An array containing the decoded data bytes. * @throws IllegalArgumentException If the input is not valid Base64 encoded data. */ public static byte[] decode (char[] in, int iOff, int iLen) { if (iLen%4 != 0) throw new IllegalArgumentException ("Length of Base64 encoded input string is not a multiple of 4."); while (iLen > 0 && in[iOff+iLen-1] == '=') iLen--; int oLen = (iLen*3) / 4; byte[] out = new byte[oLen]; int ip = iOff; int iEnd = iOff + iLen; int op = 0; while (ip < iEnd) { int i0 = in[ip++]; int i1 = in[ip++]; int i2 = ip < iEnd ? in[ip++] : 'A'; int i3 = ip < iEnd ? in[ip++] : 'A'; if (i0 > 127 || i1 > 127 || i2 > 127 || i3 > 127) throw new IllegalArgumentException ("Illegal character in Base64 encoded data."); int b0 = map2[i0]; int b1 = map2[i1]; int b2 = map2[i2]; int b3 = map2[i3]; if (b0 < 0 || b1 < 0 || b2 < 0 || b3 < 0) throw new IllegalArgumentException ("Illegal character in Base64 encoded data."); int o0 = ( b0 <<2) | (b1>>>4); int o1 = ((b1 & 0xf)<<4) | (b2>>>2); int o2 = ((b2 & 3)<<6) | b3; out[op++] = (byte)o0; if (op<oLen) out[op++] = (byte)o1; if (op<oLen) out[op++] = (byte)o2; } return out; } //Dummy constructor. private Base64Coder() {} } // end class Base64Coder 最后，小马还把小DEMO源码放在附件里面，有需要的朋友可以下载下来，共同交流学习，也恳请高人回答下小马在文章注释中提出的问题，谢谢，文章是小马急急忙忙在家写的，在网吧发的，晕...不是我有多用功，这边下雨，讨厌下雨，下雨我就郁闷，来网吧玩的，顺带发下文章，吼吼，该玩的时候死命的玩，该工作的时候死命的工作，年轻时疯狂，老了不后悔，吼吼，加油加油！大家工作，也注意身体健康，嘿嘿，你懂的，不解释...哈哈
