Android下查询系统源码看短信的显示
查询系统源码看短信的显示如何写:
在providers.telephony:SmsProvider:

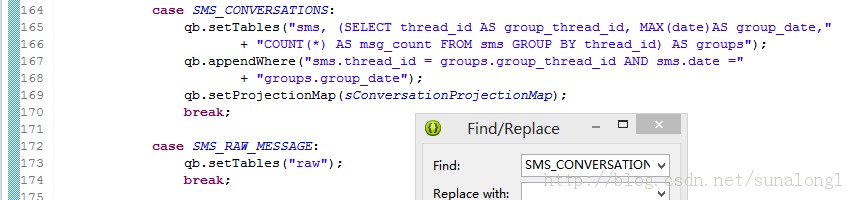

1.确定怎么查数据库中的表:
Uri = content://sms/conversations
2.确定查询语句: select 映射条目 from 表 where 查询条件
表:
sms, (SELECT thread_id AS group_thread_id, MAX(date)AS group_date,COUNT(*) AS msg_count FROM sms GROUP BY thread_id) AS groups
查询条件:
sms.thread_id = groups.group_thread_id AND sms.date = groups.group_date
映射条目:
sms.body AS snippet
sms.thread_id AS thread_id
groups.msg_count AS msg_count
所以查询语句:
select
sms.body AS snippet,sms.thread_id AS thread_id,groups.msg_count AS msg_count
from
sms, (SELECT thread_id AS group_thread_id, MAX(date)AS group_date,COUNT(*) AS msg_count FROM sms GROUP BY thread_id) AS groups
where
sms.thread_id = groups.group_thread_id AND sms.date = groups.group_date

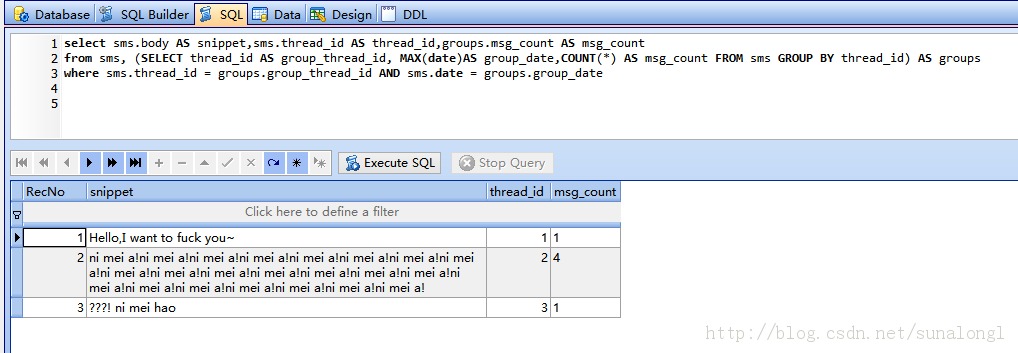

查询结果:
还需要号码,日期/时间

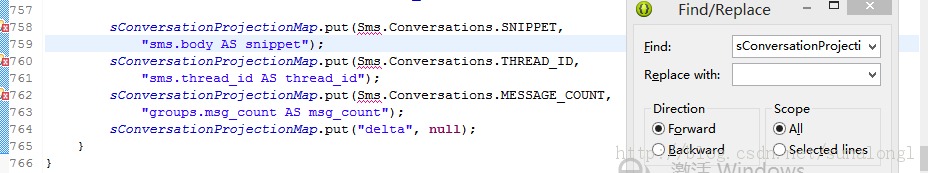

但看系统源码的映射列都已经写死,用户若添加自己需要的列会将系统的列覆盖:

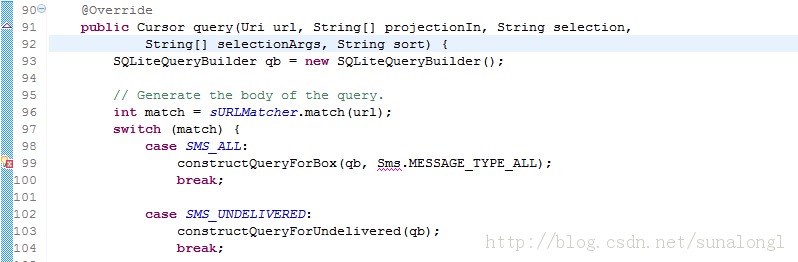

看系统如何解决:找query:
这里的query是用户来调用的,所以projectionIn是用户传进来的,

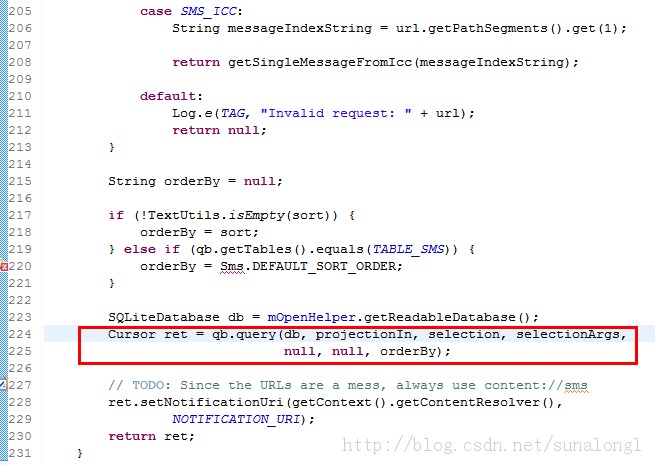

继续找:同一个方法内,看query怎么处理projictionIn的,
点击查看如何处理用户传进来的projectionIn的,

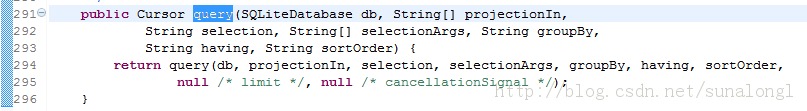

再次点击发现进不去,为本类的方法:查找:

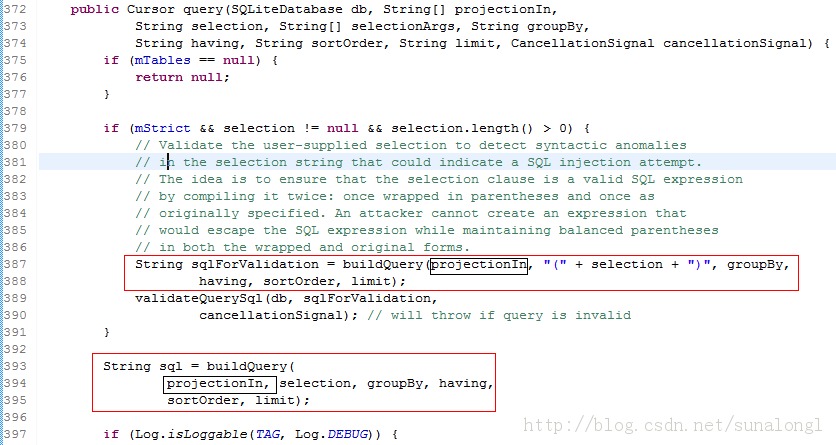

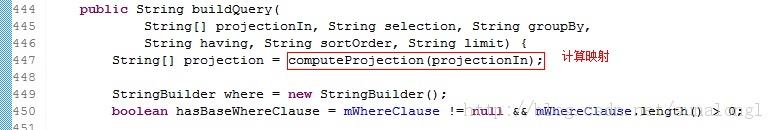

第一个在判断里面,略去不看,看第二个:将projection等各种参数建立成为一个sql语句,点击,发现进不去,,buildQuery为一个本类方法:查找其实现:

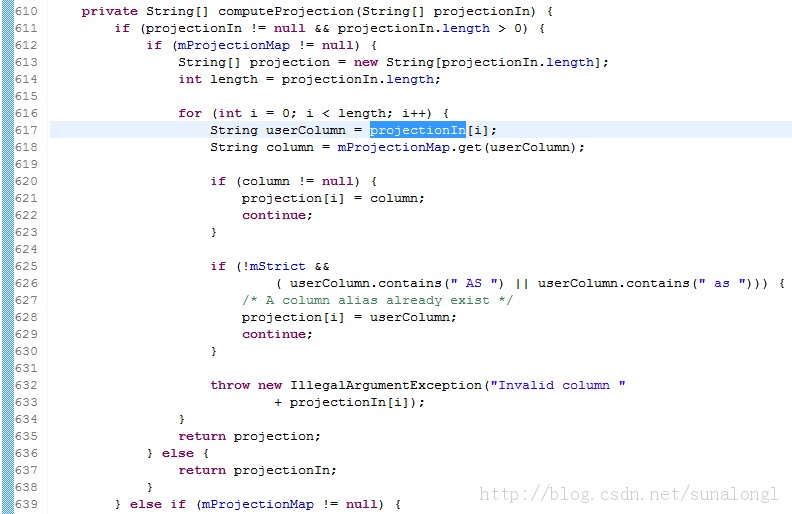

点击发现是一个本类方法,查找其实现:

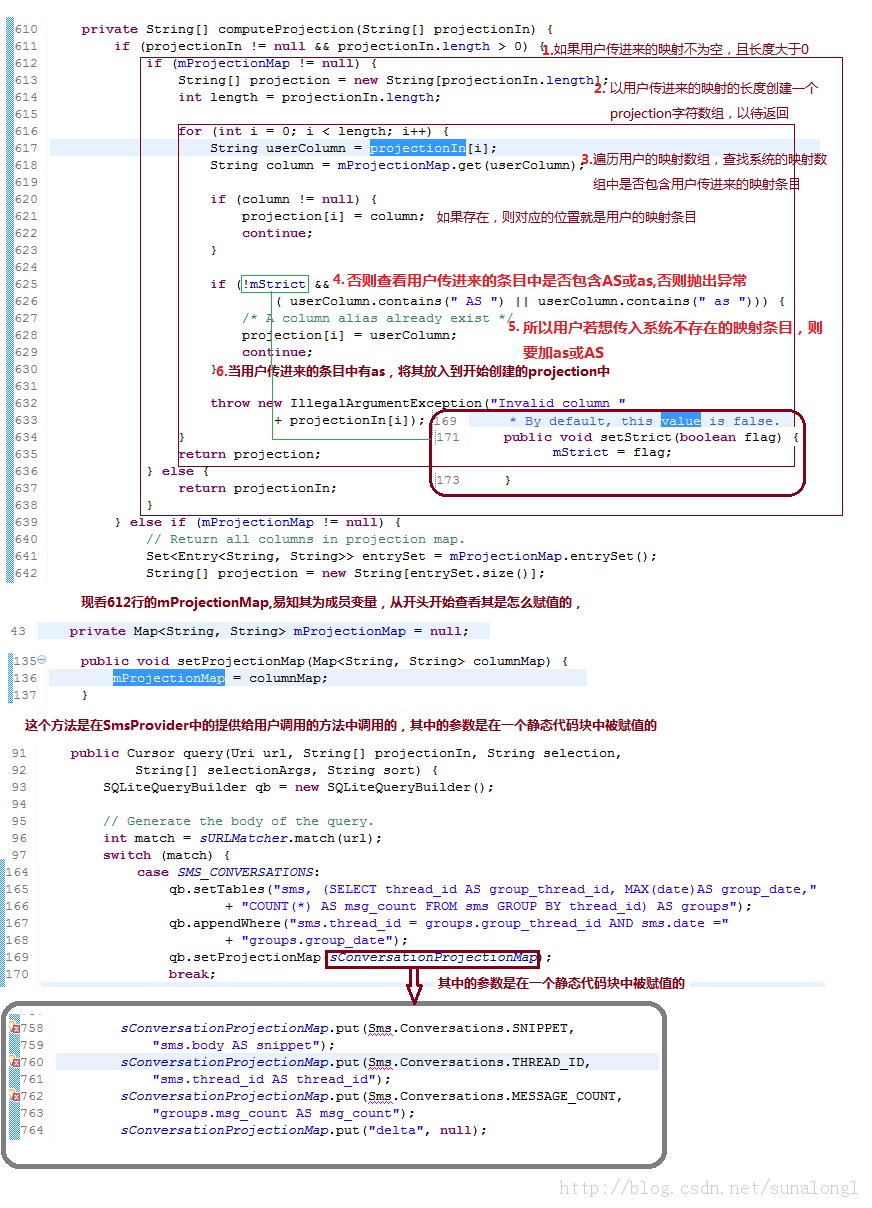

分析源码:

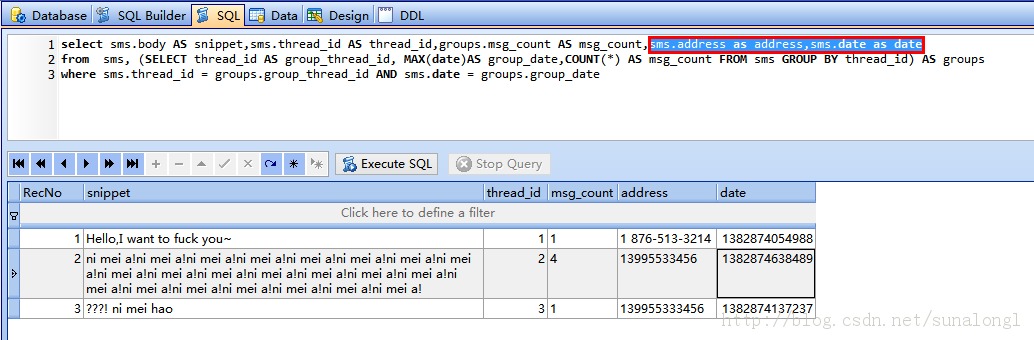

将需要添加的列写好,测试正确性:
select sms.body AS snippet,sms.thread_id AS thread_id,groups.msg_count AS msg_count,sms.address as address,sms.date as date
from sms, (SELECT thread_id AS group_thread_id, MAX(date)AS group_date,COUNT(*) AS msg_count FROM sms GROUP BY thread_id) AS groups
where sms.thread_id = groups.group_thread_id AND sms.date = groups.group_date
详细代码:
1.
package com.itcode.SMSManager.utils;import android.net.Uri;public class SmsUtils { public static final Uri SMSURL = Uri.parse("content://sms/conversations");}
2.
package com.itcode.SMSManager;import android.app.Activity;import android.content.AsyncQueryHandler;import android.content.ContentResolver;import android.database.Cursor;import android.os.Bundle;import android.util.Log;import com.itcode.SMSManager.utils.SmsUtils;public class ConversationActivity extends Activity {private ConversationAsyncQueryHandler asyncQuery;private static final String[] CONVERSATIONSMSPROJECTION = {"sms.body AS snippet", "sms.thread_id AS thread_id","groups.msg_count AS msg_count", "sms.address as address","sms.date as date" };public static final String TAG = "ConversationActivity";@Overrideprotected void onCreate(Bundle savedInstanceState) {// TODO Auto-generated method stubsuper.onCreate(savedInstanceState);setContentView(R.layout.activity_conversion);asyncQuery = new ConversationAsyncQueryHandler(getContentResolver());asyncQuery.startQuery(0, null, SmsUtils.SMSURL,CONVERSATIONSMSPROJECTION, null, null, "date DESC");}private class ConversationAsyncQueryHandler extends AsyncQueryHandler {private String value;private String columnName;public ConversationAsyncQueryHandler(ContentResolver cr) {super(cr);// TODO Auto-generated constructor stub}/** * 当异步查询结束后调用的方法 * Called when an asynchronous query is completed. * token the token to identify the query, passed in from startQuery. * cookie 添加额外的数据的 the cookie object passed in from startQuery. * cursor 查询出来的结果集The cursor holding the results from the query. */@Overrideprotected void onQueryComplete(int token, Object cookie, Cursor cursor) {// TODO Auto-generated method stubsuper.onQueryComplete(token, cookie, cursor);if(cursor != null && cursor.getCount()>0){int columnCount = cursor.getColumnCount();while(cursor.moveToNext()){for(int i=0;i<columnCount;i++){columnName = cursor.getColumnName(i);value = cursor.getString(i);Log.i(TAG,"当前是第"+cursor.getPosition() + "行:" + columnName + ":" + value);}}}}}}

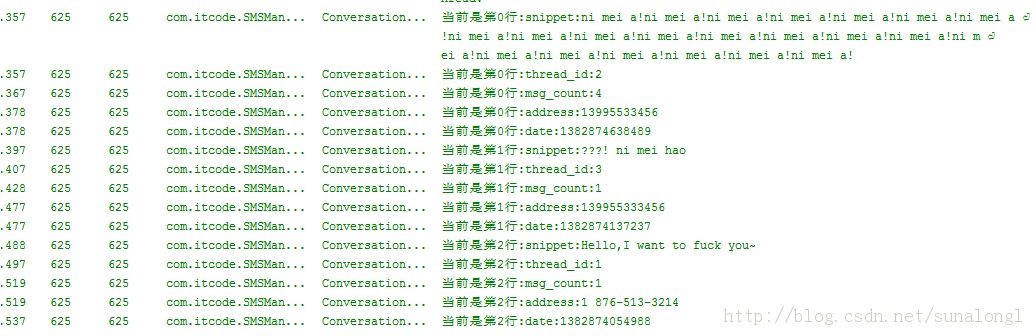

运行结果:
