WIX安装图文并茂简易说明
一、 环境配置
1. 安装VS2012
2. 安装WixToolSet。安装完成后，VS中会多增加Windows Installer XML的项目。
二、 构建打包项目1. 新建项目打开VS，新建Windows Installer XML项目。

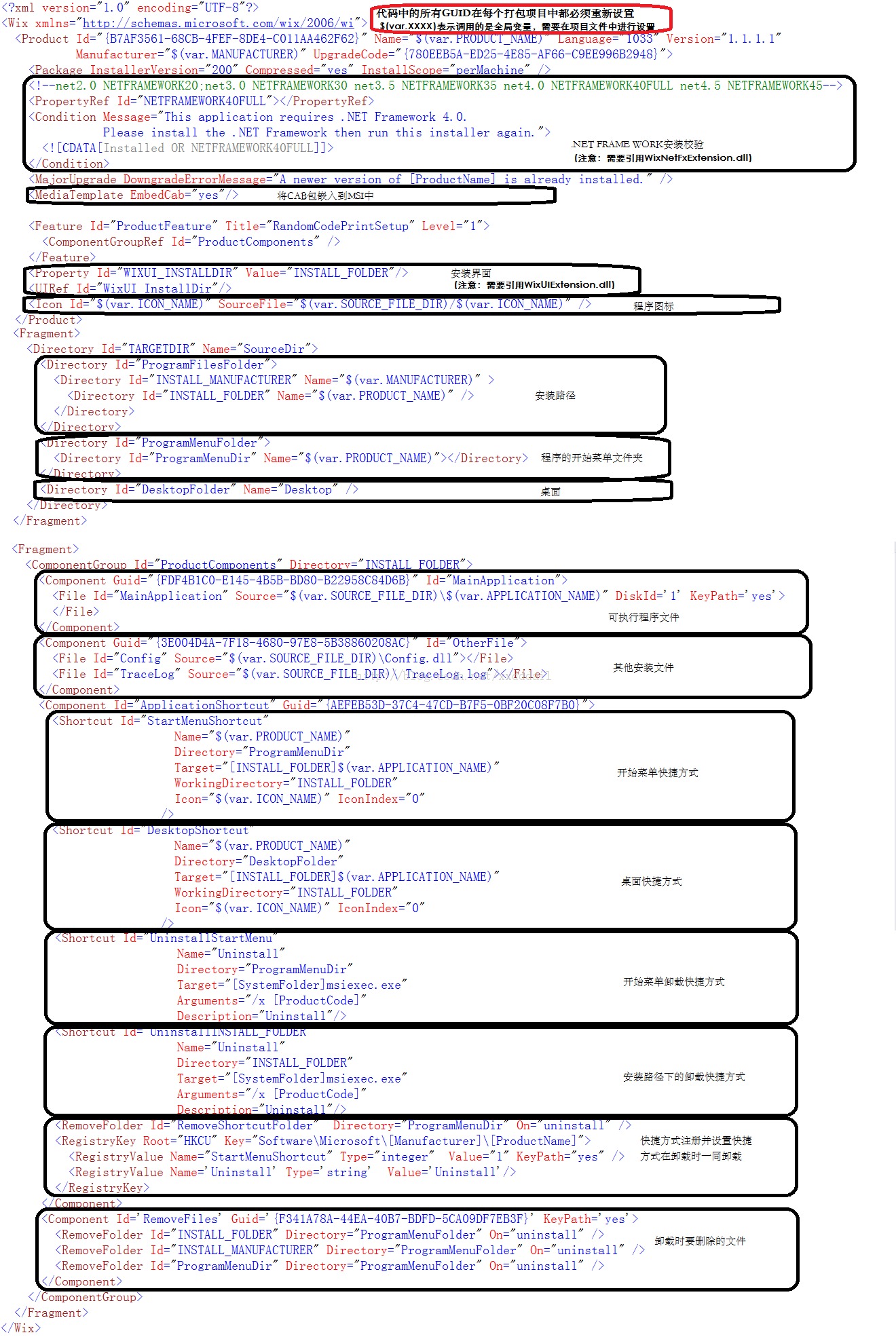

2. 编写Produc.wxs文件打开Product.wxs文件，其代码介绍参见图1，具体代码请参见附录。
图1.
3. 设置全局变量
注意：
l Define ‘Debug’ preprocessor variable一定要勾选上。
l 全局变量在product.wix文件中的调用为$(var.xxx)格式，其中xxx为Define preprocessor variable中的名字，如PRODUCT_NAME。
l 该product.wix所用到的全局变量有如下这些：PRODUCT_NAME=TestApp;MANUFACTURER=ABC;SOURCE_FILE_DIR=../../Release;APPLICATION_NAME=TestApp.exe;ICON_NAME=App.ico
4. 相关DLL的引用(1). .NET FRAMEWORK校验需要引用WixNetFxExtension.dll，该DLL的路径在C:\Program Files (x86)\WiX Toolset v3.7\bin\WixNetFxExtension.dll，具体的路径与实际的安装环境有关。如果未引用编译将会出错。
(2). 安装界面需要引用WixUIExtension.dll，该DLL的路径在C:\Program Files (x86)\WiX Toolset v3.7\bin\
WixUIExtension.dll，具体的路径与实际的安装环境有关。如果未引用编译将会出错。
5. 生成MSI安装包编译项目，生成MSI安装包。
附Product.wxs代码
<?xml version="1.0" encoding="UTF-8"?><Wix xmlns="http://schemas.microsoft.com/wix/2006/wi"> <Product Id="{B7AF3561-68CB-4FEF-8DE4-C011AA462F62}" Name="$(var.PRODUCT_NAME)" Language="1033" Version="1.1.1.1" Manufacturer="$(var.MANUFACTURER)" UpgradeCode="{780EEB5A-ED25-4E85-AF66-C9EE996B2948}"> <Package InstallerVersion="200" Compressed="yes" InstallScope="perMachine" /> <!--net2.0 NETFRAMEWORK20;net3.0 NETFRAMEWORK30 net3.5 NETFRAMEWORK35 net4.0 NETFRAMEWORK40FULL net4.5 NETFRAMEWORK45--> <PropertyRef Id="NETFRAMEWORK40FULL"></PropertyRef> <Condition Message="This application requires .NET Framework 4.0. Please install the .NET Framework then run this installer again."> <![CDATA[Installed OR NETFRAMEWORK40FULL]]> </Condition> <MajorUpgrade DowngradeErrorMessage="A newer version of [ProductName] is already installed." /> <MediaTemplate EmbedCab="yes"/> <Feature Id="ProductFeature" Title="RandomCodePrintSetup" Level="1"> <ComponentGroupRef Id="ProductComponents" /> </Feature> <Property Id="WIXUI_INSTALLDIR" Value="INSTALL_FOLDER"/> <UIRef Id="WixUI_InstallDir"/> <Icon Id="$(var.ICON_NAME)" SourceFile="$(var.SOURCE_FILE_DIR)/$(var.ICON_NAME)" /> </Product> <Fragment> <Directory Id="TARGETDIR" Name="SourceDir"> <Directory Id="ProgramFilesFolder"> <Directory Id="INSTALL_MANUFACTURER" Name="$(var.MANUFACTURER)" > <Directory Id="INSTALL_FOLDER" Name="$(var.PRODUCT_NAME)" /> </Directory> </Directory> <Directory Id="ProgramMenuFolder"> <Directory Id="ProgramMenuDir" Name="$(var.PRODUCT_NAME)"></Directory> </Directory> <Directory Id="DesktopFolder" Name="Desktop" /> </Directory> </Fragment> <Fragment> <ComponentGroup Id="ProductComponents" Directory="INSTALL_FOLDER"> <Component Guid="{FDF4B1C0-E145-4B5B-BD80-B22958C84D6B}" Id="MainApplication"> <File Id="MainApplication" Source="$(var.SOURCE_FILE_DIR)\$(var.APPLICATION_NAME)" DiskId='1' KeyPath='yes'> </File> </Component> <Component Guid="{3E004D4A-7F18-4680-97E8-5B38860208AC}" Id="OtherFile"> <File Id="Config" Source="$(var.SOURCE_FILE_DIR)\Config.dll"></File> <File Id="TraceLog" Source="$(var.SOURCE_FILE_DIR)\ TraceLog.log"></File> </Component> <Component Id="ApplicationShortcut" Guid="{AEFEB53D-37C4-47CD-B7F5-0BF20C08F7B0}"> <Shortcut Id="StartMenuShortcut" Name="$(var.PRODUCT_NAME)" Directory="ProgramMenuDir" Target="[INSTALL_FOLDER]$(var.APPLICATION_NAME)" WorkingDirectory="INSTALL_FOLDER" Icon="$(var.ICON_NAME)" IconIndex="0" /> <Shortcut Id="DesktopShortcut" Name="$(var.PRODUCT_NAME)" Directory="DesktopFolder" Target="[INSTALL_FOLDER]$(var.APPLICATION_NAME)" WorkingDirectory="INSTALL_FOLDER" Icon="$(var.ICON_NAME)" IconIndex="0" /> <Shortcut Id="UninstallStartMenu" Name="Uninstall" Directory="ProgramMenuDir" Target="[SystemFolder]msiexec.exe" Arguments="/x [ProductCode]" Description="Uninstall"/> <Shortcut Id="UninstallINSTALL_FOLDER" Name="Uninstall" Directory="INSTALL_FOLDER" Target="[SystemFolder]msiexec.exe" Arguments="/x [ProductCode]" Description="Uninstall"/> <RemoveFolder Id="RemoveShortcutFolder" Directory="ProgramMenuDir" On="uninstall" /> <RegistryKey Root="HKCU" Key="Software\Microsoft\[Manufacturer]\[ProductName]"> <RegistryValue Name="StartMenuShortcut" Type="integer" Value="1" KeyPath="yes" /> <RegistryValue Name='Uninstall' Type='string' Value='Uninstall'/> </RegistryKey> </Component> <Component Id='RemoveFiles' Guid='{F341A78A-44EA-40B7-BDFD-5CA09DF7EB3F}' KeyPath='yes'> <RemoveFolder Id="INSTALL_FOLDER" Directory="ProgramMenuFolder" On="uninstall" /> <RemoveFolder Id="INSTALL_MANUFACTURER" Directory="ProgramMenuFolder" On="uninstall" /> <RemoveFolder Id="ProgramMenuDir" Directory="ProgramMenuFolder" On="uninstall" /> </Component> </ComponentGroup> </Fragment></Wix>
