利用jquery根据json文本动态的生成可分组的table，并实现checkbox partial check功能
? 近来根据项目需求，需要实现动态的根据json文本生成一个可分组的table功能，并且需要实现类似tree的展开和收缩功能， 另外附带checkboxpartial check功能。

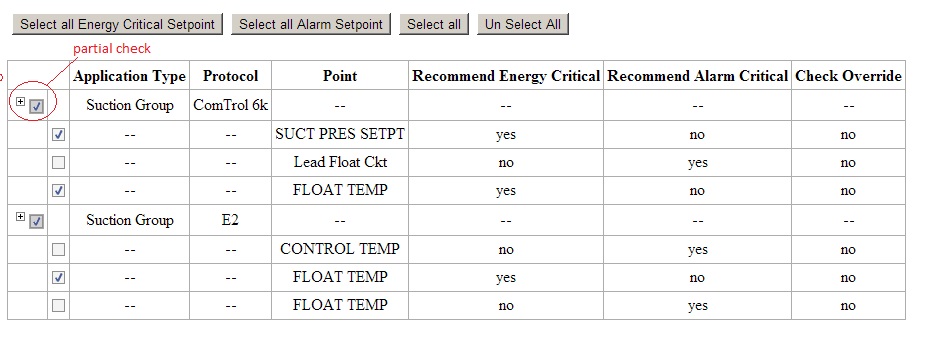

? 查阅了不少js framework，没有比较顺手的，都需要二次开发，于是打算自己写一个简单的， 先看一个页面：
?Basic Framework: Jquery, 因为需要很多的selector操作，而jquery的$()不是盖的，而且只需要用到jquery的min js，比较轻量级。
Partial Checkbox 的实现，因为checkbox本身不支持partial check, 所以需要用图片来实现，基本原理是底层一个白色的空图片，根据点击事件来动态的更换background picture。
Json parser: 我实现的很简单，json文本中放置一个数组，里面是需要显示的对象， 利用jquery的each方法遍历文本，分析出group和group item， 调用jquery的append方法生成tr
json 文本如下：
?
var data = {"source":[{"groupName":100001, "setpointTemplateId":2212,"protocolName":"ComTrol 6k","unifiedAppTypeName":"Suction Group","unifiedPointName":"SUCT PRES SETPT","energyCritical":true,"alarmSetpoint":false,"checkOveride":false,"isChecked":true,"checkWaringMsg":"function(isChecked){if(isChecked){alert('If you unchecked this point, you can not calculate the benefit.');}}"},{"groupName":100001, "setpointTemplateId":2213,"protocolName":"ComTrol 6k","unifiedAppTypeName":"Suction Group","unifiedPointName":"Lead Float Ckt","energyCritical":false,"alarmSetpoint":true,"checkOveride":false,"isChecked":false,"checkWaringMsg":''},{"groupName":100001, "setpointTemplateId":2214,"protocolName":"ComTrol 6k","unifiedAppTypeName":"Suction Group","unifiedPointName":"FLOAT TEMP","energyCritical":true,"alarmSetpoint":false,"checkOveride":false,"isChecked":false,"checkWaringMsg":''},{"groupName":100002, "setpointTemplateId":1000,"protocolName":"E2","unifiedAppTypeName":"Suction Group","unifiedPointName":"CONTROL TEMP","energyCritical":false,"alarmSetpoint":true,"checkOveride":false,"isChecked":false,"checkWaringMsg":''},{"groupName":100002, "setpointTemplateId":1001,"protocolName":"E2","unifiedAppTypeName":"Suction Group","unifiedPointName":"FLOAT TEMP","energyCritical":true,"alarmSetpoint":false,"checkOveride":false,"isChecked":false,"checkWaringMsg":''},{"groupName":100002, "setpointTemplateId":1002,"protocolName":"E2","unifiedAppTypeName":"Suction Group","unifiedPointName":"FLOAT TEMP","energyCritical":false,"alarmSetpoint":true,"checkOveride":false,"isChecked":false,"checkWaringMsg":''}]};?html页面：
?
?
<!DOCTYPE html><html><head> <script type="text/javascript" src="data.js"></script> <script type="text/javascript" src="jquery.js"></script> <script type="text/javascript" src="index_1.js"></script> <style type="text/css">.node-unchecked {background-image: url(unchecked.gif);}.node-checked-partial {background-image: url(checked-partial.gif);}.node-checked {background-image: url(checked.gif);}.image-checkbox {border: 0 none;height: 18px;margin: 0;padding: 0;vertical-align: middle;width: 15px;background-repeat: no-repeat;}#custom_profile_table{border-collapse:collapse;}#custom_profile_table td, #custom_profile_table th {border:1px solid #ADADAA;padding:3px 3px 3px 3px;text-align:center;}#custom_profile_table th {text-align:center;padding-top:5px;}#custom_profile_table tr.alt td {color:#000;background-color:#EAF2D3;} </style></head><body><table><tr><td><button onClick="selectHelperHandler('SELECT_ALL_ENERGY')">Select all Energy Critical Setpoint</button></td><td><button onClick="selectHelperHandler('SELECT_ALL_ALARM')">Select all Alarm Setpoint</button></td><td><button onClick="selectHelperHandler('SELECT_ALL')">Select all</button></td><td><button onClick="selectHelperHandler('UNSELECT_ALL')">Un Select All</button></td></tr></table><br><table id="custom_profile_table"><thead><tr><th colspan="2"></th><th>Application Type</th><th>Protocol</th><th>Point</th><th>Recommend Energy Critical</th><th>Recommend Alarm Critical</th><th>Check Override</th></tr></thead><tbody></tbody></table></body></html>?javascript如下
?
?
var MAIN_TABLE_ID = "custom_profile_table";var PLUG_MIN_IMG_ID = "plus-min";var CHECKBOX_UNCHECKED = 'node-unchecked';var CHECKBOX_CHECKED = 'node-checked';var CHECKBOX_PARTIAL = 'node-checked-partial';//id prefix for the tr tagvar PARENT = 'parent_';var CHILD = 'child_';//id prefix for the checkbox img tagvar ALL = "all_";var SUB = "sub_";//unique idvar PARENT_UNIQUE_TEMPLATE_ID = '00000';//the plus and minus picture definevar PLUS_SRC = "plusnolines.gif";var MINUS_SRC = "minusnolines.gif";var YES = "yes";var NO = "no";var SELECT_ALL_ENERGY = "SELECT_ALL_ENERGY";var SELECT_ALL_ALARM = "SELECT_ALL_ALARM";var SELECT_ALL = "SELECT_ALL";var UNSELECT_ALL = "UNSELECT_ALL";/**********************************************Select all handler for checkbox image**********************************************/function selectAll(all){var selectedAllImg = $('#' + all.id);var bUnchecked = selectedAllImg.hasClass(CHECKBOX_UNCHECKED);var bPartialChecked = selectedAllImg.hasClass(CHECKBOX_PARTIAL);var bChecked = selectedAllImg.hasClass(CHECKBOX_CHECKED);if(bUnchecked){selectedAllImg.removeClass(CHECKBOX_UNCHECKED);selectedAllImg.addClass(CHECKBOX_CHECKED);}else{selectedAllImg.removeClass(CHECKBOX_CHECKED);selectedAllImg.removeClass(CHECKBOX_PARTIAL);selectedAllImg.addClass(CHECKBOX_UNCHECKED);}var groupName = extractGroupName(selectedAllImg);$('table#' + MAIN_TABLE_ID + ' img[id^=sub_'+groupName+']').each(function(){var hiddenId = $(this).attr('id').replace("sub","hidden");if(bUnchecked){$(this).removeClass(CHECKBOX_UNCHECKED);$(this).addClass(CHECKBOX_CHECKED);$('table#' + MAIN_TABLE_ID + ' input[id='+hiddenId+']').attr('checked', true);}else{$(this).removeClass(CHECKBOX_CHECKED);$(this).removeClass(CHECKBOX_PARTIAL);$(this).addClass(CHECKBOX_UNCHECKED);$('table#' + MAIN_TABLE_ID + ' input[id='+hiddenId+']').attr('checked', false);}})}/**********************************************Select all handler for checkbox image**********************************************/function selectSub(sub){selectSubById(sub.id);scanForAllCheckCss(extractGroupName($('#' + sub.id)));}function selectSubById(id, forceValue){var selectedSubImg = $('#' + id);var bUnchecked = selectedSubImg.hasClass(CHECKBOX_UNCHECKED);var bChecked = selectedSubImg.hasClass(CHECKBOX_CHECKED);var groupName = extractGroupName(selectedSubImg);var hiddenId = id.replace("sub","hidden");if(bUnchecked || forceValue){selectedSubImg.removeClass(CHECKBOX_UNCHECKED);selectedSubImg.addClass(CHECKBOX_CHECKED);$('table#' + MAIN_TABLE_ID + ' input[id='+hiddenId+']').attr('checked', true);}else{selectedSubImg.removeClass(CHECKBOX_CHECKED);selectedSubImg.addClass(CHECKBOX_UNCHECKED);$('table#' + MAIN_TABLE_ID + ' input[id='+hiddenId+']').attr('checked', false);}}function scanForAllCheckCss(groupName){var allImg = $('table#' + MAIN_TABLE_ID + ' img[id=all_'+groupName+'_'+PARENT_UNIQUE_TEMPLATE_ID+']');allImg.removeClass(CHECKBOX_UNCHECKED);allImg.removeClass(CHECKBOX_CHECKED);allImg.removeClass(CHECKBOX_PARTIAL);var bFoundChecked=false;var bFoundUnchecked=false;$('table#' + MAIN_TABLE_ID + ' img[id^=sub_'+groupName+']').each(function(){if($(this).hasClass(CHECKBOX_CHECKED)){bFoundChecked=true;}else{bFoundUnchecked=true;}if(bFoundChecked && bFoundUnchecked){allImg.addClass(CHECKBOX_PARTIAL);return false;}})if(bFoundChecked && !bFoundUnchecked){allImg.addClass(CHECKBOX_CHECKED);}if(bFoundUnchecked && !bFoundChecked){allImg.addClass(CHECKBOX_UNCHECKED);}}/**********************************************extract the group name**********************************************/function extractGroupName(jqueryObject){var items = jqueryObject.attr('id').split('_');return items[1];}var cachedGroupName = new Array();var tbody;function buildTableBody(){$(data.source).each(function(index, element){if(cachedGroupName.indexOf(element.groupName)==-1){cachedGroupName[cachedGroupName.length]=element.groupName;addParentTr(element);}addChildTr(element); })}function addParentTr(element){var buffer = ''.concat('<tr id="parent_' + element.groupName+ '_' + PARENT_UNIQUE_TEMPLATE_ID + '">').concat('<td><img src="' + MINUS_SRC + '" id="plus-min_' + element.groupName + '_' + PARENT_UNIQUE_TEMPLATE_ID + '"/><img src="s.gif" onClick="selectAll(this)" id="all_' + + element.groupName + '_' + PARENT_UNIQUE_TEMPLATE_ID + '"/></td>').concat('<td> </td>').concat('<td>' + element.unifiedAppTypeName + '</td>').concat('<td>' + element.protocolName + '</td>').concat('<td>--</td>').concat('<td>--</td>').concat('<td>--</td>').concat('<td>--</td>').concat('</tr>'); tbody.append(buffer);}var checkboxIndex;function addChildTr(element){var checkCss = CHECKBOX_UNCHECKED;var checkStr = '';var checkFuc = 'null';if(element.checkWaringMsg != null&&element.checkWaringMsg.trim()!=''){checkFuc = element.checkWaringMsg;}if(element.isChecked){checkCss = CHECKBOX_CHECKED;checkStr = 'checked';}var buffer = ''.concat('<tr id="child_' + element.groupName + '_' + element.setpointTemplateId + '">').concat('<td> </td>').concat('<td><img src="s.gif" onClick="commonCheck(this,' + checkFuc + '),selectSub(this)" id="sub_'+element.groupName+'_'+element.setpointTemplateId+'"/><input style="display:none" type="checkbox" name="selectedTemplate[' + checkboxIndex + ']" value="' + element.groupName + '" ' + checkStr + ' id="hidden_'+element.groupName+'_'+element.setpointTemplateId+'"/></td>').concat('<td>--</td>').concat('<td>--</td>').concat('<td>' + element.unifiedPointName + '</td>').concat('<td>' + (element.energyCritical?YES:NO) + '</td>').concat('<td>' + (element.alarmSetpoint?YES:NO) + '</td>').concat('<td>' + (element.checkOveride?YES:NO) + '</td>').concat('</tr>');tbody.append(buffer);checkboxIndex++;}function commonCheck(node, str){if(str == null) return;var isChecked = $('#' + node.id).hasClass('node-checked');eval("var func = " + str);func(isChecked);}function selectHelperHandler(condition){$(data.source).each(function(index, element){switch(condition){case SELECT_ALL_ENERGY:if(element.energyCritical){selectSubById('sub_' + element.groupName + '_' + element.setpointTemplateId, true);}break;case SELECT_ALL_ALARM:if(element.alarmSetpoint){selectSubById('sub_' + element.groupName + '_' + element.setpointTemplateId, true);}break;case SELECT_ALL:selectSubById('sub_' + element.groupName + '_' + element.setpointTemplateId, true);break;case UNSELECT_ALL:selectSubById('sub_' + element.groupName + '_' + element.setpointTemplateId, false);break;} });$(cachedGroupName).each(function(index, element){scanForAllCheckCss(element);});}$(function(){checkboxIndex = 0;tbody = $('table#' + MAIN_TABLE_ID + ' tbody');buildTableBody();$(cachedGroupName).each(function(index, element){scanForAllCheckCss(element);});$('table#' + MAIN_TABLE_ID + ' tr td img[id^=' + PLUG_MIN_IMG_ID + ']').click(function(){if($(this).attr("src") == PLUS_SRC){$(this).attr('src', MINUS_SRC);}else{$(this).attr('src', PLUS_SRC);}var parentTr = $(this).parent().parent();var groupName = extractGroupName(parentTr);//parentTr.siblings('#child_'+ groupName).toggle();$('table#' + MAIN_TABLE_ID + ' tr[id^=child_'+groupName+']').toggle();});$('table#' + MAIN_TABLE_ID + ' tr[id^=child_]').hide();})?
?
总结： 里面最重要的jquery的selector的使用，包括模糊匹配， 另外就是jquery的遍历和动态的操作tag的可见性和样式，?scanForAllCheckCss（）用来在页面初始和item点击的时候调用，用来确定是否是partial check，selectHelperHandler（）用来实现全选，全取消和条件选择。
?
完整代码见附件， 可以访问index_1.html看效果。
