源代码解读Cas实现单点登出(single sign out)功能实现原理??????????????????????????????????? 图一?????

源代码解读Cas实现单点登出(single sign out)功能实现原理

??????????????????????????????????? 图一

??????????????????????????????????? 图二

第一张图演示了单点登陆的工作原理。

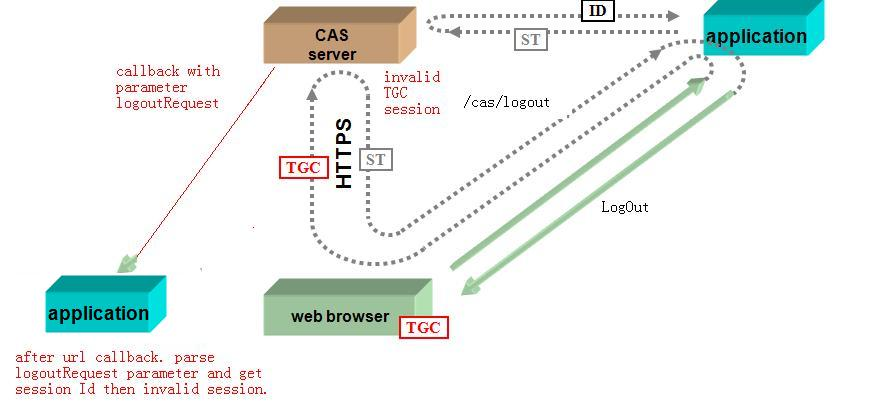

第二张图演示了单点登出的工作原理。

从第一张图中，当一个web浏览器登录到应用服务器时，应用服务器(application)会检测用户的session，如果没有session，则应用服务器会把url跳转到CAS server上，要求用户登录,用户登录成功后，CAS server会记请求的application的url和该用户的sessionId(在应用服务器跳转url时，通过参数传给CAS server)。此时在CAS服务器会种下TGC Cookie值到webbrowser.拥有该TGC Cookie的webbrowser可以无需登录进入所有建立sso服务的应用服务器application。

在第二张图中，当一个web浏览器要求登退应用服务器，应用服务器(application)会把url跳转到CAS server上的 /cas/logout url资源上，

CAS server接受请求后，会检测用户的TCG Cookie，把对应的session清除，同时会找到所有通过该TGC sso登录的应用服务器URL提交请求,所有的回调请求中，包含一个参数logoutRequest,内容格式如下：

<samlp:LogoutRequest?ID="[RANDOM?ID]"?Version="2.0"?IssueInstant="[CURRENT?DATE/TIME]">
<saml:NameID>@NOT_USED@</saml:NameID>
<samlp:SessionIndex>[SESSION?IDENTIFIER]</samlp:SessionIndex>
</samlp:LogoutRequest>

所有收到请求的应用服务器application会解析这个参数，取得sessionId，根据这个Id取得session后，把session删除。
这样就实现单点登出的功能。

知道原理后，下面是结合源代码来讲述一下内部的代码怎么实现的。
首先，要实现single sign out在应用服务器application端的web.xml要加入以下配置
<filter>
???<filter-name>CAS?Single?Sign?Out?Filter</filter-name>
???<filter-class>org.jasig.cas.client.session.SingleSignOutFilter</filter-class>
</filter>

<filter-mapping>
???<filter-name>CAS?Single?Sign?Out?Filter</filter-name>
???<url-pattern>/*</url-pattern>
</filter-mapping>

<listener>
????<listener-class>org.jasig.cas.client.session.SingleSignOutHttpSessionListener</listener-class>
</listener>
注：如果有配置CAS client Filter,则CAS Single Sign Out Filter 必须要放到CAS client Filter之前。

配置部分的目的是在CAS server回调所有的application进行单点登出操作的时候，需要这个filter来实现session清楚。

主要代码如下:
org.jasig.cas.client.session.SingleSignOutFilter
?1?public?void?doFilter(final?ServletRequest?servletRequest,?final?ServletResponse?servletResponse,?final?FilterChain??????
?2?
?3?filterChain)?throws?IOException,?ServletException?{
?4?????????final?HttpServletRequest?request?=?(HttpServletRequest)?servletRequest;
?5?
?6?????????if?("POST".equals(request.getMethod()))?{
?7?????????????final?String?logoutRequest?=?request.getParameter("logoutRequest");
?8?
?9?????????????if?(CommonUtils.isNotBlank(logoutRequest))?{
10?
11?????????????????if?(log.isTraceEnabled())?{
12?????????????????????log.trace?("Logout?request=["?+?logoutRequest?+?"]");
13?????????????????}
14?????????????????//从xml中解析?SessionIndex?key值
15?????????????????final?String?sessionIdentifier?=?XmlUtils.getTextForElement(logoutRequest,?"SessionIndex");
16?
17?????????????????if?(CommonUtils.isNotBlank(sessionIdentifier))?{
18?????????????????????????//根据sessionId取得session对象
19?????????????????????final?HttpSession?session?=?SESSION_MAPPING_STORAGE.removeSessionByMappingId(sessionIdentifier);
20?
21?????????????????????if?(session?!=?null)?{
22?????????????????????????String?sessionID?=?session.getId();
23?
24?????????????????????????if?(log.isDebugEnabled())?{
25?????????????????????????????log.debug?("Invalidating?session?["?+?sessionID?+?"]?for?ST?["?+?sessionIdentifier?+?"]");
26?????????????????????????}
27?????????????????????????
28?????????????????????????try?{
29?????????????????//让session失效
30?????????????????????????????session.invalidate();
31?????????????????????????}?catch?(final?IllegalStateException?e)?{
32?????????????????????????????log.debug(e,e);
33?????????????????????????}
34?????????????????????}
35???????????????????return;
36?????????????????}
37?????????????}
38?????????}?else?{//get方式?表示登录，把session对象放到SESSION_MAPPING_STORAGE(map对象中)
39?????????????final?String?artifact?=?request.getParameter(this.artifactParameterName);
40?????????????final?HttpSession?session?=?request.getSession();
41?????????????
42?????????????if?(log.isDebugEnabled()?&&?session?!=?null)?{
43?????????????????log.debug("Storing?session?identifier?for?"?+?session.getId());
44?????????????}
45?????????????if?(CommonUtils.isNotBlank(artifact))?{
46?????????????????SESSION_MAPPING_STORAGE.addSessionById(artifact,?session);
47?????????????}
48?????????}
49?
50?????????filterChain.doFilter(servletRequest,?servletResponse);
51?????}
SingleSignOutHttpSessionListener实现了javax.servlet.http.HttpSessionListener接口，用于监听session销毁事件
?1?public?final?class?SingleSignOutHttpSessionListener?implements?HttpSessionListener?{
?2?
?3?????private?Log?log?=?LogFactory.getLog(getClass());
?4?
?5?????private?SessionMappingStorage?SESSION_MAPPING_STORAGE;
?6?????
?7?????public?void?sessionCreated(final?HttpSessionEvent?event)?{
?8?????????//?nothing?to?do?at?the?moment
?9?????}
10?
11?????//session销毁时
12?????public?void?sessionDestroyed(final?HttpSessionEvent?event)?{
13?????????if?(SESSION_MAPPING_STORAGE?==?null)?{//如果为空，创建一个sessionMappingStorage?对象
14?????????????SESSION_MAPPING_STORAGE?=?getSessionMappingStorage();
15?????????}
16?????????final?HttpSession?session?=?event.getSession();//取得当然要销毁的session对象
17?????????
18?????????if?(log.isDebugEnabled())?{
19?????????????log.debug("Removing?HttpSession:?"?+?session.getId());
20?????????}
21?????????//从SESSION_MAPPING_STORAGE?map根据sessionId移去session对象
22?????????SESSION_MAPPING_STORAGE.removeBySessionById(session.getId());
23?????}
24?
25?????/**
26??????*?Obtains?a?{@link?SessionMappingStorage}?object.?Assumes?this?method?will?always?return?the?same
27??????*?instance?of?the?object.??It?assumes?this?because?it?generally?lazily?calls?the?method.
28??????*?
29??????*?@return?the?SessionMappingStorage
30??????*/
31?????protected?static?SessionMappingStorage?getSessionMappingStorage()?{
32?????????return?SingleSignOutFilter.getSessionMappingStorage();
33?????}
34?}
接下来，我们来看一下CAS server端回调是怎么实现的
先来看一下配置，我们知道CAS server所有的用户登录，登出操作，都是由CentralAuthenticationServiceImpl对象来管理。
我们就先把到CentralAuthenticationServiceImpl的spring配置，在applicationContext.xml文件中

????<bean?id="centralAuthenticationService"?class="org.jasig.cas.CentralAuthenticationServiceImpl"
????????p:ticketGrantingTicketExpirationPolicy-ref="grantingTicketExpirationPolicy"
????????p:serviceTicketExpirationPolicy-ref="serviceTicketExpirationPolicy"
????????p:authenticationManager-ref="authenticationManager"
????????p:ticketGrantingTicketUniqueTicketIdGenerator-ref="ticketGrantingTicketUniqueIdGenerator"
????????p:ticketRegistry-ref="ticketRegistry"
????????????p:servicesManager-ref="servicesManager"
????????????p:persistentIdGenerator-ref="persistentIdGenerator"
????????p:uniqueTicketIdGeneratorsForService-ref="uniqueIdGeneratorsMap"?/>
配置使用了spring2.0的xsd。CentralAuthenticationServiceImpl有一个属性叫uniqueTicketIdGeneratorsForService，它是一个map对象
它的key值是所有实现org.jasig.cas.authentication.principal.Service接口的类名，用于保存Principal对象和进行单点登出回调

application server时使用 value值为org.jasig.cas.util.DefaultUniqueTicketIdGenerator对象,用于生成唯一的TGC ticket。
该属性引用的uniqueIdGeneratorsMap bean在uniqueIdGenerators.xml配置文件中。
<util:map?id="uniqueIdGeneratorsMap">
????????<entry
????????????key="org.jasig.cas.authentication.principal.SimpleWebApplicationServiceImpl"
????????????value-ref="serviceTicketUniqueIdGenerator"?/>
????????<entry
????????????key="org.jasig.cas.support.openid.authentication.principal.OpenIdService"
????????????value-ref="serviceTicketUniqueIdGenerator"?/>
????????<entry
????????????key="org.jasig.cas.authentication.principal.SamlService"
????????????value-ref="samlServiceTicketUniqueIdGenerator"?/>
????????<entry
????????????key="org.jasig.cas.authentication.principal.GoogleAccountsService"
????????????value-ref="serviceTicketUniqueIdGenerator"?/>
????</util:map>
那CentralAuthenticationServiceImpl是怎么调用的呢？
我们跟踪一下代码，在创建ticket的方法 public String createTicketGrantingTicket(final Credentials credentials)中
可以找到以下这样一段代码：
1?????????//创建?TicketGrantingTicketImpl?实例
2?????????????final?TicketGrantingTicket?ticketGrantingTicket?=?new?TicketGrantingTicketImpl(
3?????????????????this.ticketGrantingTicketUniqueTicketIdGenerator
4?????????????????????.getNewTicketId(TicketGrantingTicket.PREFIX),
5?????????????????authentication,?this.ticketGrantingTicketExpirationPolicy);
6?????????//并把该对象保存到?ticketRegistry中
7?????????this.ticketRegistry.addTicket(ticketGrantingTicket);
上面的代码，看到ticketRegistry对象保存了创建的TicketGrantingTicketImpl对象，下面我们看一下当ticket销毁的时候，会做什么
事情，代码如下：
?1?????public?void?destroyTicketGrantingTicket(final?String?ticketGrantingTicketId)?{
?2?????????Assert.notNull(ticketGrantingTicketId);
?3?
?4?????????if?(log.isDebugEnabled())?{
?5?????????????log.debug("Removing?ticket?["?+?ticketGrantingTicketId
?6?????????????????+?"]?from?registry.");
?7?????????}
?8?????//从?ticketRegistry对象中，取得TicketGrantingTicket对象
?9?????????final?TicketGrantingTicket?ticket?=?(TicketGrantingTicket)?this.ticketRegistry
10?????????????.getTicket(ticketGrantingTicketId,?TicketGrantingTicket.class);
11?
12?????????if?(ticket?==?null)?{
13?????????????return;
14?????????}
15?
16?????????if?(log.isDebugEnabled())?{
17?????????????log.debug("Ticket?found.??Expiring?and?then?deleting.");
18?????????}
19?????????ticket.expire();//调用expire()方法，让ticket过期失效
20?????????this.ticketRegistry.deleteTicket(ticketGrantingTicketId);//从ticketRegistry中删除的ticket?对象
21?????}
我们看到，它是从ticketRegistry对象中取得TicketGrantingTicket对象后，调用expire方法。接下来，要关心的就是expire方法做什么事情
?1?????public?synchronized?void?expire()?{
?2?????????this.expired.set(true);
?3?????????logOutOfServices();
?4?????}
?5?
?6?????private?void?logOutOfServices()?{
?7?????????for?(final?Entry<String,?Service>?entry?:?this.services.entrySet())?{
?8?????????????entry.getValue().logOutOfService(entry.getKey());
?9?????????}
10?????}
从代码可以看到，它是遍历每个 Service对象，并执行logOutOfService方法，参数是String sessionIdentifier
现在我们可以对应中，它存放的Service就是在uniqueIdGeneratorsMap bean定义中的那些实现类

因为logOutOfService方法的实现，所有实现类都是由它们继承的抽象类AbstractWebApplicationService来实现，我们来看一下
AbstractWebApplicationService的logOutOfService方法，就可以最终找出，实现single sign out的真正实现代码，下面是主要代码片段：

?1???public?synchronized?boolean?logOutOfService(final?String?sessionIdentifier)?{
?2?????????if?(this.loggedOutAlready)?{
?3?????????????return?true;
?4?????????}
?5?
?6?????????LOG.debug("Sending?logout?request?for:?"?+?getId());
?7?????????//组装?logoutRequest参数内容
?8?????????final?String?logoutRequest?=?"<samlp:LogoutRequest?xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol"?ID=""
?9?????????????+?GENERATOR.getNewTicketId("LR")
10?????????????+?""?Version="2.0"?IssueInstant=""?+?SamlUtils.getCurrentDateAndTime()
11?????????????+?""><saml:NameID?
12?
13?xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion">@NOT_USED@</saml:NameID><samlp:SessionIndex>"
14?????????????+?sessionIdentifier?+?"</samlp:SessionIndex></samlp:LogoutRequest>";
15?????????
16?????????this.loggedOutAlready?=?true;
17?????????//回调所有的application,getOriginalUrl()是取得回调的application?url
18?????????if?(this.httpClient?!=?null)?{
19?????????????return?this.httpClient.sendMessageToEndPoint(getOriginalUrl(),?logoutRequest);
20?????????}
21?????????
22?????????return?false;
23?????}
至此，已经通过源代码把 CAS实现 single sign out的实现原理和方法完整叙述了一遍，希望对CAS感兴趣的朋友有所帮忙，
如果有什么问题也希望大家提出和指正。

Good Luck!
Yours Matthew!
