10-Oracle大数据OLH连接
?
参考：
?
http://www.dataguru.cn/forum.php?mod=viewthread&tid=39857
?
http://blog.sina.com.cn/s/blog_701a48e7010189rc.html
?
http://www.chenjunlu.com/2012/12/trying-with-oracle-loader-for-hadoop/
?
http://f.dataguru.cn/thread-39092-1-1.html
?
?
os:rhel-server-5.4-x86_64-dvd
?
jdk版本为:jdk-6u31-linux-i586-rpm.bin
?
Hadoop版本为：hadoop-0.20.2.tar.gz?? hadoop-0.20.2-CDH3B4.tar
?
oraloader版本为：oraloader-2.0.0
?
oracle的版本为：Version 11.2.0.1.0
?
JDBC:ojdbc6.jar
?
?
?
解压：oraloader
?
?
Oracle大数据OLH连接
?
?
?
有二个文件
?
?

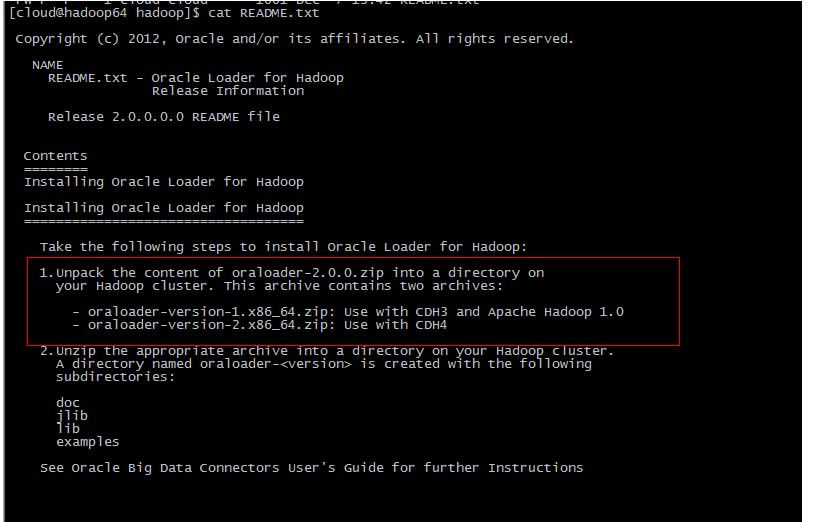

查看 README.TXT
?
?
?
?
所以我们要用CHD 的版本hadoop 现有的版本：hadoop-0.20.2-CDH3B4.tar
?
?
?

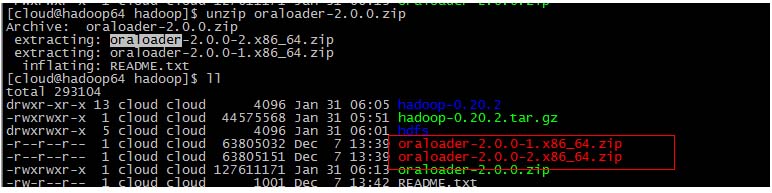

解压oraloader
?
oraloader-2.0.0-1
?
?
?
修改环境变量
?
[root@hadoop64 home]# vi /etc/profile
?
?
?
配置 Oracle 相关驱动包
?
ojdbc6.jar 包在/hadoop/oraloader-2.0.0-1/jlib里面有一个
?
[cloud@hadoop64 jlib]$ cp ojdbc6.jar /hadoop/hadoop-0.20.2/lib
?
?
?
?
?
启动hadoop集群
?
?
?
?
?
创建目标表?
?
create table tab_lx(id number,name varchar2(50),address varchar2(100));
?
?
?
?
?

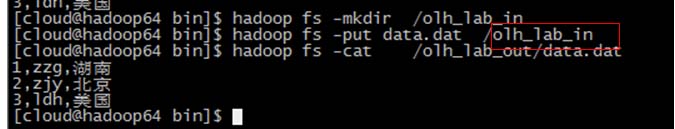

在Hadoop中放入示例文件
?
[cloud@hadoop64 bin]$ cat data.dat
?
1,zzg,湖南
?
2,zjy,北京
?
3,ldh,美国
?
?
?
?
?
拷贝国际化文件
?
cp?? /hadoop/oraloader-2.0.0-1/jlib/orai18n*?? /hadoop/hadoop-0.20.2/lib
?

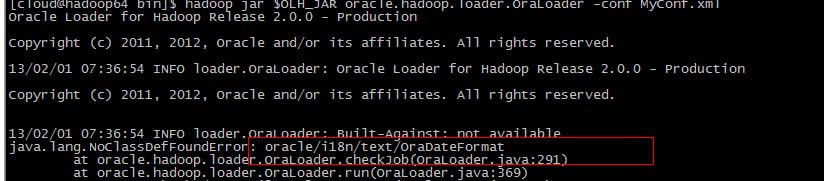

不然报错：
?
?
?
?
?
配置 Oracle Loader for Hadoop
?
[cloud@hadoop64 bin]$ vi MyConf.xml
<?xml version="1.0" encoding="UTF-8"?><configuration> <property> <name>mapred.input.dir</name> <value>olh_exercise1_in/data.dat</value> </property> <property> <name>mapreduce.inputformat.class</name> <value>oracle.hadoop.loader.lib.input.DelimitedTextInputFormat</value> </property> <property> <name>mapreduce.outputformat.class</name> <value>oracle.hadoop.loader.lib.output.JDBCOutputFormat</value> </property> <property> <name>mapred.output.dir</name> <value>olh_exercise1_out</value> </property> <property> <name>oracle.hadoop.loader.connection.url</name> <value>jdbc:oracle:thin:@192.168.80.70:1521/hadoop64</value> </property> <property> <name>oracle.hadoop.loader.connection.user</name> <value>SCOTT</value> </property> <property> <name>oracle.hadoop.loader.connection.password</name> <value>oracle</value> </property> <property> <name>oracle.hadoop.loader.loaderMapFile</name> <value>file:////hadoop/hadoop-0.20.2/bin/loaderMap_exercise1.xml</value> </property></configuration>~
?
[cloud@hadoop64 bin]$ vi loaderMap_exercise1.xml
?
?
<?xml version="1.0" encoding="UTF-8" ?><LOADER_MAP> <SCHEMA>SCOTT</SCHEMA> <TABLE>tab_lx</TABLE> <COLUMN field="F0">id</COLUMN> <COLUMN field="F1">name</COLUMN> <COLUMN field="F2">address</COLUMN></LOADER_MAP>
?
运行
?
[cloud@hadoop64 bin]$? hadoop jar ${OLH_HOME}/jlib/oraloader.jar oracle.hadoop.loader.OraLoader -conf MyConf.xml
?
Oracle Loader for Hadoop Release 2.0.0 - Production
?
?
?
Copyright (c) 2011, 2012, Oracle and/or its affiliates. All rights reserved.
?
?
?
13/02/01 09:34:25 INFO loader.OraLoader: Oracle Loader for Hadoop Release 2.0.0 - Production
?
?
?
Copyright (c) 2011, 2012, Oracle and/or its affiliates. All rights reserved.
?
?
?
?
?
13/02/01 09:34:25 INFO loader.OraLoader: Built-Against: not available
?
13/02/01 09:34:28 INFO loader.OraLoader: oracle.hadoop.loader.loadByPartition is disabled because table: TAB_LX is not partitioned
?
13/02/01 09:34:28 INFO loader.OraLoader: oracle.hadoop.loader.enableSorting disabled, no sorting key provided
?
13/02/01 09:34:28 INFO output.DBOutputFormat: Setting reduce tasks speculative execution to false for : oracle.hadoop.loader.lib.output.JDBCOutputFormat
?
13/02/01 09:34:28 WARN loader.OraLoader: Sampler error: the number of reduce tasks must be greater than one; the configured value is 1 . Job will continue without sampled information.
?
13/02/01 09:34:28 INFO loader.OraLoader: Sampling time=0D:0h:0m:0s:14ms (14 ms)
?
13/02/01 09:34:28 INFO loader.OraLoader: Submitting OraLoader job OraLoader
?
13/02/01 09:34:29 INFO input.FileInputFormat: Total input paths to process : 1
?
13/02/01 09:34:30 INFO loader.OraLoader: map 0% reduce 0%
?
13/02/01 09:34:38 INFO loader.OraLoader: map 100% reduce 0%
?
13/02/01 09:34:50 INFO loader.OraLoader: map 100% reduce 100%
?
13/02/01 09:34:52 INFO loader.OraLoader: Job complete: OraLoader (null)
?
13/02/01 09:34:52 INFO loader.OraLoader: Counters: 17
?
??????? FileSystemCounters
?
??????????????? FILE_BYTES_READ=114
?
??????????????? FILE_BYTES_WRITTEN=260
?
??????????????? HDFS_BYTES_READ=39
?
??????????????? HDFS_BYTES_WRITTEN=1858
?
??????? Job Counters
?
??????????????? Data-local map tasks=1
?
??????????????? Launched map tasks=1
?
??????????????? Launched reduce tasks=1
?
??????? Map-Reduce Framework
?
??????????????? Combine input records=0
?
??????????????? Combine output records=0
?
??????????????? Map input records=3
?
??????????????? Map output bytes=102
?
??????????????? Map output records=3
?
??????????????? Reduce input groups=1
?
??????????????? Reduce input records=3
?
??????????????? Reduce output records=3
?
??????????????? Reduce shuffle bytes=0
?
??????????????? Spilled Records=6
?
?
?

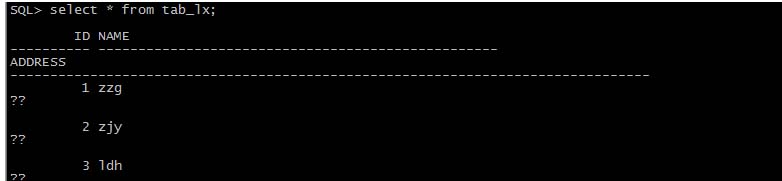

测试ORACLE
?
?
?
