Extjs4.1 TreePanel 的增删改查与拖拽排序
用了一天的时间完成了对Extjs TreePanel的 增删改查与拖拽排序
一来对自己写的代码做一个总结，二来给有需要的人一些帮组，
如果代码有什么BUG或者更好的建议，欢迎大家留言

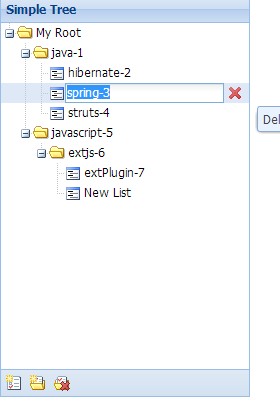

先看效果图
/** * 定义树节点 */public class TreeNode {//IDprivate int id;//展示数时显示的文本private String text;//是否是叶子节点private boolean leaf;//子节点的集合//(@JsonInclude(Include.NON_NULL)序列化时的标记 如果为空则不参与序列化)@JsonInclude(Include.NON_NULL) private List<TreeNode> children;public TreeNode() {}public TreeNode(int id, String text, boolean leaf) {super();this.id = id;this.text = text;this.leaf = leaf;}public TreeNode(int id, String text, boolean leaf, List<TreeNode> children) {super();this.id = id;this.text = text;this.leaf = leaf;this.children = children;}public int getId() {return id;}public void setId(int id) {this.id = id;}public String getText() {return text;}public void setText(String text) {this.text = text;}public boolean isLeaf() {return leaf;}public void setLeaf(boolean leaf) {this.leaf = leaf;}public List<TreeNode> getChildren() {return children;}public void setChildren(List<TreeNode> children) {this.children = children;}}package com.sshe.operation.controller;import java.util.ArrayList;import java.util.List;import org.springframework.stereotype.Controller;import org.springframework.ui.ModelMap;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.ResponseBody;import com.sshe.base.controller.BaseController;import com.sshe.operation.entity.TreeNode;/** * 控制层,我用的Spring3 MVC * 4个方法分别与Extjs的API对应 * api: { * create: 'TreeApiController.do?method=createTreeNode', * read: 'TreeApiController.do?method=queryTreeList', * update: 'TreeApiController.do?method=updateTreeNode', * destroy: 'TreeApiController.do?method=destroyTreeNode' * } */@Controller@RequestMapping("/TreeApiController.do")public class TreeApiController extends BaseController {/** * 查询的方法 * 对应 read: 'TreeApiController.do?method=queryTreeList' */@ResponseBody@RequestMapping(params="method=queryTreeList")public Object queryTreeList(ModelMap map) {System.out.println(map);JsonResult result = new JsonResult();result.setSuccess(true);result.setData(getTreeList());return getTreeList();}/** * 新增方法 * 对应create: 'TreeApiController.do?method=createTreeNode' */@ResponseBody@RequestMapping(params="method=createTreeNode")public Object createTreeNode(ModelMap map) {System.out.println(map);JsonResult result = new JsonResult();result.setSuccess(true);return result;}/** * 更新的方法 * 对应 update: 'TreeApiController.do?method=updateTreeNode' */@ResponseBody@RequestMapping(params="method=updateTreeNode")public Object updateTreeNode(ModelMap map) {System.out.println(map);JsonResult result = new JsonResult();result.setSuccess(true);return result;}/** * 删除的方法 * 对应 destroy: 'TreeApiController.do?method=destroyTreeNode' */@ResponseBody@RequestMapping(params="method=destroyTreeNode")public Object destroyTreeNode(ModelMap map) {System.out.println(map);JsonResult result = new JsonResult();result.setSuccess(true);return result;}/** * 测试数据 */public List<TreeNode> getTreeList() {List<TreeNode> list = new ArrayList<TreeNode>();TreeNode java = new TreeNode(1, "java-1", false, new ArrayList<TreeNode>());TreeNode hibernate = new TreeNode(2, "hibernate-2", true);TreeNode spring = new TreeNode(3, "spring-3", true);TreeNode struts = new TreeNode(4, "struts-4", true);java.getChildren().add(hibernate);java.getChildren().add(spring);java.getChildren().add(struts);TreeNode javascript = new TreeNode(5, "javascript-5", false, new ArrayList<TreeNode>());TreeNode extjs = new TreeNode(6, "extjs-6", false, new ArrayList<TreeNode>());javascript.getChildren().add(extjs);TreeNode extPlugin = new TreeNode(7, "extPlugin-7", true);extjs.getChildren().add(extPlugin);list.add(java);list.add(javascript);return list;}}Ext.onReady(function() {//GUIDfunction newGuid() { var guid = ""; for (var i = 1; i <= 32; i++){ var n = Math.floor(Math.random()*16.0).toString(16); guid += n; if((i==8)||(i==12)||(i==16)||(i==20)) guid += "-"; } return guid; } //ToopitpExt.tip.QuickTipManager.init();//定义菜单Ext.define('SimpleTasks.view.lists.ContextMenu', { extend: 'Ext.menu.Menu', xtype: 'listsContextMenu', items: [ { text: 'New List', iconCls: 'tasks-new-list', id: 'new-list-item' }, { text: 'New Folder', iconCls: 'tasks-new-folder', id: 'new-folder-item' }, { text: 'Delete', iconCls: 'tasks-delete-folder', id: 'delete-folder-item' } ]});//ModelExt.define('MyTreeModel', { extend: 'Ext.data.Model', fields: [ {name: 'id', type: 'string'}, {name: 'text', type: 'string'}, {name: 'index', type: 'int', persist: true} ] }); //StoreExt.define("MyTreeStore", {extend: "Ext.data.TreeStore",model: 'MyTreeModel',proxy: { type: 'ajax', api: { create: 'TreeApiController.do?method=createTreeNode', read: 'TreeApiController.do?method=queryTreeList', update: 'TreeApiController.do?method=updateTreeNode', destroy: 'TreeApiController.do?method=destroyTreeNode' }, writer: { type: 'json', allowSingle: false, encode: true, root: 'records' } }, root: { id: -1, expanded: true, text: "My Root" }, autoLoad: true});var store = Ext.create("MyTreeStore");Ext.define("MyTreePanel", {extend: 'Ext.tree.Panel', title: 'Simple Tree', width: 250, height: 400, store: store, hideHeaders: true, rootVisible: true, viewConfig: { plugins: { ptype: 'treeviewdragdrop' }, listeners: { drop: function(node, data, dropRec, dropPosition) { store.sync(); } } }, initComponent: function() { var me = this; //可编辑 me.plugins = [me.cellEditingPlugin = Ext.create('Ext.grid.plugin.CellEditing')]; //定义列 me.columns = [{ xtype: 'treecolumn', dataIndex: 'text', flex: 1, editor: { xtype: 'textfield', selectOnFocus: true, validator: function(value){ value = Ext.String.trim(value); return value.length < 1 ? this.blankText : true; } } },{ xtype: 'actioncolumn', width: 24, icon: 'resources/images/delete.png', iconCls: 'x-hidden', tooltip: 'Delete', handler: Ext.bind(me.handleDeleteClick, me) }]; //定义底部tbar me.dockedItems = [{ xtype: 'toolbar', dock: 'bottom', items: [{ iconCls: 'tasks-new-list', tooltip: 'New List', handler: me.handleNewListClick, scope: me },{ iconCls: 'tasks-new-folder', tooltip: 'New Folder', handler: me.handleNewFolderClick, scope: me },{ iconCls: 'tasks-delete-folder', id: 'delete-folder-btn', tooltip: 'Delete Folder' }] }]; me.contextMenu = Ext.create("SimpleTasks.view.lists.ContextMenu"); me.callParent(); me.on("itemmouseenter", me.showActions); me.on("itemmouseleave", me.hideActions); me.on("edit", me.updateNode); me.on("afterrender", me.handleAfterListTreeRender); me.on("beforeedit", me.handleBeforeEdit, me); //me.on("canceledit", me.handleCancelEdit); me.on("itemcontextmenu", me.showContextMenu, me); }, //刷新树 refreshView: function() { //refresh the data in the view. //This will trigger the column renderers to run, this.getView().refresh(); }, //显示actioncolumn showActions: function(view, list, node, rowIndex, e) { var icons = Ext.DomQuery.select('.x-action-col-icon', node); if(view.getRecord(node).get('id') != "-1") { Ext.each(icons, function(icon){ Ext.get(icon).removeCls('x-hidden'); }); } }, //隐藏actioncolumn hideActions: function(view, list, node, rowIndex, e) { var icons = Ext.DomQuery.select('.x-action-col-icon', node); Ext.each(icons, function(icon){ Ext.get(icon).addCls('x-hidden'); }); }, //Handles a click on a delete icon handleDeleteClick: function(gridView, rowIndex, colIndex, column, e, record) { //这个model区别于普通的model //在定义store的时候并没有定义fields或model属性,该model由treeStore自动创建 //该model包含树展示所需要的数据结构,具备parentNode,isLeaf,loaded等属性 var model = gridView.getRecord(gridView.findTargetByEvent(e)); this.deleteNode(model); }, //删除节点 deleteNode: function(nodel) { nodel.parentNode.removeChild(nodel); //与服务器端同步 store.sync(); }, //更新节点 updateNode: function(editor, e) { var me = this; //与服务器端同步 store.sync(); }, //树加载完毕后设置默认选中第一个 handleAfterListTreeRender: function(tree) { tree.getSelectionModel().select(0); }, //编辑前判断跟节点不允许编辑 handleBeforeEdit: function(editingPlugin, e) { return e.record.get('id') !== -1; }, //取消编辑事件 handleCancelEdit: function(editor, e) { var list = e.record, parent = list.parentNode; parent.removeChild(list); this.getListTree().getSelectionModel().select([parent]); }, //添加叶子节点 handleNewListClick: function(component, e) { this.addNode(true); }, //添加跟节点 handleNewFolderClick: function(component, e) { this.addNode(); }, //添加节点 addNode: function(leaf) { var me = this; var listTree = me; cellEditingPlugin = listTree.cellEditingPlugin, selectionModel = listTree.getSelectionModel(), selectedList = selectionModel.getSelection()[0], parentList = selectedList.isLeaf() ? selectedList.parentNode : selectedList, newList = Ext.create('MyTreeModel', { id: newGuid(), text: 'New ' + (leaf ? 'List' : 'Folder'), leaf: leaf, loaded: true // set loaded to true, //so the tree won't try to dynamically load children //for this node when expanded }), expandAndEdit = function() { if(parentList.isExpanded()) { selectionModel.select(newList); cellEditingPlugin.startEdit(newList, 0); } else { listTree.on('afteritemexpand', function startEdit(list) { if(list === parentList) { selectionModel.select(newList); cellEditingPlugin.startEdit(newList, 0); // remove the afterexpand event listener listTree.un('afteritemexpand', startEdit); } }); parentList.expand(); } }; parentList.appendChild(newList); if(listTree.getView().isVisible(true)) { expandAndEdit(); } else { listTree.on('expand', function onExpand() { expandAndEdit(); listTree.un('expand', onExpand); }); listTree.expand(); } }, //添加右键菜单 showContextMenu: function(view, list, node, rowIndex, e) { this.contextMenu.showAt(e.getX(), e.getY()); e.preventDefault(); }});Ext.create("MyTreePanel", {renderTo: Ext.getBody()});});
