SharePoint 2013 app -SharePoint hosted 实战(一)

2013-03-16

SharePoint 2013 app ---SharePoint hosted 实战(1)本文介绍如何创建一个SharePoint hosted app.还会具体

SharePoint 2013 app ---SharePoint hosted 实战(1)

本文介绍如何创建一个SharePoint hosted app.还会具体介绍如何在SharePointhosted app中创建和使用 page, client web part.

前面我写了三篇文章介绍SharePoint app的概念

http://blog.csdn.net/farawayplace613/article/details/8644279

http://blog.csdn.net/farawayplace613/article/details/8648264

http://blog.csdn.net/farawayplace613/article/details/8652375

从这篇文章起，笔者会写一些SharePoint hosted app的开发入门，不然成了光说（说概念）不练假把式了。

创建一个SharePoint hosted app首先要做些准备工作，这里我就不祥述这些准备工作了：

1．http://msdn.microsoft.com/en-us/library/office/apps/fp179923%28v=office.15%29

2．然后你需要安装VS2012,和Microsoft Office Developer Tools forVisual Studio 2012http://www.microsoft.com/web/handlers/WebPI.ashx?command=GetInstallerRedirect&appid=OfficeToolsForVS2012GA

上面的步骤做好后我们就可以开发了。

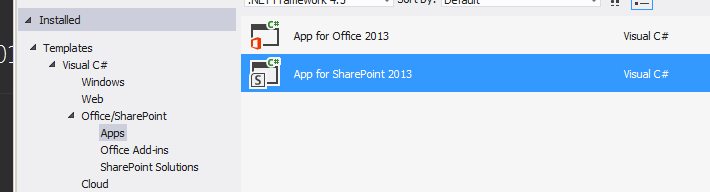

1. 启动VS2012创建SharePointhosted app

SharePoint 2013 app -SharePoint hosted 实战(一)

填好名称后点击OK

SharePoint 2013 app -SharePoint hosted 实战(一)

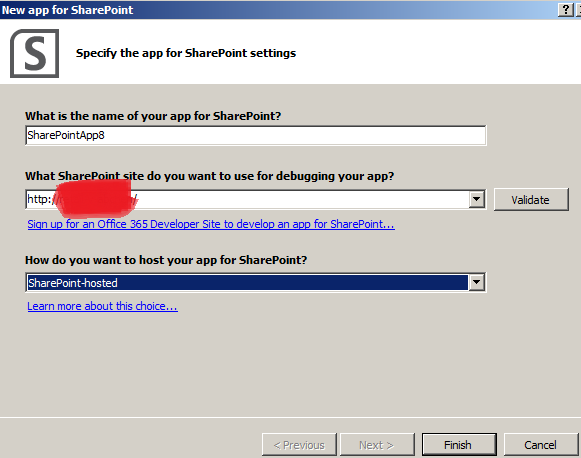

宿主方式选择 “SharePoint-hosted”后点击Finish

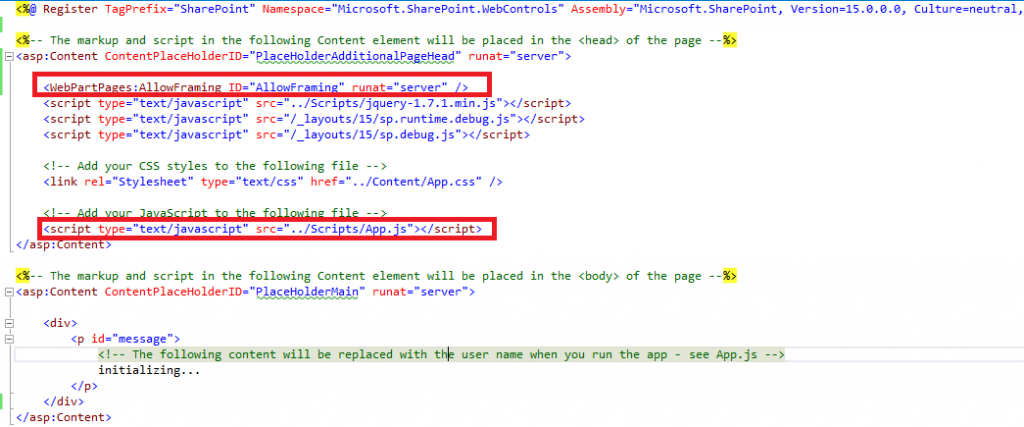

2. 修改Default.aspx

SharePoint 2013 app -SharePoint hosted 实战(一)

注意： <WebPartPages:AllowFramingID="AllowFraming"runat="server"/>

加了上面这句代码的意思表示该页面允许被IFrame加载，Clientweb part可以用来在宿主站点中(HostWeb)使用IFrame加载 app中的页面，如果用Client web part加载不含上面这句的页面会出现找不到页面的错误(Thiscontent cannot be displayed in a frame)。

这里可以使用HTML 和JavaScript做任意你想做(当然要HTML和JavaScript可以做到的事情)，外加可以使用JavaScript的ObjectModel访问SharePoint的资源，但整个app中不允许有Server端代码(C#等)， App中所有的逻辑都是在浏览器中执行的，简单实例如下：

var context;var web;var user;// This code runs when the DOM is ready and creates a context object which is needed to use the SharePoint object model$(document).ready(function () {    SP.SOD.executeFunc('sp.js', 'SP.ClientContext', retriveUserInfo);});function retriveUserInfo() {    context = SP.ClientContext.get_current();    web = context.get_web();    getUserName();}// This function prepares, loads, and then executes a SharePoint query to get the current users informationfunction getUserName() {    user = web.get_currentUser();    context.load(user);    context.executeQueryAsync(onGetUserNameSuccess, onGetUserNameFail);}// This function is executed if the above OM call is successful// It replaces the contents of the 'helloString' element with the user namefunction onGetUserNameSuccess() {    $('#message').text('Hello ' + user.get_title());}// This function is executed if the above call failsfunction onGetUserNameFail(sender, args) {    alert('Failed to get user name. Error:' + args.get_message());}

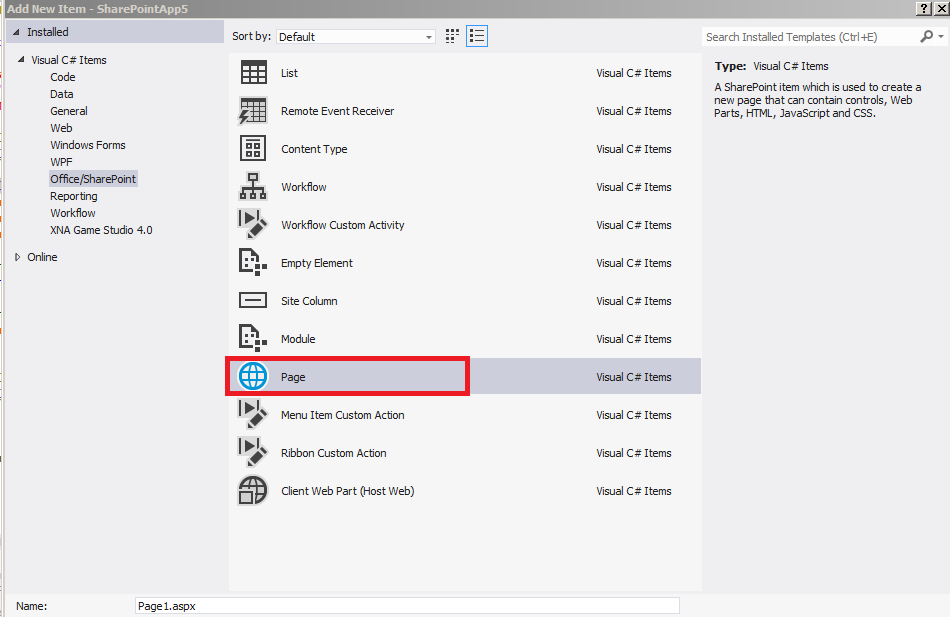

3. 新建page (右击pages节点，选择”NewItem”)

SharePoint 2013 app -SharePoint hosted 实战(一)

这里只是说下操作步骤，一般为了维护方便会在Script节点下新建一个相应的JS文件，然后在新建aspx页面中引入该JS页面，具体参考default.aspx

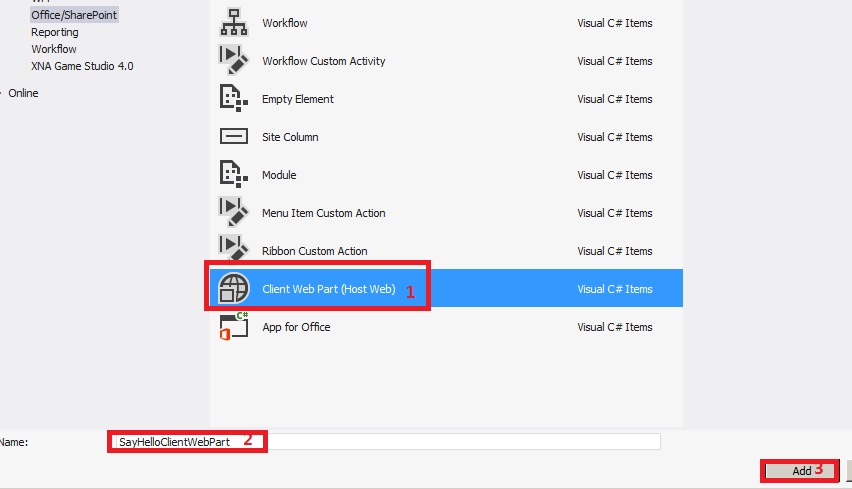

4.新建ClientWebPart(可以用来在宿主站点中(Host Web)使用IFrame加载 app中的页面)

· 选中项目节点，右击=>选择 New Item

· 在可选的新建项中选择”Client Web part ”

SharePoint 2013 app -SharePoint hosted 实战(一)

· VS会自动在page节点下新建SayHelloClientWebPart.aspx

· 打开SayHelloClientWebPart.aspx在</head>前加

   <script type="text/javascript" src="../Scripts/jquery-1.7.1.min.js"></script>       <script type="text/javascript" src="//ajax.aspnetcdn.com/ajax/4.0/1/MicrosoftAjax.js"></script><script type="text/javascript" src="../Scripts/SayHelloClientWebPart.js"></script>

· 在Script节点下添加 SayHelloClientWebPart.js,内容为(注意：Client Web part中引入SP对象和在page里面是不一样的，细心的博友可以自己对比下)

function execOperation() {    // get context and then username    context = new SP.ClientContext.get_current();    web = context.get_web();     getUserName();} // We then use the same getUserName() and other functions from App.js.function getUserName() {    user = web.get_currentUser();    context.load(user);    context.executeQueryAsync(onGetUserNameSuccess, onGetUserNameFail);} // This function is executed if the above OM call is successful// It replaces the content of the 'welcome' element with the user namefunction onGetUserNameSuccess() {    $('#message').text('Hello ' + user.get_title());}// This function is executed if the above OM call failsfunction onGetUserNameFail(sender, args) {    alert('Failed to get user name. Error:' + args.get_message());} // Putting the entire script together, here is what it looks like.var context;var web;var user; //Wait for the page to load$(document).ready(    function () {        //Get the URI decoded SharePoint site url from the SPHostUrl parameter.        var spHostUrl = decodeURIComponent(getQueryStringParameter('SPHostUrl'));        //Build absolute path to the layouts root with the spHostUrl        var layoutsRoot = spHostUrl + '/_layouts/15/';        $.getScript(layoutsRoot + "SP.Runtime.js", function () {            $.getScript(layoutsRoot + "SP.js", execOperation);        }        );         // Function to execute basic operations.        function execOperation() {            // get context and then username            context = new SP.ClientContext.get_current();            web = context.get_web();            getUserName();        }    } ); function getQueryStringParameter(urlParameterKey) {    var params = document.URL.split('?')[1].split('&');    var strParams = '';    for (var i = 0; i < params.length; i = i + 1) {        var singleParam = params[i].split('=');        if (singleParam[0] == urlParameterKey)                        return decodeURIComponent(singleParam[1]);    }}// This function prepares, loads, and then executes a SharePoint query to get the current users informationfunction getUserName() {    user = web.get_currentUser();    context.load(user);    context.executeQueryAsync(onGetUserNameSuccess, onGetUserNameFail);} // This function is executed if the above OM call is successful// It replaces the content of the 'welcome' element with the user namefunction onGetUserNameSuccess() {    $('#message').text('Hello ' + user.get_title());} // This function is executed if the above OM call failsfunction onGetUserNameFail(sender, args) {    alert('Failed to get user name. Error:' + args.get_message());}

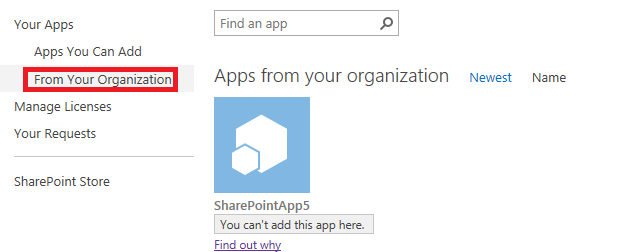

5. 发布 App

· 在发布之前需要先新建app catalog

http://msdn.microsoft.com/en-us/library/fp123530.aspx

· 在IEProxy Setting 中设置 Exception(abraham.com 为你在准备阶段设置的域名)

SharePoint 2013 app -SharePoint hosted 实战(一)
