Excel 在测试中的应用(二)--添加功能键
下面我们看下如何添加功能键。
如果看不到开发选项，请在文件--》开发者选项中勾选显示开发项就行。

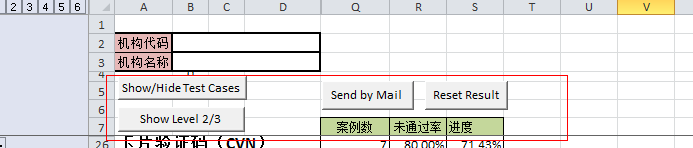

直接选择button放置对应位置。
?
先来看第一个show/hide Test cases按钮用来显示或者隐藏详细案例
Sub ShowTestCases()Dim TestCases As RangeSet TestCases = Range("RangeTestCases")If TestCases.EntireColumn.Hidden = True Then TestCases.EntireColumn.Hidden = False ActiveSheet.Outline.ShowLevels RowLevels:=5 Else TestCases.EntireColumn.Hidden = True ActiveSheet.Outline.ShowLevels RowLevels:=2 End If End Sub?设置好要隐藏或者显示区域即range。
Sub ShowDifferentLevel()Dim TestCases As RangeSet TestCases = Range("RangeTestCases")If Range("B4").Value = 0 Then Range("B4").Value = 1 TestCases.EntireColumn.Hidden = True ActiveSheet.Outline.ShowLevels RowLevels:=3 Else TestCases.EntireColumn.Hidden = True ActiveSheet.Outline.ShowLevels RowLevels:=2 Range("B4").Value = 0 End IfEnd Sub?
这里对应的就是outline.show levels。也就是在界面上点1 2 3等不同的级别，可通过上面代码设置
Sub SendMail()Dim BankNum As StringDim BankName As StringDim MyDate As StringDim mDim nDim Address1, Address2, ResultAddress, ResultAddress2n = 0MyDate = DateBankNum = Sheet1.Range("BankNum").ValueBankName = Sheet1.Range("BankName").ValueSheet2.Range("A3").Value = "$D$4"Sheet2.Range("D4:D200").EntireRow.DeleteFor m = 10 To 953 If Sheet1.Cells(m, 13).Value = "失败" Then Sheet2.Range("A1").Value = Split(Sheet1.Cells(m, 13).MergeArea.Address, ":")(1) Sheet2.Range("A2").Value = Sheet1.Cells(m, 5).Address Address1 = Sheet2.Range("A1").Value Address2 = Sheet2.Range("A2").Value ResultAddress = Address1 + ":" + Address2 ResultAddress2 = Sheet2.Range("A3").Value Sheet1.Range(ResultAddress).Copy ActiveSheet.Paste Destination:=Sheet2.Range(ResultAddress2).Offset(1, 0) Sheet2.Range("A3").Value = Split(Sheet2.Range(ResultAddress2).Offset(1, 0).MergeArea.Address, ":")(1) ResultAddress2 = Sheet2.Range("A3").Value n = n + 1 End IfNextActiveSheet.Outline.ShowLevels RowLevels:=2Range("RangeTestCases").EntireColumn.Hidden = TrueApplication.ThisWorkbook.SaveMsgBox "please select 'No' when Microsoft Excel dialog box asks if you want to share this workbook and changes have been saved automatically" ActiveWorkbook.SendForReview _ Recipients:="XXX@sysnew.com", _ Subject:=BankName + "(机构代码" + BankNum + ")" + "测试运行报告" + "_" + MyDate, _ ShowMessage:=True, _ IncludeAttachment:=TrueEnd Sub?上面也就是发送邮件功能，中间应该加上application.updatescreen=false 防止在发送过程中弹出对话框，还可做另外一点优化就是只发送测试统计结果而不发送测试案例。简单的设置一下应该就可以完成。
??? ActiveWorkbook.SendForReview _
??????? Recipients:="XXX@sysnew.com", _
??????? Subject:=BankName + "(机构代码" + BankNum + ")" + "测试运行报告" + "_" + MyDate, _
??????? ShowMessage:=True, _
??????? IncludeAttachment:=True
分别设置邮件主题、收件人、是否包括附件、显示信息等。
Sub ResetTestResult()Dim iDim Msg, Style, Title, Help, Ctxt, Response, MyStringMsg = "Are you sure you want to clean record results? (You can do this unless you want to test a new orgination or aband previous test results)" ' Define message.Style = vbYesNo ' Define buttons.Title = "Clean Result" ' Define title. ' Define Help file.Response = MsgBox(Msg, Style, Title)If Response = vbYes Then ' User chose Yes. For i = 10 To 950 If Sheet1.Cells(i, 13).Value <> "" Then Sheet1.Cells(i, 13).Value = "未测试" End IfNextSheet1.Range("BankNum").Value = ""Sheet1.Range("BankName").Value = ""Sheet1.Range("N7:P954").ClearContentsSheet2.Range("D4:D200").EntireRow.DeleteMsgBox "All results cleared"End IfEnd Sub?
最后一步即清除运行记录结果，考虑到需要重复使用，所以加入此功能。
其实还可以将运行失败的案例单独提出另存一个sheet。也便于测试跟踪和汇报。
