深入浅出Zookeeper之七分布式CREATE事务处理
前面几篇文章讲了follower和leader之间如何选举和初始化的，这一篇将以之前描述过的CREATE请求作为例子来描述在集群环境下是如何处理事务的。

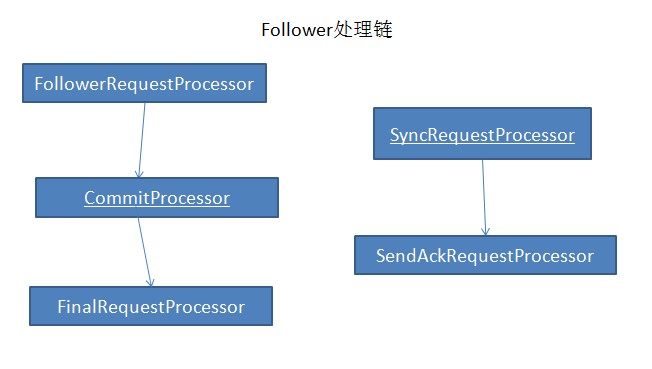

关于client和zookeeper server的描述前几篇文章已经涉及了。这里不就不再赘述了。假设client和某一个follower建立了连接，并发送了CREATE请求。在follower端，IO线程拿到请求开始执行处理链，Follower处理链如下
初始化代码：
protected void setupRequestProcessors() { RequestProcessor finalProcessor = new FinalRequestProcessor(this); commitProcessor = new CommitProcessor(finalProcessor, Long.toString(getServerId()), true); commitProcessor.start(); firstProcessor = new FollowerRequestProcessor(this, commitProcessor); ((FollowerRequestProcessor) firstProcessor).start(); syncProcessor = new SyncRequestProcessor(this, new SendAckRequestProcessor((Learner)getFollower())); syncProcessor.start(); }?第一个处理器是FollowerRequestProcessor，处理如下
while (!finished) { Request request = queuedRequests.take(); if (LOG.isTraceEnabled()) { ZooTrace.logRequest(LOG, ZooTrace.CLIENT_REQUEST_TRACE_MASK, 'F', request, ""); } if (request == Request.requestOfDeath) { break; } // We want to queue the request to be processed before we submit // the request to the leader so that we are ready to receive // the response//先交给CommitProcessor，最终投票通过后，会通过CommitProcessor的commit方法最终提交事务 nextProcessor.processRequest(request); // We now ship the request to the leader. As with all // other quorum operations, sync also follows this code // path, but different from others, we need to keep track // of the sync operations this follower has pending, so we // add it to pendingSyncs.//只有事务请求才转发给leader，进行投票 switch (request.type) { case OpCode.sync: zks.pendingSyncs.add(request); zks.getFollower().request(request); break; case OpCode.create: case OpCode.delete: case OpCode.setData: case OpCode.setACL: case OpCode.createSession: case OpCode.closeSession: case OpCode.multi: zks.getFollower().request(request); break; }?转发事务请求给leader
void request(Request request) throws IOException {//反序列化 ByteArrayOutputStream baos = new ByteArrayOutputStream(); DataOutputStream oa = new DataOutputStream(baos); oa.writeLong(request.sessionId); oa.writeInt(request.cxid); oa.writeInt(request.type); if (request.request != null) { request.request.rewind(); int len = request.request.remaining(); byte b[] = new byte[len]; request.request.get(b); request.request.rewind(); oa.write(b); } oa.close(); QuorumPacket qp = new QuorumPacket(Leader.REQUEST, -1, baos .toByteArray(), request.authInfo); writePacket(qp, true); }?在CommitProcessor中主要是等待缓存请求，并等待该请求被commit
while (!finished) { int len = toProcess.size();//最终的请求处理交给FinalRequestProcessor for (int i = 0; i < len; i++) { nextProcessor.processRequest(toProcess.get(i)); } toProcess.clear(); synchronized (this) {//如果没有commit请求，则wait，直到commit请求的时候唤醒 if ((queuedRequests.size() == 0 || nextPending != null) && committedRequests.size() == 0) { wait(); continue; } // First check and see if the commit came in for the pending // request //有commit请求，则添加到最终队列，下一轮处理 if ((queuedRequests.size() == 0 || nextPending != null) && committedRequests.size() > 0) { Request r = committedRequests.remove(); /* * We match with nextPending so that we can move to the * next request when it is committed. We also want to * use nextPending because it has the cnxn member set * properly. */ //如果是自己的请求，则使用之前的Request，以为之前的Request带client的连接信息，可以写回响应 if (nextPending != null && nextPending.sessionId == r.sessionId && nextPending.cxid == r.cxid) { // we want to send our version of the request. // the pointer to the connection in the request nextPending.hdr = r.hdr; nextPending.txn = r.txn; nextPending.zxid = r.zxid; toProcess.add(nextPending); nextPending = null; }//如果是别人的请求，则使用新的Request，不带连接信息，无法发送响应else { // this request came from someone else so just // send the commit packet toProcess.add(r); } } } // We haven't matched the pending requests, so go back to // waiting//有pending请求，但是该请求还未commit，则继续 if (nextPending != null) { continue; }//从队列中拿待处理请求 synchronized (this) { // Process the next requests in the queuedRequests while (nextPending == null && queuedRequests.size() > 0) { Request request = queuedRequests.remove(); switch (request.type) { case OpCode.create: case OpCode.delete: case OpCode.setData: case OpCode.multi: case OpCode.setACL: case OpCode.createSession: case OpCode.closeSession: nextPending = request; break; case OpCode.sync: if (matchSyncs) { nextPending = request; } else { toProcess.add(request); } break; default: toProcess.add(request); } } }?在这个场景中，CREATE请求先到了queuedRequests中，然后nextPending会指向这个请求，但是此时还未commit，所以CommitProcessor会wait，直到该请求投票被通过，然后被commit。
此时leader收到了转发的请求，在LearnerHandler中

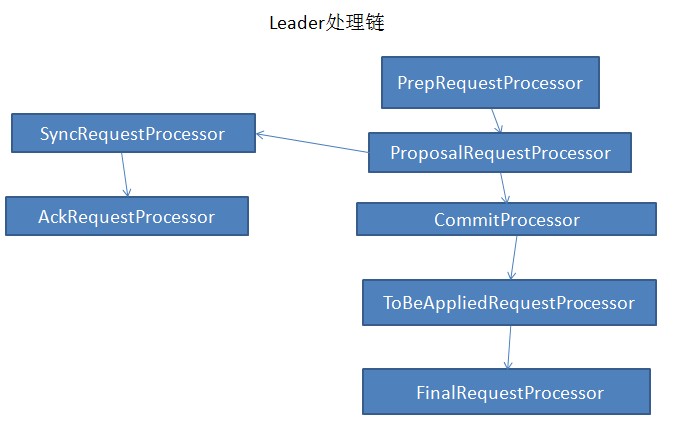

case Leader.REQUEST: //反序列化 bb = ByteBuffer.wrap(qp.getData()); sessionId = bb.getLong(); cxid = bb.getInt(); type = bb.getInt(); bb = bb.slice(); Request si; if(type == OpCode.sync){ si = new LearnerSyncRequest(this, sessionId, cxid, type, bb, qp.getAuthinfo()); } else { si = new Request(null, sessionId, cxid, type, bb, qp.getAuthinfo()); } si.setOwner(this); //提交给执行链处理 leader.zk.submitRequest(si); break;?Leader端的执行链如下
PrepRequestProcessor在之前的文章已经分析过了，主要是根据请求类型，拼装不同的Request，这里是CreateRequest
接下来ProposalRequestProcessor执行，ProposalRequestProcessor主要是发起投票
public void processRequest(Request request) throws RequestProcessorException {...... /* In the following IF-THEN-ELSE block, we process syncs on the leader. * If the sync is coming from a follower, then the follower * handler adds it to syncHandler. Otherwise, if it is a client of * the leader that issued the sync command, then syncHandler won't * contain the handler. In this case, we add it to syncHandler, and * call processRequest on the next processor. */ if(request instanceof LearnerSyncRequest){ zks.getLeader().processSync((LearnerSyncRequest)request); } else {//先交给CommitProcessor处理下，此时还未提交 nextProcessor.processRequest(request); if (request.hdr != null) { // We need to sync and get consensus on any transactions try {//发起一个投票 zks.getLeader().propose(request); } catch (XidRolloverException e) { throw new RequestProcessorException(e.getMessage(), e); }//先写日志 syncProcessor.processRequest(request); } } }?leader发起投票
public Proposal propose(Request request) throws XidRolloverException { ....... ByteArrayOutputStream baos = new ByteArrayOutputStream(); BinaryOutputArchive boa = BinaryOutputArchive.getArchive(baos); try { request.hdr.serialize(boa, "hdr"); if (request.txn != null) { request.txn.serialize(boa, "txn"); } baos.close(); } catch (IOException e) { LOG.warn("This really should be impossible", e); }//投票包 QuorumPacket pp = new QuorumPacket(Leader.PROPOSAL, request.zxid, baos.toByteArray(), null); Proposal p = new Proposal(); p.packet = pp; p.request = request; synchronized (this) { if (LOG.isDebugEnabled()) { LOG.debug("Proposing:: " + request); } lastProposed = p.packet.getZxid(); //添加到投票箱，后续leader收到选票时会检查这个投票箱里的投票是否满足条件 outstandingProposals.put(lastProposed, p); //给每个follower发一个投票包，让他们投票 sendPacket(pp); } return p; }?leader发完投票后，通过SyncRequestProcessor将事务写入日志文件，本地写成功后，投票成功。
SyncRequestProcessor之前文章已经分析过了，主要是将事务顺序写入日志文件。主要看之后的AckRequestProcessor
public void processRequest(Request request) { QuorumPeer self = leader.self; if(self != null)//本地日志写成功后，认为自己成功了 leader.processAck(self.getId(), request.zxid, null); else LOG.error("Null QuorumPeer"); }?leader的processAck方法比较关键，之前也有分析，这里再强调下
synchronized public void processAck(long sid, long zxid, SocketAddress followerAddr) { ....... //当有选票进来时，先看看是哪个投票的 Proposal p = outstandingProposals.get(zxid); if (p == null) { LOG.warn("Trying to commit future proposal: zxid 0x{} from {}", Long.toHexString(zxid), followerAddr); return; } //把票投上 p.ackSet.add(sid); if (LOG.isDebugEnabled()) { LOG.debug("Count for zxid: 0x{} is {}", Long.toHexString(zxid), p.ackSet.size()); }//如果满足投票结束条件，默认是半数server统一，则提交事务 if (self.getQuorumVerifier().containsQuorum(p.ackSet)){ if (zxid != lastCommitted+1) { LOG.warn("Commiting zxid 0x{} from {} not first!", Long.toHexString(zxid), followerAddr); LOG.warn("First is 0x{}", Long.toHexString(lastCommitted + 1)); } outstandingProposals.remove(zxid); if (p.request != null) {//先添加到带提交队列 toBeApplied.add(p); } // We don't commit the new leader proposal if ((zxid & 0xffffffffL) != 0) { if (p.request == null) { LOG.warn("Going to commmit null request for proposal: {}", p); }//事务提交，通知follower提交事务 commit(zxid);//通知Observer inform(p);//leader commit事务zk.commitProcessor.commit(p.request); ...... } }?通知follower提交事务
public void commit(long zxid) { synchronized(this){ lastCommitted = zxid; }//发送COMMIT包 QuorumPacket qp = new QuorumPacket(Leader.COMMIT, zxid, null, null); sendPacket(qp); }?此时Follower收到proposal包，follower中处理投票
case Leader.PROPOSAL: TxnHeader hdr = new TxnHeader(); Record txn = SerializeUtils.deserializeTxn(qp.getData(), hdr); if (hdr.getZxid() != lastQueued + 1) { LOG.warn("Got zxid 0x" + Long.toHexString(hdr.getZxid()) + " expected 0x" + Long.toHexString(lastQueued + 1)); } lastQueued = hdr.getZxid(); //记录事务日志，成功后发送ACK包 fzk.logRequest(hdr, txn); break;?
public void logRequest(TxnHeader hdr, Record txn) { Request request = new Request(null, hdr.getClientId(), hdr.getCxid(), hdr.getType(), null, null); request.hdr = hdr; request.txn = txn; request.zxid = hdr.getZxid(); if ((request.zxid & 0xffffffffL) != 0) { pendingTxns.add(request); }//还是通过SyncRequestProcessor将事务写入本地文件，再发送ack包 syncProcessor.processRequest(request); }?日志写成功后，SendAckRequestProcessor发送ACK包
public void processRequest(Request si) { if(si.type != OpCode.sync){//ACK包 QuorumPacket qp = new QuorumPacket(Leader.ACK, si.hdr.getZxid(), null, null); try {//发送 learner.writePacket(qp, false); } catch (IOException e) { LOG.warn("Closing connection to leader, exception during packet send", e); try { if (!learner.sock.isClosed()) { learner.sock.close(); } } catch (IOException e1) { // Nothing to do, we are shutting things down, so an exception here is irrelevant LOG.debug("Ignoring error closing the connection", e1); } } } }?此时，leader收到ack包，LearnerHandler线程中
case Leader.ACK: if (this.learnerType == LearnerType.OBSERVER) { if (LOG.isDebugEnabled()) { LOG.debug("Received ACK from Observer " + this.sid); } } leader.processAck(this.sid, qp.getZxid(), sock.getLocalSocketAddress()); break;?还是调用了processAck方法，由于之前已经有了leader自己的投票，此时follower再投一票，3台机器的集群即认为投票成功，leader开始发送commit操作，也就是发送commit包给follower。
follower收到commit包
case Leader.COMMIT: fzk.commit(qp.getZxid()); break; public void commit(long zxid) { if (pendingTxns.size() == 0) { LOG.warn("Committing " + Long.toHexString(zxid) + " without seeing txn"); return; } long firstElementZxid = pendingTxns.element().zxid; if (firstElementZxid != zxid) { LOG.error("Committing zxid 0x" + Long.toHexString(zxid) + " but next pending txn 0x" + Long.toHexString(firstElementZxid)); System.exit(12); }//从Pending队列中拿到待commit请求 Request request = pendingTxns.remove();//commit这个请求，这个请求将交给FinalRequestProcessor处理 commitProcessor.commit(request); }?Commit之后请求将交给FinalRequestProcessor处理，修改最后的内存db结构，如果是本机请求则写回响应，如果不是则不用写回响应
