整合Struts2+JasperReport Web报表应用示例

整合Struts2+JasperReport Web报表应用示例

JasperReports作为一种优秀且开源的报表引擎，不利用太可惜了。同时，借助开源的JasperReports模板设计利器iReports，可以可视化的设计报表模板。基于Web的报表在很多项目中都是需要的。而随着Struts2的流行，就应该研究一下在Struts2下如何利用JasperReports进行报表输出。本示例比较简单，采用的数据源即为JavaBean，而没有采用复杂的数据库，其实原理是一样的。只是传递给JasperReports的参数随着连接方式的变化而略加修改而已。

一 准备工作

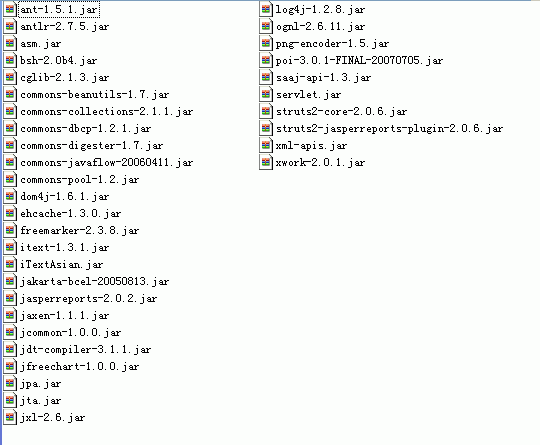

所使用的类库及Jar包如下图所示：

图1.使用的Jar包

开发环境：MyEclipse6.0+Eclipse3.3+JDK6.0+Tomcat6.0+Struts 2.0.11。当然，本该所提供的源代码下载中没有提供相关的lib，因为文件大太，如果需要，请留下email。.
    另外下载Jasperreport以及可视化模板iReport的网子http://jasperforge.org/

二 设计报表模板

本例中采用JavaBean作为数据源，用于显示People对象的一些基本属性，如所在序号、城市、姓名、地址，并对同一城市的人员进行汇总小结显示。

至于如何在iReports中设计模板文件，请在网上参考其它文档。这里不再详细解读，或有时间俺再另写文章来具体讲解如何在iReports中设计报表模板。WebRoot"jasper"jasper_template.jrxml代码如下：

<?xml version="1.0" encoding="UTF-8"  ?>
<!-- Created with iReport - A designer for JasperReports -->
<!DOCTYPE jasperReport PUBLIC "//JasperReports//DTD Report Design//EN" "http://jasperreports.sourceforge.net/dtds/jasperreport.dtd">
<jasperReport
         name="jasper_template"
         columnCount="1"
         printOrder="Vertical"
         orientation="Portrait"
         pageWidth="595"
         pageHeight="842"
         columnWidth="535"
         columnSpacing="0"
         leftMargin="30"
         rightMargin="30"
         topMargin="20"
         bottomMargin="20"
         whenNoDataType="NoPages"
         isTitleNewPage="false"
         isSummaryNewPage="false">
    <property name="ireport.scriptlethandling" value="0" />
    <property name="ireport.encoding" value="UTF-8" />
    <import value="java.util.*" />
    <import value="net.sf.jasperreports.engine.*" />
    <import value="net.sf.jasperreports.engine.data.*" />

    <parameter name="rptMan" isForPrompting="false" class="java.lang.String">
        <defaultValueExpression ><![CDATA["sterning"]]></defaultValueExpression>
    </parameter>
    <parameter name="rptDate" isForPrompting="false" class="java.lang.String">
        <defaultValueExpression ><![CDATA["2008-01-12"]]></defaultValueExpression>
    </parameter>

    <field name="city" class="java.lang.String">
        <fieldDescription><![CDATA[city]]></fieldDescription>
    </field>
    <field name="street" class="java.lang.String">
        <fieldDescription><![CDATA[street]]></fieldDescription>
    </field>
    <field name="id" class="java.lang.Integer">
        <fieldDescription><![CDATA[id]]></fieldDescription>
    </field>
    <field name="name" class="java.lang.String">
        <fieldDescription><![CDATA[name]]></fieldDescription>
    </field>

    <variable name="CityNumber" class="java.lang.Integer" resetType="Group" resetGroup="CityGroup" calculation="Sum">
        <initialValueExpression><![CDATA[($V{CityNumber} != null)?(new Integer($V{CityNumber}.intValue() + 1)):(new Integer(1))]]></initialValueExpression>
    </variable>
    <variable name="AllCity" class="java.lang.Integer" resetType="Report" calculation="Sum">
        <initialValueExpression><![CDATA[($V{AllCity} != null)?(new Integer($V{AllCity}.intValue() + 1)):(new Integer(1))]]></initialValueExpression>
    </variable>

        <group  name="CityGroup" >
            <groupExpression><![CDATA[$F{city}]]></groupExpression>
            <groupHeader>
            <band height="0"  isSplitAllowed="true" >
            </band>
            </groupHeader>
            <groupFooter>
            <band height="37"  isSplitAllowed="true" >
                <staticText>
                    <reportElement
                        x="98"
                        y="5"
                        width="51"
                        height="25"
                        key="staticText-8"/>
                    <box topBorder="None" topBorderColor="#000000" leftBorder="None" leftBorderColor="#000000" rightBorder="None" rightBorderColor="#000000" bottomBorder="None" bottomBorderColor="#000000"/>
                    <textElement>
                        <font fontName="瀹嬩綋" pdfFontName="STSong-Light" size="14" isPdfEmbedded ="true" pdfEncoding ="UniGB-UCS2-H"/>
                    </textElement>
                <text><![CDATA[灏忚锛歖]></text>
                </staticText>
                <textField isStretchWithOverflow="false" isBlankWhenNull="false" evaluationTime="Now" hyperlinkType="None"  hyperlinkTarget="Self" >
                    <reportElement
                        x="149"
                        y="5"
                        width="34"
                        height="25"
                        key="textField-7"/>
                    <box topBorder="None" topBorderColor="#000000" leftBorder="None" leftBorderColor="#000000" rightBorder="None" rightBorderColor="#000000" bottomBorder="None" bottomBorderColor="#000000"/>
                    <textElement>
                        <font fontName="瀹嬩綋" pdfFontName="STSong-Light" size="14" isPdfEmbedded ="true" pdfEncoding ="UniGB-UCS2-H"/>
                    </textElement>
                <textFieldExpression   class="java.lang.Integer"><![CDATA[$V{CityGroup_COUNT}]]></textFieldExpression>
                </textField>
                <line direction="TopDown">
                    <reportElement
                        x="-30"
                        y="36"
                        width="593"
                        height="0"
                        key="line-5"/>
                    <graphicElement stretchType="NoStretch"/>
                </line>
            </band>
            </groupFooter>
        </group>
        <background>
            <band height="0"  isSplitAllowed="true" >
            </band>
        </background>
        <title>
            <band height="62"  isSplitAllowed="true" >
                <staticText>
                    <reportElement
                        x="20"
                        y="0"
                        width="484"
                        height="57"
                        forecolor="#FF0033"
                        key="staticText-1"/>
                    <box topBorder="None" topBorderColor="#000000" leftBorder="None" leftBorderColor="#000000" rightBorder="None" rightBorderColor="#000000" bottomBorder="None" bottomBorderColor="#000000"/>
                    <textElement textAlignment="Center">
                        <font fontName="瀹嬩綋" pdfFontName="STSong-Light" size="36" isPdfEmbedded ="true" pdfEncoding ="UniGB-UCS2-H"/>
                    </textElement>
                <text><![CDATA[Struts2+JasperReports绀轰緥]]></text>
                </staticText>
                <line direction="TopDown">
                    <reportElement
                        x="-30"
                        y="61"
                        width="594"
                        height="0"
                        key="line-4"/>
                    <graphicElement stretchType="NoStretch"/>
                </line>
            </band>
        </title>
        <pageHeader>
            <band height="13"  isSplitAllowed="true" >
                <line direction="TopDown">
                    <reportElement
                        x="-29"
                        y="12"
                        width="592"
                        height="0"
                        key="line-3"/>
                    <graphicElement stretchType="NoStretch"/>
                </line>
            </band>
        </pageHeader>
        <columnHeader>
            <band height="45"  isSplitAllowed="true" >
                <staticText>
                    <reportElement
                        x="13"
                        y="5"
                        width="62"
                        height="33"
                        key="staticText-2"/>
                    <box topBorder="None" topBorderColor="#000000" leftBorder="None" leftBorderColor="#000000" rightBorder="None" rightBorderColor="#000000" bottomBorder="None" bottomBorderColor="#000000"/>
                    <textElement>
                        <font fontName="瀹嬩綋" pdfFontName="STSong-Light" size="24" isPdfEmbedded ="true" pdfEncoding ="UniGB-UCS2-H"/>
                    </textElement>
                <text><![CDATA[搴忓彿]]></text>
                </staticText>
                <staticText>
                    <reportElement
                        x="98"
                        y="5"
                        width="62"
                        height="33"
                        key="staticText-3"/>
                    <box topBorder="None" topBorderColor="#000000" leftBorder="None" leftBorderColor="#000000" rightBorder="None" rightBorderColor="#000000" bottomBorder="None" bottomBorderColor="#000000"/>
                    <textElement>
                        <font fontName="瀹嬩綋" pdfFontName="STSong-Light" size="24" isPdfEmbedded ="true" pdfEncoding ="UniGB-UCS2-H"/>
                    </textElement>
                <text><![CDATA[鍩庡競]]></text>
                </staticText>
                <staticText>
                    <reportElement
                        x="212"
                        y="5"
                        width="62"
                        height="33"
                        key="staticText-4"/>
                    <box topBorder="None" topBorderColor="#000000" leftBorder="None" leftBorderColor="#000000" rightBorder="None" rightBorderColor="#000000" bottomBorder="None" bottomBorderColor="#000000"/>
                    <textElement>
                        <font fontName="瀹嬩綋" pdfFontName="STSong-Light" size="24" isPdfEmbedded ="true" pdfEncoding ="UniGB-UCS2-H"/>
                    </textElement>
                <text><![CDATA[濮撳悕]]></text>
                </staticText>
                <staticText>
                    <reportElement
                        x="331"
                        y="5"
                        width="62"
                        height="33"
                        key="staticText-5"/>
                    <box topBorder="None" topBorderColor="#000000" leftBorder="None" leftBorderColor="#000000" rightBorder="None" rightBorderColor="#000000" bottomBorder="None" bottomBorderColor="#000000"/>
                    <textElement>
                        <font fontName="瀹嬩綋" pdfFontName="STSong-Light" size="24" isPdfEmbedded ="true" pdfEncoding ="UniGB-UCS2-H"/>
                    </textElement>
                <text><![CDATA[浣忓潃]]></text>
                </staticText>
                <line direction="TopDown">
                    <reportElement
                        x="-30"
                        y="43"
                        width="596"
                        height="0"
                        key="line-2"/>
                    <graphicElement stretchType="NoStretch"/>
                </line>
            </band>
        </columnHeader>
        <detail>
            <band height="43"  isSplitAllowed="true" >
                <textField isStretchWithOverflow="false" isBlankWhenNull="false" evaluationTime="Now" hyperlinkType="None"  hyperlinkTarget="Self" >
                    <reportElement
                        x="13"
                        y="7"
                        width="62"
                        height="30"
                        key="textField-1"/>
                    <box topBorder="None" topBorderColor="#000000" leftBorder="None" leftBorderColor="#000000" rightBorder="None" rightBorderColor="#000000" bottomBorder="None" bottomBorderColor="#000000"/>
                    <textElement>
                        <font fontName="瀹嬩綋" pdfFontName="STSong-Light" size="14" isPdfEmbedded ="true" pdfEncoding ="UniGB-UCS2-H"/>
                    </textElement>
                <textFieldExpression   class="java.lang.Integer"><![CDATA[$F{id}]]></textFieldExpression>
                </textField>
                <textField isStretchWithOverflow="false" isBlankWhenNull="false" evaluationTime="Now" hyperlinkType="None"  hyperlinkTarget="Self" >
                    <reportElement
                        x="98"
                        y="7"
                        width="105"
                        height="29"
                        key="textField-2"/>
                    <box topBorder="None" topBorderColor="#000000" leftBorder="None" leftBorderColor="#000000" rightBorder="None" rightBorderColor="#000000" bottomBorder="None" bottomBorderColor="#000000"/>
                    <textElement>
                        <font fontName="瀹嬩綋" pdfFontName="STSong-Light" size="14" isPdfEmbedded ="true" pdfEncoding ="UniGB-UCS2-H"/>
                    </textElement>
                <textFieldExpression   class="java.lang.String"><![CDATA[$F{city}]]></textFieldExpression>
                </textField>
                <textField isStretchWithOverflow="false" isBlankWhenNull="false" evaluationTime="Now" hyperlinkType="None"  hyperlinkTarget="Self" >
                    <reportElement
                        x="212"
                        y="8"
                        width="100"
                        height="28"
                        key="textField-3"/>
                    <box topBorder="None" topBorderColor="#000000" leftBorder="None" leftBorderColor="#000000" rightBorder="None" rightBorderColor="#000000" bottomBorder="None" bottomBorderColor="#000000"/>
                    <textElement>
                        <font fontName="瀹嬩綋" pdfFontName="STSong-Light" size="14" isPdfEmbedded ="true" pdfEncoding ="UniGB-UCS2-H"/>
                    </textElement>
                <textFieldExpression   class="java.lang.String"><![CDATA[$F{name}]]></textFieldExpression>
                </textField>
                <textField isStretchWithOverflow="false" isBlankWhenNull="false" evaluationTime="Now" hyperlinkType="None"  hyperlinkTarget="Self" >
                    <reportElement
                        x="331"
                        y="7"
                        width="111"
                        height="30"
                        key="textField-4"/>
                    <box topBorder="None" topBorderColor="#000000" leftBorder="None" leftBorderColor="#000000" rightBorder="None" rightBorderColor="#000000" bottomBorder="None" bottomBorderColor="#000000"/>
                    <textElement>
                        <font fontName="瀹嬩綋" pdfFontName="STSong-Light" size="14" isPdfEmbedded ="true" pdfEncoding ="UniGB-UCS2-H"/>
                    </textElement>
                <textFieldExpression   class="java.lang.String"><![CDATA[$F{street}]]></textFieldExpression>
                </textField>
                <line direction="TopDown">
                    <reportElement
                        x="-30"
                        y="37"
                        width="593"
                        height="0"
                        key="line-1"/>
                    <graphicElement stretchType="NoStretch"/>
                </line>
            </band>
        </detail>
        <columnFooter>
            <band height="37"  isSplitAllowed="true" >
            </band>
        </columnFooter>
        <pageFooter>
            <band height="50"  isSplitAllowed="true" >
                <textField isStretchWithOverflow="false" isBlankWhenNull="false" evaluationTime="Now" hyperlinkType="None"  hyperlinkTarget="Self" >
                    <reportElement
                        x="98"
                        y="18"
                        width="138"
                        height="23"
                        key="textField-8"/>
                    <box topBorder="None" topBorderColor="#000000" leftBorder="None" leftBorderColor="#000000" rightBorder="None" rightBorderColor="#000000" bottomBorder="None" bottomBorderColor="#000000"/>
                    <textElement textAlignment="Right">
                        <font fontName="瀹嬩綋" pdfFontName="STSong-Light" size="12" isPdfEmbedded ="true" pdfEncoding ="UniGB-UCS2-H"/>
                    </textElement>
                <textFieldExpression   class="java.lang.String"><![CDATA["椤垫暟 " + String.valueOf($V{PAGE_NUMBER}) + " of"]]></textFieldExpression>
                </textField>
                <textField isStretchWithOverflow="false" isBlankWhenNull="false" evaluationTime="Report" hyperlinkType="None"  hyperlinkTarget="Self" >
                    <reportElement
                        x="239"
                        y="18"
                        width="83"
                        height="23"
                        key="textField-9"/>
                    <box topBorder="None" topBorderColor="#000000" leftBorder="None" leftBorderColor="#000000" rightBorder="None" rightBorderColor="#000000" bottomBorder="None" bottomBorderColor="#000000"/>
                    <textElement>
                        <font fontName="瀹嬩綋" pdfFontName="STSong-Light" size="12" isPdfEmbedded ="true" pdfEncoding ="UniGB-UCS2-H"/>
                    </textElement>
                <textFieldExpression   class="java.lang.String"><![CDATA[" " + String.valueOf($V{PAGE_NUMBER})]]></textFieldExpression>
                </textField>
            </band>
        </pageFooter>
        <lastPageFooter>
            <band height="50"  isSplitAllowed="true" >
            </band>
        </lastPageFooter>
        <summary>
            <band height="0"  isSplitAllowed="true" >
            </band>
        </summary>
</jasperReport>


这里需要说明的是，由于俺们中国的中文比较特殊，由此在PDF中显示的时候，需要一些额外的Jar包字体来支持。因此需要下载iTextAsian.jar包，此包专门用于显示亚洲的字符。只不过iReport3.0.0以后就已经含了些包。

三设计JavaBean

由本例中没有使用数据库，而是使用JavaBean作为JRDataSource，来传递给JasperReports作为数据源，因此只需要设计JavaBean。"src"com"sterning"PeopleBean.java的代码很简单，只在字个字段：city、id、name、street，代码如下所示：

package com.sterning;

public class PeopleBean
{
    private String city = null;
    private Integer id = null;
    private String name = null;
    private String street = null;

    public PeopleBean(
        String pcity,
        Integer pid,
        String pname,
        String pstreet
        )
    {
        city = pcity;
        id = pid;
        name = pname;
        street = pstreet;
    }

    public PeopleBean getMe()
    {
        return this;
    }

    public String getCity()
    {
        return city;
    }

    public Integer getId()
    {
        return id;
    }

    public String getName()
    {
        return name;
    }

    public String getStreet()
    {
        return street;
    }
}



四编译模板

其实表面上说是填充数据，其实就是填充一个List。具体的工具都是交给我们的JasperReports去完成。JasperReports要完成数据的填充工作，要经历将编译（将模板文件.jrxml编译成.jasper文件）、加载（加载.jasper文件）、填充（从数据源中取得数据并填充到.jasper二进制文件中）三大步骤。src"com"sterning"JasperAction.java，其代码如下所示：

package com.sterning;

import java.io.File;
import java.util.ArrayList;
import java.util.List;

import net.sf.jasperreports.engine.JasperCompileManager;

import org.apache.struts2.ServletActionContext;

import com.opensymphony.xwork2.ActionSupport;

public class JasperAction extends ActionSupport {
    private static final long serialVersionUID = 1L;

    private List<PeopleBean> myList;

    public String execute() throws Exception {
        //添加数据
        PeopleBean p1=new PeopleBean("长沙", new Integer(9), "李化", "天洒路");
        PeopleBean p2=new PeopleBean("长沙", new Integer(22), "王小样", "呆小路564");
        PeopleBean p3=new PeopleBean("南昌", new Integer(23), "王奸可", "小顺路");
        PeopleBean p4=new PeopleBean("南昌", new Integer(32), "李洒", "顺濉路");
        PeopleBean p5=new PeopleBean("武汉", new Integer(39), "张中尖", "天洒路");
        PeopleBean p6=new PeopleBean("武汉", new Integer(35), "陈主宁", "天河路５６４");
        myList = new ArrayList<PeopleBean>();
        myList.add(p1);
        myList.add(p2);
        myList.add(p3);
        myList.add(p4);
        myList.add(p5);
        myList.add(p6);

        try {
            String reportSource;
            reportSource = ServletActionContext.getServletContext()
                    .getRealPath("/jasper/jasper_template.jrxml");
            File parent = new File(reportSource).getParentFile();
            //将.jrxml模板文件编译成为.jasper文件,当然,其文件名可以指定,如果没指定,则与.jrxml文件名一样.只是后缀不同而已
            JasperCompileManager.compileReportToFile(reportSource, new File(
                    parent, "compiled_jasper_template.jasper")
                    .getAbsolutePath());
        } catch (Exception e) {
            e.printStackTrace();
            return ERROR;
        }
        return SUCCESS;
    }

    public List getMyList() {
        return myList;
    }
}



五配置Struts2文件

前面这些工作都是为JasperReports而作的。接下来就是将JasperReports集成到Struts2中。

1． Web.xml

首先是Web.xml。这个文件配置比较简单，也比较常规，没什么好说，代码如下WebRoot"WEB-INF"web.xml：

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.4" xmlns="http://java.sun.com/xml/ns/j2ee"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee
http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd">
    <filter>
        <filter-name>struts2</filter-name>
        <filter-class>
            org.apache.struts2.dispatcher.FilterDispatcher
        </filter-class>
        <init-param>
            <param-name>config</param-name>
            <param-value>
                struts-default.xml,struts-plugin.xml,struts.xml
            </param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>struts2</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- The Welcome File List -->
    <welcome-file-list>
        <welcome-file>index.jsp</welcome-file>
    </welcome-file-list>
</web-app>


2． struts.xml

按理说struts.xml配置文件应该更加简单，但这里由于集成了JasperReports，所以看上去要复杂一点。先来看代码：src" struts.xml：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
    "-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
    "http://struts.apache.org/dtds/struts-2.0.dtd">
<struts>
    <package name="default"
        extends="struts-default,jasperreports-default">
        <action name="PDF" class="com.sterning.JasperAction">
            <result name="success" type="jasper">
                <param name="location">
                    /jasper/compiled_jasper_template.jasper
                </param>
                <param name="dataSource">myList</param>
                <param name="format">PDF</param>
            </result>
        </action>
        <action name="HTML" class="com.sterning.JasperAction">
            <result name="success" type="jasper">
                <param name="location">
                    /jasper/compiled_jasper_template.jasper
                </param>
                <param name="dataSource">myList</param>
                <param name="format">HTML</param>
            </result>
        </action>
        <action name="XML" class="com.sterning.JasperAction">
            <result name="success" type="jasper">
                <param name="location">
                    /jasper/compiled_jasper_template.jasper
                </param>
                <param name="dataSource">myList</param>
                <param name="format">XML</param>
            </result>
        </action>
        <action name="CSV" class="com.sterning.JasperAction">
            <result name="success" type="jasper">
                <param name="location">
                    /jasper/compiled_jasper_template.jasper
                </param>
                <param name="dataSource">myList</param>
                <param name="format">CSV</param>
            </result>
        </action>
        <action name="XLS" class="com.sterning.JasperAction">
            <result name="success" type="jasper">
                <param name="location">
                    /jasper/compiled_jasper_template.jasper
                </param>
                <param name="dataSource">myList</param>
                <param name="format">XLS</param>
            </result>
        </action>
    </package>
</struts>


这里，当调用JasperAction的execute()方法成功后，返回后，可见有三个参数：location告诉JasperReports数据填充类二进制的.jasper文件的位置，dataSource指明使用什么数据源，format指明报表输出的格式。



六 页面文件

Index.jsp的代码非常的简单，如下：

<%@ page language="java" pageEncoding="GB2312"%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
    <head>
        <title>Struts2+ JasperReports 使用示例</title>
    </head>
    <body>
        <a href="HTML.action">HTML</a>
        <br>
        <a href="PDF.action">PDF</a>
        <br>
        <a href="XML.action">XML</a>
        <br>
        <a href="CSV.action">CSV</a>
        <br>
        <a href="XLS.action">XLS</a>
    </body>
</html>



七运行效果

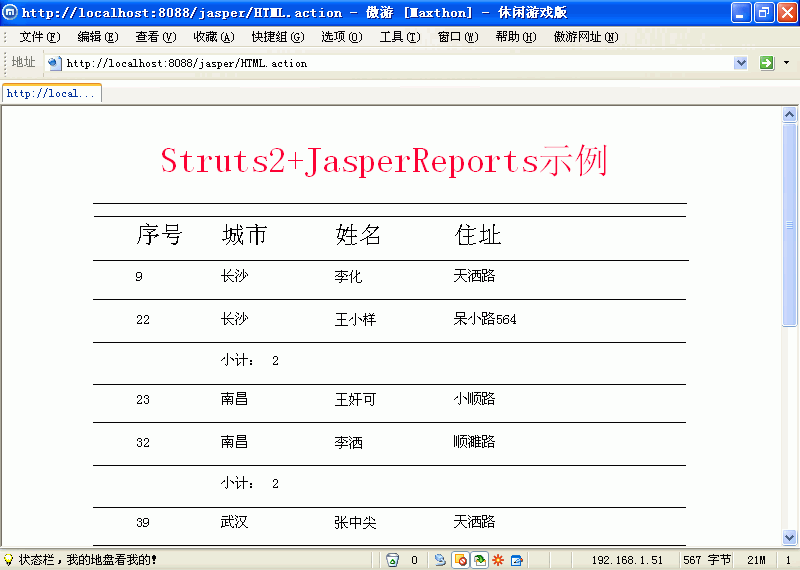

1．HTML格式

图2.HTML格式

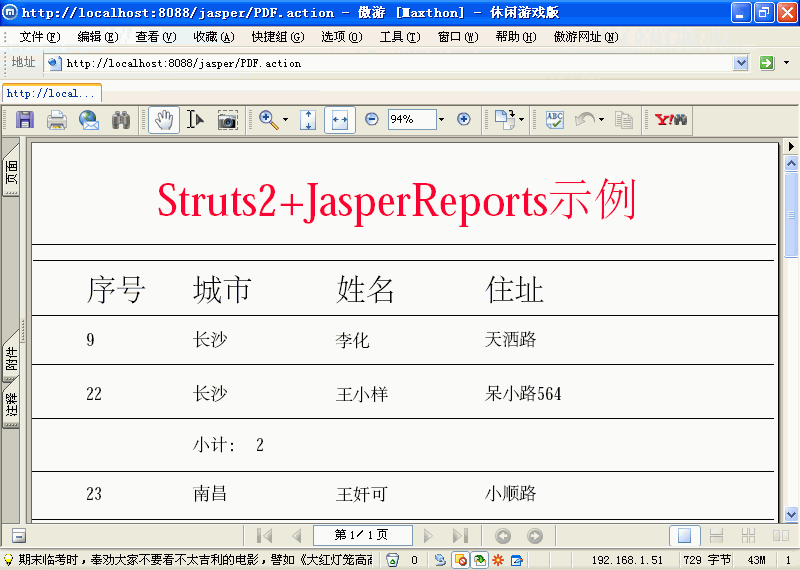

2．PDF格式

图3.PDF格式

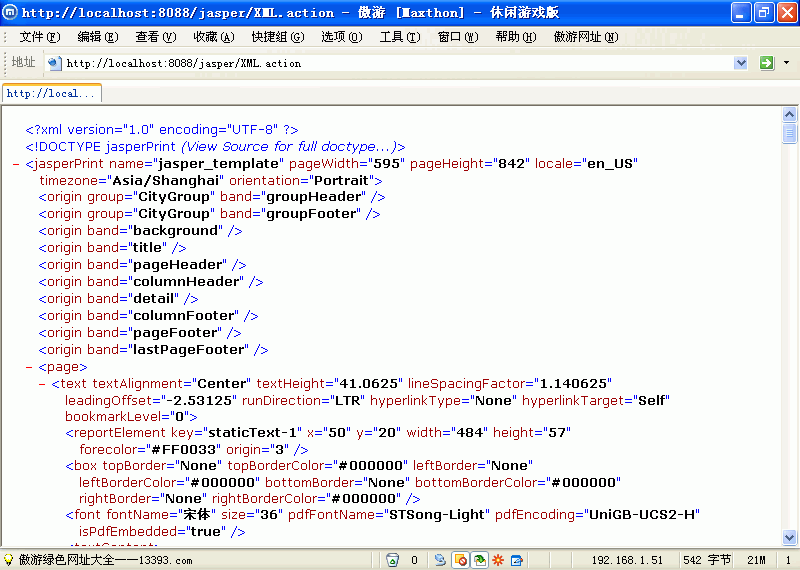

3．XML格式

图4.XML格式

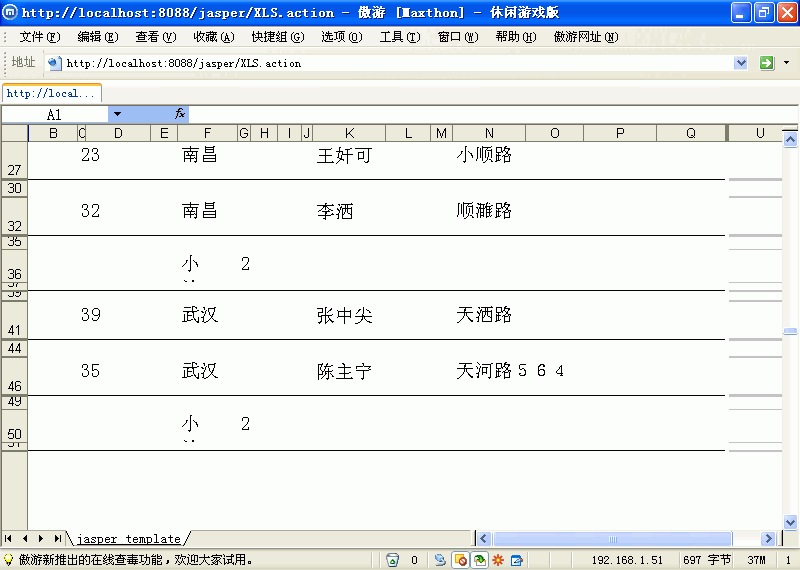

4．Excel格式

图5.Excel格式

转载于:http://www.blogjava.net/sterning/archive/2008/01/02/172317.html

查看更多 下一篇
