C# Winform DataGridView 公共分页实现

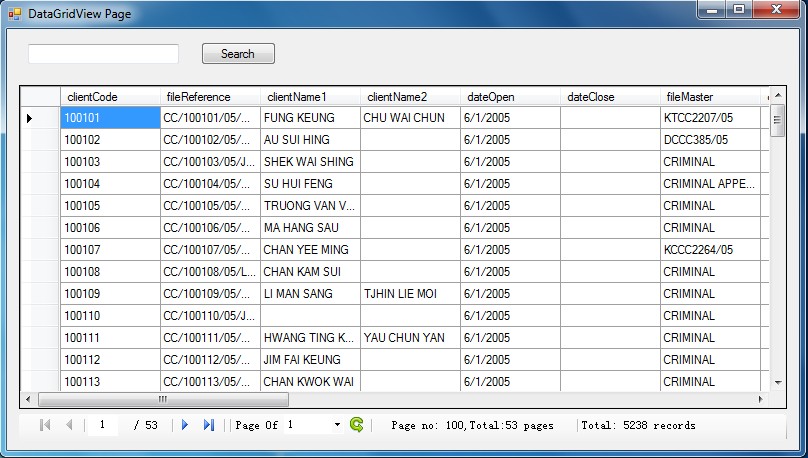

Demo的界面
?
?
我利用事件委托事件，仿http://www.cnblogs.com/huyong/写的公共分页用户控件
?
#region 版权信息/*---------------------------------*// 项目 名称：《Winform分页控件》// 文 件 名： Pager.cs// 描 述： 分页控件// 作 者：kwon yan*----------------------------------*/#endregionusing System;using System.Collections.Generic;using System.ComponentModel;using System.Drawing;using System.Data;using System.Linq;using System.Text;using System.Windows.Forms;namespace HuishengFS.Controls{ /**/ /// <summary> /// 申明委托 /// </summary> /// <param name="e"></param> /// <returns></returns> public delegate int EventPagingHandler(EventPagingArg e); /**/ /// <summary> /// 分页控件呈现 /// </summary> public partial class Pager : UserControl { public Pager() { InitializeComponent(); } public event EventPagingHandler EventPaging; /**/ /// <summary> /// 每页显示记录数 /// </summary> private int _pageSize = 50; /**/ /// <summary> /// 每页显示记录数 /// </summary> public int PageSize { get { return _pageSize; } set { _pageSize = value; GetPageCount(); } } private int _nMax = 0; /**/ /// <summary> /// 总记录数 /// </summary> public int NMax { get { return _nMax; } set { _nMax = value; GetPageCount(); } } private int _pageCount = 0; /**/ /// <summary> /// 页数=总记录数/每页显示记录数 /// </summary> public int PageCount { get { return _pageCount; } set { _pageCount = value; } } private int _pageCurrent = 0; /**/ /// <summary> /// 当前页号 /// </summary> public int PageCurrent { get { return _pageCurrent; } set { _pageCurrent = value; } } /// <summary> /// 设置页面大小 /// </summary> private void GetPageCount() { if (this.NMax > 0) { this.PageCount = Convert.ToInt32(Math.Ceiling(Convert.ToDouble(this.NMax) / Convert.ToDouble(this.PageSize))); lblPageCount.Text = " / " + PageCount.ToString(); //lblPageCount1.Text = "每页 "+PageSize .ToString ()+" 条，共 "+PageCount.ToString()+" 页"; lblPageCount1.Text = "Page no: " + PageSize.ToString() + ",Total:" + PageCount.ToString() + " pages"; } else { this.PageCount = 0; } } /**/ /// <summary> /// 翻页控件数据绑定的方法 关键是这步，都是调用这里 /// </summary> public void Bind() { if (this.EventPaging != null) { this.NMax = this.EventPaging(new EventPagingArg(this.PageCurrent)); } if (this.PageCurrent > this.PageCount) { this.PageCurrent = this.PageCount; } if (this.PageCount == 1) { this.PageCurrent = 1; } lblcurentpage.Text = PageCurrent.ToString(); //lblRecordCount.Text = "共有 " + NMax.ToString() + " 条记录"; lblRecordCount.Text = "Total: " + NMax.ToString() + " records"; btnPrev.Enabled = true; btnFirst.Enabled = true; btnLast.Enabled = true; btnNext.Enabled = true; if (this.PageCurrent == 1) { this.btnPrev.Enabled = false; this.btnFirst.Enabled = false; } if (this.PageCurrent == this.PageCount) { this.btnLast.Enabled = false; this.btnNext.Enabled = false; } if (this.NMax == 0) { btnNext.Enabled = false; btnLast.Enabled = false; btnFirst.Enabled = false; btnPrev.Enabled = false; } cmbPagecount.Items.Clear(); for (int i = 1; i <= PageCount; i++) cmbPagecount.Items.Add(i.ToString()); cmbPagecount.SelectedIndex = PageCurrent - 1; } /// <summary> /// 首页 /// </summary> /// <param name="sender"></param> /// <param name="e"></param> private void btnFirst_Click(object sender, EventArgs e) { PageCurrent = 1; this.Bind(); } //上一页 /// <summary> /// /// </summary> /// <param name="sender"></param> /// <param name="e"></param> private void btnPrev_Click(object sender, EventArgs e) { PageCurrent -= 1; if (PageCurrent <= 0) { PageCurrent = 1; } this.Bind(); } /// <summary> /// 下一页 /// </summary> /// <param name="sender"></param> /// <param name="e"></param> private void btnNext_Click(object sender, EventArgs e) { this.PageCurrent += 1; if (PageCurrent > PageCount) { PageCurrent = PageCount; } this.Bind(); } /// <summary> /// 最后页 /// </summary> /// <param name="sender"></param> /// <param name="e"></param> private void btnLast_Click(object sender, EventArgs e) { PageCurrent = PageCount; this.Bind(); } /// <summary> /// 转到新页 /// </summary> /// <param name="sender"></param> /// <param name="e"></param> public void btnGo_Click(object sender, EventArgs e) { if (Int32.TryParse(cmbPagecount.SelectedItem.ToString(), out _pageCurrent)) { this.Bind(); } } } /**/ /// <summary> /// 自定义事件数据基类 /// </summary> public class EventPagingArg : EventArgs { private int _intPageIndex; public EventPagingArg(int PageIndex) { _intPageIndex = PageIndex; } }}?
前提准备
编写分页的SQL 语句和获取总数的SQL语句
?
?
--分页存储过程 也可以SQL语句--获取总数的语句 我也不必多写了if exists(select * from sysobjects where name='Proc_DgvPage')drop proc name='Proc_DgvPage')gocreate proc name='Proc_DgvPage')( @keyword varchar(100),--关键字 @start varchar(5), @end varchar(5))asbeginselect sortTb.clientCode, sortTb.fileReference,sortTb.clientName1, sortTb.clientName2,sortTb.dateOpen, sortTb.dateClose,sortTb.fileMaster,sortTb.clientTel, sortTb.clientMobile, sortTb.clientFex,sortTb.companyName,sortTb.clientAddr, sortTb.propFlat, sortTb.propFloor,sortTb.propBlock, sortTb.propBuilding, sortTb.propStree, sortTb.propDistrict, sortTb.propArea, sortTb.isFileClosed from ( select row_number() over(order by c.clientCode) as sortNo, c.clientCode, f.fileSubpervisor+''/''+f.fileCode+''/''+f.fileYear+''/''+f.fileIntro+''/''+f.fileHandler as fileReference, c.clientLastName1+'' ''+c.clientFirstName1 as clientName1, c.clientLastName2+'' ''+c.clientFirstName2 as clientName2,f.dateOpen, f.dateClose,f.fileMaster, c.clientTel, c.clientMobile, c.clientFex,c.companyName,c.clientAddr, f.propFlat, f.propFloor, f.propBlock, f.propBuilding, f.propStree, f.propDistrict, f.propArea, f.isFileClosed from clientInfo c left join clientFiles f on c.clientCode = f.fileCode where 1=1) as sortTb where sortNo between @start and @endendgo?
?
在窗体调用：
?
//定义变量 DataTable dtPage; /// <summary> /// GridViw数据绑定 /// </summary> /// <returns></returns> private int BindDgv() { //传入要取的第一条和最后一条 string start = (pager1.PageSize * (pager1.PageCurrent - 1) + 1).ToString(); string end = (pager1.PageSize * pager1.PageCurrent).ToString(); //数据源 dtPage = achieve.GetAll(Keyword, start, end); //绑定分页控件 pager1.bindingSource1.DataSource = dtPage; pager1.bindingNavigator1.BindingSource = pager1.bindingSource1; //讲分页控件绑定DataGridView dgvClients.DataSource = pager1.bindingSource1; //返回总记录数 return achieve.GetToalCount(Keyword); }/// <summary> /// 分页控件产生的事件 /// </summary> private int pager1_EventPaging(HuishengFS.Controls.EventPagingArg e) { return DgvBind(); }/// <summary> /// 加载分页 或许写在Load事件里面 /// </summary> private void FrmPage_Shown(object sender, EventArgs e) { #region DataGridView与Pager控件绑定 this.pager1.PageCurrent = 1;//当前页为第一页 pager1.PageSize = 100;//页数 this.pager1.Bind();//绑定 #endregion } 1 楼 feiniao0822 2011-10-20 很好的文章。谢谢分享。
