js 操作图片的各种效果 第三篇
?21 ，js导出图片到excel
<HTML><HEAD><TITLE>将页面中指定表格的数据导入到Excel中</TITLE><SCRIPT LANGUAGE="javascript"> function AutomateExcel() { var oExcel = new ActiveXObject("Excel.Application"); //创建Excel对象 var oWork = oExcel.Workbooks.Add(); //新建一个Excel工作簿var oSheet = oWork.ActiveSheet; //指定要写入内容的工作表为活动工作表var table = document.all.myTbl; //指定要写入的数据源的idvar myRow = table.rows.length; //取数据源行数var myCell = table.rows(0).cells.length; //取数据源列数for (i=0;i<myRow;i++){//在Excel中写行 for (j=0;j<myCell;j++){//在Excel中写列 //定义格式 oSheet.Cells(i+1,j+1).Font.Bold = true;//加粗 oSheet.Cells(i+1,j+1).Font.Size = 10;//字体大小if(table.rows(i).cells(j).innerHTML.toLowerCase().indexOf('<img')!=-1){//如果其HTML代码包括<img oSheet.Cells(i+1,j+1).Select();//选中Excel中的单元格 oSheet.Pictures.Insert(table.rows(i).cells(j).getElementsByTagName('img')[0].src);//插入图片} else{ oSheet.Cells(i+1,j+1).value = table.rows(i).cells(j).innerText;//向单元格写入值} } } oExcel.Visible = true; oExcel.UserControl = true; } </SCRIPT></HEAD><BODY><table border="1" width="500" id="myTbl" bgcolor="blue"> <tr bgcolor="white"> <td> 姓名</td> <td>年龄</td> <td>地址</td> <td>照片</td> </tr> <tr bgcolor="white"> <td>张三</td> <td>22</td> <td>北京海淀</td> <td><img src="logo1.gif" border="0"></td> </tr> <tr bgcolor="white"> <td>李四</td> <td>23</td> <td>上海浦东</td> <td><Img src="logo2.gif" border="0"></td> </tr></table><input type="button" name="export" onclick="AutomateExcel();" value="导出到Excel"></BODY></HTML>?
22，vml 制作随鼠标变大小的圆
<html Xmlns:v="urn:schemas-microsoft-com:vml"> <style> <!-- v\:* {behavior:url(#default#VML);} --> </style> <body onmousemove='with(document.all.test.style){width=event.x;height=event.y;}'> <v:oval id=test style="width: 100; height: 100"> <v:stroke weight="1px" color="navy"/> </v:oval></body></html>?

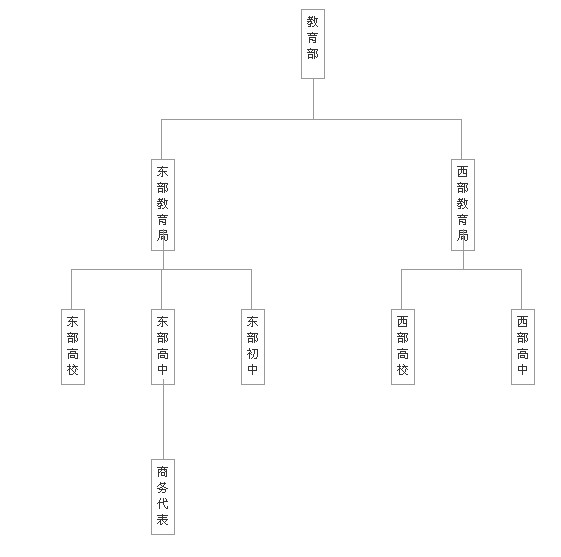

23，js做的结构流程图
<html><head><title>组织结构图</title><style> .ItemCss { position:absolute; width:24px; border:1px solid #999999; font-size:12px; padding:5px; height:70px; z-index:9; background-color:#FFFFFF; line-height:16px; } a { text-decoration:none; color:#333333; } .divhline { position:absolute; z-index:17; padding:0px; margin:0px; border-top:1px solid #999999; } .divvline { color:blue; position:absolute; background-color:#999999; width:1px; z-index:17; }</style><script language="javascript"> var dItem = new Array(); var w = 600; var h = 40; var iw = 60; var ih = 70; var boxh = 70; var startleft = 350; var starttop = 30; var hr = "<hr size="1" noshade>" var labledv = "<div class="ItemCss" style="" var hdv = "<div class="divhline" style="width:"; var vdv = "<div class="divvline" style="height:" + h + "px;""; var endsdv = "">"; var enddv = "</div>"; var htm = ""; var len; var maxn=0; //深度初始变量 function createStruct() { dItem[0] = "1|教育部|0|"; //设置要显示的结构内容-以“|”间隔 dItem[1] = "2|东部教育局|1|"; //注意第三项为父级节点 dItem[2] = "3|西部教育局|1|"; dItem[3] = "4|东部高校|2|"; dItem[4] = "5|东部高中|2|"; dItem[5] = "6|商务代表|5|"; dItem[6] = "7|东部初中|2|"; dItem[7] = "8|西部高校|3|"; dItem[8] = "9|西部高中|3|"; len = dItem.length; //获取结构数组的长度 Set_Item(0,0); //设置开始的节点 Set_Max(); Write_Item(0,0,0,1); var htm1 = ""; for(var i=0;i<len;i++) { htm1 = htm1 +dItem[i]+"<br>"; } document.getElementById("divStruct").innerHTML = htm; } function Set_Item(pid,ni) //设置节点层次 { var n = ni + 1; //子节点的序号 var iAry = new Array(); for(var i=0;i<len;i++) { iAry = dItem[i].split("|"); //分解数组中的当前节点 if(iAry[2] == pid) //是当前节点的子节点 { dItem[i] = dItem[i] + ni; //当前节点中添加一项 if(maxn < ni) //改变结构的深度 { maxn = ni; } Set_Item(iAry[0],n); //循环设置层次 } } } function Set_Max() //设置节点子节点中最大数 { var iAry = new Array(); var childnum; for(var i=0;i<len;i++) { iAry = dItem[i].split("|");//分解数组中的当前节点 childnum = Get_Child_Num(iAry[0]);//获取当前节点的子节点 if(childnum <= 1) //如果子节点数为0或1 { dItem[i] = dItem[i] + "|0"; //当前节点中添加一项 } else { dItem[i] = dItem[i] + "|" + Get_Max(iAry[0],iAry[3]);//获取最大节点 } } } function Get_Max(pid,start)//获取指定节点的最大节点 { var iAry = new Array(); var m = 0; var n = 0; for(var j=start;j<=maxn;j++) { for(var i=0;i<len;i++) { iAry = dItem[i].split("|"); if(iAry[3] == j) { if(Get_RootID(pid,iAry[0])) //获取当前节点的根节点 { m = m + 1; } } if(n < m) { n = m; } } m = 0; } return n; } function Get_RootID(pid,id) //获取当前节点的根节点 { var iAry = new Array(); for(var i=0;i<len;i++) { iAry = dItem[i].split("|");//分解当前节点 if(iAry[0] == id) { if(iAry[2] == pid) { return true; break; } else { return Get_RootID(pid,iAry[2]);//返回根节点 } } } return false; } function Get_Item(id) //取得指定节点号所在的数组 { var i; var items; var iAry = new Array(); for(i=0;i<len;i++) //边界节点组 { iAry = dItem[i].split("|");//分解当前节点 if(iAry[0] == id) { items = dItem[i]; //获取节点 break; } } return items; } function Get_Child_Num(pid) //根据父节点取得子节点个数 { var i; var rnum = 0; var iAry = new Array(); for(i=0;i<len;i++) //遍历组织结构数组 { iAry = dItem[i].split("|"); //将每一项再分离出数据 if(iAry[2] == pid) //第三项便是父节点 { rnum = rnum + 1; //是当前节点的子节点 } } return rnum; } function Write_Item(ipid,ltmp,wtmp,cnt) { var iAry = new Array(); var id; var txt; var pid; var lens; var maxnum; var t; var l; var hline_width; var dvline = ""; var childnum = 0; var itxt; var tmpcnt = 0; for(var i=0;i<len;i++) { itxt = dItem[i]; iAry = itxt.split("|"); //分解节点项 if(iAry[2] == ipid) { id = iAry[0]; txt = "<a href="?id=" + id + "">" + iAry[1] + "</a>";//动态创建链接，链接内容来自节点数据 pid = iAry[2]; lens = iAry[3]; maxnum = iAry[4]; childnum = Get_Child_Num(id); hline_width = maxnum * iw; if(pid == 0) { t = starttop; l = startleft; } else { t = starttop + 2 * lens * h + lens * ih; l = ltmp - wtmp/2 + (wtmp / 2) * tmpcnt; } dvline = ""; if(childnum > 1) { var t1; var l1; var t2; var l2; var w2; t1 = t + ih; l1 = l + 12; w2 = hline_width/2; t2 = t1 + h; l2 = l - w2 + 10; //使用div实现边框效果 dvline = "<div class="divvline" style="height:" + h + "px;left:" + l1 +"px;top:" + t1 + ""></div>"; dvline = dvline + "<div class="divhline" style="width:" + hline_width + "px;left:" + l2 +"px;top:" + t2 + ""></div>"; for(var j=0;j<childnum;j++) { var t3; var l3; t3 = t1 + h; l3 = l2 + (hline_width/(childnum-1)) * j; var tmpline = "<div class="divvline" style="height:" + h + "px;left:" + l3 +"px;top:" + t3 + ""></div>"; dvline = dvline + tmpline; } dvline = dvline } else if(childnum == 1) { var t4; var l4; l4 = l + 12;//使用div实现边框效果 dvline = "<div class="divvline" style="height:" + h + "px;left:" + l4 +"px;top:" + (t + ih) + ""></div>"; dvline = dvline + "<div class="divvline" style="height:" + h + "px;left:" + l4 +"px;top:" + (t + ih + h) + ""></div>"; } htm = htm + labledv + "left:" + l + "px;top:" + t + "px" + endsdv + txt + enddv + dvline; if(cnt % 2 == 0) { tmpcnt = tmpcnt + 2; } else { tmpcnt = tmpcnt + 1; } Write_Item(id,l,hline_width,childnum);//循环输出 } } }</script></head><body onLoad="createStruct()"><div id="divStruct"></div></body></html>??
?
?
