myeclipse8+jboss5开发EJB3消息驱动Bean(MDB)实例

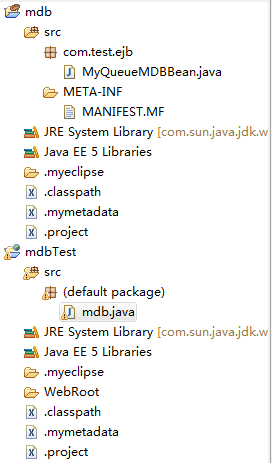

先看最后的目录结构：

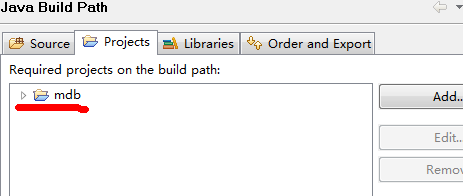

mdb为EJB3项目；mdbTest为Web项目，add project:
上代码:
web项目中的servlet: mdb.java:
import java.io.IOException;import java.io.PrintWriter;import javax.jms.JMSException;import javax.jms.Queue;import javax.jms.QueueConnection;import javax.jms.QueueConnectionFactory;import javax.jms.QueueSender;import javax.jms.QueueSession;import javax.jms.TextMessage;import javax.naming.InitialContext;import javax.naming.NamingException;import javax.servlet.ServletException;import javax.servlet.http.HttpServlet;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;public class mdb extends HttpServlet {/** * The doGet method of the servlet. <br> * * This method is called when a form has its tag value method equals to get. * * @param request the request send by the client to the server * @param response the response send by the server to the client * @throws ServletException if an error occurred * @throws IOException if an error occurred */public void doGet(HttpServletRequest request, HttpServletResponse response)throws ServletException, IOException {response.setContentType("text/html");PrintWriter out = response.getWriter();out.println("<!DOCTYPE HTML PUBLIC \"-//W3C//DTD HTML 4.01 Transitional//EN\">");out.println("<HTML>");out.println(" <HEAD><TITLE>A Servlet</TITLE></HEAD>");out.println(" <BODY>"); try { //获取QueueConnectionFactory对象 InitialContext context =new InitialContext(); QueueConnectionFactory factory =(QueueConnectionFactory)context.lookup("ConnectionFactory"); //创建QueueConnection QueueConnection connnection =factory.createQueueConnection(); //创建QueueSession QueueSession session =connnection.createQueueSession(false, QueueSession.AUTO_ACKNOWLEDGE); //获取Destination对象 Queue queue =(Queue)context.lookup("queue/myqueue"); //获取文本信息 TextMessage msg =session.createTextMessage("世界你好啊！"); //创建发布者 QueueSender sender =session.createSender(queue); //发送消息 sender.send(msg); System.out.println("消息已发送"); } catch (NamingException e) { e.printStackTrace(); } catch (JMSException e) { e.printStackTrace(); }out.println(" </BODY>");out.println("</HTML>");out.flush();out.close();}}ejb项目中的Message Driven Bean: MyQueueMDBBean.java
package com.test.ejb;import javax.ejb.MessageDriven;import javax.jms.JMSException;import javax.jms.Message;import javax.jms.MessageListener;import javax.jms.TextMessage;import javax.ejb.ActivationConfigProperty;@MessageDriven( activationConfig ={ @ActivationConfigProperty(propertyName="destinationType",propertyValue="javax.jms.Queue"), @ActivationConfigProperty(propertyName="destination",propertyValue="queue/myqueue") }) public class MyQueueMDBBean implements MessageListener { public void onMessage(Message msg) { TextMessage textMessage =(TextMessage)msg; try { System.out.println("MyQueueMDBBean被调用了【"+textMessage.getText()+"】"); } catch (JMSException e) { // TODO Auto-generated catch block e.printStackTrace(); } }}

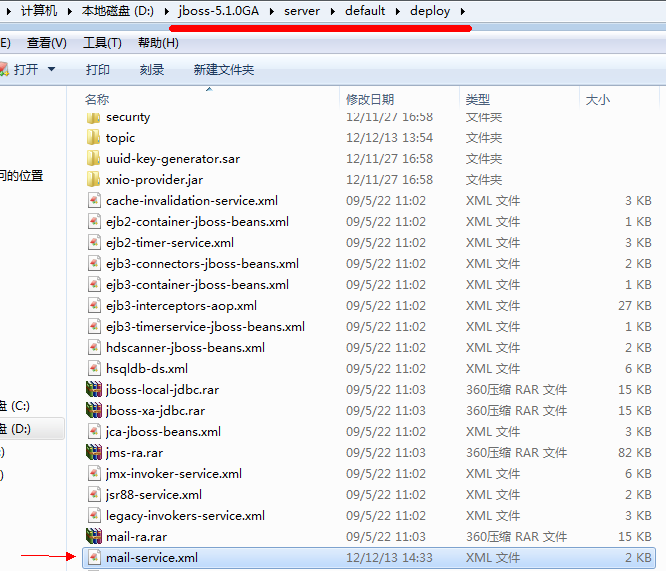

在deploy目录下的mail-service.xml下加上代码：
<mbean code="org.jboss.mq.server.jmx.Queue" name="jboss.org.destination:server=Queue,name=myqueue" > <attribute name="JNDIName" >queue/myqueue</attribute> <depends optional-attribute-name = "DestinationManager" > jboss.mq:service=DestinationManager </depends> </mbean>
现在部署此ejb。
并新建一个空目录：queue
通过jboss在queue中生成文件：myqueue-service.xml
<?xml version="1.0" encoding="UTF-8" standalone="yes"?><server> <mbean xmbean-dd="xmdesc/Queue-xmbean.xml" name="jboss.messaging.destination:service=Queue,name=myQueue" code="org.jboss.jms.server.destination.QueueService"> <attribute name="SecurityConfig"> <security> <role create="true" name="guest2" read="true" write="true"/> </security> </attribute> <attribute name="PageSize">2000</attribute> <attribute name="ServerPeer">jboss.messaging:service=ServerPeer</attribute> <attribute name="FullSize">200000</attribute> <attribute name="JNDIName">queue/myQueue</attribute> <attribute name="RedeliveryDelay">-1</attribute> <attribute name="DownCacheSize">2000</attribute> <attribute name="MaxSize">-1</attribute> <attribute name="MaxDeliveryAttempts">-1</attribute> <depends optional-attribute-name="ServerPeer">jboss.messaging:service=ServerPeer</depends> <depends>jboss.messaging:service=PostOffice</depends> </mbean></server>
jboss5中最后的配置为：
注：其中的参数别忘了，如Server Peer : jboss.messaging:service=ServerPeer
我不知道不填写会不会出错，但最好填写上我上面写的参数信息。
部署测试：http://localhost:8080/mdbTest/mdb
在jboss命令行输出：
15:03:32,745 INFO [STDOUT] 消息已发送
15:03:32,761 INFO [STDOUT] MyQueueMDBBean被调用了【世界你好啊！】
本人亲测，就是上面的效果。当然，若版本不致的话，可能出现问题。
