首发 手把手教你制作 Windows8 应用程序内部的 hubtile （动态瓷砖控件） MetroStyle
在metro 风格中 动态磁贴是他的精髓
在wp7 的开发中 我们可以使用hubtile 来制作类似效果
但是在 win8 中并不具备这个功能，
下面我们来通过扩展GridViewItem 来实现 PictureHubTile
<GridViewItem x:Class="App1.HubTile" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:local="using:App1" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" mc:Ignorable="d" x:Name="gridViewItem" d:DesignHeight="150" d:DesignWidth="150"> <GridViewItem.Resources> <Storyboard x:Name="UpperSecStoryboard"> <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(CompositeTransform.TranslateY)" Storyboard.TargetName="SecImg"> <SplineDoubleKeyFrame KeyTime="0:0:1.2" Value="-150" KeySpline="0.29,0.88,0,1"/> </DoubleAnimationUsingKeyFrames> <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(CompositeTransform.TranslateY)" Storyboard.TargetName="FirstImg"> <SplineDoubleKeyFrame KeyTime="0:0:1.2" Value="150" KeySpline="1,0,1,0"/> </DoubleAnimationUsingKeyFrames> </Storyboard> <Storyboard x:Name="UpperFirstStoryboard"> <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(CompositeTransform.TranslateY)" Storyboard.TargetName="SecImg"> <SplineDoubleKeyFrame KeyTime="0:0:1.2" Value="0" KeySpline="1,0,1,0"/> </DoubleAnimationUsingKeyFrames> <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(CompositeTransform.TranslateY)" Storyboard.TargetName="FirstImg"> <SplineDoubleKeyFrame KeyTime="0:0:1.2" Value="0" KeySpline="0.29,0.88,0,1"/> </DoubleAnimationUsingKeyFrames> </Storyboard> </GridViewItem.Resources> <Grid Width="{Binding Width, ElementName=gridViewItem}" Height="{Binding Height, ElementName=gridViewItem}"> <Canvas x:Name="PART_LayoutRoot" > <StackPanel x:Name="PART_Panel"> <Canvas Height="{Binding Height, ElementName=gridViewItem}" x:Name="FirstImg"> <Grid x:Name="PART_FirstContent"> <Image x:Name="Img1" Width="{Binding Width, ElementName=gridViewItem}" Height="{Binding Height, ElementName=gridViewItem}" Stretch="UniformToFill" VerticalAlignment="Center"> </Image> </Grid> <Canvas.RenderTransform> <CompositeTransform/> </Canvas.RenderTransform> </Canvas> <Canvas x:Name="SecImg" Height="{Binding Height, ElementName=gridViewItem}"> <Grid x:Name="SecGrid" Background="Red"> <Image x:Name="Img2" Width="{Binding Width, ElementName=gridViewItem}" Height="{Binding Height, ElementName=gridViewItem}" Stretch="UniformToFill" VerticalAlignment="Center"> </Image> </Grid> <Canvas.RenderTransform> <CompositeTransform/> </Canvas.RenderTransform> </Canvas> </StackPanel> </Canvas> <ContentPresenter Content="1111" VerticalAlignment="Bottom" HorizontalAlignment="Stretch" x:Name="PART_Title" Margin="0,0,10,7" /> </Grid></GridViewItem>
using System;using System.Collections.Generic;using System.Collections.ObjectModel;using System.Diagnostics;using System.IO;using System.Linq;using Windows.Foundation;using Windows.Foundation.Collections;using Windows.UI.Xaml;using Windows.UI.Xaml.Controls;using Windows.UI.Xaml.Controls.Primitives;using Windows.UI.Xaml.Data;using Windows.UI.Xaml.Input;using Windows.UI.Xaml.Media;using Windows.UI.Xaml.Media.Animation;using Windows.UI.Xaml.Media.Imaging;using Windows.UI.Xaml.Navigation;using WinRTXamlToolkit.AwaitableUI;using WinRTXamlToolkit.Imaging;// “用户控件”项模板在 http://go.microsoft.com/fwlink/?LinkId=234236 上提供namespace App1{ public sealed partial class HubTile : GridViewItem { #region propdp #region ImgList public List<string> ImgList { get { return (List<string>)GetValue(ImgListProperty); } set { SetValue(ImgListProperty, value); } } // Using a DependencyProperty as the backing store for ImgList. This enables animation, styling, binding, etc... public static readonly DependencyProperty ImgListProperty = DependencyProperty.Register( "ImgList", typeof(List<string>), typeof(HubTile), new PropertyMetadata(null, OnImgListChanged)); private static void OnImgListChanged( DependencyObject d, DependencyPropertyChangedEventArgs e) { var target = (HubTile)d; } #endregion #endregion public HubTile() { this.InitializeComponent(); DispatcherTimer timer = new DispatcherTimer(); int index = 0; bool isFirst = true; Storyboard storySec = null; Storyboard storyFir = null; this.Loaded += ((sender, e) => { storySec = Resources["UpperSecStoryboard"] as Storyboard; storyFir = Resources["UpperFirstStoryboard"] as Storyboard; var animation = storySec.Children[0] as DoubleAnimationUsingKeyFrames; var keyframe = animation.KeyFrames[0] as SplineDoubleKeyFrame; ((storySec.Children[1] as DoubleAnimationUsingKeyFrames).KeyFrames[0] as SplineDoubleKeyFrame).Value = this.Height; keyframe.Value = -this.Height; if (null != ImgList && ImgList.Count > 0) { var url = ImgList[0]; BitmapImage _source = new BitmapImage(new Uri(url)); this.Img1.Source = _source; timer.Start(); } }); Random r = new Random(Convert.ToInt32(DateTime.Now.Millisecond)); var second = r.Next(2000, 6000); Debug.WriteLine(this.Name + "间隔时间:" + second); timer.Interval = TimeSpan.FromMilliseconds(second); timer.Tick += (async (o, b) => { index++; var count = ImgList.Count; if (null != ImgList) { var url = ImgList[index % count]; BitmapImage _source = new BitmapImage(new Uri(url)); Debug.WriteLine(this.Name + "加载图片..." + url); if (isFirst) { this.Img2.Source = _source; isFirst = false; await storySec.BeginAsync(); Canvas.SetZIndex(SecImg, 1); Canvas.SetZIndex(FirstImg, 2); } else { this.Img1.Source = _source; isFirst = true; await storyFir.BeginAsync(); Canvas.SetZIndex(SecImg, 2); Canvas.SetZIndex(FirstImg, 1); } } }); } }}
该样例代码中 我使用了awaitUI 来实现对动画执行的监控，
程序逻辑并不复杂，通过随机的timer 来切换图片 实现
开始菜单的效果
demo 稍后上传

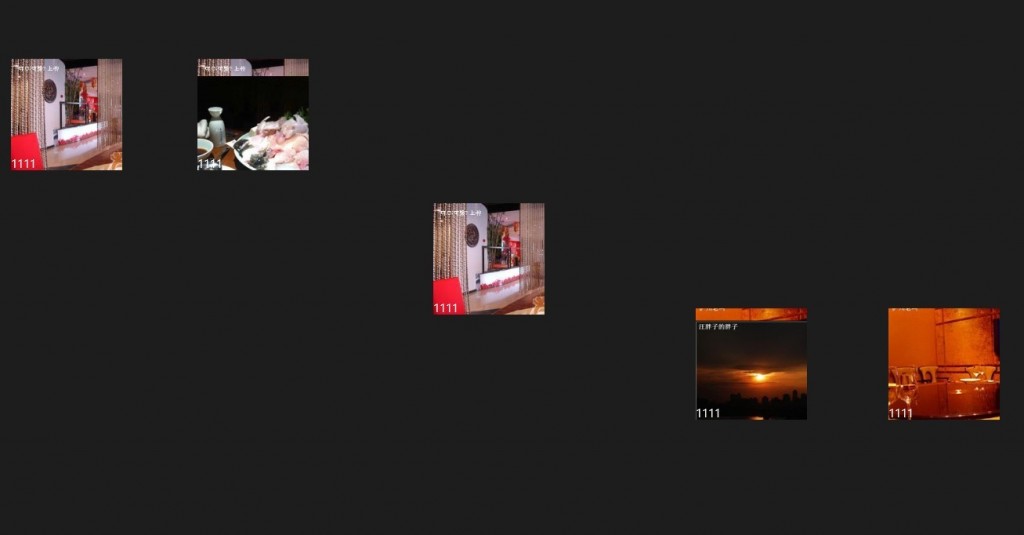

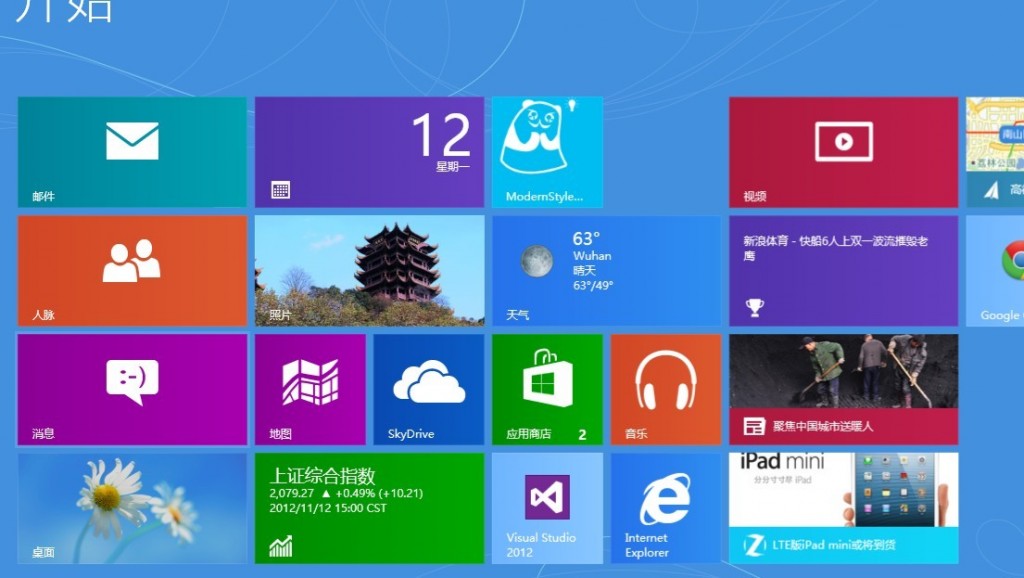

最终效果图：
资源下载地址：http://download.csdn.net/detail/wangrenzhu2011/4760211
样例项目
