Extjs温习笔记（十四）- XmlReader

2012-10-26

Extjs复习笔记（十四）-- XmlReader读取XML文件来构造grid先了解一个函数：Ext.data.XmlReader(?Object?meta,

Extjs复习笔记（十四）-- XmlReader

读取XML文件来构造grid

先了解一个函数：Ext.data.XmlReader(?Object?meta,?Object?recordType?)

API文档解释：

Data reader class to create an Array of?Ext.data.Record?objects from an XML document based on mappings in a provided?Ext.data.Record?constructor.

Note: that in order for the browser to parse a returned XML document, the Content-Type header in the HTTP response must be set to "text/xml" or "application/xml".

Create a new XmlReader.

Parameters:

meta?: ObjectMetadata configuration options

recordType?: ObjectEither an Array of field definition objects as passed to?Ext.data.Record.create, or a Record constructor object created using?Ext.data.Record.create.Returns:

void

给一个例子：

var Employee = Ext.data.Record.create([   {name: 'name', mapping: 'name'},     // 同名就可以不写"mapping" ，甚至可以简单到只有'name'   {name: 'occupation'}                 // 同名]);var myReader = new Ext.data.XmlReader({   totalProperty: "results", // The element which contains the total dataset size (optional)   record: "row",           // The repeated element which contains row information   idProperty: "id"         // The element within the row that provides an ID for the record (optional)   messageProperty: "msg"   // The element within the response that provides a user-feedback message (optional)}, Employee); //两个参数，第一个指定一些重要的参数，如record，totalProperty等

?XML文件

<?xml version="1.0" encoding="UTF-8"?><dataset> <results>2</results> <row>   <id>1</id>   <name>Bill</name>   <occupation>Gardener</occupation> </row> <row>   <id>2</id>   <name>Ben</name>   <occupation>Horticulturalist</occupation> </row></dataset>

有一点需要说明的是?XmlReader似乎得在服务器上才能运行。

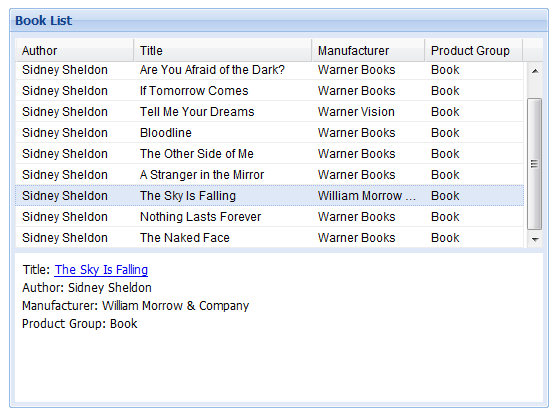

这里我们可以把整个文件夹拷到tomcat的webapps目录下，然后再用http://localhost:8080/MyExtjsTest/TestGrid/GridXml.html?这样的格式来访问。看一个示例：

Extjs温习笔记（十四）- XmlReader

做一个grid，我们先分四步走：

1、先定义一个Ext.data.Store对象，用来读取数据

2、创建一个?Ext.grid.GridPanel 对象

3、把上面创建的GridPanel 对象加到某个用来显示的组件中

4、最后，别忘了store.load(); 加载数据

<html>    <head><title>Data Binding Example</title>        <link rel="stylesheet" type="text/css" href="../resources/css/ext-all.css" /></script>        <script type="text/javascript" src="../adapter/ext/ext-base.js"></script>        <script type="text/javascript" src="../ext-all.js"></script><style type="text/css">body {padding: 15px;}.x-panel-mc {font-size: 12px;line-height: 18px;}</style>                <script type="text/javascript">  Ext.onReady(function(){// create the Data Storevar store = new Ext.data.Store({// load using HTTPurl: 'sheldon2.xml',// the return will be XML, so lets set up a readerreader: new Ext.data.XmlReader({   // records will have an "Item" tag   record: 'Item',   id: 'ASIN',   totalRecords: '@total'   }, [   // set up the fields mapping into the xml doc   // The first needs mapping, the others are very basic   {name: 'Author', mapping: 'ItemAttributes > Author'}, //ItemAttributes里面的Author   'Title',   'Manufacturer',   'ProductGroup',   // Detail URL is not part of the column model of the grid   'DetailPageURL'   ]) //XmlReader}); //Store// create the gridvar grid = new Ext.grid.GridPanel({store: store,columns: [{header: "Author", width: 120, dataIndex: 'Author', sortable: true},{header: "Title", width: 180, dataIndex: 'Title', sortable: true},{header: "Manufacturer", width: 115, dataIndex: 'Manufacturer', sortable: true},{header: "Product Group", width: 100, dataIndex: 'ProductGroup', sortable: true}],sm: new Ext.grid.RowSelectionModel({singleSelect: true}),//单选viewConfig: {forceFit: true},height:210,split: true,region: 'north'});// define a template to use for the detail view 定义一个模板，之后的章节会讲解模板的使用，这边看不懂也没关系var bookTplMarkup = ['Title: <a href="{DetailPageURL}" target="_blank">{Title}</a><br/>','Author: {Author}<br/>','Manufacturer: {Manufacturer}<br/>','Product Group: {ProductGroup}<br/>'];var bookTpl = new Ext.Template(bookTplMarkup);//模板类对象var ct = new Ext.Panel({renderTo: 'gridXmlTest',frame: true,title: 'Book List',width: 540,height: 400,layout: 'border',items: [grid,{id: 'detailPanel',region: 'center',bodyStyle: {background: '#ffffff',padding: '7px'},html: 'Please select a book to see additional details.'}]})//Ext.Panelgrid.getSelectionModel().on('rowselect', function(sm, rowIdx, r) { //行被选中时的事件var detailPanel = Ext.getCmp('detailPanel'); //得到id为detailPanel组件,下方有解释bookTpl.overwrite(detailPanel.body, r.data); //overwrite方法，下文有解释});store.load();});      </script></head><body><div id="gridXmlTest"></div></body></html>

?getCmp(?String?id?) : Ext.Component

This is shorthand reference to?Ext.ComponentMgr.get. Looks up an existing?Componentby?idParameters:

id?: StringThe component?idReturns:
- Ext.ComponentThe Component, <tt>undefined</tt> if not found, or <tt>null</tt> if a Class was found.
  上面的overwrite方法其实调用的是Ext.XTemplate.overwriteAPI解释：overwrite(?Mixed?el,?Object/Array?values,?[Boolean?returnElement]?) : HTMLElement/Ext.ElementApplies the supplied values to the template and overwrites the content of el with the new node(s).Parameters:
  - el?: MixedThe context element
  - values?: Object/ArrayThe template values. Can be an array if your params are numeric (i.e. {0}) or an object (i.e. {foo: 'bar'})
  - returnElement?: Boolean(optional) true to return a Ext.Element (defaults to undefined)Returns:
    - HTMLElement/Ext.ElementThe new node or Element
      ?
