DIalog与popWindow格局
DIalog与popWindow布局Android默认的PopupWindow和EditText的外观是矩形框，看起来不是太好，本示例通过设置
DIalog与popWindow布局
Android默认的PopupWindow和EditText的外观是矩形框，看起来不是太好，本示例通过设置布局View的背景和PopupWindowd对象的背景，实现有白色圆角边框的对话框效果和圆角文字编辑框。代码如下（关键部分是背景布局XML）：
?
?

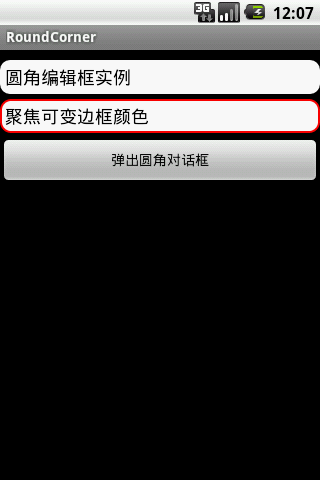

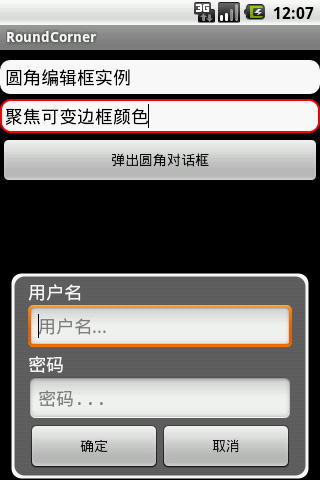

对话框弹出效果图：
?
?
?
package com.test;import android.app.Activity;import android.content.Context;import android.os.Bundle;import android.text.InputType;import android.view.Gravity;import android.view.LayoutInflater;import android.view.View;import android.view.View.OnClickListener;import android.widget.Button;import android.widget.EditText;import android.widget.PopupWindow;import android.widget.LinearLayout.LayoutParams;public class RoundCorner extends Activity {Button mButton; @Overridepublic void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.main);// 定义按钮mButton = (Button) this.findViewById(R.id.Button01);mButton.setOnClickListener(new ClickEvent());// 两个圆角文字编辑框EditText et1 = (EditText) this.findViewById(R.id.roundedtext1);EditText et2 = (EditText) this.findViewById(R.id.roundedtext2);et1.setInputType(InputType.TYPE_TEXT_FLAG_AUTO_CORRECT);et2.setInputType(InputType.TYPE_NULL); //不显示软键盘}// 处理按键事件class ClickEvent implements OnClickListener {@Overridepublic void onClick(View v) {if (v == mButton) {showRoundCornerDialog(RoundCorner.this, RoundCorner.this.findViewById(R.id.Button01));}}}// 显示圆角对话框public void showRoundCornerDialog(Context context, View parent) {LayoutInflater inflater = (LayoutInflater) context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);// 获取圆角对话框布局View，背景设为圆角final View dialogView = inflater.inflate(R.layout.popupwindow, null, false);dialogView.setBackgroundResource(R.drawable.rounded_corners_view); // 创建弹出对话框，设置弹出对话框的背景为圆角 final PopupWindow pw = new PopupWindow(dialogView, 300, LayoutParams.WRAP_CONTENT, true);pw.setBackgroundDrawable(getResources().getDrawable(R.drawable.rounded_corners_pop));//注：上面的设背景操作为重点部分，可以自行注释掉其中一个或两个设背景操作，查看对话框效果//注：上面的设背景操作为重点部分，可以自行注释掉其中一个或两个设背景操作，查看对话框效果final EditText edtUsername = (EditText) dialogView.findViewById(R.id.username_edit);final EditText edtPassword = (EditText) dialogView.findViewById(R.id.password_edit);edtUsername.setHint("用户名..."); // 设置提示语edtPassword.setHint("密码..."); // 设置提示语// OK按钮及其处理事件Button btnOK = (Button) dialogView.findViewById(R.id.BtnOK);btnOK.setOnClickListener(new OnClickListener() {@Overridepublic void onClick(View v) {// 设置文本框内容edtUsername.setText("username");edtPassword.setText("password");}});// Cancel按钮及其处理事件Button btnCancel = (Button) dialogView.findViewById(R.id.BtnCancel);btnCancel.setOnClickListener(new OnClickListener() {@Overridepublic void onClick(View v) {pw.dismiss();// 关闭}});// 显示RoundCorner对话框pw.showAtLocation(parent, Gravity.CENTER|Gravity.BOTTOM, 0, 0);}}?
?
1，圆角对话框的背景布局文件XML。
--------rounded_corners_pop.xml此为PopupWindow的背景布局文件
<?xml version="1.0" encoding="utf-8"?><shape xmlns:android="http://schemas.android.com/apk/res/android"><solid android:color="#ffffffff" /><stroke android:width="3dp" color="#ffff8080" /><corners android:radius="10dp" /><padding android:left="3dp" android:top="3dp" android:right="3dp" android:bottom="3dp" /></shape>?
--------rounded_corners_view.xml此为对话框内容的背景布局文件
<?xml version="1.0" encoding="utf-8"?><shape xmlns:android="http://schemas.android.com/apk/res/android"><solid android:color="#ff606060" /><stroke android:width="3dp" color="#ffff8080" /><corners android:radius="10dp" /><padding android:left="5dp" android:top="5dp" android:right="5dp" android:bottom="5dp" /></shape>?
?2，圆角文字编辑框的三个布局XML文件
---------rounded_edittext_states.xml
<?xml version="1.0" encoding="utf-8"?> <selector xmlns:android="http://schemas.android.com/apk/res/android"> <item android:state_pressed="true" android:state_enabled="true" android:drawable="@drawable/rounded_focused" /> <item android:state_focused="true" android:state_enabled="true" android:drawable="@drawable/rounded_focused" /> <item android:state_enabled="true" android:drawable="@drawable/rounded_edittext" /> </selector> ?
----------rounded_edittext.xml
<?xml version="1.0" encoding="utf-8"?> <shape xmlns:android="http://schemas.android.com/apk/res/android" android:shape="rectangle" android:padding="8dip"> <solid android:color="#FFFFFF"/> <corners android:bottomRightRadius="10dip" android:bottomLeftRadius="10dip" android:topLeftRadius="10dip" android:topRightRadius="10dip"/> </shape>?
-----------rounded_edittext_focused.xml
<?xml version="1.0" encoding="utf-8"?> <shape xmlns:android="http://schemas.android.com/apk/res/android" android:shape="rectangle" android:padding="8dip"> <solid android:color="#FFFFFF"/> <stroke android:width="2dip" android:color="#FF0000" /> <corners android:bottomRightRadius="10dip" android:bottomLeftRadius="10dip" android:topLeftRadius="10dip" android:topRightRadius="10dip"/> </shape> ?
?
3，对话框的布局文件popupwindow.xml
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"android:layout_width="fill_parent" android:layout_height="wrap_content"android:orientation="vertical"><TextView android:id="@+id/username_view"android:layout_height="wrap_content"android:layout_width="fill_parent"android:layout_marginLeft="10dip"android:layout_marginRight="10dip" android:text="用户名"android:textAppearance="?android:attr/textAppearanceMedium"/><EditText android:id="@+id/username_edit"android:layout_height="wrap_content"android:layout_width="fill_parent" android:layout_marginLeft="10dip"android:layout_marginRight="10dip" android:capitalize="none"android:textAppearance="?android:attr/textAppearanceMedium" /><TextView android:id="@+id/password_view"android:layout_height="wrap_content"android:layout_width="fill_parent"android:layout_marginLeft="10dip"android:layout_marginRight="10dip" android:text="密码"android:textAppearance="?android:attr/textAppearanceMedium"/><EditText android:id="@+id/password_edit"android:layout_height="wrap_content"android:layout_width="fill_parent" android:layout_marginLeft="10dip"android:layout_marginRight="10dip" android:capitalize="none"android:password="true"android:textAppearance="?android:attr/textAppearanceMedium" /><LinearLayout android:id="@+id/LinearLayout01"android:layout_height="wrap_content" android:layout_width="fill_parent"android:gravity="center"android:paddingLeft="10dip"android:paddingRight="10dip"><Button android:id="@+id/BtnOK"android:layout_width="wrap_content"android:layout_height="wrap_content" android:layout_weight="1" android:text="确定"/><Button android:id="@+id/BtnCancel"android:layout_width="wrap_content"android:layout_height="wrap_content" android:layout_weight="1"android:text="取消"/></LinearLayout></LinearLayout>?
?
4，主布局文件 main.xml
<?xml?version="1.0"?encoding="utf-8"?> ??<LinearLayout?xmlns:android="http://schemas.android.com/apk/res/android"??????android:orientation="vertical"?android:layout_width="fill_parent"??????android:layout_height="fill_parent"??????android:paddingTop="10dip"> ?????? ??????<EditText?android:id="@+id/roundedtext1"?? ??????????android:layout_width="fill_parent"?? ??????????android:layout_height="wrap_content"?? ??????????android:text="圆角编辑框实例"? ??????????android:padding="5dip"? ??????????android:background="@drawable/rounded_edittext"?/>? ?????????? ??????<!--?此View为布局使用?--> ??????<View?android:layout_height="5dip"?android:layout_width="fill_parent"/> ?????????? ??????<EditText?android:id="@+id/roundedtext2"??? ??????????android:layout_width="fill_parent"?? ??????????android:layout_height="wrap_content"?? ??????????android:text="聚焦可变边框颜色"? ??????????android:padding="5dip"??????????android:paddingTop="30dip"??????????android:background="@drawable/rounded_edittext_states"/>? ????????<!--?此View为布局使用?--> ??????<View?android:layout_height="5dip"?android:layout_width="fill_parent"/> ????????<Button?android:id="@+id/Button01"? ??????????android:layout_height="wrap_content"??????????android:layout_width="fill_parent"? ??????????android:text="弹出圆角对话框"/> ?????????? ??</LinearLayout>??
