工作流Activiti的学习总结（十一）Activiti5.6和Spring3.03整合
?工作流模拟程序员面试过程情景如下：
????? 1.开发知识面试或者笔试
????? 2.人事面试
?

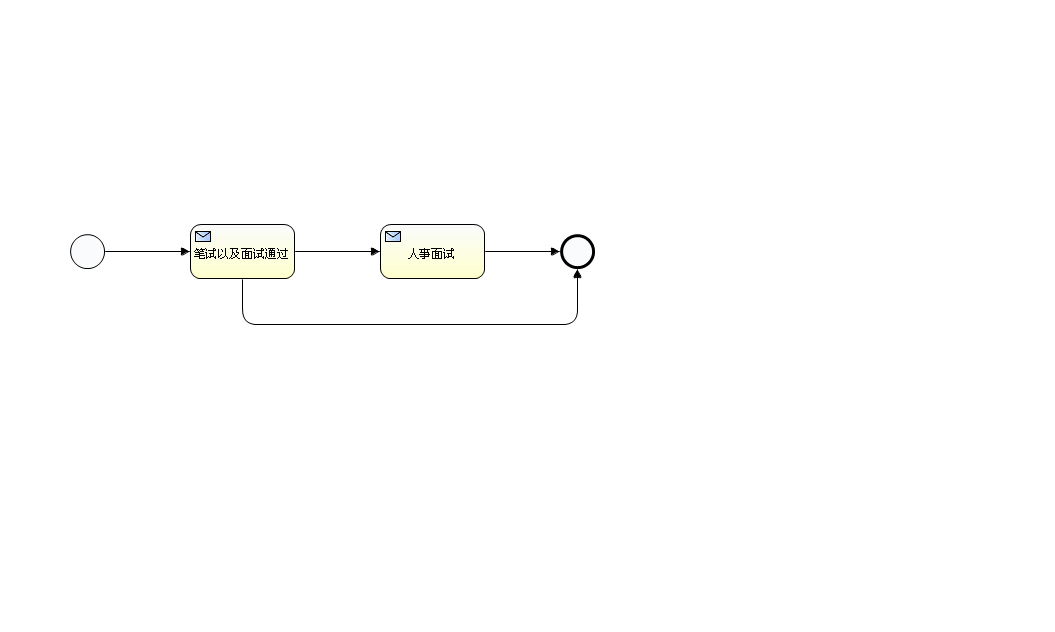

流程图：
?
?
流程配置：
<?xml version="1.0" encoding="UTF-8"?><definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:activiti="http://activiti.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.activiti.org/test"> <process id="DeveloperWorkExam" name="DeveloperWorkExam"> <startEvent id="startevent1" name="准备面试"></startEvent> <endEvent id="endevent1" name="面试通过"></endEvent> <receiveTask id="receivetask1" name="笔试以及面试通过"> <extensionElements> <activiti:executionListener event="start" name="人事面试"> <extensionElements> <activiti:executionListener event="start" name="" sourceRef="startevent1" targetRef="receivetask1"></sequenceFlow> <sequenceFlow id="flow2" name="" sourceRef="receivetask1" targetRef="receivetask2"></sequenceFlow> <sequenceFlow id="flow3" name="" sourceRef="receivetask2" targetRef="endevent1"></sequenceFlow> <sequenceFlow id="flow4" name="" sourceRef="receivetask1" targetRef="endevent1"></sequenceFlow> </process></definitions>
spring配置application-context-standalone.xml如下：
?
<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-2.5.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsd"> <!-- 创建数据源 --> <bean id="dataSource" value="org.h2.Driver" /> <property name="url" value="jdbc:h2:mem:activiti;DB_CLOSE_DELAY=1000" /> <property name="username" value="sa" /> <property name="password" value="" /> </bean> <!-- 创建事务管理器 --> <bean id="transactionManager" ref="dataSource" /> </bean><!-- 创建流程引擎配置对象 --> <bean id="processEngineConfiguration" ref="dataSource" /> <property name="transactionManager" ref="transactionManager" /> <property name="databaseSchemaUpdate" value="true" /> <property name="mailServerHost" value="localhost" /> <property name="mailServerPort" value="5025" /> <property name="jpaHandleTransaction" value="true" /> <property name="jpaCloseEntityManager" value="true" /> <property name="jobExecutorActivate" value="false" /> </bean> <!-- 创建流程引擎对象--> <bean id="processEngine" ref="processEngineConfiguration" /> </bean> <bean id="identityService" factory-bean="processEngine" factory-method="getIdentityService" /> <bean id="formService" factory-bean="processEngine" factory-method="getFormService" /> <bean id="repositoryService" factory-bean="processEngine" factory-method="getRepositoryService" /> <bean id="runtimeService" factory-bean="processEngine" factory-method="getRuntimeService" /> <bean id="taskService" factory-bean="processEngine" factory-method="getTaskService" /> <bean id="historyService" factory-bean="processEngine" factory-method="getHistoryService" /> <bean id="managementService" factory-bean="processEngine" factory-method="getManagementService" /></beans>
?
application-context.xml
<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-2.5.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsd"> <!-- 创建数据源 --> <bean id="dataSource" value="org.h2.Driver" /> <property name="url" value="jdbc:h2:mem:activiti;DB_CLOSE_DELAY=1000" /> <property name="username" value="sa" /> <property name="password" value="" /> </bean> <!-- 创建事务管理器 --> <bean id="transactionManager" ref="dataSource" /> </bean><!-- 创建流程引擎配置对象 --> <bean id="processEngineConfiguration" ref="dataSource" /> <property name="transactionManager" ref="transactionManager" /> <property name="databaseSchemaUpdate" value="true" /> <property name="mailServerHost" value="localhost" /> <property name="mailServerPort" value="5025" /> <property name="jpaHandleTransaction" value="true" /> <property name="jpaCloseEntityManager" value="true" /> <property name="jobExecutorActivate" value="false" /> <!-- 使用spring的自动资源加载部署方式部署 --> <property name="deploymentResources" value="classpath*:diagrams/*.bpmn20.xml" /> </bean> <!-- 创建流程引擎对象--> <bean id="processEngine" ref="processEngineConfiguration" /> </bean> <bean id="identityService" factory-bean="processEngine" factory-method="getIdentityService" /> <bean id="formService" factory-bean="processEngine" factory-method="getFormService" /> <bean id="repositoryService" factory-bean="processEngine" factory-method="getRepositoryService" /> <bean id="runtimeService" factory-bean="processEngine" factory-method="getRuntimeService" /> <bean id="taskService" factory-bean="processEngine" factory-method="getTaskService" /> <bean id="historyService" factory-bean="processEngine" factory-method="getHistoryService" /> <bean id="managementService" factory-bean="processEngine" factory-method="getManagementService" /></beans>
?
代码实现：
/**package com.easyway.workflow.activiti.exam;import java.util.Map;/** * * 工作流中配置如下： * <receiveTask id="receivetask1" name="笔试以及面试通过"> <extensionElements> <activiti:executionListener event="start" "+entry.getValue());}logger.info("开始开发知识面试了....");execute.setVariable("result", "该考生开发知识面试通过了....");}}?
?
?
/**package com.easyway.workflow.activiti.exam;import java.util.Map;/** * * * 工作流中配置如下： * * <receiveTask id="receivetask2" name="人事面试"> <extensionElements> <activiti:executionListener event="start" name="code">/**package com.easyway.workflow.activiti.exam;import java.util.logging.Logger;/** * * 工作流模拟程序员面试过程情景如下： * 1.开发知识面试或者笔试 * 2.人事面试 * * 在spring3.0.3和activiti5.6整合时候，建议采用activiti-spring-examples中的jar文件。 * 如果么有完整 的jar文件，可以参考{activiti_home}/setup/files/dependencies/libs.spring.runtime.txt文件 * 。（C:\mash_activiti-5.6\setup\files\dependencies） * * 之所以要采用封装的原因，spring配置文件和activiti的配置文件分开发布部署。 * * @author longgangbai * * 2011-12-18 上午01:32:17 */@ContextConfiguration("classpath:application-context-standalone.xml")public abstract class AbstractSpringTest extends AbstractTransactionalJUnit4SpringContextTests {@SuppressWarnings("unused")private final Logger log = Logger.getLogger(AbstractSpringTest.class.getName());@SuppressWarnings("unused")@Autowiredprivate ProcessEngine processEngine;@Autowiredprotected RepositoryService repositoryService;@Autowiredprotected RuntimeService runtimeService;@Autowiredprotected TaskService taskService;@Autowiredprotected HistoryService historyService;@Autowiredprotected ManagementService managementService;protected String deploymentId;public AbstractSpringTest() {super();}@Beforepublic void initialize() throws Exception {beforeTest();}@Afterpublic void clean() throws Exception {afterTest();}protected abstract void beforeTest() throws Exception;protected abstract void afterTest() throws Exception;}?
?
/**package com.easyway.workflow.activiti.exam;import java.util.HashMap;/** * 我把Activiti 5.6默认工程中有关JPA的部分配置删除了，其实通过这个就可以初始化Activiti引擎实例。 * 为了测试方便，将获取服务的实现抽象出来，同时使用Spring自带的与JUnit4集成的工具（ * AbstractTransactionalJUnit4SpringContextTests）。 * * 将classpath:activiti-context.xml在测试的时候进行加载，这样，在测试的子类中，只需要将其他的相 * 关Spring配置单独加载即可，业务配置与流程配置分开，便于维护。 * @author longgangbai * * 2011-12-18 上午01:37:14 */@ContextConfiguration("classpath:application-context-standalone.xml")public class ActivitiWithSpringStandaloneTest extends AbstractSpringTest {@Overrideprotected void beforeTest() throws Exception {Deployment deployment = repositoryService.createDeployment().addClasspathResource("diagrams/SprintActiviti56.bpmn20.xml").deploy();deploymentId = deployment.getId();}@Overrideprotected void afterTest() throws Exception {repositoryService.deleteDeployment(deploymentId, true);}@Testpublic void triggerMyProcess() {// prepare data packetMap<String, Object> variables = new HashMap<String, Object>();variables.put("姓名", "程序员");variables.put("职务", "高级软件工程师");variables.put("语言", "Java/C#");variables.put("操作系统", "Window,Linux，unix，Aix");variables.put("工作地点","苏州高新技术软件园");// start process instanceProcessInstance pi = runtimeService.startProcessInstanceByKey("DeveloperWorkExam", variables);assert (pi!=null);List<Execution> executions = runtimeService.createExecutionQuery().list();assert (executions.size()==1);Execution execution = runtimeService.createExecutionQuery().singleResult();runtimeService.setVariable(execution.getId(), "type", "receiveTask");runtimeService.signal(execution.getId());executions = runtimeService.createExecutionQuery().list();assert (executions.size()==1);execution = executions.get(0);runtimeService.setVariable(execution.getId(), "oper", "录用此人....");runtimeService.signal(execution.getId());}}?
?
?
自动部署测试：
/**package com.easyway.workflow.activiti.exam;import java.util.HashMap;/** * * Activiti 5.6与Spring3.0.3整合也比较简单，其基本思想就是，通过Spring的IOC容器来管理Activiti的流程引擎 * 实例以及相关服务，可见，主要是基于Activiti在与Spring整合上努力上，做好配置即可。这里基于前面的 * <receiveTask>的例子来进行. * * * 为了测试方便，将获取服务的实现抽象出来，同时使用Spring自带的与JUnit4集成的工具（ * AbstractTransactionalJUnit4SpringContextTests）。我们的实现类为AbstractSpringTest， * * * 本文采用activiti和spring整合中自动部署资源的功能配置如下： * <!-- 创建流程引擎配置对象 --> <bean id="processEngineConfiguration" ref="dataSource" /> <property name="transactionManager" ref="transactionManager" /> <property name="databaseSchemaUpdate" value="true" /> <property name="mailServerHost" value="localhost" /> <property name="mailServerPort" value="5025" /> <property name="jpaHandleTransaction" value="true" /> <property name="jpaCloseEntityManager" value="true" /> <property name="jobExecutorActivate" value="false" /> <!-- 使用spring的自动资源加载部署方式部署 --> <property name="deploymentResources" value="classpath*:diagrams/*.bpmn20.xml" /> </bean> * @author longgangbai * * 2011-12-18 上午12:58:31 */@ContextConfiguration("classpath:application-context.xml")public class ActivitiWithSpringTest extends AbstractTransactionalJUnit4SpringContextTests{ @Autowiredprivate RuntimeService runtimeService; @Autowiredprivate TaskService taskService; @Autowiredprivate ManagementService managerService; @Autowiredprivate IdentityService identityService; @Autowiredprivate FormService formService; /** * 测试方法 */@Testpublic void triggerMyProcess() {// 面试题目和答案Map<String, Object> variables = new HashMap<String, Object>();variables.put("姓名", "程序员");variables.put("职务", "高级软件工程师");variables.put("语言", "Java/C#");variables.put("操作系统", "Window,Linux，unix，Aix");variables.put("工作地点","苏州高新技术软件园");// start process instance//获取创建一个实例ProcessInstance pi = runtimeService.startProcessInstanceByKey("DeveloperWorkExam", variables);assert (pi!=null);List<Execution> executions = runtimeService.createExecutionQuery().list();assert (executions.size()==1);//执行开发技术知识面试业务Execution execution = runtimeService.createExecutionQuery().singleResult();runtimeService.setVariable(execution.getId(), "type", "receiveTask");runtimeService.signal(execution.getId());executions = runtimeService.createExecutionQuery().list();assert (executions.size()==1);//执行人事面试业务execution = executions.get(0);runtimeService.setVariable(execution.getId(), "oper", "录用此人....");runtimeService.signal(execution.getId());}}?
?
运行结果：
2011-12-18 13:30:01 org.activiti.engine.impl.db.DbSqlSession executeSchemaResource信息: performing create on engine with resource org/activiti/db/create/activiti.h2.create.engine.sql2011-12-18 13:30:01 org.activiti.engine.impl.db.DbSqlSession executeSchemaResource信息: performing create on history with resource org/activiti/db/create/activiti.h2.create.history.sql2011-12-18 13:30:01 org.activiti.engine.impl.db.DbSqlSession executeSchemaResource信息: performing create on identity with resource org/activiti/db/create/activiti.h2.create.identity.sql2011-12-18 13:30:02 org.activiti.engine.impl.ProcessEngineImpl <init>信息: ProcessEngine default created2011-12-18 13:30:02 org.activiti.engine.impl.bpmn.deployer.BpmnDeployer deploy信息: Processing resource diagrams/SprintActiviti56.bpmn20.xml2011-12-18 13:30:02 org.activiti.engine.impl.bpmn.parser.BpmnParse parseDefinitionsAttributes信息: XMLSchema currently not supported as typeLanguage2011-12-18 13:30:02 org.activiti.engine.impl.bpmn.parser.BpmnParse parseDefinitionsAttributes信息: XPath currently not supported as expressionLanguage2011-12-18 13:30:02 com.easyway.workflow.activiti.exam.DeveloperKnowledgeExamListener execute信息: 开始开发知识面试了....2011-12-18 13:30:02 com.easyway.workflow.activiti.exam.DeveloperKnowledgeExamListener execute信息: 姓名 程序员2011-12-18 13:30:02 com.easyway.workflow.activiti.exam.DeveloperKnowledgeExamListener execute信息: 语言 Java/C#2011-12-18 13:30:02 com.easyway.workflow.activiti.exam.DeveloperKnowledgeExamListener execute信息: 职务 高级软件工程师2011-12-18 13:30:02 com.easyway.workflow.activiti.exam.DeveloperKnowledgeExamListener execute信息: 工作地点 苏州高新技术软件园2011-12-18 13:30:02 com.easyway.workflow.activiti.exam.DeveloperKnowledgeExamListener execute信息: 操作系统 Window,Linux，unix，Aix2011-12-18 13:30:02 com.easyway.workflow.activiti.exam.DeveloperKnowledgeExamListener execute信息: 开始开发知识面试了....2011-12-18 13:30:02 com.easyway.workflow.activiti.exam.HumanResourceExamListener execute信息: 检查该考试是否通过开发知识考试....2011-12-18 13:30:02 com.easyway.workflow.activiti.exam.HumanResourceExamListener execute信息: 开发知识面试结果该考生开发知识面试通过了....2011-12-18 13:30:02 com.easyway.workflow.activiti.exam.HumanResourceExamListener execute信息: 开始人事面试了....2011-12-18 13:30:02 com.easyway.workflow.activiti.exam.HumanResourceExamListener execute信息: 人事面试完毕....等候通知....
?
