Spring+Hibernate项目配置
配置一个以Spring+Hibernate为框架的项目。

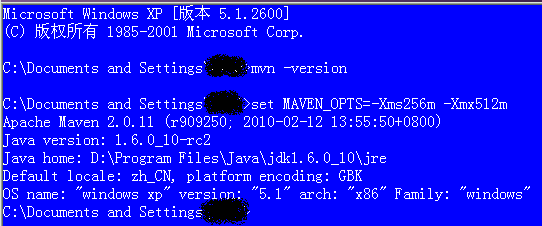

首先来看看我的环境配置吧，如下图
?
下面是我的pom文件
?
<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.diary</groupId> <artifactId>MyDiary</artifactId> <packaging>war</packaging> <version>1.0</version> <name>MyDiary</name> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <jetty.version>6.1.4</jetty.version> <spring.version>3.0.5.RELEASE</spring.version> <slf4j.version>1.5.10</slf4j.version> <java.version>1.6</java.version> <junit.version>4.8.2</junit.version> <org.aspectj-version>1.6.10</org.aspectj-version> </properties> <dependencies> <dependency> <groupId>javax.validation</groupId> <artifactId>validation-api</artifactId> <version>1.0.0.GA</version> <scope>compile</scope> </dependency> <dependency> <groupId>javax.servlet</groupId> <artifactId>servlet-api</artifactId> <version>2.4</version> <scope>provided</scope> </dependency> <dependency> <groupId>org.hibernate</groupId> <artifactId>hibernate-validator</artifactId> <version>4.0.0.GA</version> <scope>compile</scope> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>5.1.14</version> <type>jar</type> <scope>compile</scope> </dependency> <dependency> <groupId>hsqldb</groupId> <artifactId>hsqldb</artifactId> <version>1.8.0.10</version> </dependency> <dependency> <groupId>org.hibernate</groupId> <artifactId>hibernate-entitymanager</artifactId> <version>3.6.0.Final</version> <scope>compile</scope> </dependency> <dependency> <groupId>org.hibernate.javax.persistence</groupId> <artifactId>hibernate-jpa-2.0-api</artifactId> <version>1.0.0.Final</version> <scope>compile</scope> </dependency> <!-- Spring Dependencies --> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-context</artifactId> <version>${spring.version}</version> <exclusions> <!-- Exclude Commons Logging in favor of SLF4j --> <exclusion> <groupId>commons-logging</groupId> <artifactId>commons-logging</artifactId> </exclusion> </exclusions> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-webmvc</artifactId> <version>${spring.version}</version> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-orm</artifactId> <version>${spring.version}</version> <type>jar</type> <scope>compile</scope> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-test</artifactId> <version>${spring.version}</version> <type>jar</type> <scope>test</scope> </dependency> <!-- DB Dependencies --> <dependency> <groupId>commons-dbcp</groupId> <artifactId>commons-dbcp</artifactId> <version>20030825.184428</version> <type>jar</type> <scope>compile</scope> </dependency> <dependency> <groupId>commons-pool</groupId> <artifactId>commons-pool</artifactId> <version>20030825.183949</version> <type>jar</type> <scope>compile</scope> </dependency> <!-- View Dependencies --> <dependency> <groupId>taglibs</groupId> <artifactId>standard</artifactId> <version>1.1.2</version> <type>jar</type> <scope>compile</scope> </dependency> <!-- Test Dependencies --> <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>${junit.version}</version> <scope>test</scope> </dependency> <!-- logging --> <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-api</artifactId> <version>${slf4j.version}</version> </dependency> <dependency> <groupId>org.slf4j</groupId> <artifactId>jcl-over-slf4j</artifactId> <version>${slf4j.version}</version> <scope>runtime</scope> </dependency> <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-log4j12</artifactId> <version>${slf4j.version}</version> <scope>runtime</scope> </dependency> <dependency> <groupId>log4j</groupId> <artifactId>log4j</artifactId> <version>1.2.15</version> <exclusions> <exclusion> <groupId>com.sun.jdmk</groupId> <artifactId>jmxtools</artifactId> </exclusion> <exclusion> <groupId>com.sun.jmx</groupId> <artifactId>jmxri</artifactId> </exclusion> </exclusions> <scope>runtime</scope> </dependency> <dependency> <groupId>javax.servlet</groupId> <artifactId>jstl</artifactId> <version>1.1.2</version> </dependency> <dependency> <groupId>org.aspectj</groupId> <artifactId>aspectjrt</artifactId> <version>${org.aspectj-version}</version> </dependency> <dependency> <groupId>org.aspectj</groupId> <artifactId>aspectjtools</artifactId> <version>${org.aspectj-version}</version> </dependency> <dependency> <groupId>joda-time</groupId> <artifactId>joda-time</artifactId> <version>1.5.2</version> </dependency> <dependency> <groupId>joda-time</groupId> <artifactId>joda-time-jsptags</artifactId> <version>1.0.2</version> </dependency> <dependency> <groupId>joda-time</groupId> <artifactId>joda-time-hibernate</artifactId> <exclusions> <exclusion> <groupId>ehcache</groupId> <artifactId>ehcache</artifactId> </exclusion> </exclusions> <version>1.0</version> </dependency> </dependencies> <repositories> <repository> <id>org.springframework.maven.milestone</id> <name>Spring Maven Milestone Repository</name> <url>http://maven.springframework.org/milestone</url> <snapshots> <enabled>false</enabled> </snapshots> </repository> <repository> <id>JBoss</id> <name>JBoss Maven Repository</name> <url>https://repository.jboss.org/nexus/content/groups/public</url> <snapshots> <enabled>false</enabled> </snapshots> </repository> </repositories> <build> <finalName>MyDiary</finalName> <plugins> <!-- Ensures we are compiling at 1.6 level --> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-compiler-plugin</artifactId> <version>2.3.2</version> <configuration> <source>${java.version}</source> <target>${java.version}</target> </configuration> </plugin> <!-- Tomcat plugin for embedded tomcat --> <plugin> <groupId>org.codehaus.mojo</groupId> <artifactId>tomcat-maven-plugin</artifactId> <version>1.1</version> <configuration> <path>/${project.build.finalName}</path> </configuration> </plugin> <plugin> <groupId>org.codehaus.mojo</groupId> <artifactId>aspectj-maven-plugin</artifactId> <version>1.2</version> <executions> <execution> <goals> <goal>compile</goal> <goal>test-compile</goal> </goals> </execution> </executions> </plugin> <plugin> <artifactId>maven-idea-plugin</artifactId> <version>2.0</version> <configuration> <downloadSources>false</downloadSources> <downloadJavadocs>false</downloadJavadocs> <dependenciesAsLibraries>true</dependenciesAsLibraries> <useFullNames>false</useFullNames> </configuration> </plugin> </plugins> </build></project>? 有些jar包也许不一定用的上，可以直接删除
?
下面是我的web.xml文件
?
<?xml version="1.0" encoding="UTF-8"?><!-- Use this definition if using a Java EE 6 container This also stops Eclipse from complaining that 3.0 is not a valid version <web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation=" http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"> --><web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" version="2.5"> <!-- The definition of the Root Spring Container shared by all Servlets and Filters --> <context-param> <param-name>contextConfigLocation</param-name> <param-value> /WEB-INF/config/application-context.xml </param-value> </context-param> <!-- Creates the Spring Container shared by all Servlets and Filters --> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!-- Processes application requests --> <servlet> <servlet-name>dispatcherServlet</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <init-param> <param-name>contextConfigLocation</param-name> <param-value>/WEB-INF/config/dispatcher-servlet.xml</param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>dispatcherServlet</servlet-name> <url-pattern>*.dy</url-pattern> </servlet-mapping> <welcome-file-list> <welcome-file>login.jsp</welcome-file> </welcome-file-list> <icon> <small-icon>/resources/images/icons/whether.png</small-icon> <large-icon>/resources/images/icons/whether.png</large-icon> </icon> <error-page> <error-code>404</error-code> <location>/WEB-INF/views/404.jsp</location> </error-page> <error-page> <exception-type>java.lang.UnsupportedOperationException</exception-type> <location>/Error.jsp</location> </error-page> <session-config> <session-timeout>30</session-timeout> </session-config> <jsp-config> <taglib> <taglib-uri>/diary.tld</taglib-uri> <taglib-location>/WEB-INF/taglibrary/diary.tld</taglib-location> </taglib> </jsp-config></web-app>
?
下面是datasource.xml
?
<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsdhttp://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd" default-autowire="byName"> <context:property-placeholder location="classpath:db.properties"/> <bean id="dataSource" value="${db.driver}"/> <property name="url" value="${db.url}"/> <property name="username" value="${db.username}"/> <property name="password" value="${db.password}"/> </bean> <bean id="sessionFactory" ref="dataSource"/> <property name="mappingLocations"> <list> <value>classpath:/hibernate_mappings/*</value> </list> </property> <property name="hibernateProperties"> <props> <prop key="hibernate.dialect">org.hibernate.dialect.MySQLDialect</prop> <prop key="hibernate.show_sql">true</prop> <prop key="hibernate.hbm2ddl.auto">update</prop> <prop key="hibernate.jdbc.batch_size">100</prop> </props> </property> </bean> <bean id="transactionManager" ref="sessionFactory"/> </bean> <tx:advice id="txAdvice" transaction-manager="transactionManager"> <tx:attributes> <tx:method name="*" propagation="REQUIRED"/> </tx:attributes> </tx:advice> <aop:config> <aop:pointcut id="serviceManager" expression="execution(* com.diary.service..*.*(..))"/> <aop:advisor advice-ref="txAdvice" pointcut-ref="serviceManager"/> </aop:config></beans>?
下面是dao.xml
?
<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsdhttp://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsdhttp://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd" default-autowire="byName"> <import resource="datasource.xml"/> <bean id="userDao" ref="sessionFactory"/> </bean></beans>
?
下面是service.xml
?
<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd" default-autowire="byName"> <import resource="dao.xml"/> <bean id="userService" ref="userDao"/> </bean></beans>
?
下面是application-context.xml
?
<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:tx="http://www.springframework.org/schema/tx"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd"><!-- Root Context: defines shared resources visible to all other web components --><!--<import resource="datasource.xml" />--><!--<import resource="dao.xml" />--><import resource="service.xml" /></beans>
?
下面是dispatcher-servlet.xml
?
<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mvc="http://www.springframework.org/schema/mvc" xsi:schemaLocation=" http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd"> <import resource="controllers.xml"/> <!-- Handles HTTP GET requests for /resources/** by efficiently serving up static resources in the ${webappRoot}/resources directory --> <mvc:resources mapping="/resources/**" location="/resources/"/> <!-- Resolves views selected for rendering by @Controllers to .jsp resources in the /WEB-INF/views directory --> <bean value="/WEB-INF/views/"/> <property name="suffix" value=".jsp"/> </bean> <bean id="httpRequestHandlerAdapter" name="code"><?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd"> <import resource="service.xml"/> <bean id="loginController" ref="userService"/> </bean> <bean id="welcomeController" name="code">db.url=jdbc:mysql://localhost:3306/demodb.driver=com.mysql.jdbc.Driverdb.username=rootdb.password=rootdb.dialect=org.hibernate.dialect.MySQL5Dialect ?
特附上我的Template，详情请参见上传的附件。
