xfire 与spring完整集成实例（webservice）

首先打开Myeclipse8.x以上版本..因为我这里共享那些xfire 项目所需要的jar都是Myeclipse自带添加的，所以要求大家伙准备好myeclipse8.x或者更高版本的..这里是spring2.0与xfire1.2整合..废话少说..转正正传..

1.打开Myeclipse--->new project-->项目名随便吧..最好是有意义的名称..看起来比较舒服..

2--配置web.xml

<?xml version="1.0" encoding="UTF-8"?>

<web-app xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="2.5" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee ? http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">

? <context-param>

??<param-name>contextConfigLocation</param-name>

??<param-value>classpath:applicationContext.xml,classpath:org/codehaus/xfire/spring/xfire.xml</param-value>

? </context-param>

<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>

</listener>

? ?<listener>

<listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>

</listener>

? <servlet>

? ? <servlet-name>XFireServlet</servlet-name>

? ? <servlet-class>org.codehaus.xfire.transport.http.XFireConfigurableServlet</servlet-class>

? ? <load-on-startup>0</load-on-startup>

? </servlet>

? <servlet-mapping>

? ? <servlet-name>XFireServlet</servlet-name>

? ? <url-pattern>/services/*</url-pattern>

? </servlet-mapping>

? <welcome-file-list>

? ? <welcome-file>index.jsp</welcome-file>

? </welcome-file-list>

</web-app>

3.配置applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>

<beans

xmlns="http://www.springframework.org/schema/beans"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xmlns:p="http://www.springframework.org/schema/p"

xmlns:jee="http://www.springframework.org/schema/jee"

xmlns:aop="http://www.springframework.org/schema/aop"

xmlns:tx="http://www.springframework.org/schema/tx"

xsi:schemaLocation="http://www.springframework.org/schema/beans

?http://www.springframework.org/schema/beans/spring-beans-2.0.xsd

?http://www.springframework.org/schema/aop

?http://www.springframework.org/schema/aop/spring-aop-2.0.xsd

?http://www.springframework.org/schema/tx

?http://www.springframework.org/schema/tx/spring-tx-2.0.xsd

?http://www.springframework.org/schema/jee

?http://www.springframework.org/schema/jee/spring-jee-2.0.xsd"

?default-autowire="byName" default-lazy-init="true"

?<import resource="classpath:org/codehaus/xfire/spring/xfire.xml"/>

?<import resource="xfire-servlet.xml"/>

</beans>

4.配置xfire-servlet.xml

为了不给大家伙困扰.所以我这里用那个就打开那个配置..

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE beans PUBLIC "-//SPRING//DTD BEAN 2.0//EN"

"http://www.springframework.org/dtd/spring-beans-2.0.dtd">

<beans>

<!--?

<beans>

<!--

? ?在没整合spring之前的xfire是这样的配置

?当要整合spring之后的这句代码复制到service 节点

?xmlns="http://xfire.codehaus.org/config/1.0"

?<beans xmlns="http://xfire.codehaus.org/config/1.0">

?-->

?<name>UserInfo</name>

?<namespace>http://service.core.xfire.com</namespace>

?<serviceClass>com.xfire.core.service.IUserInfoService</serviceClass>

?<implementationClass>com.xfire.core.service.impl.UserInfoServiceImpl

?</implementationClass>

?<scope>request</scope>

<!--?

<name>HelloWorldSimple</name>

<namespace>http://service.core.xfire.com</namespace>

<serviceClass>com.xfire.core.service.IHelloWorld</serviceClass>

<implementationClass>com.xfire.core.service.impl.HelloWorldImpl</implementationClass>

<use>literal</use>

<scope>request</scope>

-->

<!-- ?

<name>MyHandle</name>

<namespace>http://service.core.xfire.com</namespace>

<serviceClass>com.xfire.core.handler.IMyHandler</serviceClass>

<implementationClass>com.xfire.core.handler.MyHandlerImpl</implementationClass>

<scope>application</scope>

?-->

?<!--?

<name>ServiceMap</name>

<namespace>http://service.core.xfire.com</namespace>

<serviceClass>com.xfire.core.service.IServiceMap</serviceClass>

<implementationClass>com.xfire.core.service.impl.ServiceMapImpl

</implementationClass>

<scope>request</scope>

?-->

<!--?

<name>ApplictionException</name>

<namespace>http://service.core.xfire.com</namespace>

<serviceClass>com.xfire.core.service.IMyExceptionSevice</serviceClass>

<implementationClass>com.xfire.core.service.impl.MyExceptionSeviceImpl</implementationClass>

<scope>request</scope>

-->

</service>

</beans>

实现代码..

首先新建一个实体类UseInfor

package com.xfire.core.entity;

import java.io.Serializable;

import java.util.ArrayList;

import java.util.Arrays;

import java.util.HashMap;

import java.util.List;

import java.util.Map;

/**

?*@author jilongliang

?*@Date 2012-2-29

?*/

@SuppressWarnings("all")

public class?UserInfo?implements Serializable {

private Integer identifier;

private String address;

private String city;

private String proivice;

public Integer getIdentifier() {

return identifier;

}

public void setIdentifier(Integer identifier) {

this.identifier = identifier;

}

public String getAddress() {

return address;

}

public void setAddress(String address) {

this.address = address;

}

public String getCity() {

return city;

}

public void setCity(String city) {

this.city = city;

}

public String getProivice() {

return proivice;

}

public void setProivice(String proivice) {

this.proivice = proivice;

}

public String getCountry() {

return country;

}

public void setCountry(String country) {

this.country = country;

}

public String getPostCode() {

return postCode;

}

public void setPostCode(String postCode) {

this.postCode = postCode;

}

public String[] getArrary() {

return arrary;

}

public void setArrary(String[] arrary) {

this.arrary = arrary;

}

public List<Integer> getList() {

return list;

}

public void setList(List<Integer> list) {

this.list = list;

}

public Map<Integer, InnerClass> getMap() {

return map;

}

public void setMap(Map<Integer, InnerClass> map) {

this.map = map;

}

public boolean isExist() {

return isExist;

}

public void setExist(boolean isExist) {

this.isExist = isExist;

}

public InnerClass getInner() {

return inner;

}

public void setInner(InnerClass inner) {

this.inner = inner;

}

private String country;

private String postCode;

private String[] arrary;

private List<Integer> list;

private Map<Integer, InnerClass> map;

private boolean isExist;

private InnerClass inner;

public UserInfo() {

list = new ArrayList<Integer>();

list.add(1);

list.add(2);

list.add(3);

map = new HashMap<Integer, InnerClass>();

map.put(1, new InnerClass("a"));

map.put(2, new InnerClass("b"));

map.put(3, new InnerClass("c"));

inner = new InnerClass();

inner.setInnerName("服务器地址: Address InnerClass");

}

@Override

public String toString() {

return "Address [address=" + address + ", arrary="

+ Arrays.toString(arrary) + ", city=" + city + ", country="

+ country + ", identifier=" + identifier + ", inner=" + inner

+ ", isExist=" + isExist + ", list=" + list + ", map=" + map

+ ", postCode=" + postCode + ", proivice=" + proivice + "]";

}

----内置实体类package com.xfire.core.entity;
import java.io.Serializable;
/**?*@Project xfire?*@author jilongliang?*@Date 2012-2-29?*@Class InnerClass.java?*/@SuppressWarnings("all")public class?InnerClass?implements Serializable {
private String innerName = "static InnerClass";
public String getInnerName() {return innerName;}
public void setInnerName(String innerName) {this.innerName = innerName;}
public InnerClass() {}
public InnerClass(String innerName) {super();this.innerName = innerName;
}}

其次一个接口类:package com.xfire.core.service;
import java.util.List;
import com.xfire.core.entity.UserInfo;
/**?*@author jilongliang?*@Date 2012-2-29?*/public interface?IUserInfoService?{public List<UserInfo> getAddressList();
public List<UserInfo> setAddresses(List<UserInfo> list);}

然后新建一个实现类去实现接口
package com.xfire.core.service.impl;
import java.util.ArrayList;import java.util.List;
import com.xfire.core.entity.UserInfo;import com.xfire.core.service.IUserInfoService;
/**?*@author jilongliang?*@Date 2012-2-29?*/public class UserInfoServiceImpl implements IUserInfoService {
private int requestCount = 0;
public List<UserInfo> getAddressList() {requestCount++;System.out.println("requestCount" + requestCount);List<UserInfo> listAdd = new ArrayList<UserInfo>();UserInfo address = new UserInfo();address.setIdentifier(1);address.setCountry("中國");address.setProivice("廣東省");address.setCity("陽江");address.setAddress("廣東陽春");address.setPostCode("1111111");address.setExist(false);address.setArrary(new String[] { "22", "23", "24" });listAdd.add(address);
address.setIdentifier(2);address.setCountry("中國");address.setProivice("廣東省");address.setCity("陽江");address.setAddress("廣東陽春");address.setPostCode("1111111");address.setExist(false);address.setArrary(new String[] { "a", "b", "c" });listAdd.add(address);
return listAdd;}
/**?*??* @param list?* @return?*/public List<UserInfo> setAddresses(List<UserInfo> list) {requestCount++;System.out.println("requestCount" + requestCount);return list;}
}

-----客户端
package com.xfire.core.client;
import java.net.MalformedURLException;import java.util.ArrayList;import java.util.Iterator;import java.util.List;
import org.codehaus.xfire.client.XFireProxyFactory;import org.codehaus.xfire.service.Service;import org.codehaus.xfire.service.binding.ObjectServiceFactory;
import com.xfire.core.entity.UserInfo;import com.xfire.core.service.IUserInfoService;
/**?*@author jilongliang?*@Date 2012-3-5?*??*/public class?UserInfoClient?{
public static void main(String[] args) {getServiceList();setServiceList();}
static String url = "http://localhost:8081/xfire/services/UserInfo";
/**?*??*/public static void getServiceList() {Service service = new ObjectServiceFactory().create(IUserInfoService.class);
try {IUserInfoService iAddressService = (IUserInfoService) new XFireProxyFactory().create(service, url);List<UserInfo> list = (ArrayList<UserInfo>) iAddressService.getAddressList();
System.out.println("一共多少条数据：" + list.size());
for (Iterator<UserInfo> iter = list.iterator(); iter.hasNext();) {
UserInfo a = iter.next();
System.out.println(a);}
} catch (MalformedURLException e) {e.printStackTrace();}}
public static void setServiceList() {Service service = new ObjectServiceFactory().create(IUserInfoService.class);
try {IUserInfoService iAddressService = (IUserInfoService) new XFireProxyFactory().create(service, url);
List<UserInfo> listAdd = new ArrayList<UserInfo>();UserInfo address = new UserInfo();address.setIdentifier(1);address.setCountry("中國");address.setProivice("廣東省");address.setCity("陽江");address.setAddress("廣東陽春");address.setPostCode("1111111");address.setExist(false);address.setArrary(new String[] { "22", "23", "24" });listAdd.add(address);
address.setIdentifier(2);address.setCountry("中國");address.setProivice("廣東省");address.setCity("陽江");address.setAddress("廣東陽春");address.setPostCode("1111111");address.setExist(false);address.setArrary(new String[] { "a", "b", "c" });listAdd.add(address);
List<UserInfo> returnAdd = iAddressService.setAddresses(listAdd);
System.out.println("总数:" + returnAdd);
for (Iterator<UserInfo> it = returnAdd.iterator(); it.hasNext();) {UserInfo address2 = it.next();
System.out.println(address2);}
} catch (MalformedURLException e) {e.printStackTrace();}
}}

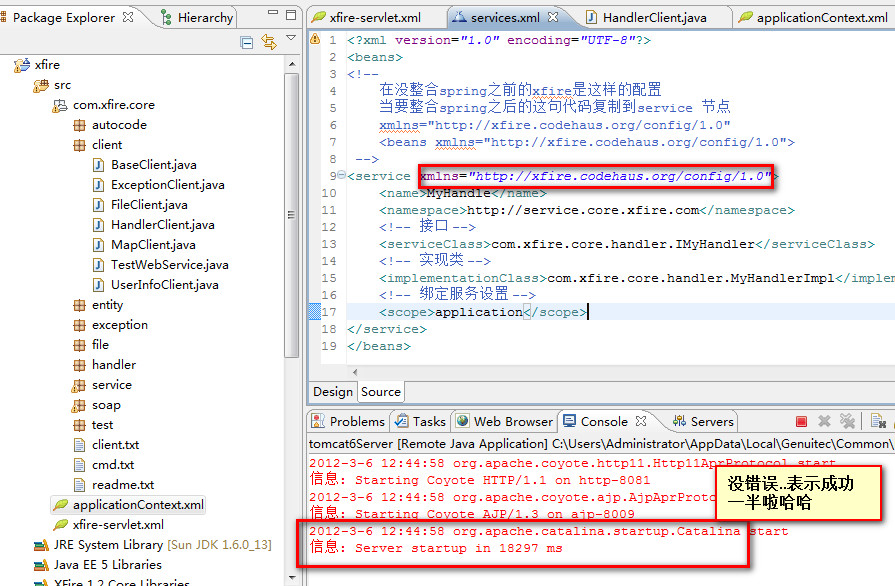

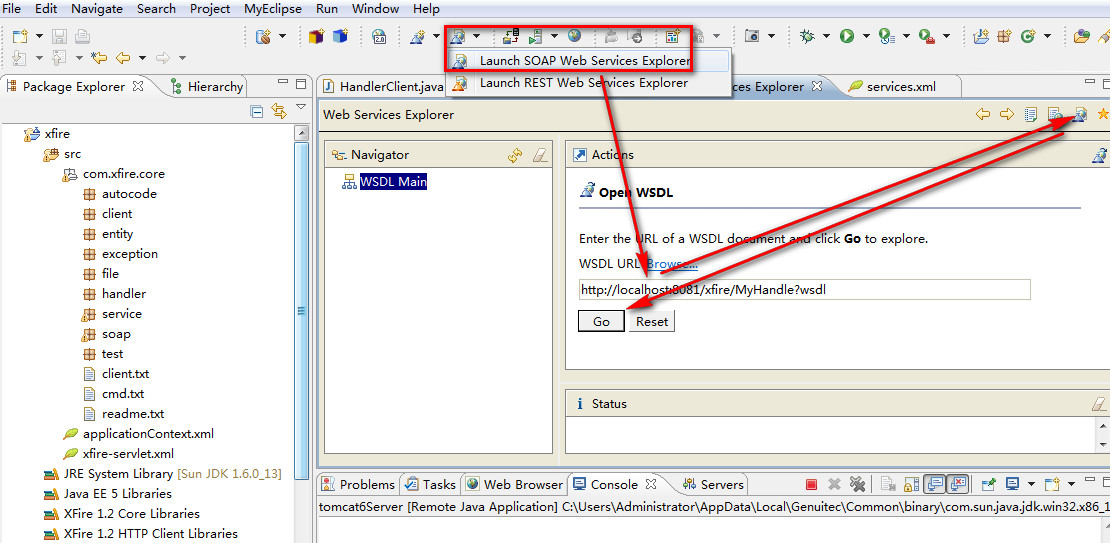

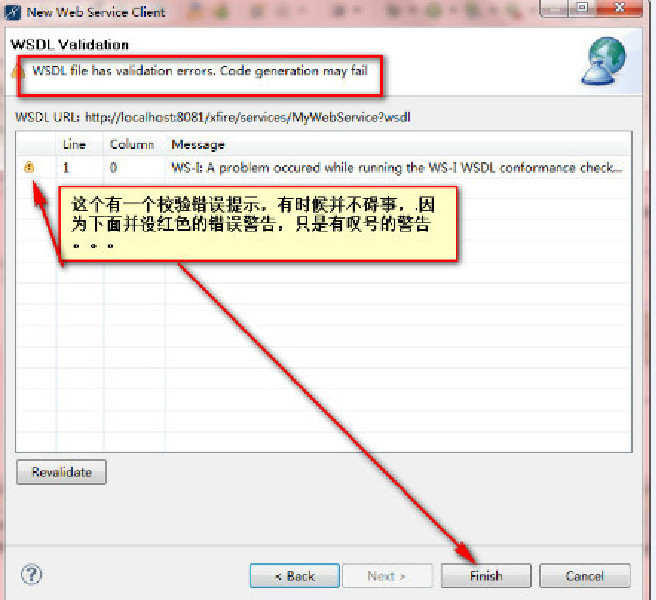

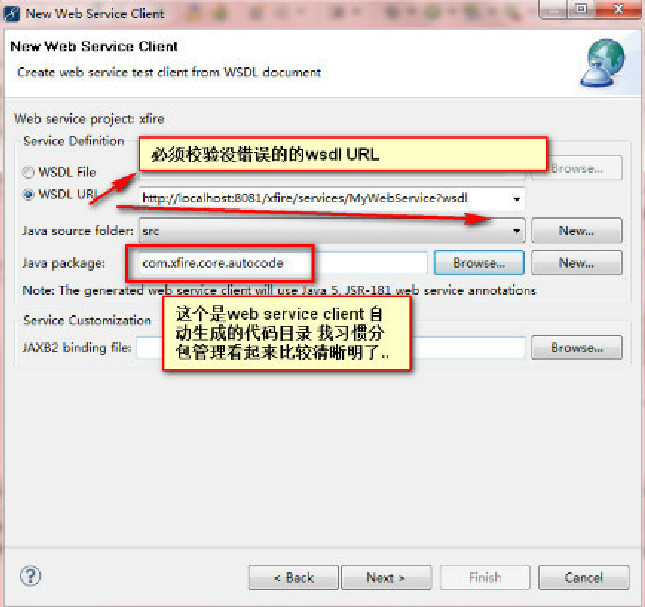

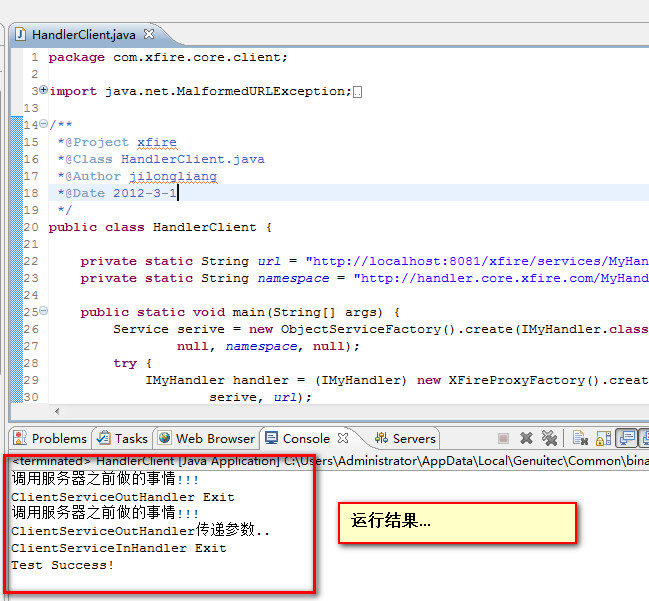

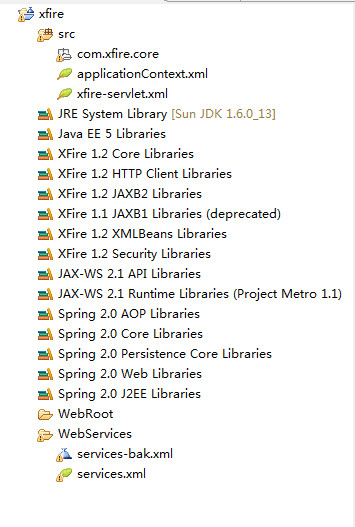

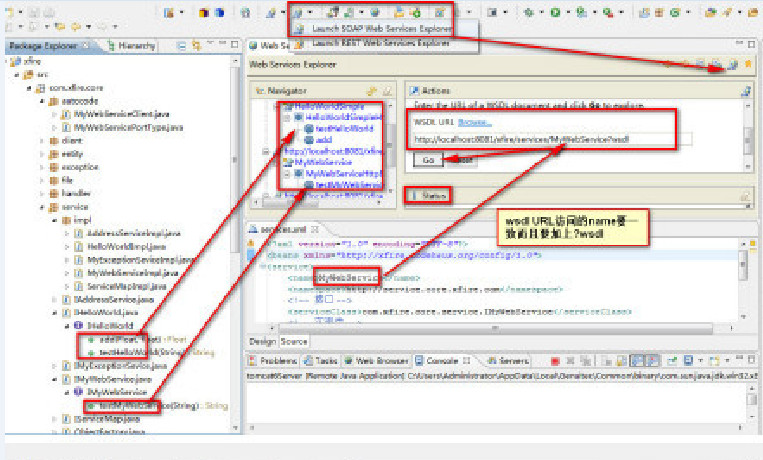

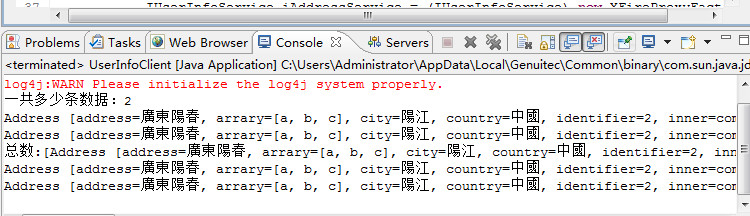

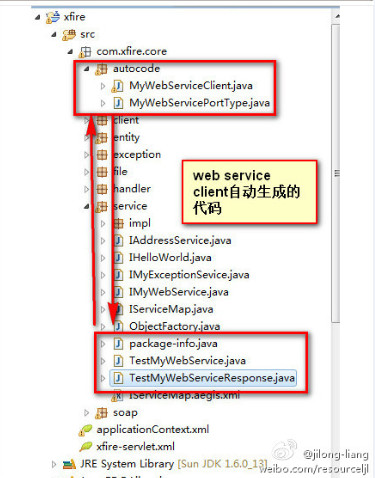

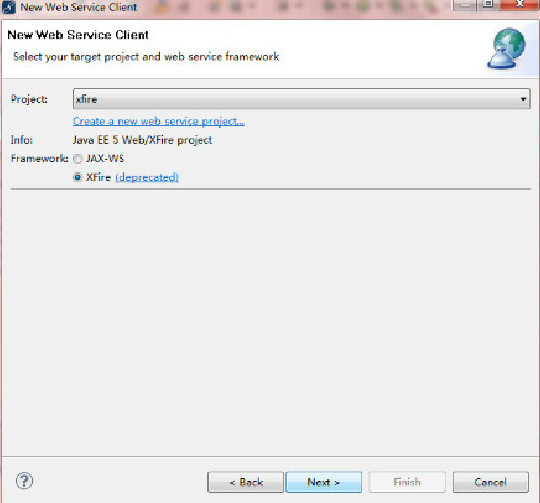

图解----
