latex中不规则报表合并multirow、multicolumn的使用

2012-07-03
latex中不规则表格合并multirow、multicolumn的使用nrows设定所占用的行数。bigstructs此为可选项,主要是在

latex中不规则表格合并multirow、multicolumn的使用

nrows

设定所占用的行数。

bigstructs

此为可选项,主要是在你使用了

width

设定该栏文本的宽度。如果想让 LaTeX 自行决定文本的宽度,则用

fixup

此为可选项,主要用来调整文本的垂直位置。

text

所要排版的文本。可用 更多的例子:

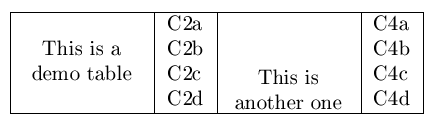

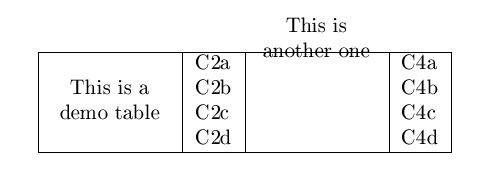

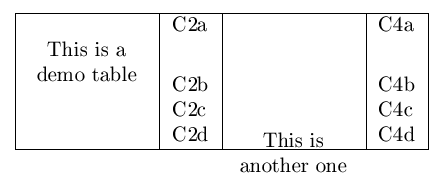

\bigstrutjot=1pt% \begin{tabular}{|l|l|l|l|} \hline \multirow{4}{2cm}{This is a demo table} & C2a & \multirow{4}{2cm}{This is another one} & C4a\\ & C2b & & C4b\\ & C2c & & C4c\\ & C2d & & C4d\\ \hline \end{tabular}latex中不规则报表合并multirow、multicolumn的使用 \begin{tabular}{|l|l|l|l|} \hline \multirow{4}{2cm}{This is a demo table} & C2a & \multirow{4}[30]{2cm}{This is another one} & C4a\\ & C2b & & C4b\\ & C2c & & C4c\\ & C2d & & C4d\\ \hline \end{tabular} latex中不规则报表合并multirow、multicolumn的使用 \begin{tabular}{|l|l|l|l|} \hline \multirow{4}{2cm}{This is a demo table} & C2a & \multirow{4}{2cm}[30pt]{This is another one} & C4a\\ & C2b & & C4b\\ & C2c & & C4c\\ & C2d & & C4d\\ \hline \end{tabular} latex中不规则报表合并multirow、multicolumn的使用 \begin{tabular}{|l|l|l|l|} \hline \multirow{4}{2cm}{This is a demo table} & C2a & \multirow{4}[30]{2cm}[-30pt]{This is another one} & C4a\\ & C2b & & C4b\\ & C2c & & C4c\\ & C2d & & C4d\\ \hline \end{tabular} latex中不规则报表合并multirow、multicolumn的使用

有关 multirow 宏包更详细的说明,可参见它的说明文档(英文 PDF 格式)。
