JBPM4.4 撤消任务/回退任务/自由流【转】

JBPM4.4 撤销任务/回退任务/自由流【转】

JBPM4.4任务撤销操作/回退操作/自由流
详细操作看注释。

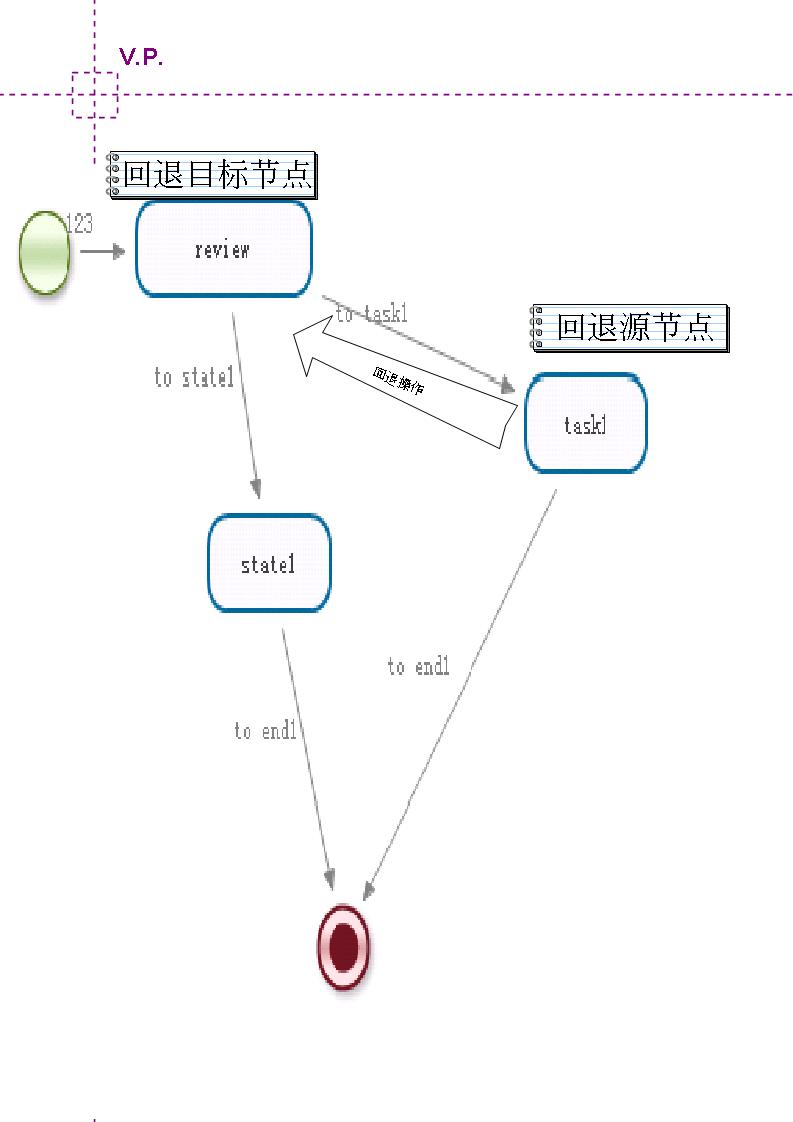

操作示意图

task.jpdl.xml

<?xml version="1.0" encoding="UTF-8"?><process name="TaskAssignee" xmlns="http://jbpm.org/4.3/jpdl"> <start g="20,20,48,48"> <transition g="-23,-17" name="123" to="review"/> </start> <task assignee="#{order.owner}" g="96,16,127,52" name="review"> <transition g="-59,-17" name="to state1" to="state1"/> <transition g="-53,-17" name="to task1" to="task1"/> </task> <state g="143,142,92,52" name="state1"> <transition g="-47,-17" name="to end1" to="end1"/> </state> <task assignee="#{order.owner}" g="348,86,92,52" name="task1"> <transition name="to end1" to="end1" g="-47,-17"/> </task><end g="213,298,48,48" name="end1"/></process>



TestUndoTask.java

?
package?TestPackage; ????import?static?org.junit.Assert.*; ????import?java.util.HashMap; ??import?java.util.Iterator; ??import?java.util.List; ??import?java.util.Map; ??import?java.util.Set; ????import?javax.annotation.Resource; ????import?org.jbpm.api.Configuration; ??import?org.jbpm.api.ExecutionService; ??import?org.jbpm.api.HistoryService; ??import?org.jbpm.api.ProcessDefinition; ??import?org.jbpm.api.ProcessEngine; ??import?org.jbpm.api.ProcessInstance; ??import?org.jbpm.api.RepositoryService; ??import?org.jbpm.api.TaskService; ??import?org.jbpm.api.history.HistoryActivityInstance; ??import?org.jbpm.api.task.Task; ??import?org.jbpm.examples.task.assignee.Order; ??import?org.jbpm.pvm.internal.env.EnvironmentFactory; ??import?org.jbpm.pvm.internal.env.EnvironmentImpl; ??import?org.jbpm.pvm.internal.model.ActivityImpl; ??import?org.jbpm.pvm.internal.model.ExecutionImpl; ??import?org.jbpm.pvm.internal.model.ProcessDefinitionImpl; ??import?org.jbpm.pvm.internal.model.TransitionImpl; ??import?org.jbpm.pvm.internal.task.TaskImpl; ??import?org.junit.*; ??import?org.springframework.test.context.ContextConfiguration; ??import?org.springframework.test.context.junit4.AbstractJUnit4SpringContextTests; ????import?IdentitySessionImp.DhbsIdentitySessionImp; ????@ContextConfiguration("classpath:applicationContext.xml") ??public?class?TestUndoTask?extends?AbstractJUnit4SpringContextTests?{ ??????private?String?deploymentId; ??????private?ProcessEngine?processEngine; ??????private?TaskService?taskService; ??????private?RepositoryService?repositoryService; ??????private?ExecutionService?executionService; ??????private?HistoryService?historyService; ?????? ??????public?TestUndoTask()?{ ??????} ????????@BeforeClass??????public?static?void?setUpClass()?throws?Exception?{ ??????} ????????@AfterClass??????public?static?void?tearDownClass()?throws?Exception?{ ??????} ????????@Before??????public?void?setUp()?{ ??????????processEngine?=?Configuration.getProcessEngine(); ??????????repositoryService?=?processEngine ??????????????????.getRepositoryService(); ??????????executionService?=?processEngine.getExecutionService(); ??????????taskService?=?processEngine.getTaskService(); ??????????historyService?=?processEngine.getHistoryService(); ??????????deploymentId?=?repositoryService.createDeployment() ??????????.addResourceFromClasspath("task.jpdl.xml") ??????????.deploy(); ??????} ????????@After??????public?void?tearDown()?{ ??????????repositoryService.deleteDeploymentCascade(deploymentId); ??????} ????????/*@Resource ?????private?DhbsIdentitySessionImp?identitySession;*/????????@Test??????public?void?testTaskAssignee()?{ ???????????? ??????????//显示流程定义 ????????????ProcessDefinition?pd?=?repositoryService.createProcessDefinitionQuery().uniqueResult(); ????????????System.out.println("显示流程定义??"+pd.getId()+"??"+pd.getKey()+"??"+"??"+pd.getName()); ??????????Map<String,?Object>?variables?=?new?HashMap<String,?Object>();? ??????????variables.put("order",?new?Order("johndoe")); ??????????//启动1个实例 ??????????ProcessInstance?processInstance3?=?executionService.startProcessInstanceByKey("TaskAssignee",?variables); ??????????String?p3id?=?processInstance3.getId(); ??????????//johndoe的任务列表这时有了1条待办任务 ??????????List<Task>?taskList?=?taskService.findPersonalTasks("johndoe"); ??????????assertEquals(1,?taskList.size()); ??????????for(Task?task?:?taskList){ ??????????????System.out.println("task.getId()?=?"+task.getId()); ??????????????System.out.println("task.getName()?=?"+task.getName()); ??????????} ?????????? ??????????Task?task1?=?taskList.get(0); ??????????//查看第一个待办任务所有流出的节点 ??????????Set<String>?outcomes?=?taskService.getOutcomes(task1.getId()); ??????????Iterator?it?=?outcomes.iterator(); ??????????while(it.hasNext()){ ??????????????String?str?=?(String)?it.next(); ??????????????System.out.println("outcome?=?"+str); ??????????} ??????????assertEquals("review",?task1.getName()); ??????????assertEquals("johndoe",?task1.getAssignee()); ??????????//流程向下运行 ??????????Map<String,?Object>?assignMap?=?new?HashMap<String,?Object>();? ??????????assignMap.put("order",?new?Order("we")); ??????????taskService.completeTask(task1.getId(),"to?task1",assignMap); ??????????//重新查询才能看到状态改变 ??????????List<ProcessInstance>?piList?=?executionService.createProcessInstanceQuery().list(); ??????????for(ProcessInstance?pi?:?piList){ ??????????????System.out.println(pi.findActiveActivityNames()); ??????????} ?????????? ??????????//?查看johndoe的待办任务列表是否空了 ??????????List<Task>?johndoetaskList_?=?taskService.findPersonalTasks("johndoe"); ??????????System.out.println("johndoetaskList0.size()?=?"+johndoetaskList_.size()); ??????????assertEquals(0,?johndoetaskList_.size()); ?????????? ??????????//打印在此节点流程的相关信息。这里可以看出getExecutionId()就是流程实例的id即processInstance.getId() ??????????List<HistoryActivityInstance>?list?=?historyService.createHistoryActivityInstanceQuery().activityName("state1").list(); ??????????for(HistoryActivityInstance?activity?:?list){ ??????????????System.out.println("getActivityName()?=?"+activity.getActivityName()); ??????????????System.out.println("getExecutionId()?=?"+activity.getExecutionId()); ??????????} ?????????? ???????//?查看撤销前johndoe的待办任务列表是否为零个 ??????????List<Task>?johndoetaskList0?=?taskService.findPersonalTasks("johndoe"); ??????????System.out.println("查看撤销前johndoe的待办任务列表是否为零个"); ??????????System.out.println("johndoe_taskList1.size()?=?"+johndoetaskList0.size()); ??????????if(johndoetaskList0.size()?>?0){ ??????????????TaskImpl?before_johndoetask?=?(TaskImpl)johndoetaskList0.get(0); ??????????????String?before_johndoetask_actName?=?before_johndoetask.getActivityName(); ??????????????String?before_johndoetask_ExecutionId?=?before_johndoetask.getExecutionId(); ??????????????System.out.println("before_johndoetask_actName?=?"+before_johndoetask_actName); ??????????????System.out.println("before_johndoetask_ExecutionId?=?"+before_johndoetask_ExecutionId); ??????????????assertEquals(0,?johndoetaskList0.size()); ??????????} ?????????? ??????????//查看撤销前we的待办任务列表是否为一个 ??????????List<Task>?wetaskList1?=?taskService.findPersonalTasks("we"); ??????????System.out.println("查看撤销前we的待办任务列表是否为一个"); ??????????System.out.println("we_taskList1.size()?=?"+wetaskList1.size()); ??????????if(wetaskList1.size()?>?0){ ??????????????TaskImpl?before_wetask?=?(TaskImpl)wetaskList1.get(0); ??????????????String?before_wetask_actName?=?before_wetask.getActivityName(); ??????????????String?before_wetask_ExecutionId?=?before_wetask.getId(); ??????????????System.out.println("before_wetask_actName?=?"+before_wetask_actName); ??????????????System.out.println("before_wetask_ExecutionId?=?"+before_wetask_ExecutionId); ??????????} ?????????? ??????????assertEquals(1,?wetaskList1.size()); ??????????ProcessDefinitionImpl?pdi?=?(ProcessDefinitionImpl)pd; ??????????TaskImpl?wetask?=?(TaskImpl)wetaskList1.get(0); ??????????//进行撤销操作 ??????????addOutTransition(pdi,wetask,"review"); ??????????//重新查询才能看到状态改变 ??????????List<ProcessInstance>?piList1?=?executionService.createProcessInstanceQuery().list(); ??????????for(ProcessInstance?pi?:?piList1){ ??????????????System.out.println(pi.findActiveActivityNames()); ??????????} ?????????? ??????????//?查看撤销后johndoe的待办任务列表是否为一个 ??????????List<Task>?johndoetaskList1?=?taskService.findPersonalTasks("johndoe"); ??????????System.out.println("查看撤销后johndoe的待办任务列表是否为一个"); ??????????System.out.println("johndoetaskList1.size()?=?"+johndoetaskList1.size()); ??????????if(johndoetaskList1.size()?>?0){ ??????????????TaskImpl?johndoetask?=?(TaskImpl)johndoetaskList1.get(0); ??????????????String?johndoetask_actName?=?johndoetask.getActivityName(); ??????????????String?johndoetask_ExecutionId?=?johndoetask.getExecutionId(); ??????????????System.out.println("johndoetask_actName?=?"+johndoetask_actName); ??????????????System.out.println("johndoetask_ExecutionId?=?"+johndoetask_ExecutionId); ??????????} ?????????? ??????????//assertEquals(1,?johndoetaskList1.size()); ??????????//查看撤销后we的待办任务列表是否变为零个 ??????????List<Task>?wetaskList?=?taskService.findPersonalTasks("we"); ??????????System.out.println("查看撤销后we的待办任务列表是否为零个"); ??????????System.out.println("wetaskList.size()?=?"+wetaskList.size()); ??????????if(wetaskList.size()?>?0){ ??????????????TaskImpl?taskwww?=?(TaskImpl)wetaskList.get(0); ??????????????String?wetask_actName?=?taskwww.getActivityName(); ??????????????String?wetask_ExecutionId?=?taskwww.getExecutionId(); ??????????????System.out.println("wetask_actName?=?"+wetask_actName); ??????????????System.out.println("wetask_ExecutionId?=?"+wetask_ExecutionId); ??????????} ????????} ?????? ??????/**? ????????*?动态创建连接当前任务节点至名称为destName的节点的Transition? ????????*?@param?taskId?任务节点ID? ????????*?@param?sourceTask?源节点Task ????????*?@param?destName??目标节点名称? ????????*/????????public?void?addOutTransition(ProcessDefinitionImpl?pd,TaskImpl?sourceTask,String?destName){ ?????????EnvironmentFactory?environmentFactory?=?(EnvironmentFactory)?processEngine; ?????????EnvironmentImpl?env=null; ?????????try?{ ?????????????env?=?environmentFactory.openEnvironment(); ?????????????//取得当前流程的活动定定义 ?????????????ActivityImpl?sourceActivity?=?pd.findActivity(sourceTask.getActivityName()); ?????????????//取得目标的活动定义 ?????????????ActivityImpl?destActivity=pd.findActivity(destName); ?????????????//为两个节点创建连接 ?????????????TransitionImpl?transition?=?sourceActivity.createOutgoingTransition(); ?????????????transition.setName("to"?+?destName); ?????????????transition.setDestination(destActivity); ?????????????sourceActivity.addOutgoingTransition(transition); ?????????????System.out.println("sourceActivity.getName()?=?"+sourceActivity.getName()); ?????????????System.out.println("destActivity.getName()?=?"+destActivity.getName()); ????????????? ?????????????Map<String,?Object>?variables?=?new?HashMap<String,?Object>();? ?????????????variables.put("order",?new?Order("johndoe")); ?????????????System.out.println("task1.getId()?=?"+sourceTask.getId()); ???????????? ?????????????taskService.completeTask(sourceTask.getId(),transition.getName(),variables); ?????????}catch(Exception?ex){ ?????????????ex.getMessage(); ?????????}finally{?? ?????????????env.close(); ?????????} ??????} ??}??

2 楼 tree_161219 2010-10-18?? 哥们 我找到你这个例子的问题了。 不需要EnvironmentFactory 这个。去掉就可以了1 楼 tree_161219 2010-10-18?? 楼主，这个例子跑步通啊~~~运行后发现：1、 任务状态没有回到review，并且也不再we的代办列表中。 2、 在johndoe的任务列表中也没有这任务。
最近在学习JBPM。遇到这个问题，请指教！
